45 mm replacement piston with two pieces of 1.5 mm rectangular piston ring with internal fuse (IS) for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
Tolerance type: A

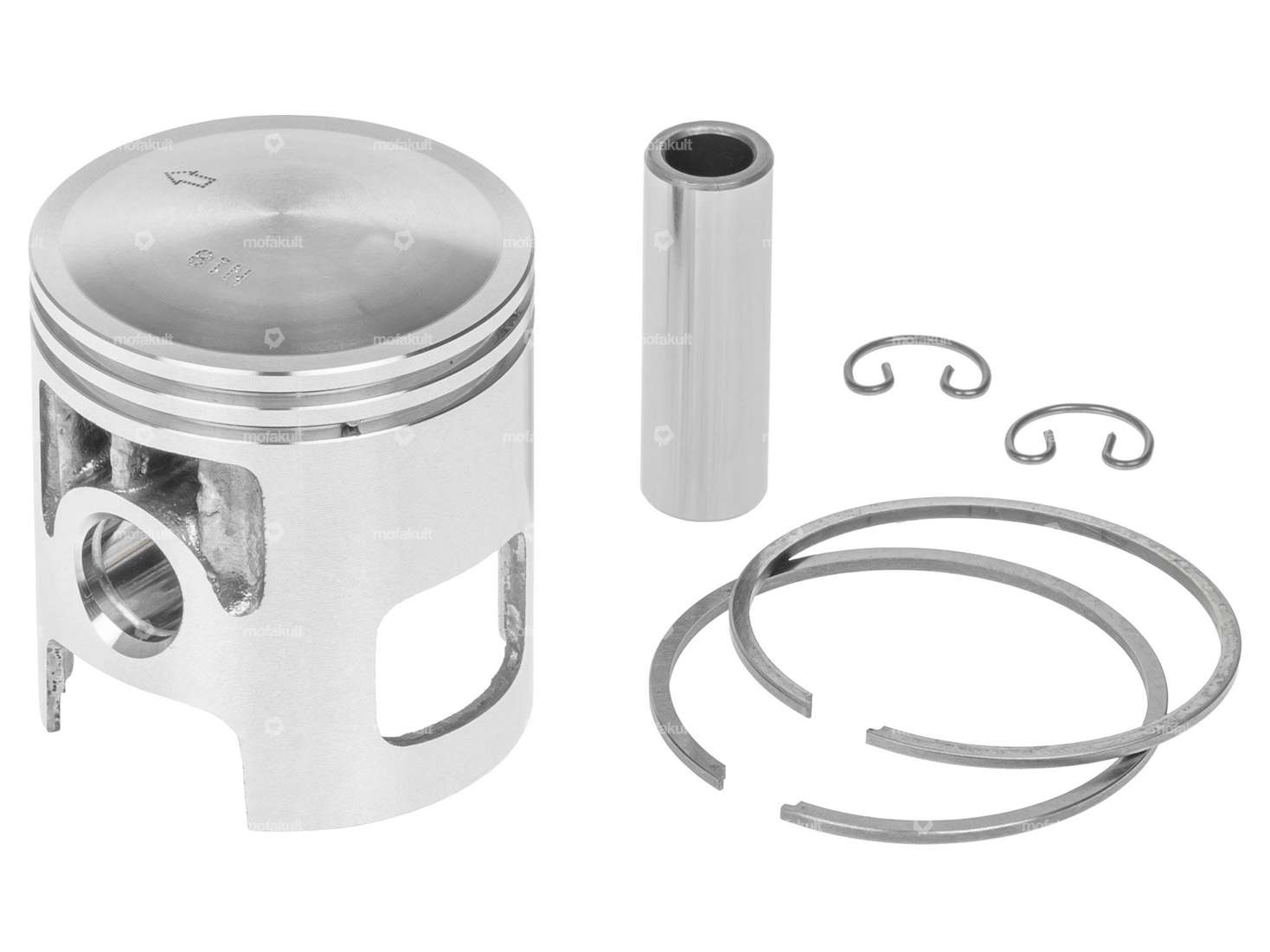

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Athena.
Details
| Nominal diameter | 45 mm |
| Manufacturer | Athena |
| Ø outside piston (A) | 44.9 mm |
| Compression height (C) | 25 mm |
| Curvature (D) | 2.8 mm |
| Total piston height (E) | 50.8 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | A |
| Weight | 94 g |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
Accessories & related products
Athena 45 mm cylinder kit incl. diaphragm AJH | Puch
Manufacturer: Athena · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 47.8 mm · Camouflaged: No · Nominal diameter: 45 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 16 mm · Ø outlet inside: 26 mm · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Ø piston pin (B): 12 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread)
