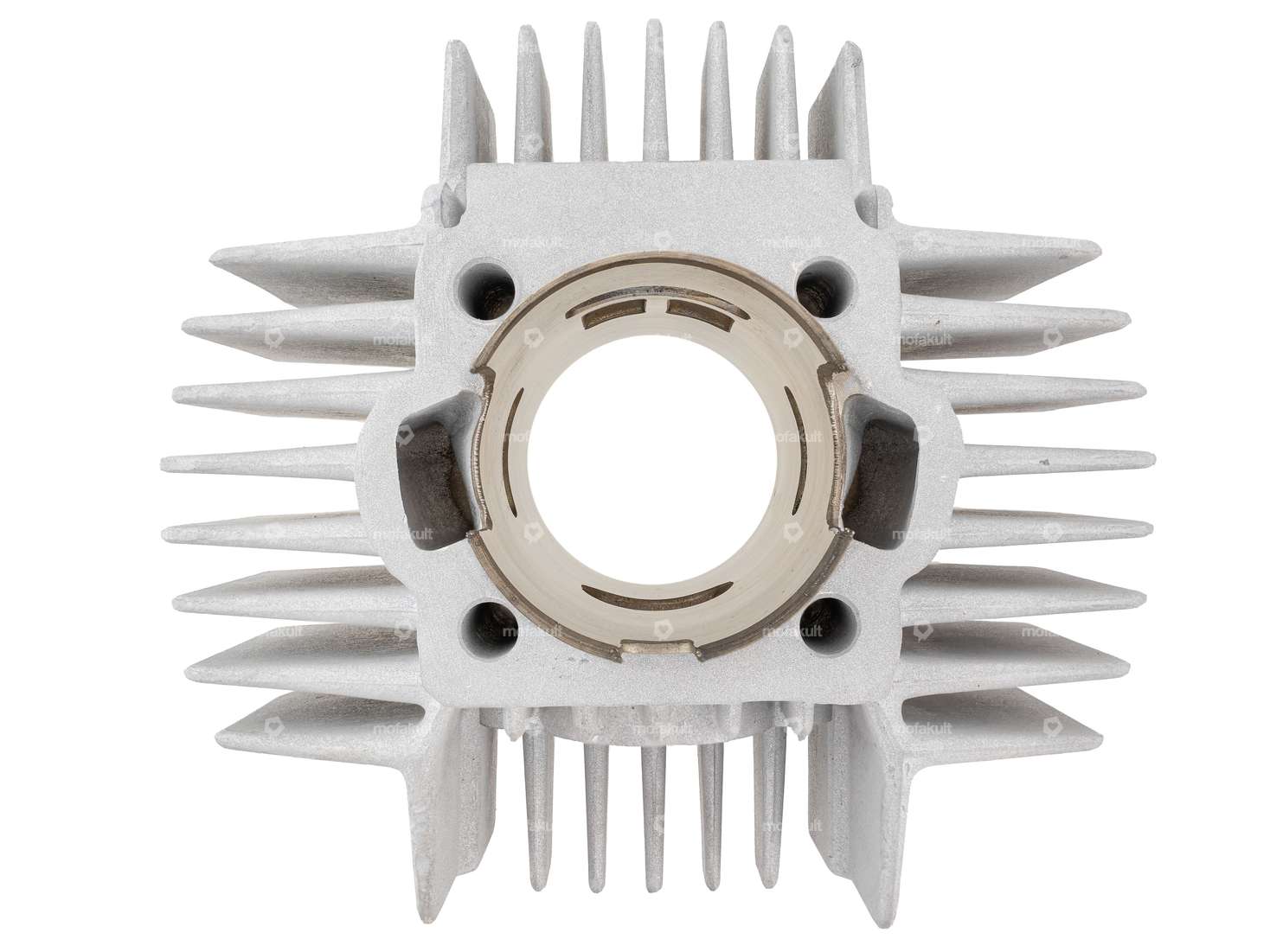

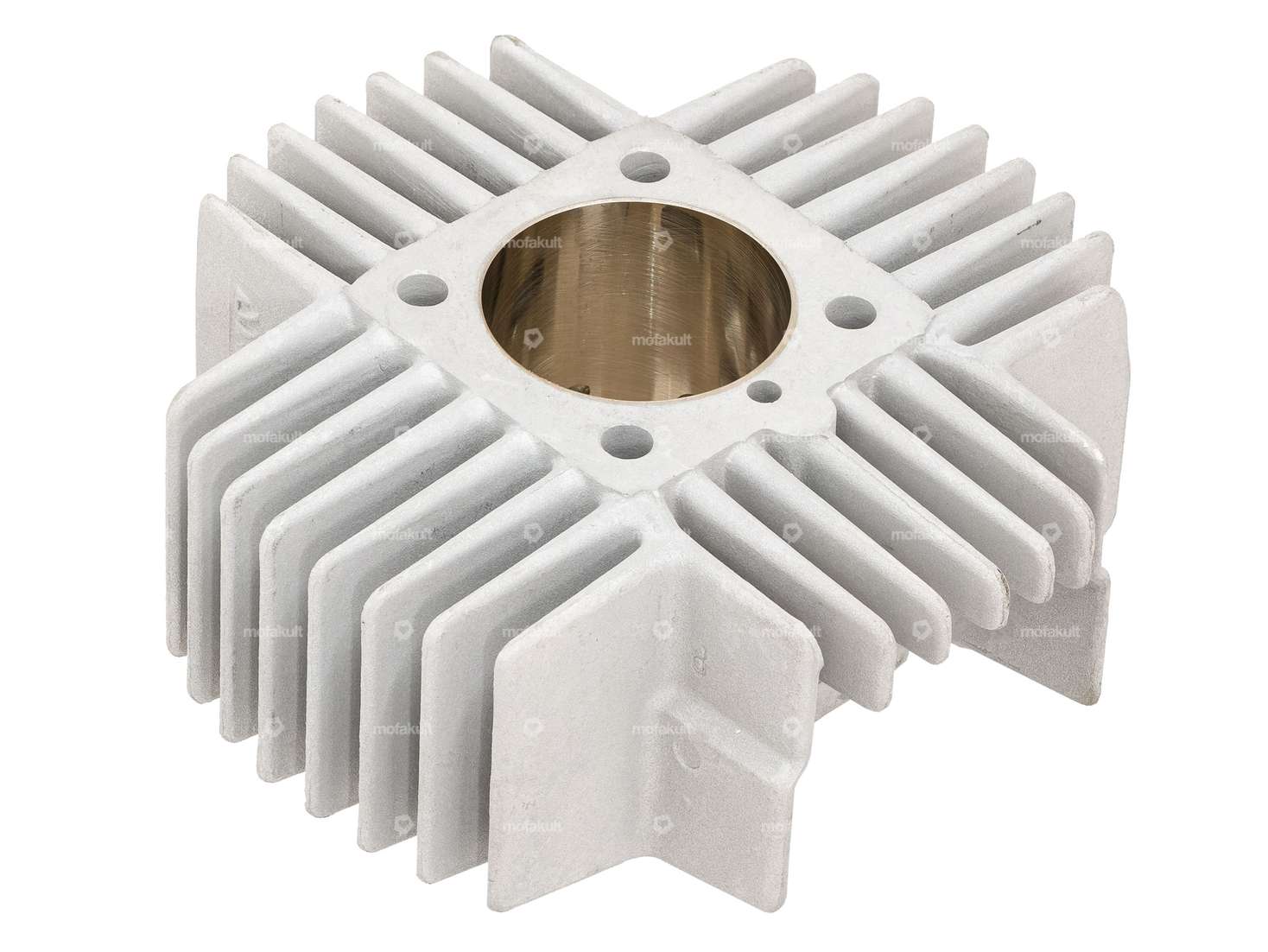

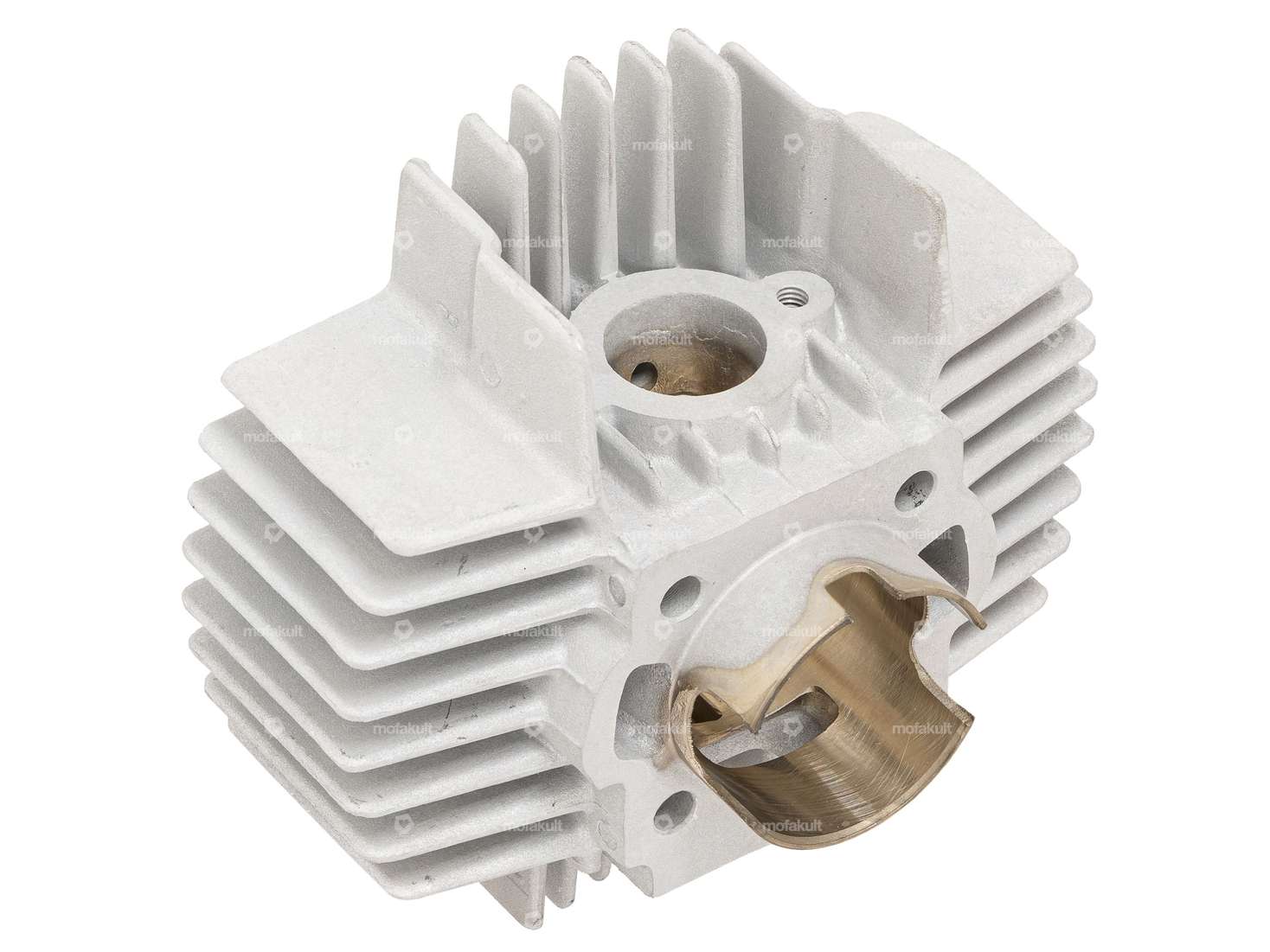

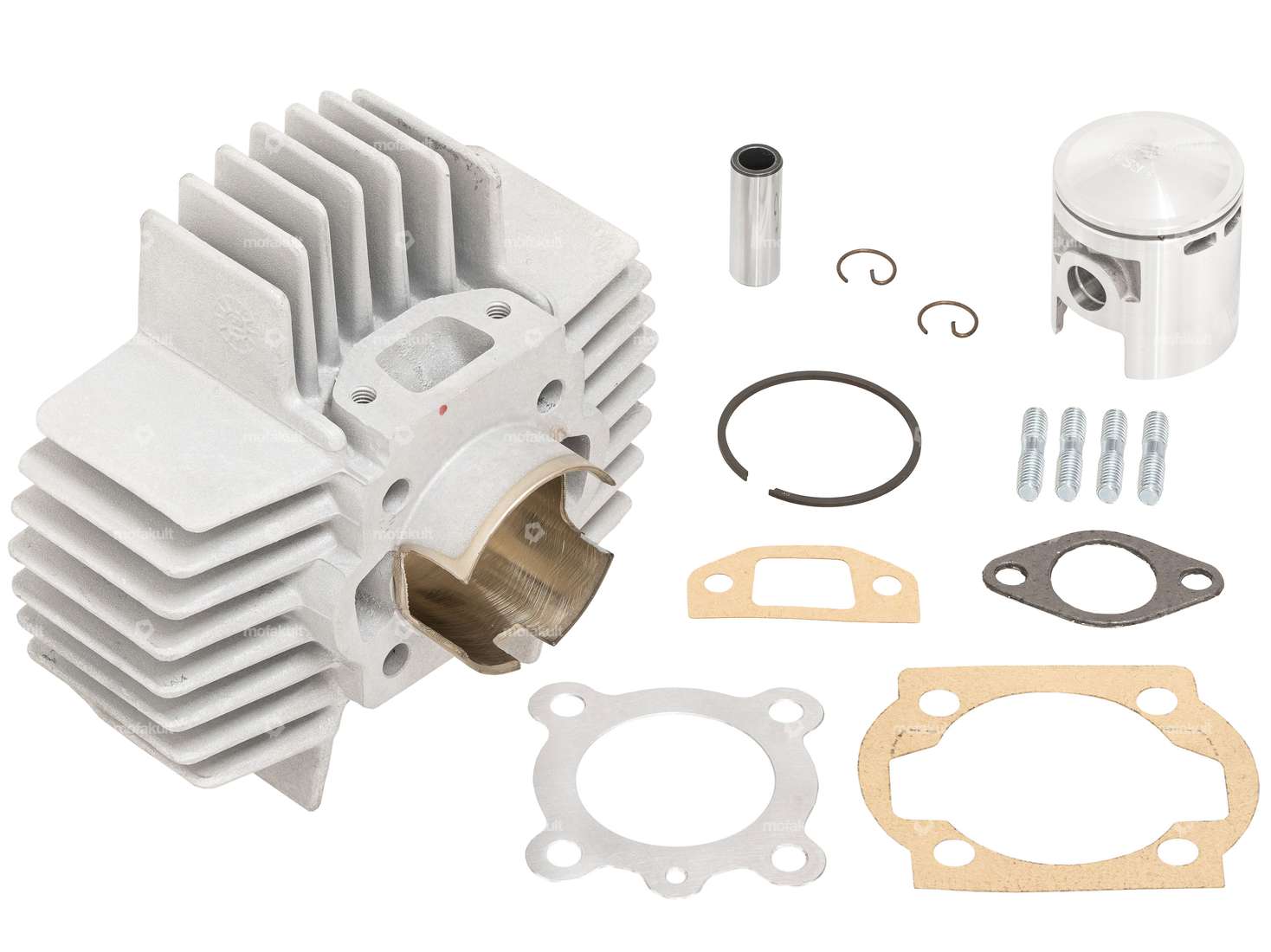

Airsal 45 mm cylinder kit large ribs

Airsal piston 45 mm | Puch

Manufacturer: Airsal · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.3 mm · Total piston height (E): 50.3 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Thick piston ring: 2 mm · Piston weight: 91 g

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

GPO 45 mm cylinder head tuning Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Ø cylinder: 45 mm · Candle thread: short · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes

swiing® revival stud bolt M6 x 106 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Thread length: 20 mm · Puch OEM number: 360.1.10.034.1

Airsal gasket set 44 - 45 mm

Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Area of application: Tuning · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

Airsal piston ring 45x1.5 mm hard chrome-plated | Puch

Manufacturer: Airsal · Surface: hard chrome plated · Height: 1.5 mm · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Alternative version of the Pony OEM number: A4222 · Alternative version of the Sachs OEM number: 0232 157 001 · Tomos OEM number: 035548

GPO 45 mm cylinder head tuning new version | Puch (AT)

Width: 140 mm · Height: 55 mm · Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Total length: 135 mm · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Decompressor: No

Large outlet seal with metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Reinforced: Yes · Thickness: 2.1 mm · Area of application: Tuning · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm

GPO sprocket 15 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Surface: Hardened · Material: Steel · Ø inside: 13.7 mm · Ø inside: 16.9 mm · Number of teeth: 15 pcs · Recording type: Interlocking · Total thickness: 4.6 mm

Dell'Orto 19 mm PHBG CS carburetor hand choke

Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Color: black · Carburetor type: PHBG CS · Nominal diameter: 19 mm · Ø without reducing sleeve: 26 mm · Ø Inside entrance: 19 mm · Total length: 82 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø Internal connection: 24 mm · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Width: 70 mm · Mixed oil connection: Yes · Height: 124 mm · Mounting type: Plug connection clamped · Vacuum connection: Yes · Choke control: Hand choke · Area of application: Racing · Area of application: Tuning · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Number of components: 1 pcs · Nipple length: 5 mm · Area of application: Standard

GPO 45 mm cylinder head tuning Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Ø cylinder: 45 mm · Candle thread: short · Number of fixing points: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes

Exhaust mounting plate | Puch Maxi N

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Ø mounting hole: 8.5 mm · Ø mounting hole: 11 mm · Number of fixing points: 2 pcs · Cranking (offset): 23 mm

18.5 mm intake manifold Dell'Orto PHBG | Puch E50

Total length: 40 mm · Material: Aluminum · Surface: polished · Color: Chrome · Mounting type: Screws · Ø inside: 18.8 mm · Ø External connection: 23.9 mm · Area of application: Tuning · Number of fixing points: 2 pcs · Height flange center hole: 45 mm · Total height: 57 mm · Hole spacing inlet: 38 mm · Camouflaged: No

GPO 45 mm cylinder head with O-ring, AT model new version | Puch

Manufacturer: GPO · Material: Aluminum · Width: 137 mm · Height: 50 mm · Ø cylinder: 45 mm · Total length: 140 mm · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Candle thread: short · Number of fixing points: 4 pcs · Decompressor: No

swiing® ingenious 15 mm intake manifold camouflaged (Version 2.0) | Puch E50

Total length: 46 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Area of application: Tuning · Height flange center hole: 43 mm · Total height: 53 mm · Hole spacing inlet: 38 mm · Camouflaged: Yes
