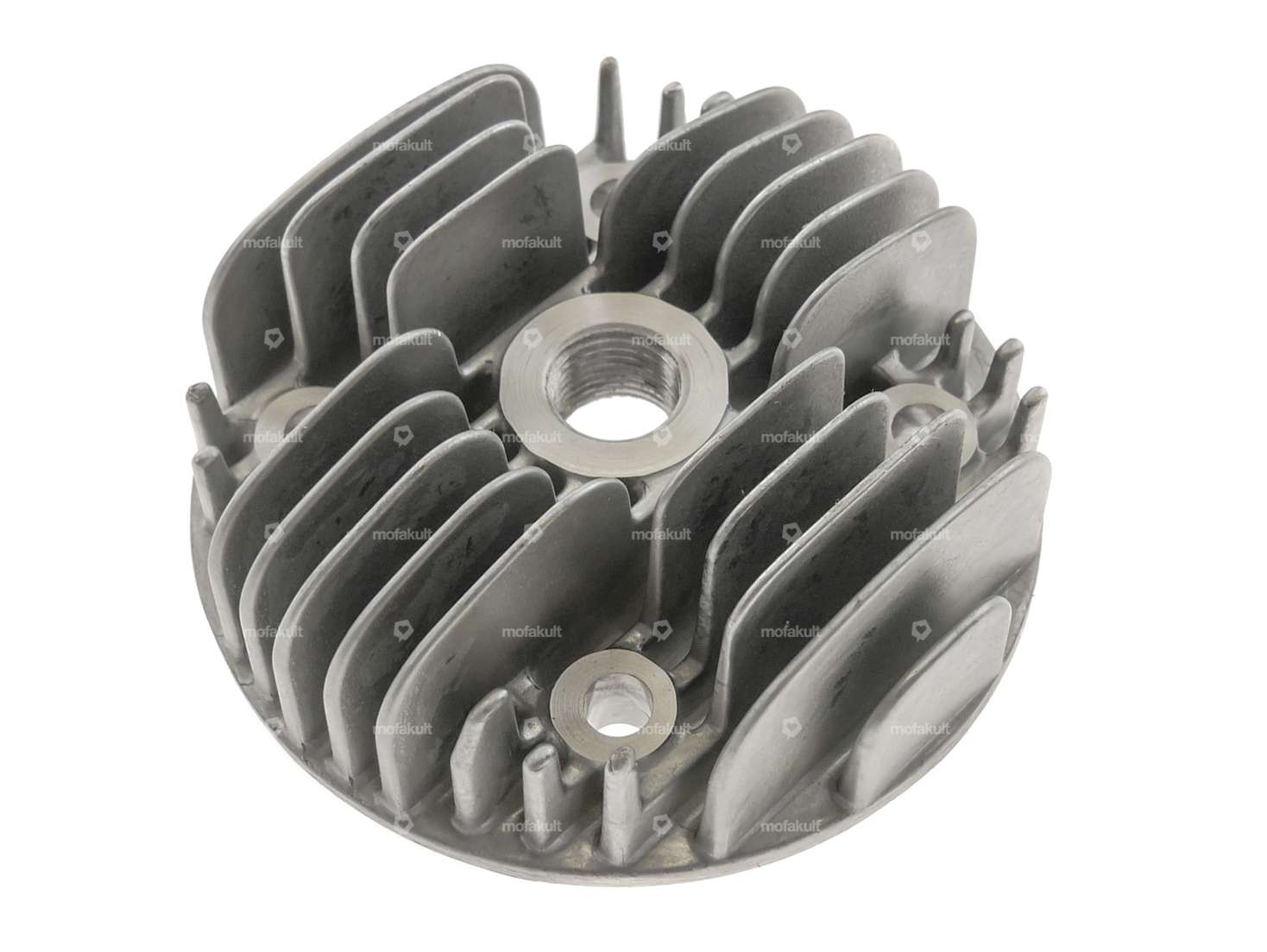

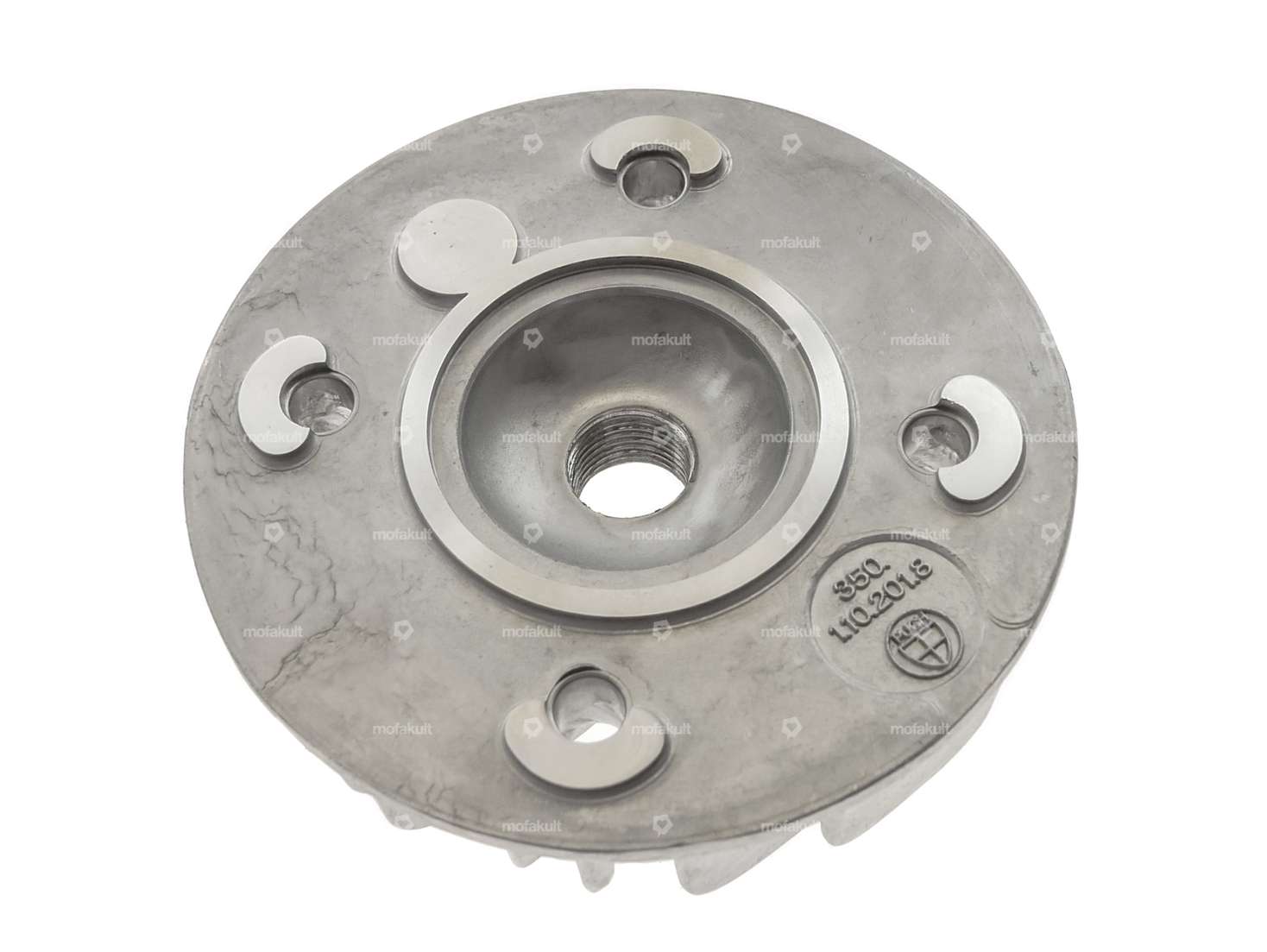

Cylinder cover with 39 mm combustion chamber diameter for blown cylinders of Puch X30 NG-2AH, Puch X30 NG-2A, Puch X30 N-2A, Puch DS 50, Puch MV 50, Puch MC 50, etc.
Attention: For use on Velux engines that have M7 stud bolts, the four holes must be drilled out slightly. Alternatively, you can find cylinder heads in the accessories section where the holes are already enlarged.
A good replica of the original CH model with small cooling fins, which is cooled by a fan wheel (fan).
This cylinder head does not have a mount for fitting a decompressor.
Dimension (Ø×H): 90 × 3.5 cm
Ø Stud bolt length: 6.4 mm
Original Puch spare part number: 350.1.10.201.8
Details
| Material | Aluminum |
| Ø cylinder | 38 mm |
| Ø screw holder | 6.4 mm |
| Hole pattern [mm] | 44 x 44 |
| Ø outside | 90 mm |
| Number of fixing points | 4 pcs |
| Candle thread | short |
| Area of application | Standard |
| Decompressor | No |
| Height | 35 mm |
Suitable for the following models
| Puch | ZA50 (fan-cooled) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
