For: Piaggio

34893

swiing® revival shim set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Home
| Motor
| Drive & transmission
| Gearbox (Piaggio)
26,70 EUR

Incl. 20% VAT.

Spacer set for the Vario gearbox type VG4, VG5 as well as for Pinasco, Polini and Malossi gearboxes on your Piaggio Ciao, Si, Bravo or Boxer moped / moped

.

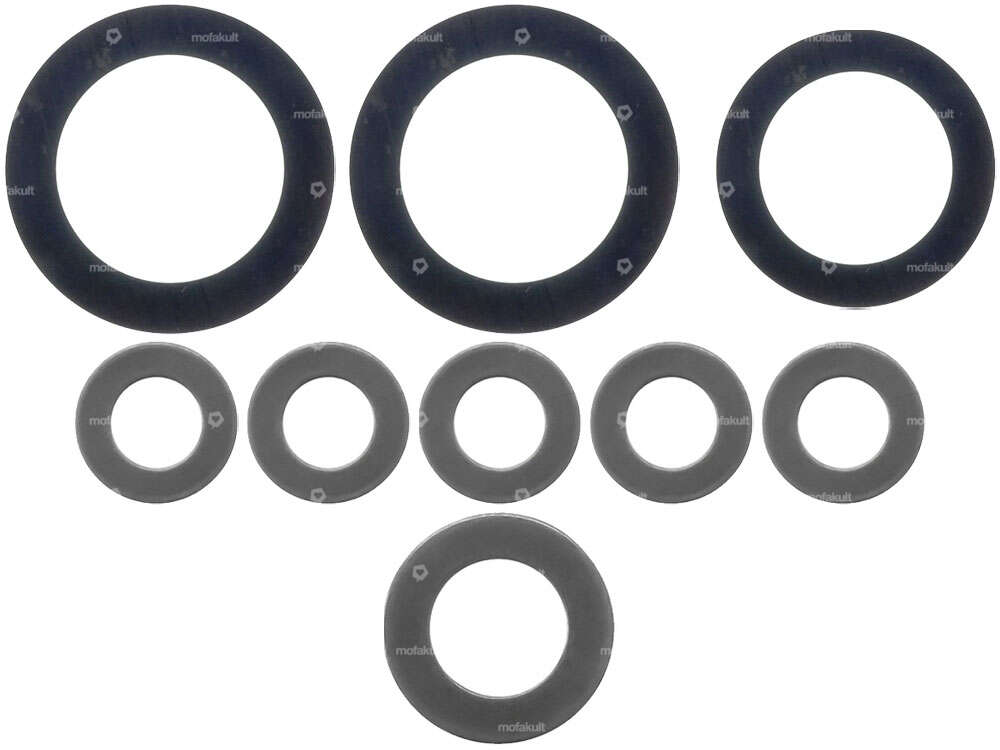

The shim set consists of the following individual parts:
1 pc. Shim 24/14/1.0
1 pc. Shim 15/28/1.0
1 pc. Shim 23/34/0.5
1 pc. Shim 20/33/1.0
5 pcs. Shim washers 18/10/1.0

Notes:
Variomatic transmission VG4: The gearboxes have additional lubrication slots at the bearing seats. This means that the small thrust washers with the dimensions 18/10/1 are required.
This type of gearbox was used in later model series (mostly with cast wheels).

Details

Manufacturerswiing® revival parts
MaterialSteel
Surfaceblank / oiled, Hardened
Piaggio OEM number175747, 131514, 131512, 131513, 175751

Suitable for the following models

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao

Si

Bravo/Superbravo

Boxer

Grillo

Gilera CBA

Gilera Citta
