Name: swiing® revival pinion splash guard fan | Zündapp Belmondo (Type 247)
Brand: swiing® revival parts
SKU: 19458
Price: 22.40 EUR
Availability: InStock

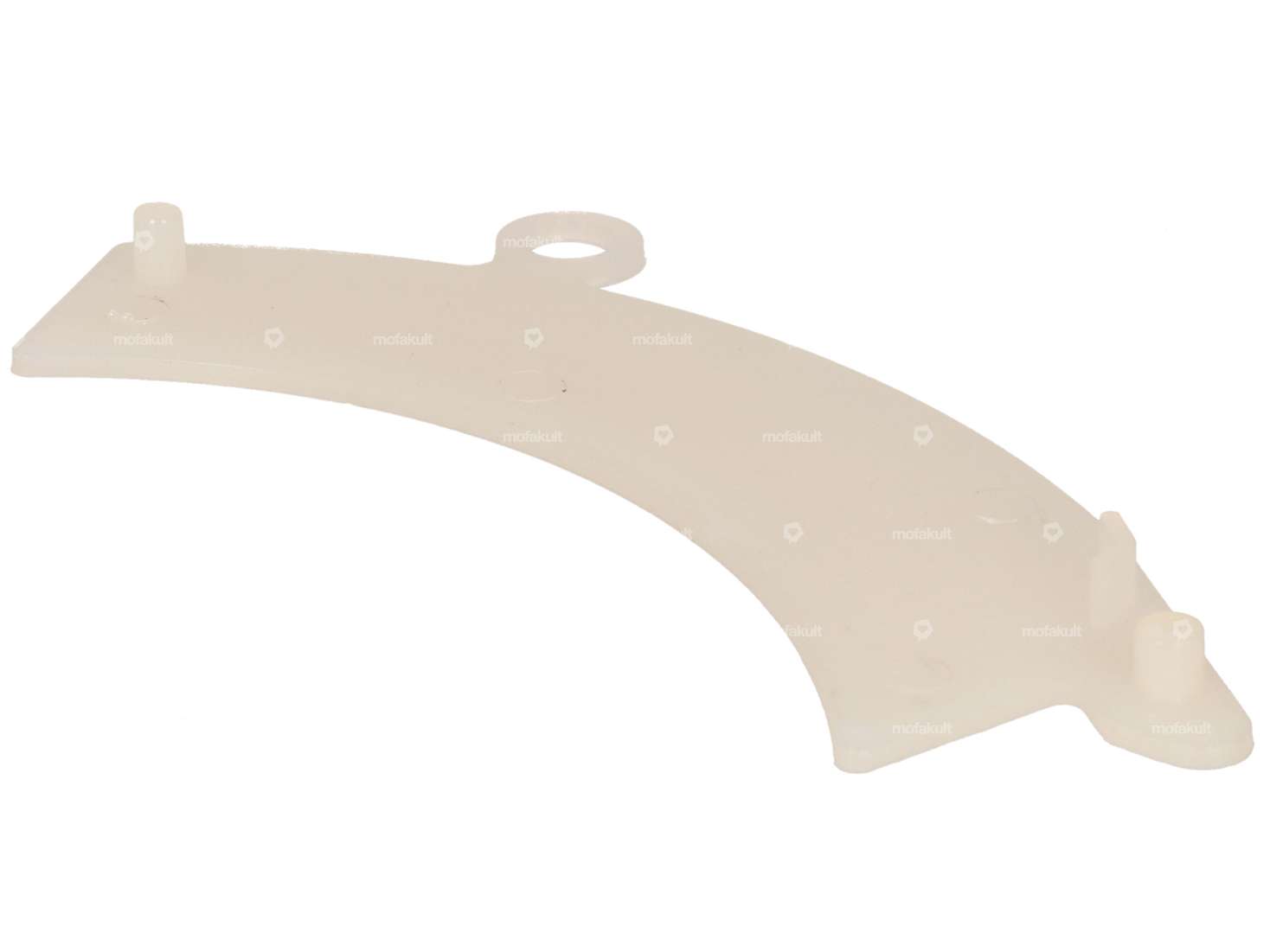

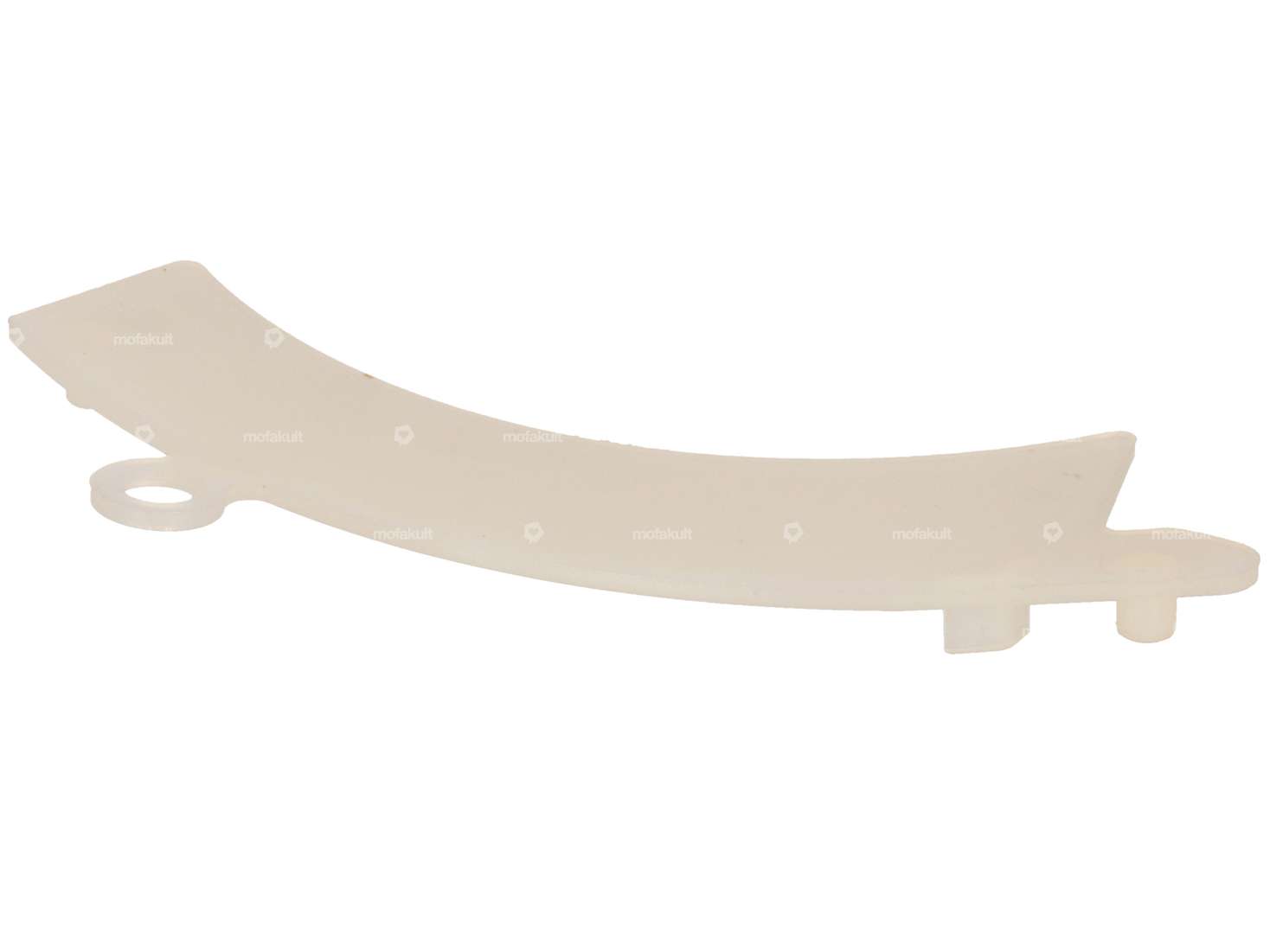

Splash guard for the sprocket, which is attached to the gearbox.

Fits Zündapp Belmondo mopeds / mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles, which have a Zündapp type 247 engine installed

Note: This plastic piece may need to be trimmed slightly for perfect installation. As each engine housing is individual and the cover piece rests on unmachined areas. We have reproduced this component 1 to 1 from the original.

Details

Manufacturer

swiing® revival parts

Suitable for the following models

Zündapp Belmondo
Zündapp	247 Motor
