Flange gasket for Sachs 50/3 and 50/4 engines. Fits the Bing 13 mm carburetor with square intake.
Not suitable for Swiss Sachs 50/2 engines.
Intake gasket dimensions:
Total thickness: 5.5 mm
Hole spacing: 31 mm
Passage: 13 x 13 mm

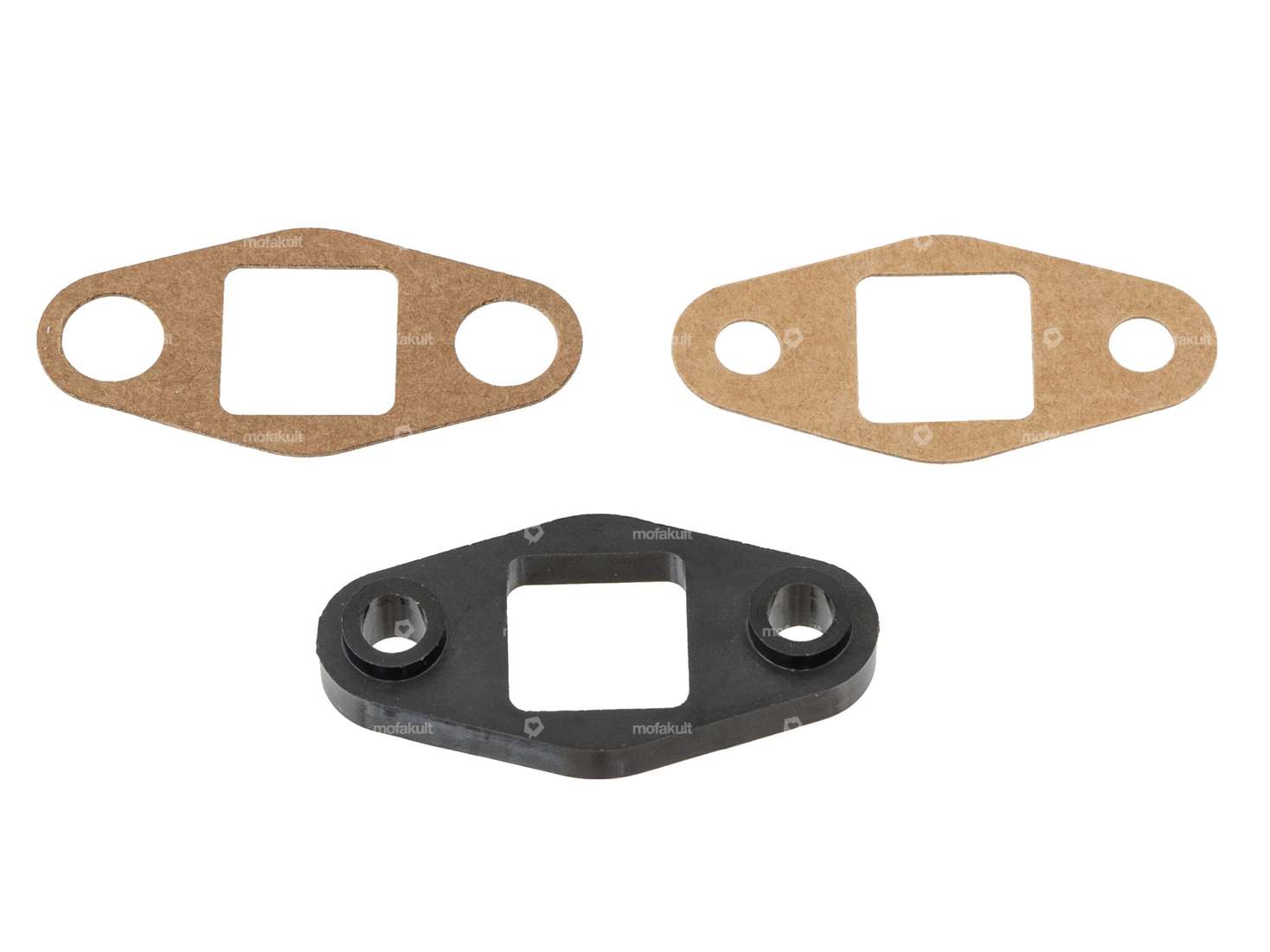

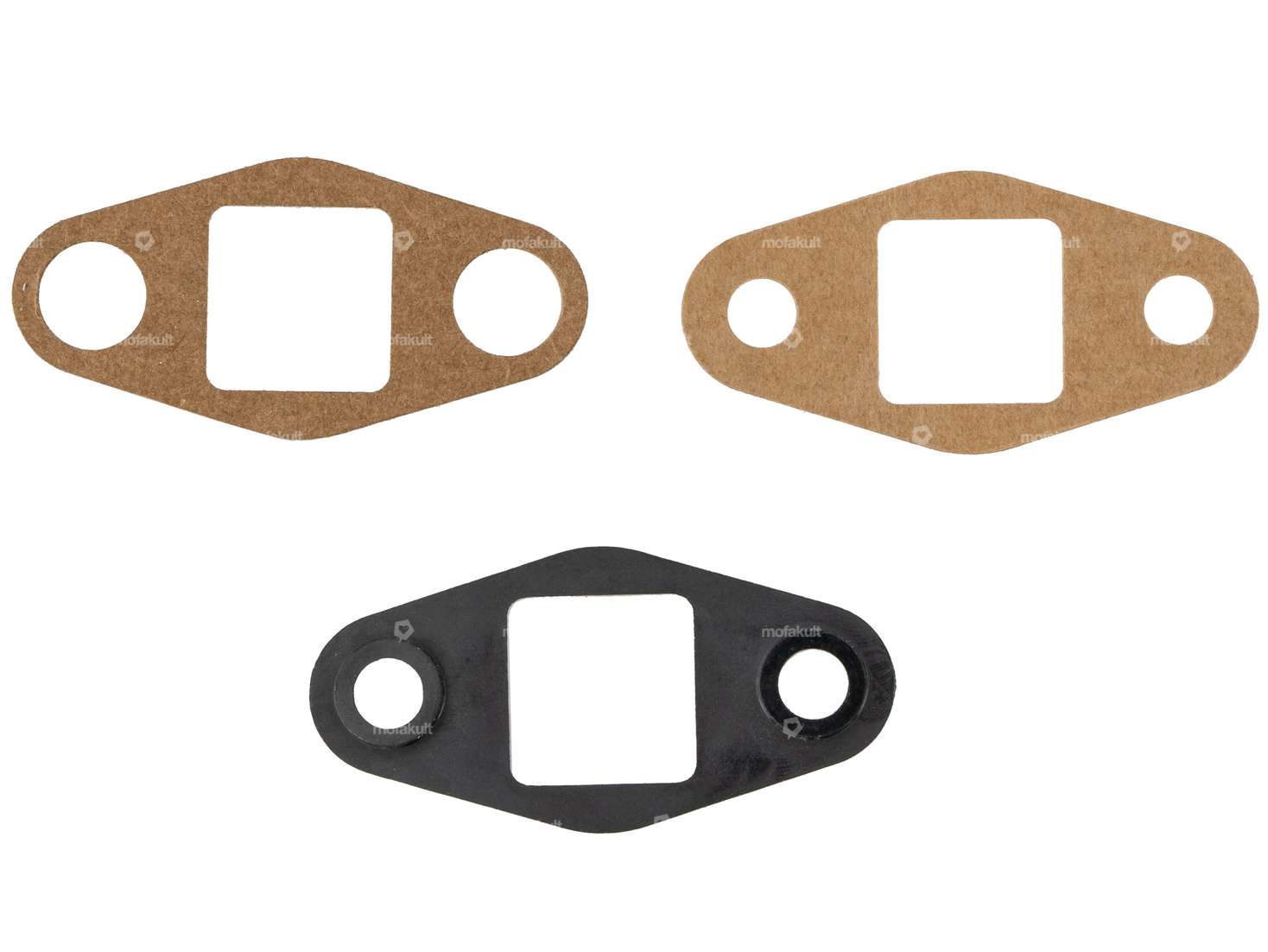

Scope of delivery as per illustration.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Plastic, Sealing paper |
| Area of application | Standard |
| Place of use | Admission |
| Ø screw holder | 5.2 mm |
| Thickness | 5.9 mm |
| Hole spacing inlet | 31 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
