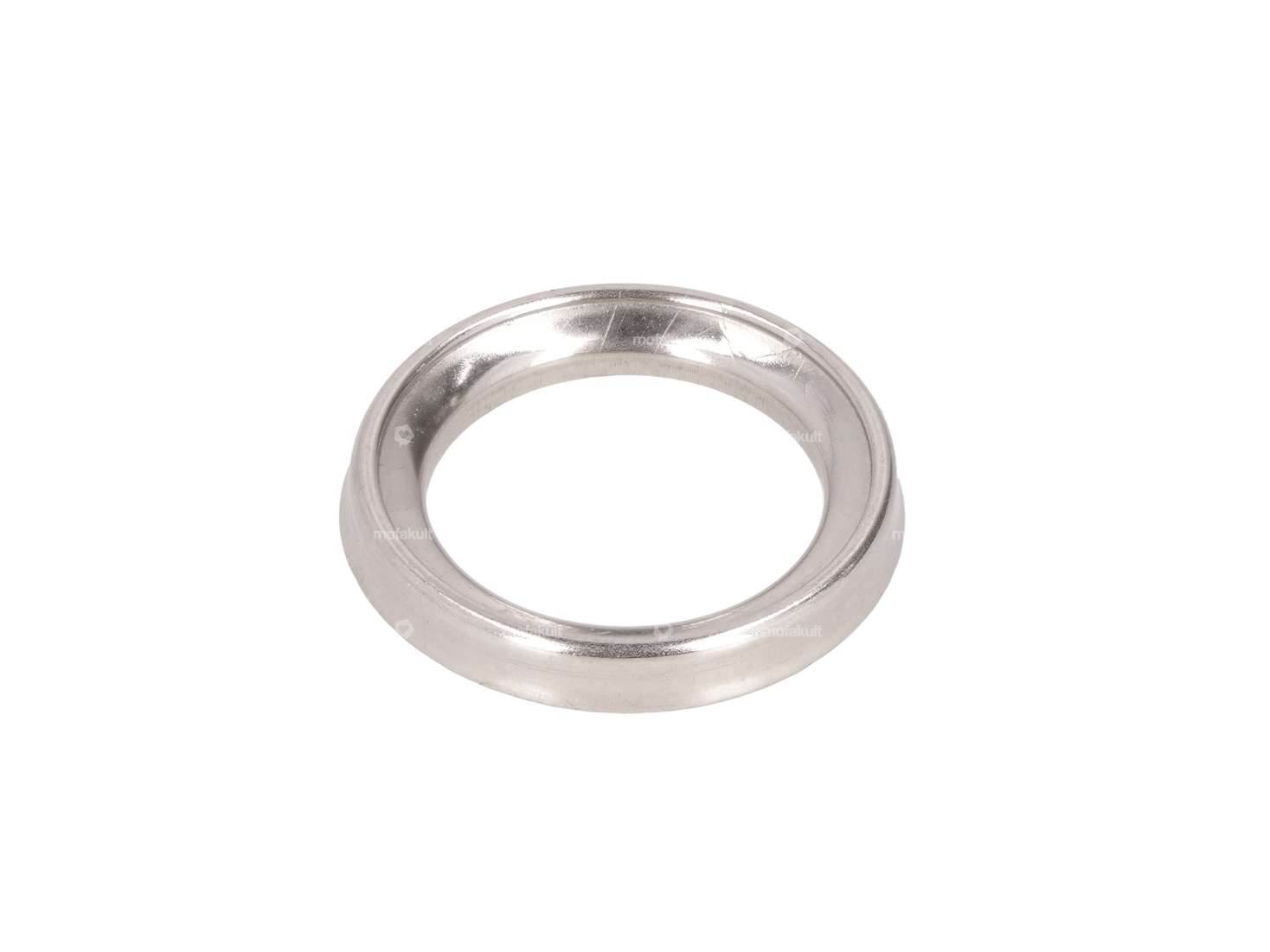

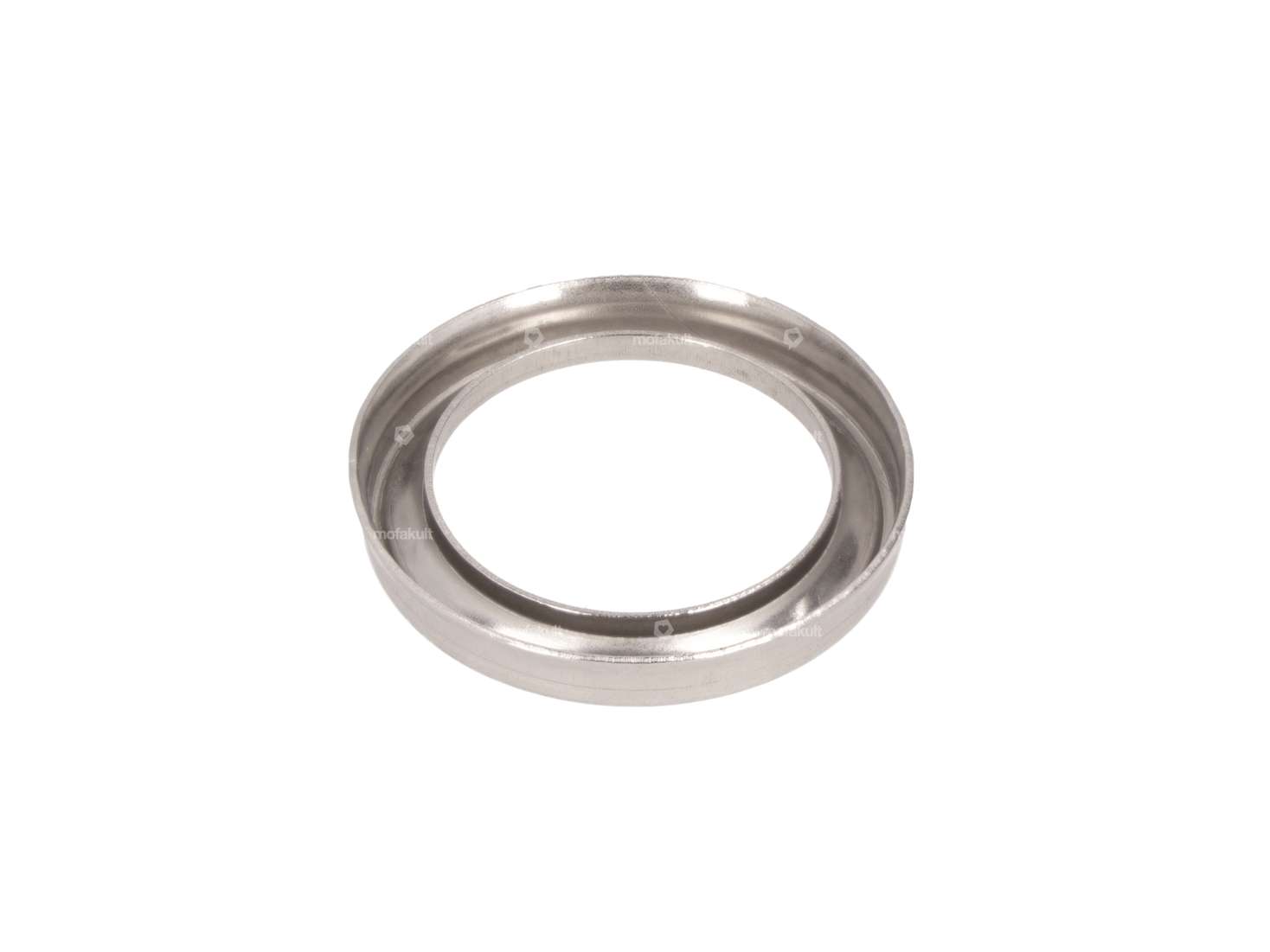

Original dust ring suitable for all bikes with Sachs HR 90 V hubs, which are installed on Sachs 50/2, Sachs 503, Puch X30 Sport NS / NL, Puch X30 Velux, as well as Zündapp Belmondo mopeds / mopeds, among others.
The cover is pressed into the driver, it may only be pressed in so deeply that the bearing ring underneath can still rotate freely.
Note: Due to the long production time of the drivers, there were tolerance deviations and different designs. This type B dust ring is especially suitable for drivers with an internal chamfer of approx. 1 mm. See figure 3. For drivers with a fine chamfer, use the type A dust ring. The driver is not included in the scope of delivery.
You can find the dust ring mentioned above as well as other accessories in the accessories section.
Details
| Manufacturer | swiing® revival parts |
| Ø inside | 20.4 mm |
| Ø outside | 28.2 mm |
| Height | 4.2 mm |
| Puch OEM number | 320.5.41.012.1 |
| Sachs OEM no. | F1652 |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo | |
| Cilo |
