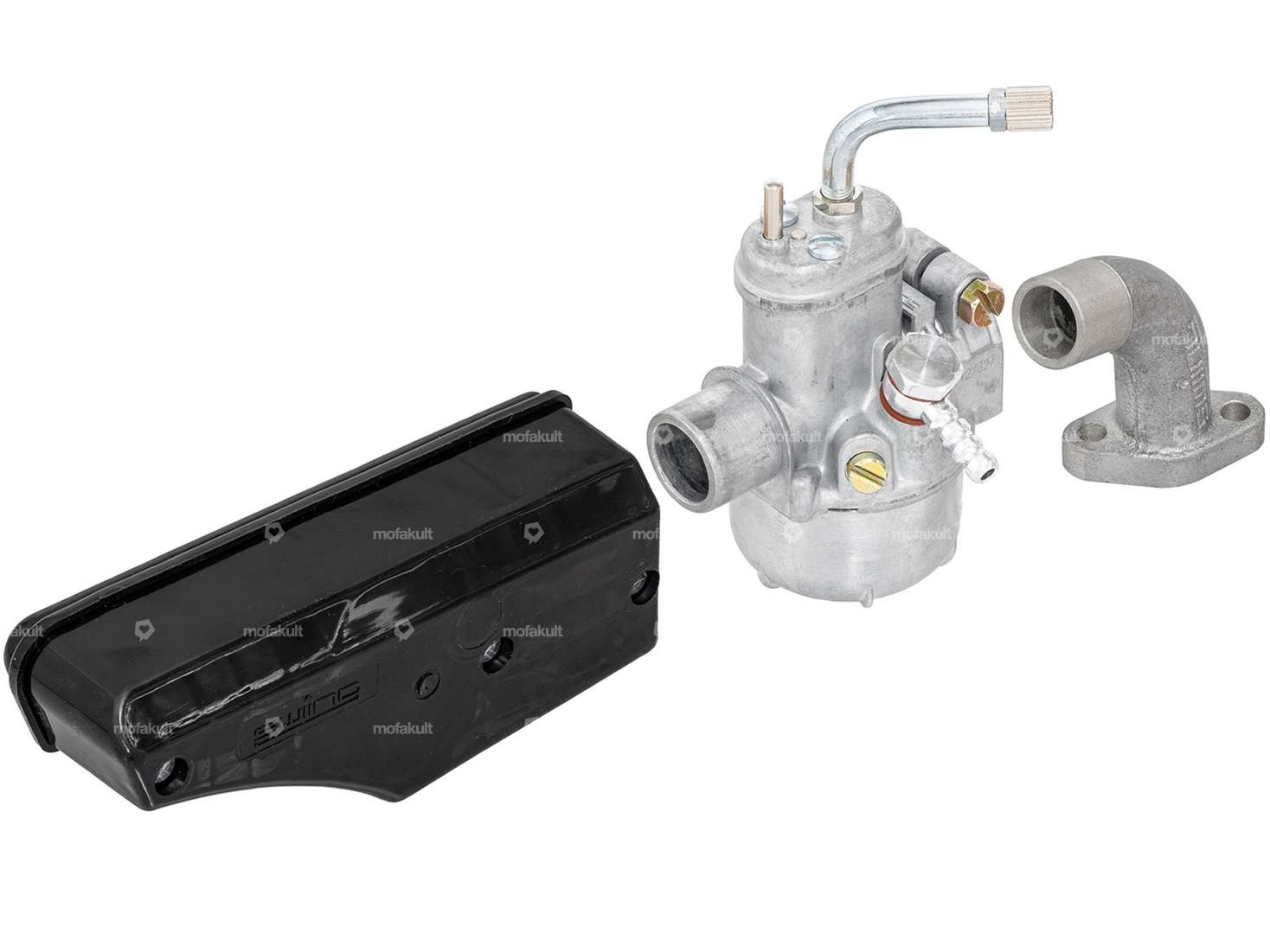

Complete carburetor set for manual Sachs 503 2AL / 2BL, as well as automatic AAL mopeds.
The 15 mm intake manifold is the short version, the air filter is the racing version with more air flow.
The set includes the following fixed parts:

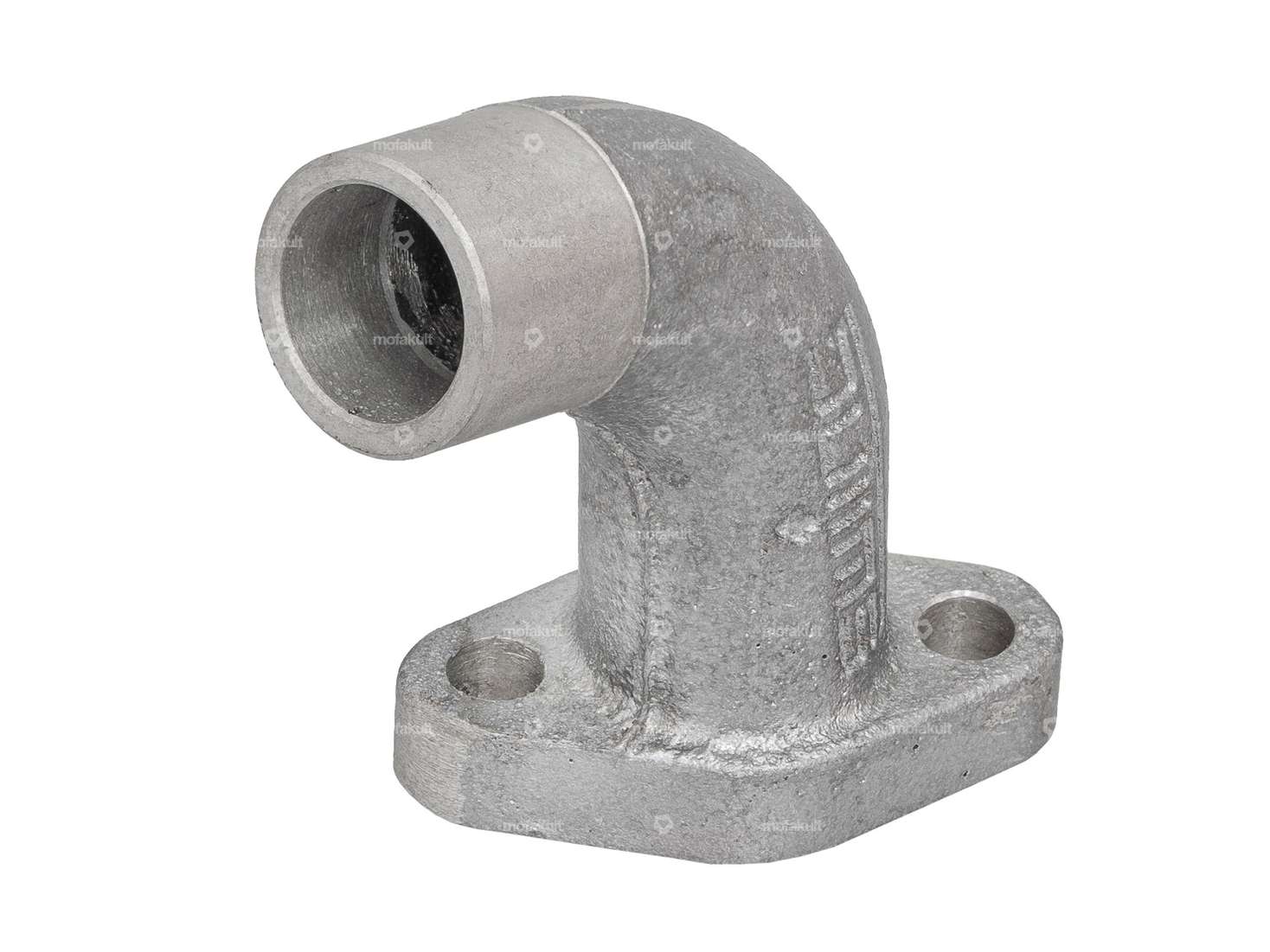

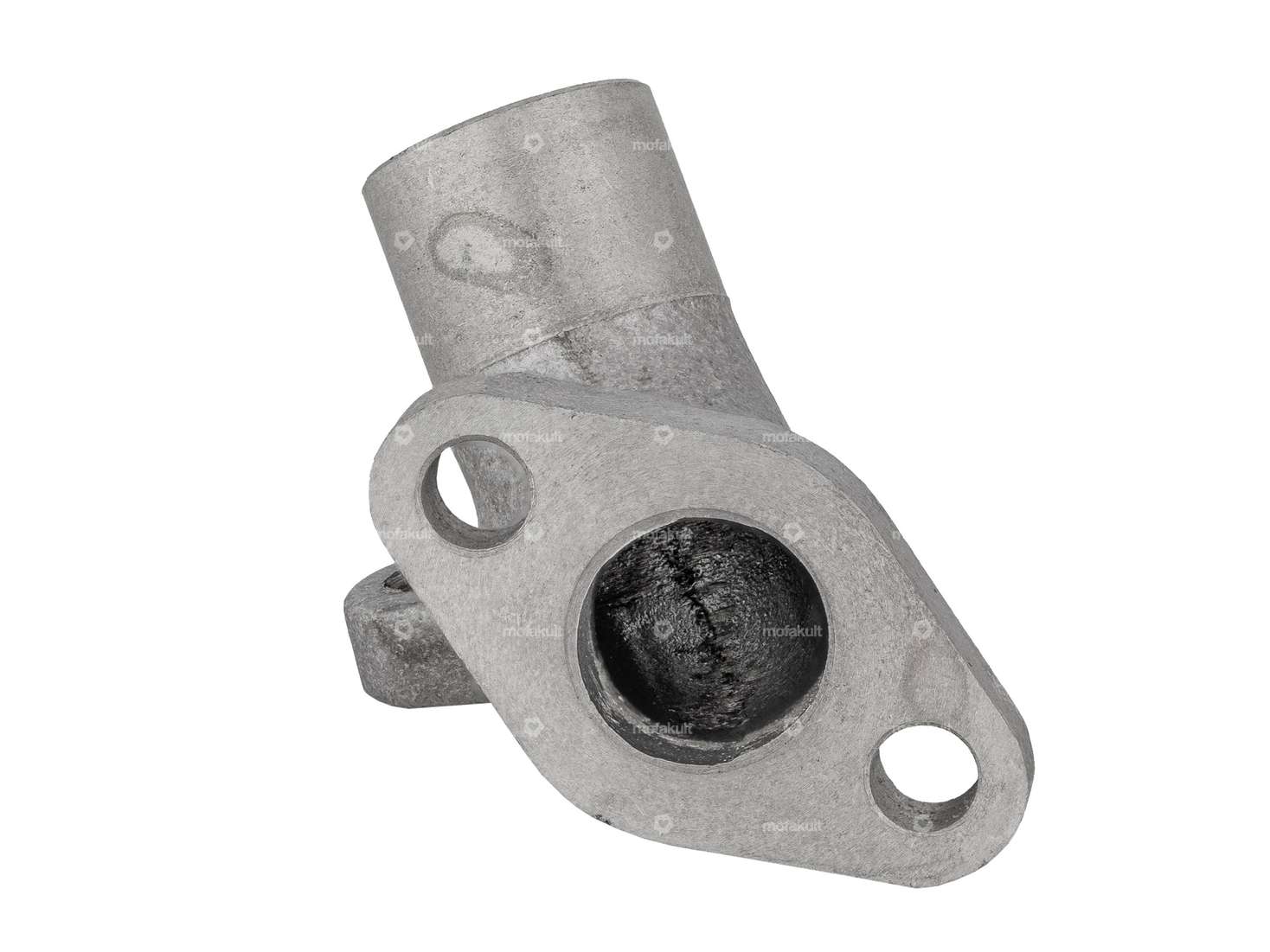

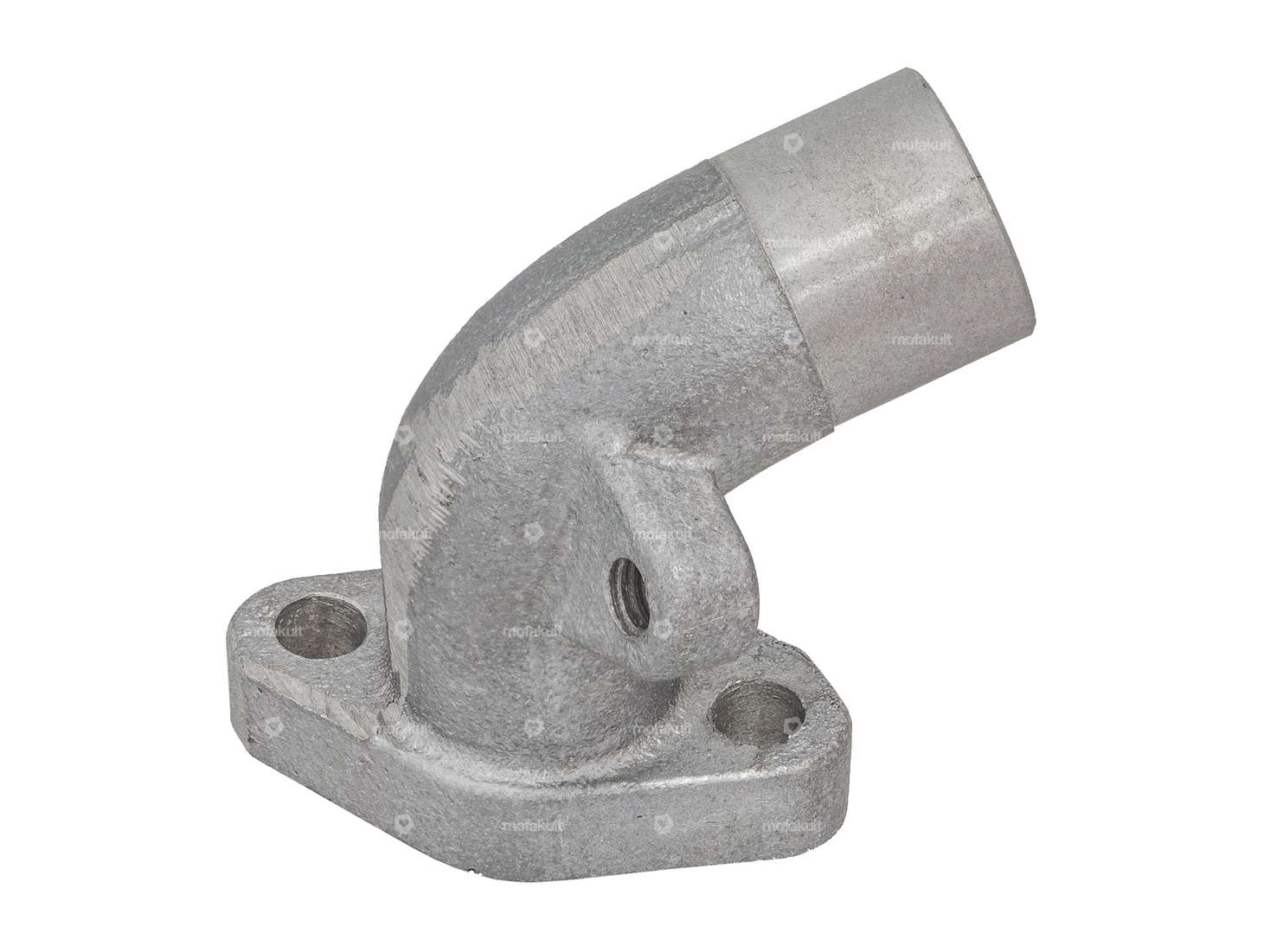

Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Total length: 50 mm · Thread type: M6x1 (standard thread) · Area of application: Tuning

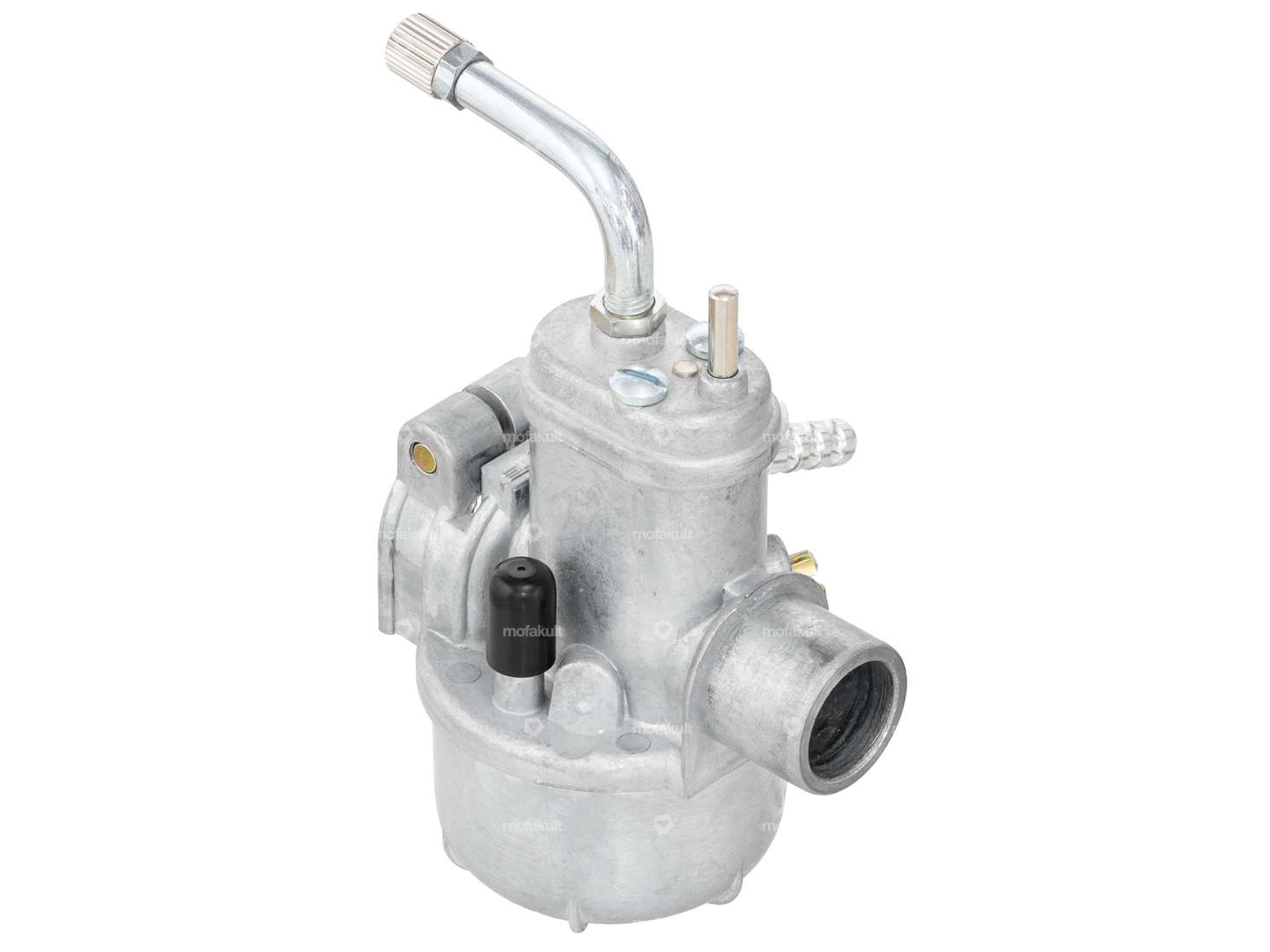

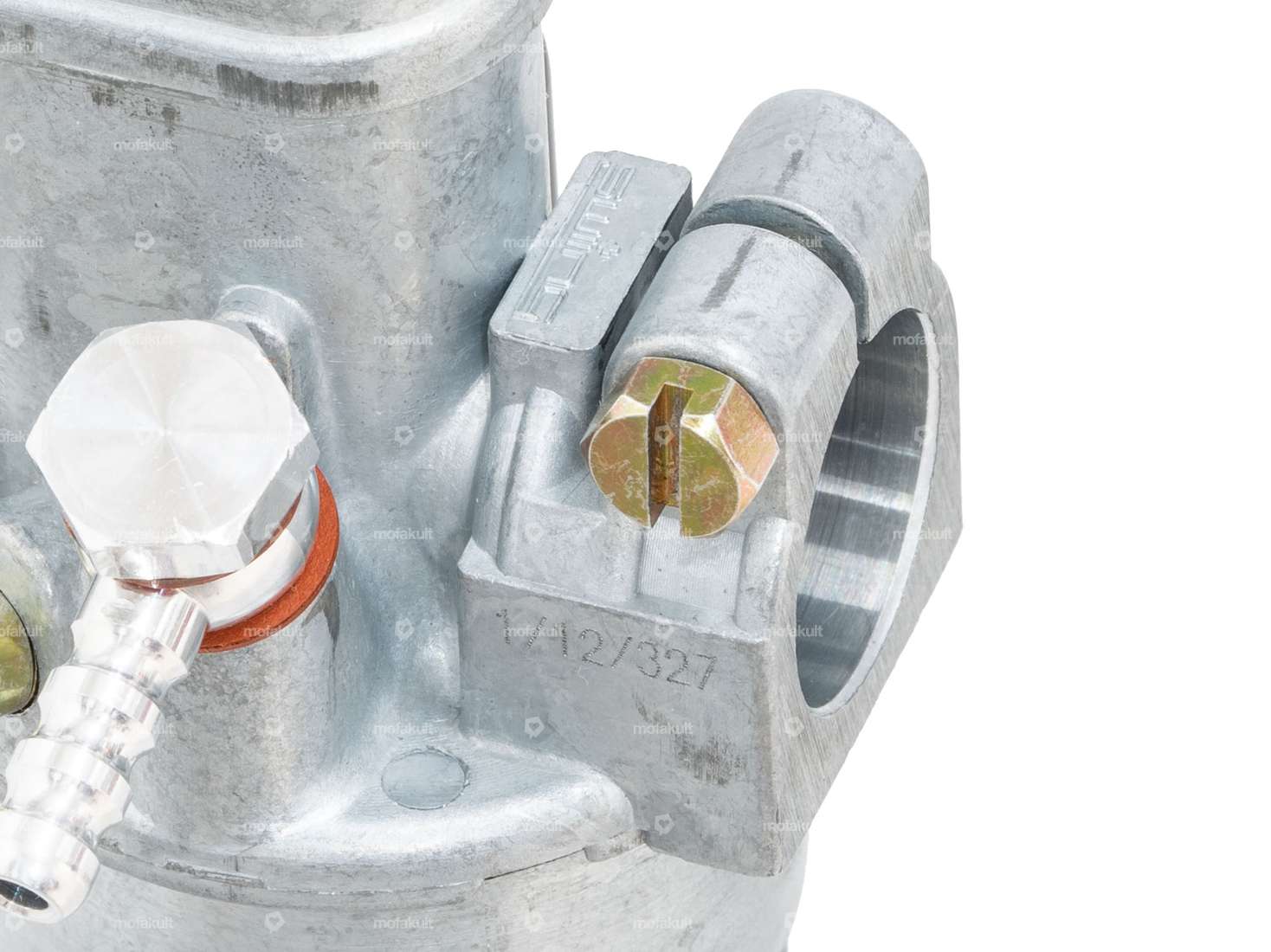

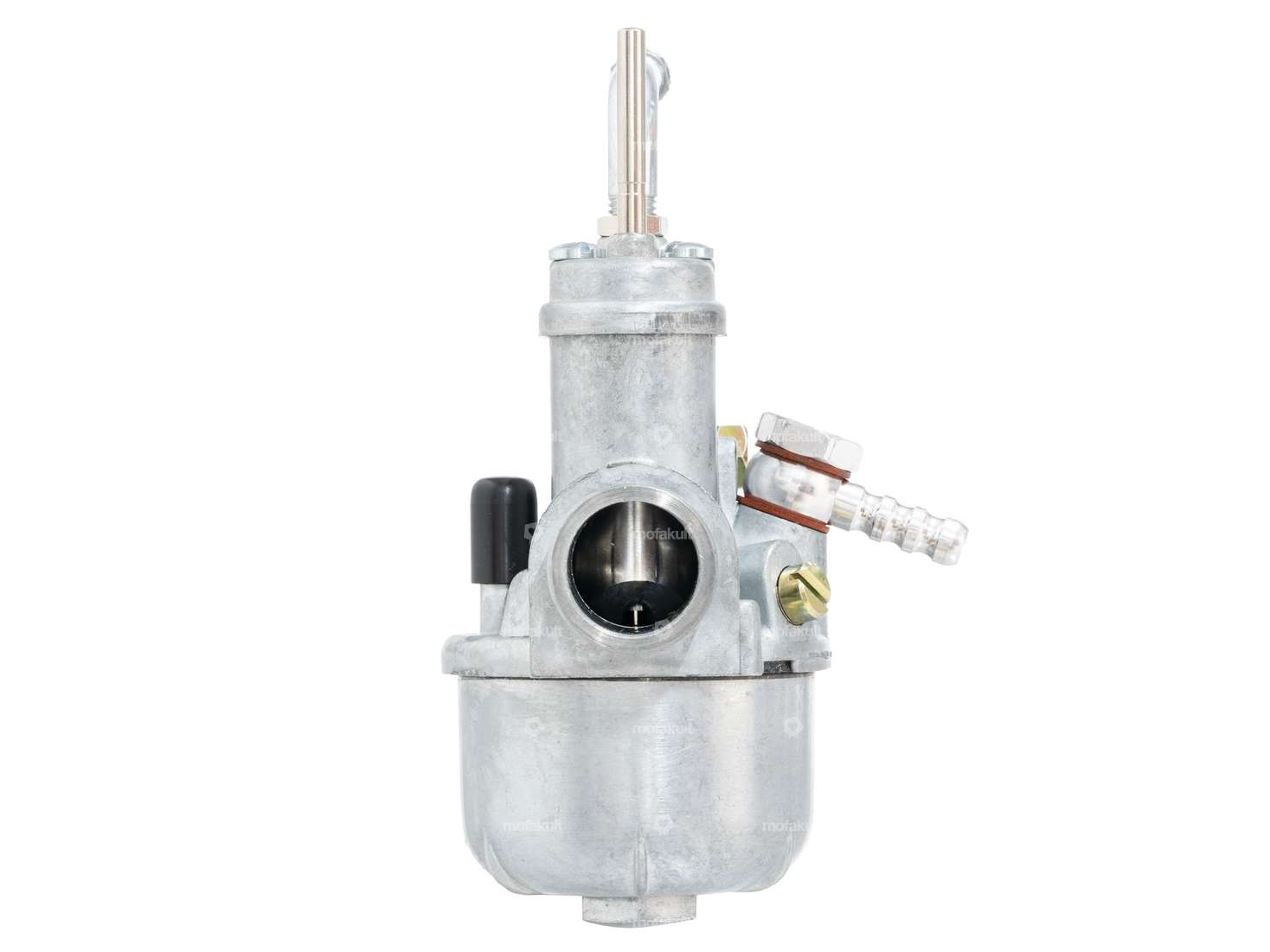

Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5 · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning

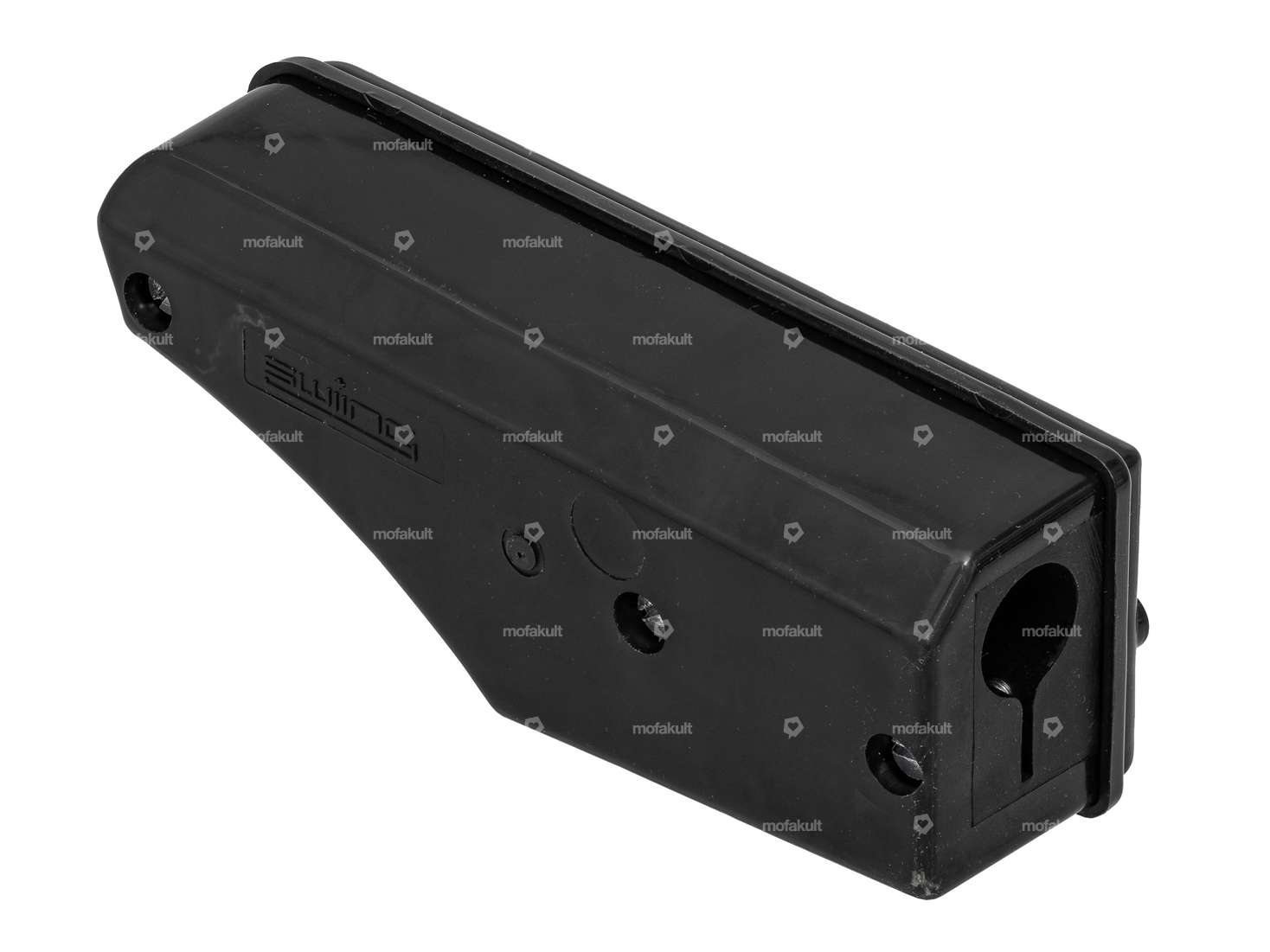

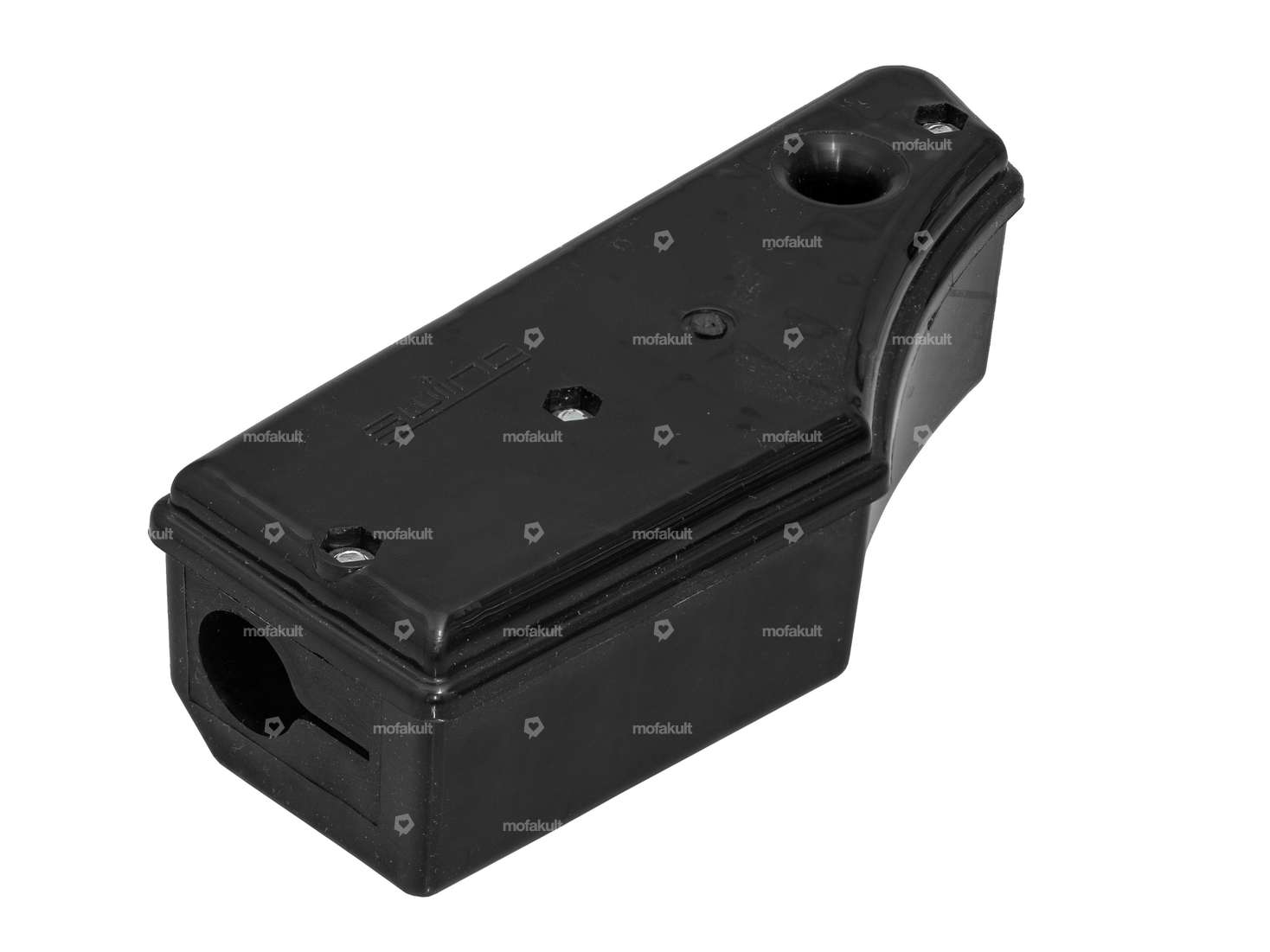

Manufacturer: swiing® revival parts · Camouflaged: No · Color: black · Material: Plastic · Filter type: Racing screen · Total length: 165 mm · Width: 68 mm · Height: 52 mm · Ø Internal connection: 20 mm · Mounting type: Plug connection clamped · Area of application: Tuning
Details
Manufacturer | swiing® ingenious parts |
Carburetor type | SRE |
Nominal diameter | 15 mm |
Hole spacing inlet | 32 mm |
Ø Internal connection | 20 mm |
Ø Inside entrance | 15 mm |
Ø Output inside | 15 mm |
Ø Air filter connection | 20 mm |
Mounting type | Plug connection clamped, Flange |
Ø fuel hose connection | 6 mm |
Choke control | Hand choke |
Area of application | Tuning |
Nozzle thread | M3.5 |
Nozzle size | 62 |
Camouflaged | Yes |
Clamping screw torque (max.) | 4 N/m |
Suitable for the following models
Sachs | 503 - 2AL / 2BL |
