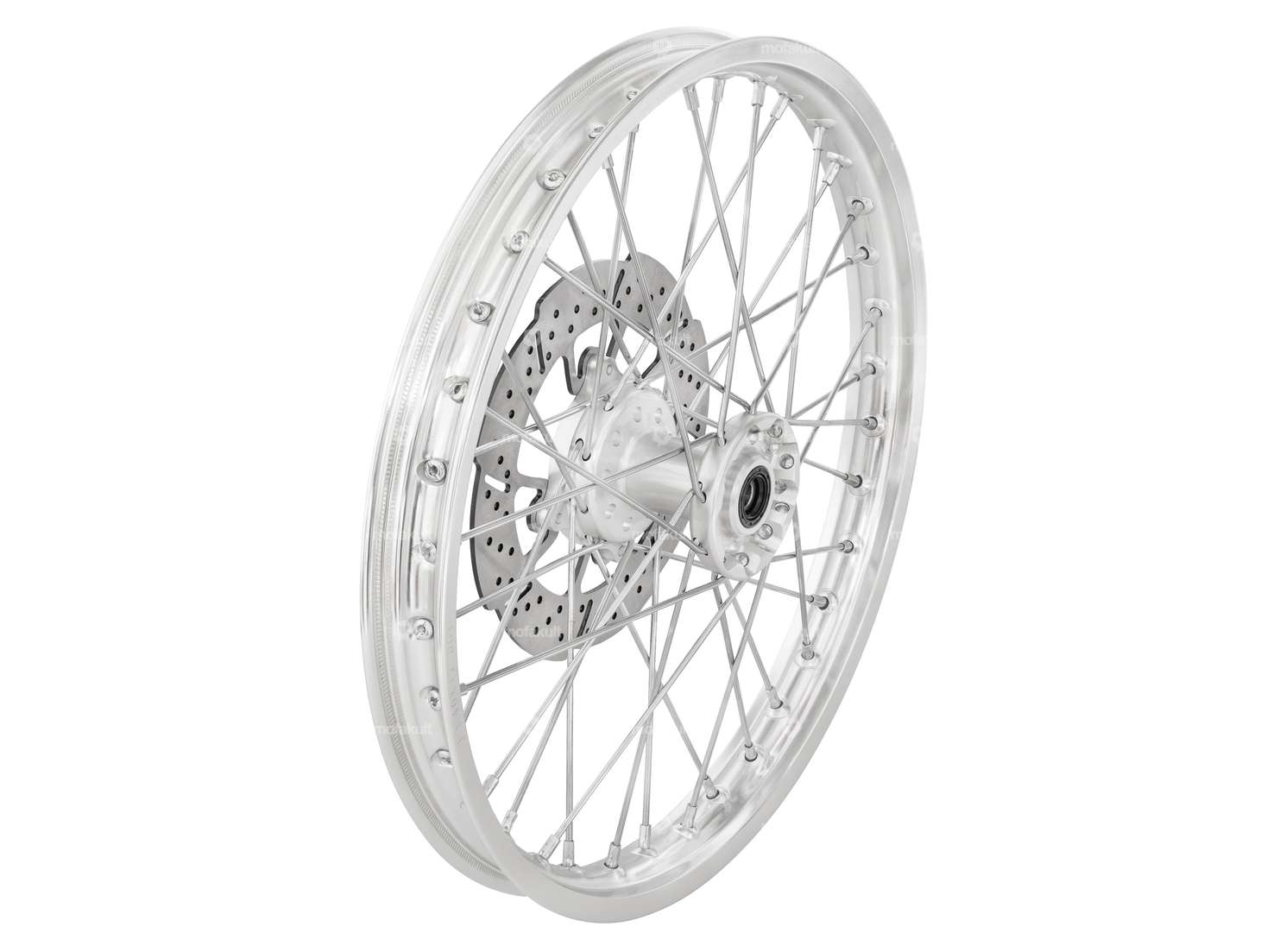

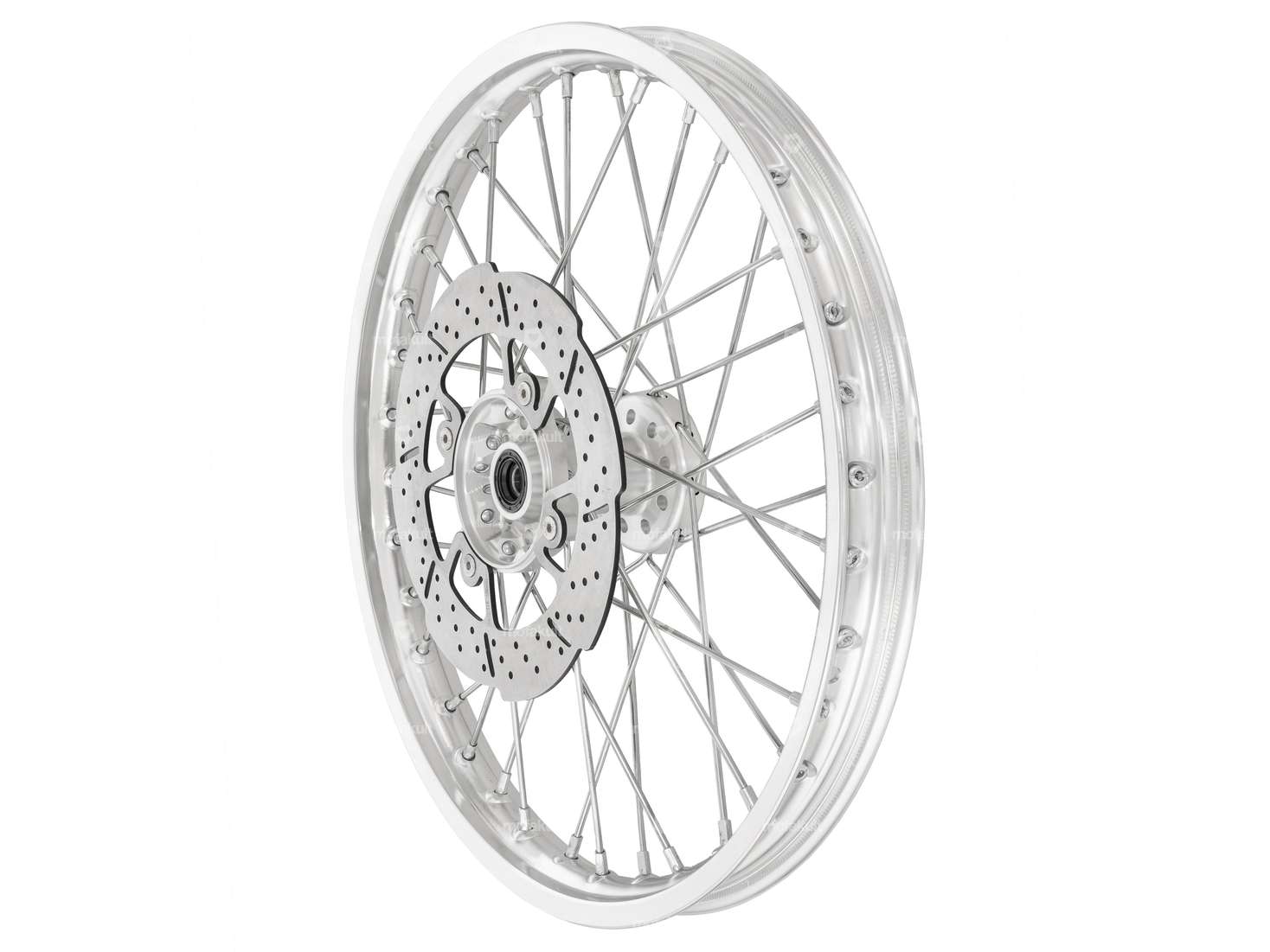

Solid spoke front wheel with pre-mounted brake disk for your moped, moped and small motorcycle. Due to its stable construction, this rim is particularly suitable for cross use.
The wheel hub made of CNC-milled aluminum is already equipped with wheel bearings and sealing lips. The rim ring and wheel hub are made of aluminum. The spokes are galvanized.
This spoked wheel can be fitted to an EBR fork with disc brake mount with a few adjustments. Matching forks and other attachments such as 12 mm wheel axle, brake caliper, brake lever, etc. can be found in the accessories section.
Rim dimensions: 17 x 1.40" (rim width: 47 mm)
Ø Spoke: 3.5 mm
Ø Brake disk: 220 mm
Thick brake disk: 3 mm
Details
Material | Aluminum |
Wheel size [inch] | 17 " |
Overall width outside | 47 mm |
Jaw width [inch] | 1.4 " |
Ø spoke | 3.5 mm |
Ø brake disk outside | 220 mm |
Thick brake disk | 3 mm |
Suitable for the following models
Puch | |
Sachs |
