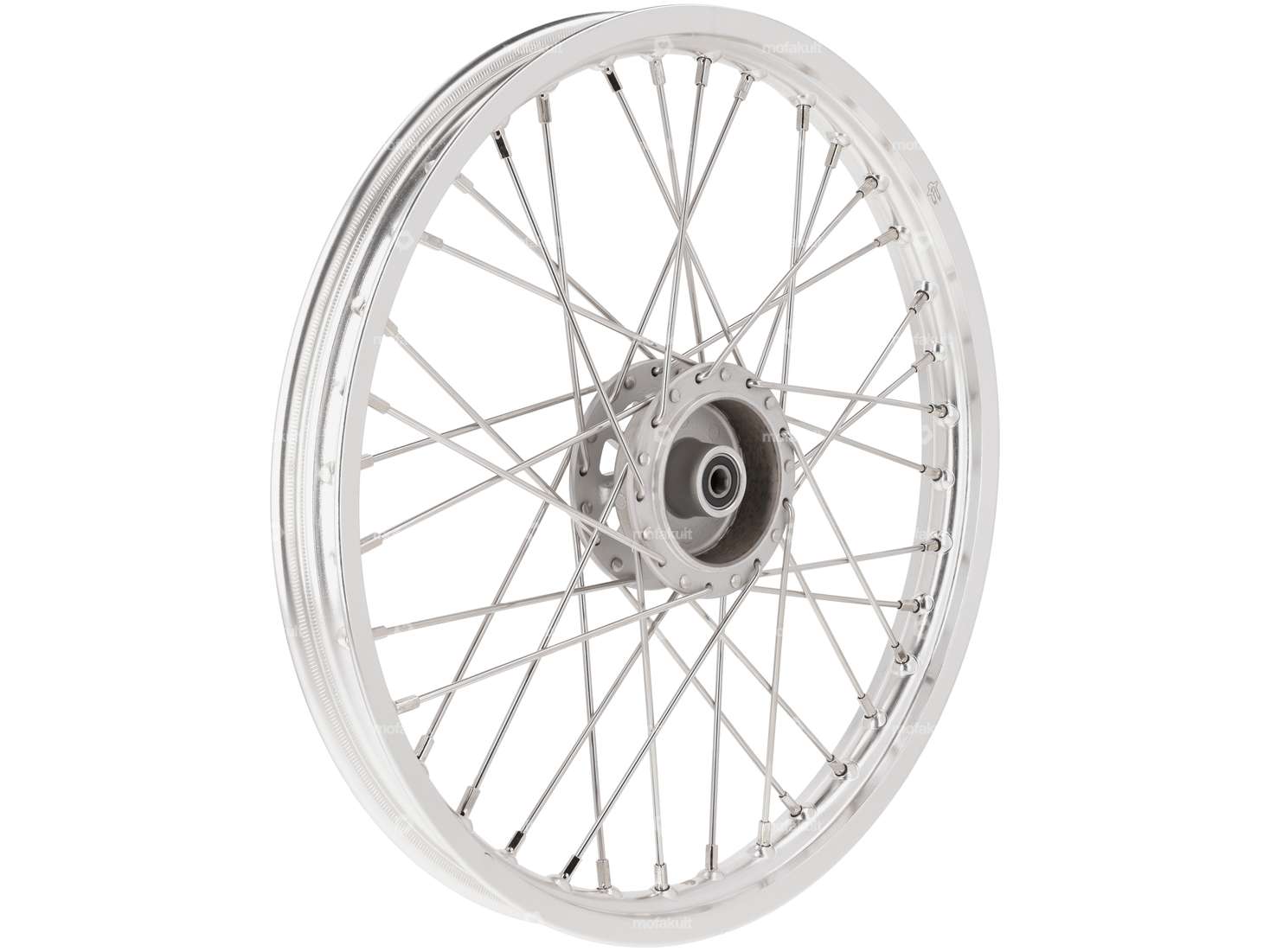

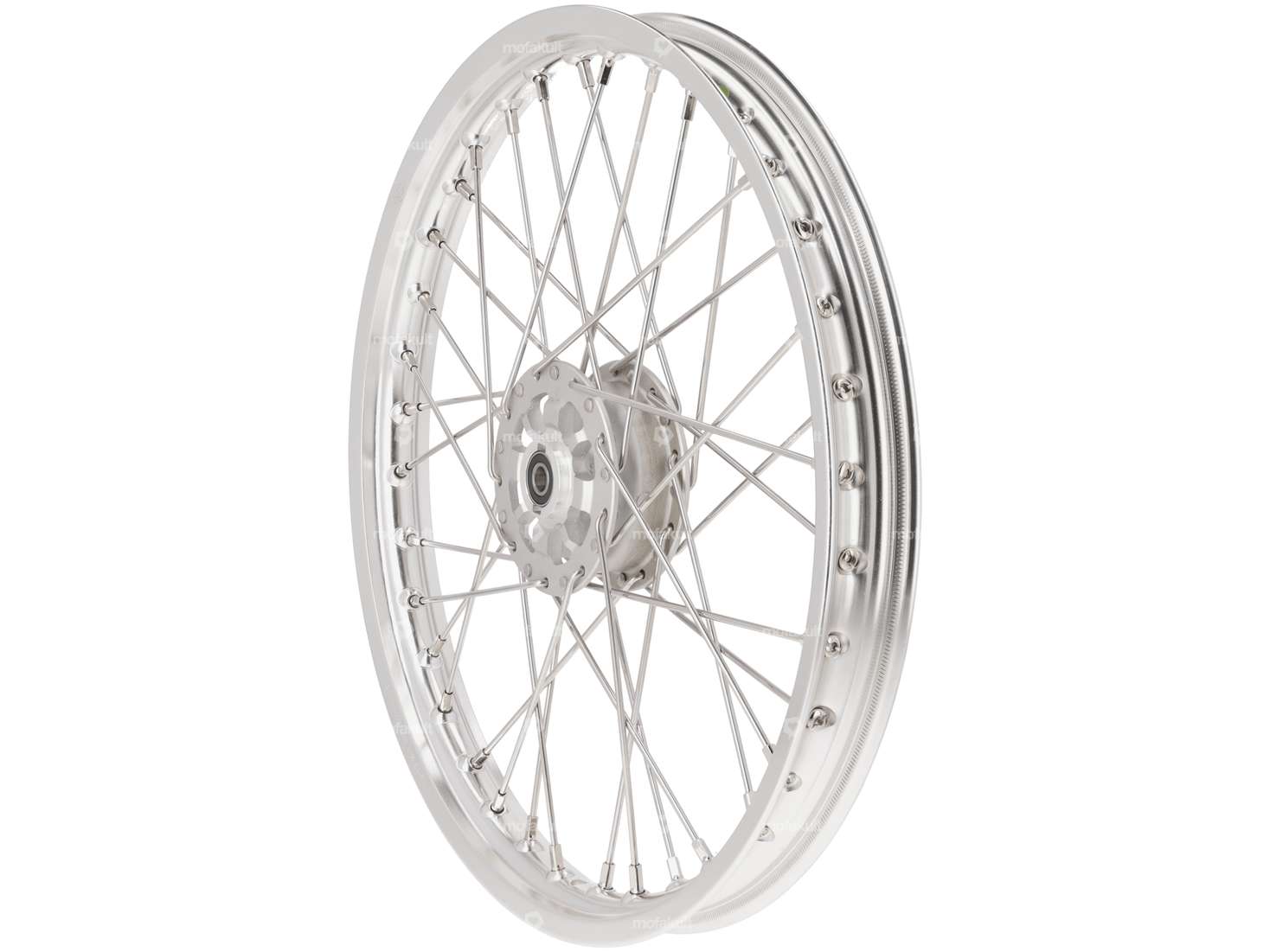

Extravagant 17 inch spoke front wheel for your moped, moped and small motorcycle. Original 80 mm LELEU brake anchor plates and 12 mm wheel axles can be used. This means that this custom rim can be mounted on your Puch moped / moped without any adaptation work.
The lightweight rim weighs just 2.7 kg. Nevertheless, the front wheel is extremely stable and perfectly suited for both road and cross use.
The wheel hub made of CNC-milled aluminum is already equipped with wheel bearings and sealing lips. The rim ring and wheel hub are made of aluminum. The spokes and nipples are chrome-plated.
Rim dimensions: 17 x 1.40" (rim width: 47 mm)
Ø Spoke: 3.5 mm
Number of spokes: 36 pcs.
Ø Wheel axle: 12 mm
Ø Brake drum: 80 mm
Weight: 2.7 kg
Note: The brake drum is screwed into the hub shell. This means that the rim should only be used if your brake anchor plate is mounted on the left-hand side (in the direction of travel). Otherwise, there is a risk that the brake drum can unscrew from the hub shell.
You can find corresponding add-on parts such as the brake anchor plate, wheel axle, speedometer drive, tires, etc. in the accessories section.
Details
| Nominal diameter | 438 mm |
| Ø Nipple hole | 6.6 mm |
| Ø axle | 12 mm |
| Material | Aluminum |
| Surface | anodized |
| Color | silver |
| Rim well depth | 7.5 mm |
| Ø spoke | 3.5 mm |
| Wheel size [inch] | 17 " |
| Overall width outside | 47 mm |
| Jaw width | 34.6 mm |
| Jaw width [inch] | 1.4 " |
| Ø Brake drum | 80 mm |
| Number of spoke holes | 36 pcs |
| Weight | 2700 g |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo |
