Catalog with complete exploded views of the Sachs three-speed 50/3 ML B, 50/3 MLA X, 50/3 MLA NL, 50/3 MLK B, 50/3 MLK AX, 50/3 LKH, 50/3 LHX, 50/3 NL and 50/3 C NL engines.

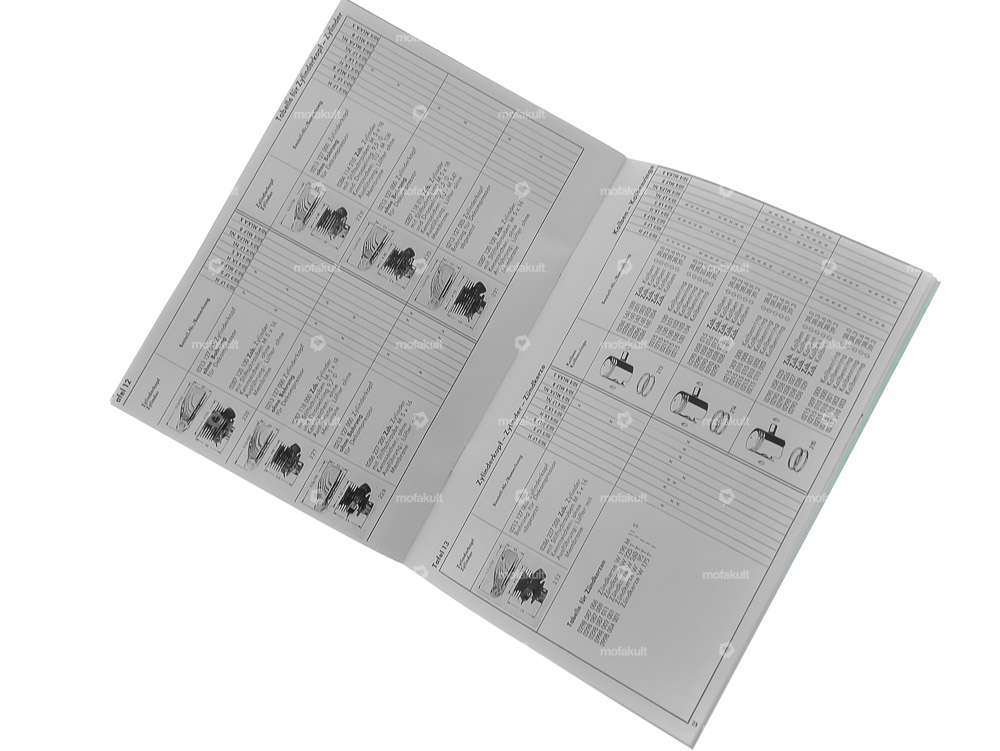

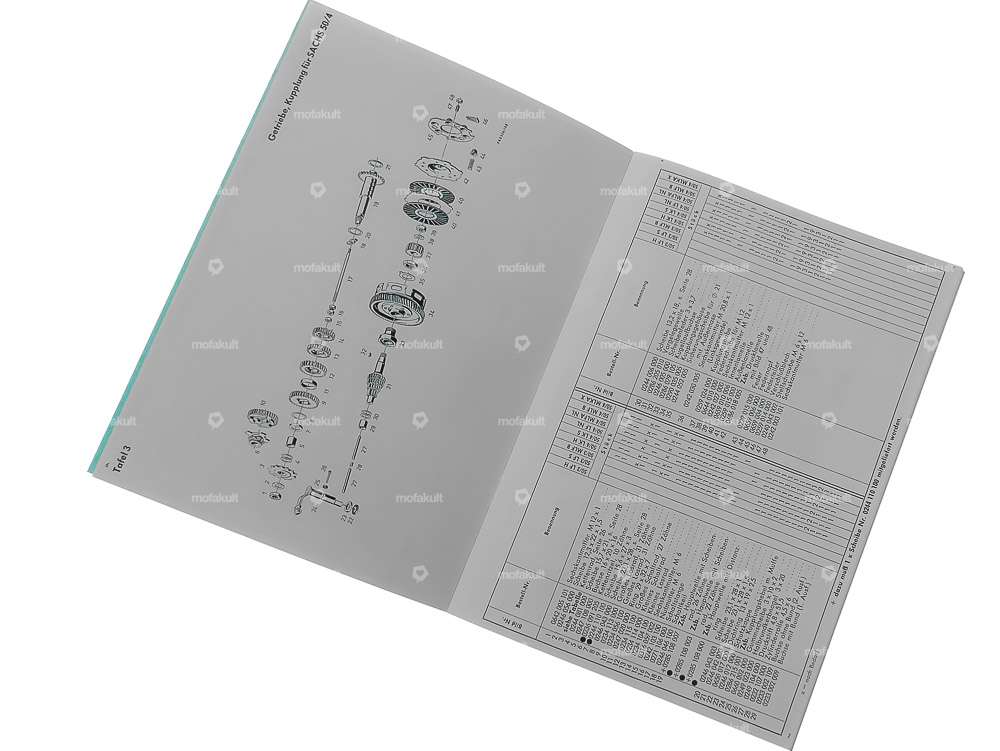

The complete engine from cylinder to carburetor is shown in helpful exploded views. Each individual component is provided with part number, spare part number, weight and installation location.

A helpful catalog from 1971 with 30 interesting double pages.

Details

Material	Paper
DIN format	A5
Number of pages	30 pcs

Suitable for the following models

Sachs

50/3
