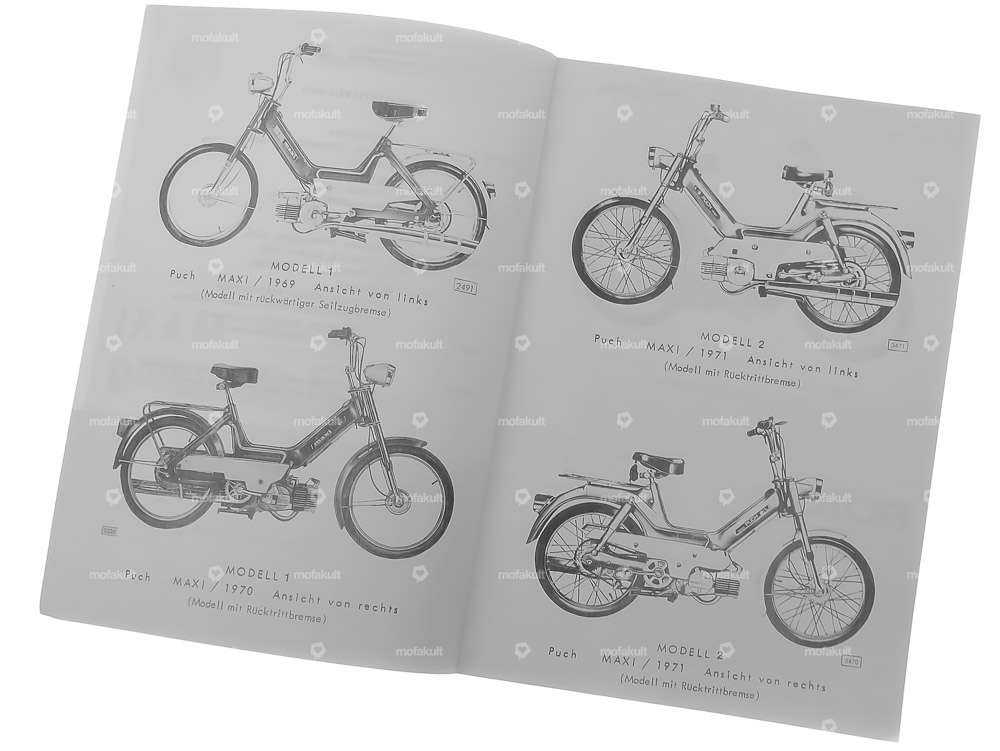

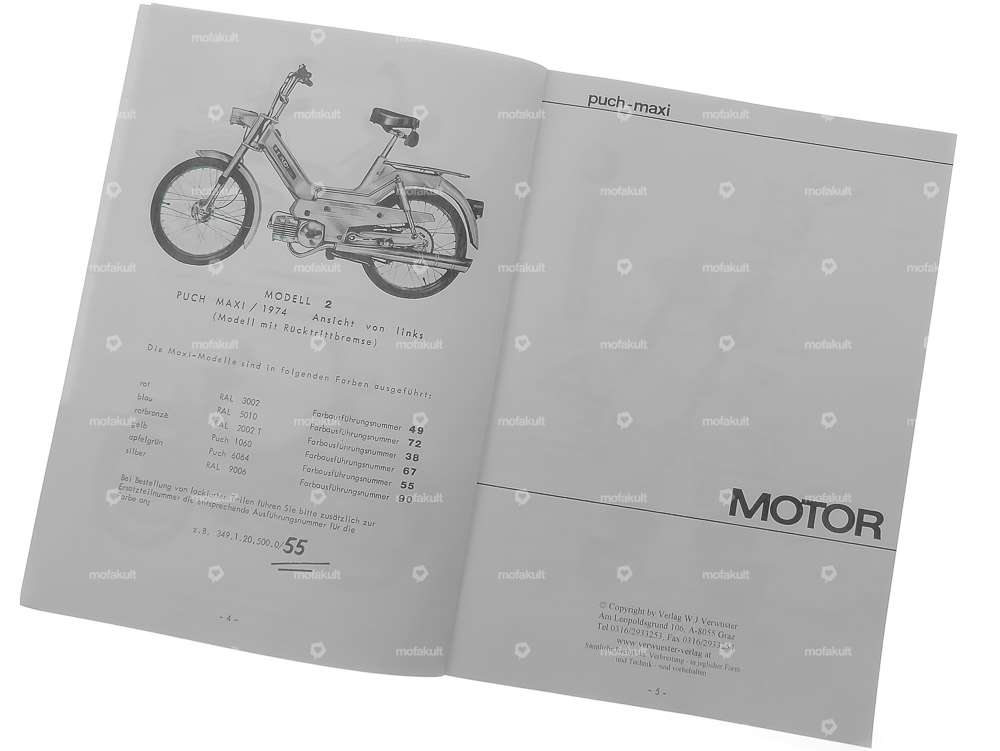

Spare parts catalog for the Puch Maxi models S and N.

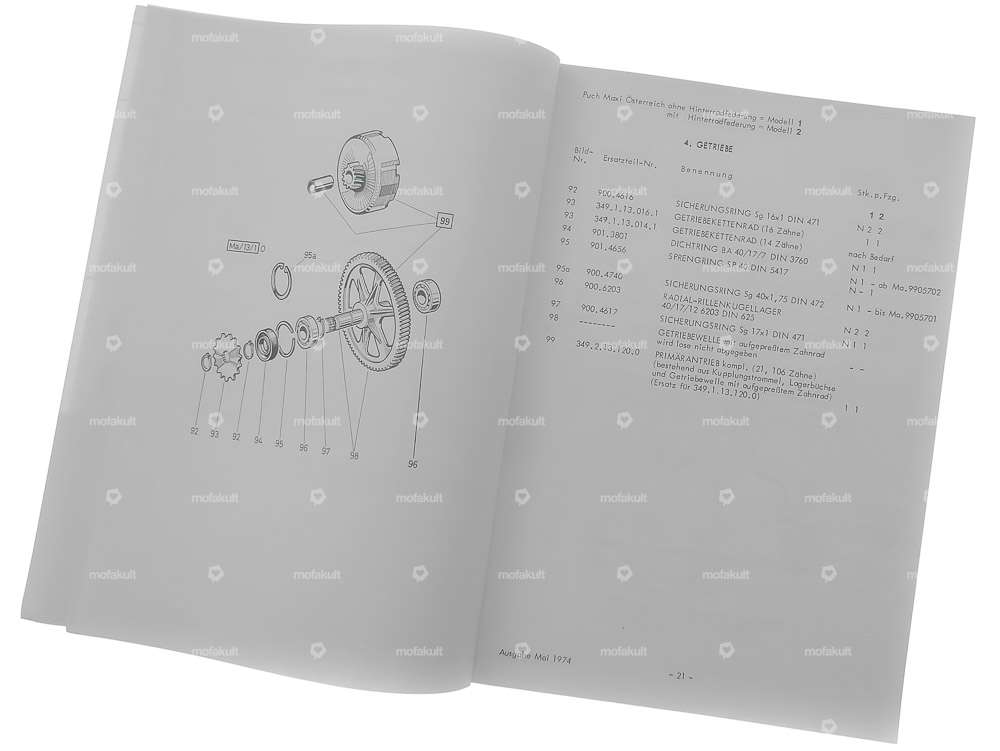

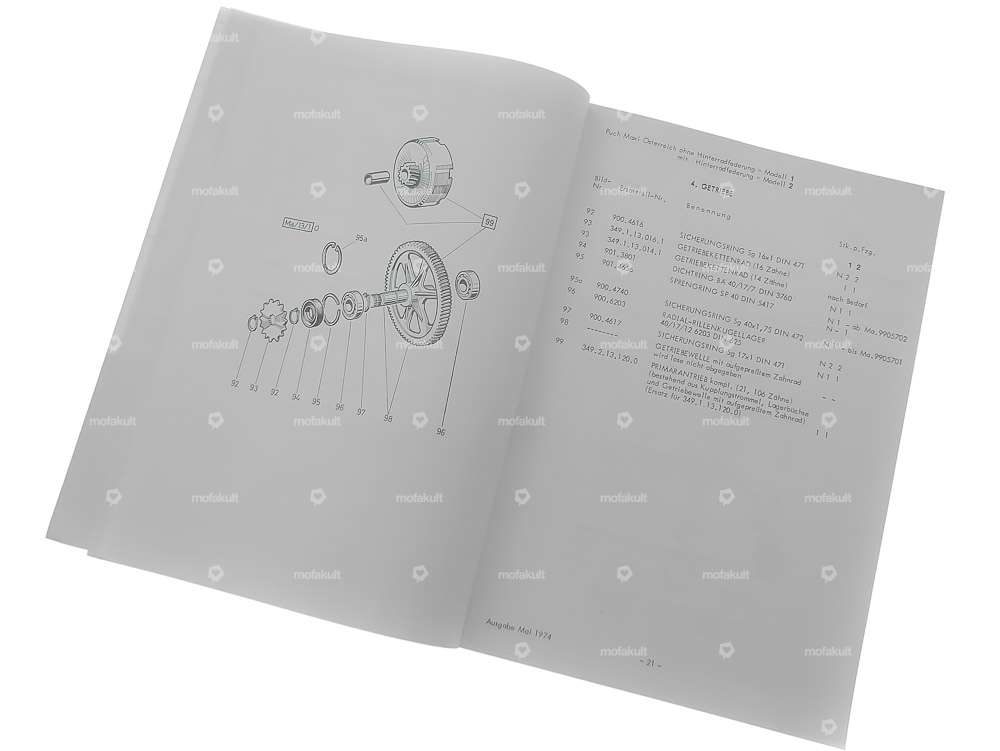

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.
Superb Austrian catalog from 1974 with 85 interesting pages.
Details
| Material | Paper |
| Number of pages | 85 pcs |
| Component group Carburetor | Carburetor complete |
Suitable for the following models
| Puch | E50 |
