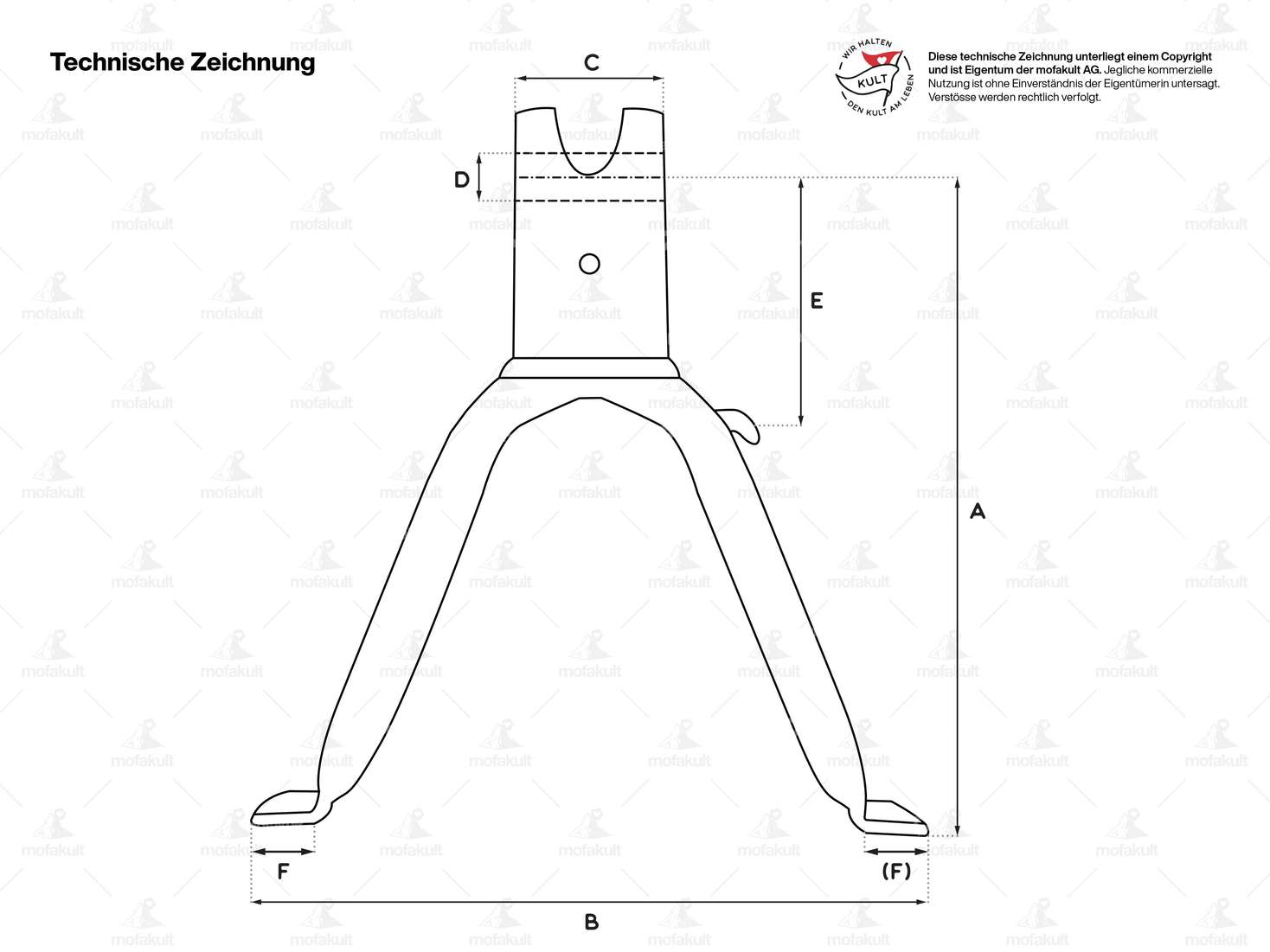

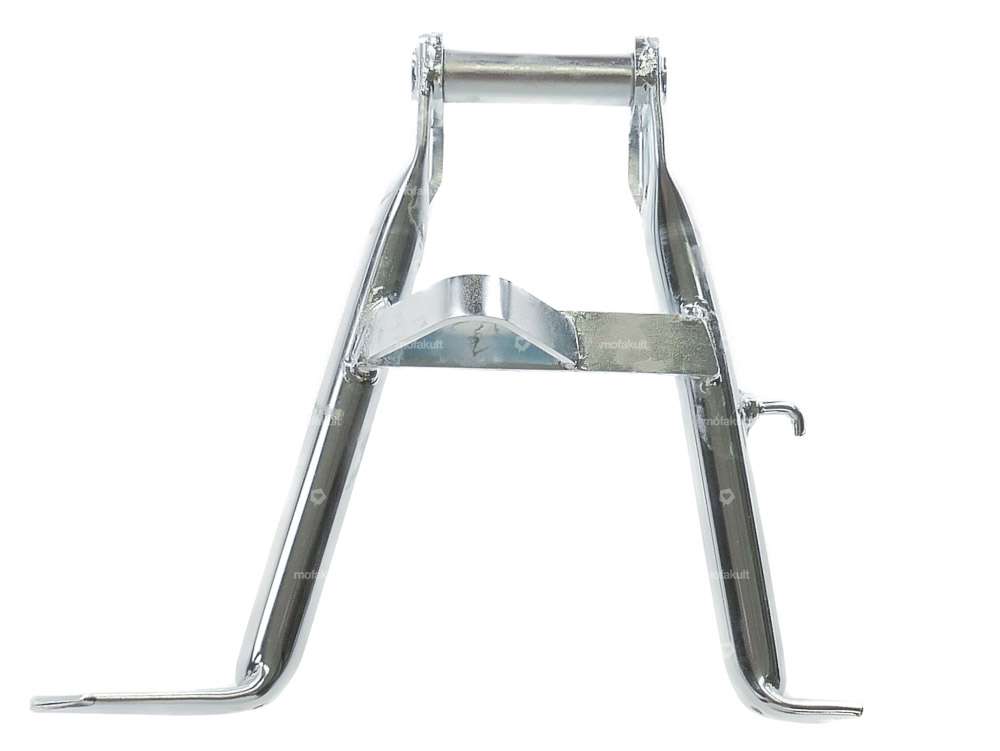

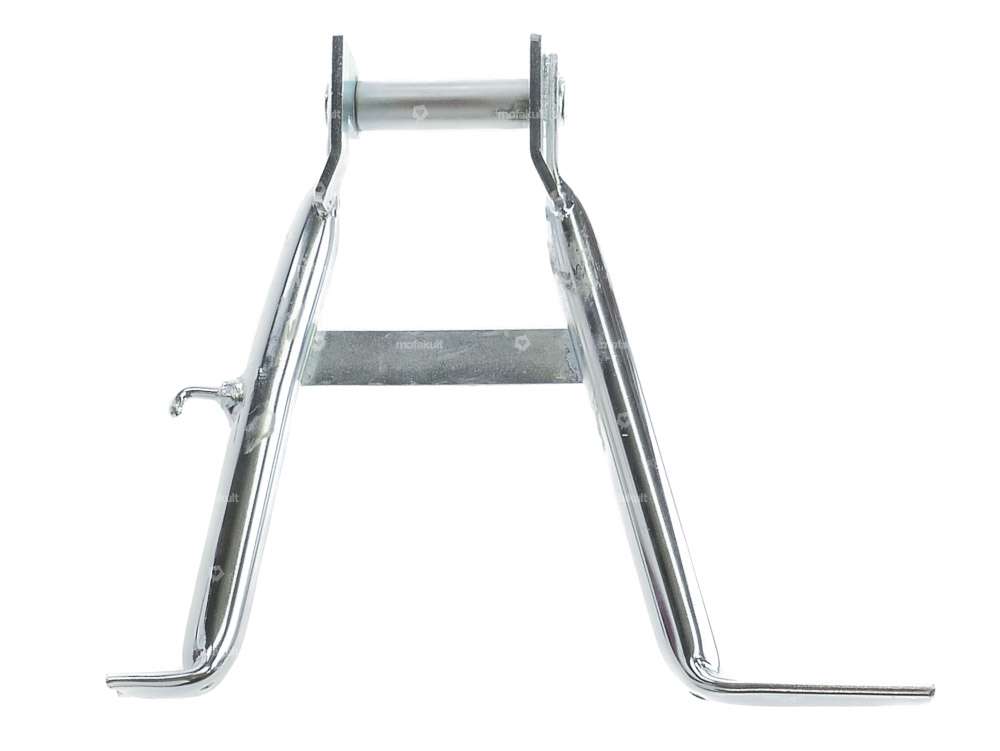

Solid galvanized main stand | Puch Maxi S

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Ø inside: 9 mm · Ø outside: 14 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Total length: 122 mm

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Mounting type: Screws · Number of fixing points: 3 pcs · Hole spacing: 41 mm · Total length: 70 mm · Width: 46 mm · Height: 20 mm

GPO spring puller

Manufacturer: GPO · Total length: 155 mm · Width: 55 mm · Area of application: Special tool

swiing® revival stand spring Inox | Puch

Spring design: Tension spring · Ø inside: 9 mm · Ø outside: 14 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: raw · Total length: 122 mm

Solid galvanized main stand | Puch Maxi N

Total height: 185 mm · Manufacturer: Made in Switzerland · Material: Steel · Surface: chrome-plated · Stand base - center mount (A): 170 mm · Color: Chrome · Total width of stand base (B): 250 mm · Wide receptacle (C): 87 mm · Ø Receptacle (D): 10.8 mm · Spring nipple distance - center pivot axis (E): 110 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 60 mm

swiing® revival screw set mounting stand Inox | Puch

Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 10 mm · Manufacturer: swiing® revival parts · Thread length: 17.5 mm · Number of components: 12 pcs · Material: Chrome steel (stainless steel) · Area of application: Standard · Surface: raw · Color: silver · Shank: Yes · Thread type: M6x1 (standard thread)

Motorex Lithium Grease 190 EP 400 g

Manufacturer: Motorex · Area of application: Chemistry · Area of application: Fat · Contents [g]: 400 g · Temperature resistance (min.): -30 - 120 °C

Bearing shell main stand | Puch

Material: Aluminum · Surface: raw · Color: silver · Mounting type: Screws · Number of fixing points: 3 pcs · Number of fixing points: 5 pcs · Hole spacing: 41 mm · Total length: 70 mm · Width: 46 mm · Height: 20 mm

swiing® revival bearing shell reinforced main stand | Puch Maxi S, N | X30 NS, NL, N-2AH

Manufacturer: swiing® revival parts · Material: Cast aluminum · Color: silver · Mounting type: Screws · Number of fixing points: 3 pcs · Total length: 54 mm · Width: 70 mm

Buzzetti main stand black (1A quality) | Puch Maxi S, P1 | X30 NS, NL, NG

Total height: 215 mm · Manufacturer: Buzzetti · Material: Steel · Surface: powder-coated · Stand base - center mount (A): 200 mm · Color: black · Total width of stand base (B): 230 mm · Wide receptacle (C): 63 mm · Ø Receptacle (D): 18.1 mm · Spring nipple distance - center pivot axis (E): 100 mm · Wide upright foot (F): 30 mm · Wide upright foot (F): 45 mm · Puch OEM number: 349.3.24.500.2

swiing® revival upright spring blue galvanized | Puch

Spring design: Tension spring · Ø inside: 9 mm · Ø outside: 14 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: galvanized (blue) · Total length: 122 mm

Pedestal bearing shell | Puch

Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Mounting type: Screws · Number of fixing points: 3 pcs · Hole spacing: 41 mm · Total length: 70 mm · Width: 46 mm · Height: 20 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Thread type: MF12x1 (fine pitch thread)

Tank cap 30 mm bayonet lockable

Material: Chrome steel (stainless steel) · Material: Steel · Surface: blank · Surface: galvanized (blue) · Fuel filler cap: Bayonet 30 mm · Color: Chrome · Lockable: Yes · Vented: Yes · Ø External head: 55.4 mm · Height: 28.6 mm

GPO cable duct black | Puch Maxi, Supermaxi

Manufacturer: GPO · Material: Plastic · Color: black · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm · Total length: 320 mm · Width: 58 mm · Height: 22 mm

swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH

Ø inside: 16.2 mm · Ø outside: 20.2 mm · Manufacturer: swiing® revival parts · Ø Bundle: 24.1 mm · Material: Nylon · Bearing type: Plain bearing · Surface: blank · Color: black · Total length: 19 mm · Puch OEM number: 349.1.42.005.1

swiing® revival stand spring Inox | Puch

Spring design: Tension spring · Ø inside: 9 mm · Ø outside: 14 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: raw · Total length: 122 mm

swiing® revival wiring harness MERIT light switch (version 2.0)

Cable cross-section [mm²]: 1.5 mm² · Ø Receptacle: 22 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Number of cables: 5 pcs · Cable bifurcation to motor: 950 mm · Switch included: Yes · Luster terminal: Yes · Cable bifurcation to lamp: 230 mm · Cable bifurcation to switch: 400 mm · Tail light cable length: 1000 mm

swiing® ingenious adjusting nut M26x1 control bearing

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: Hardened · Color: black · Thread type: MF26x1 (fine pitch thread)

Main stand set | Puch Maxi S

Total height: 220 mm · Material: Aluminum · Material: Chrome steel (stainless steel) · Material: Spring steel · Material: Steel · Surface: galvanized (blue) · Surface: varnished · Stand base - center mount (A): 207 mm · Color: black · Color: silver · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 50 mm
