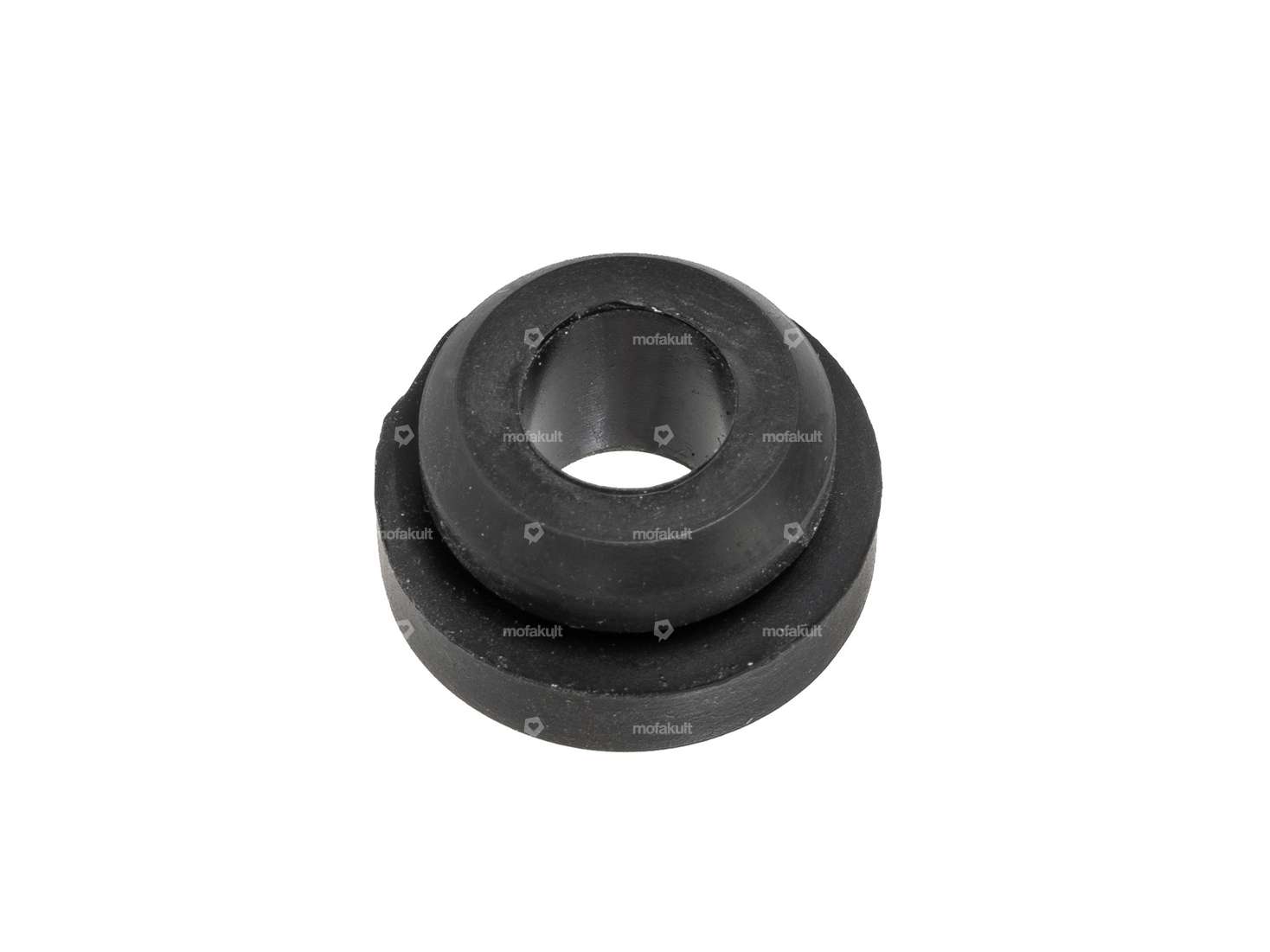

Cable grommet to route the cables of the rear light through the rear mudguard of various Tomos mopeds (Quadro, Sprint, Classic, FunSport, etc.).

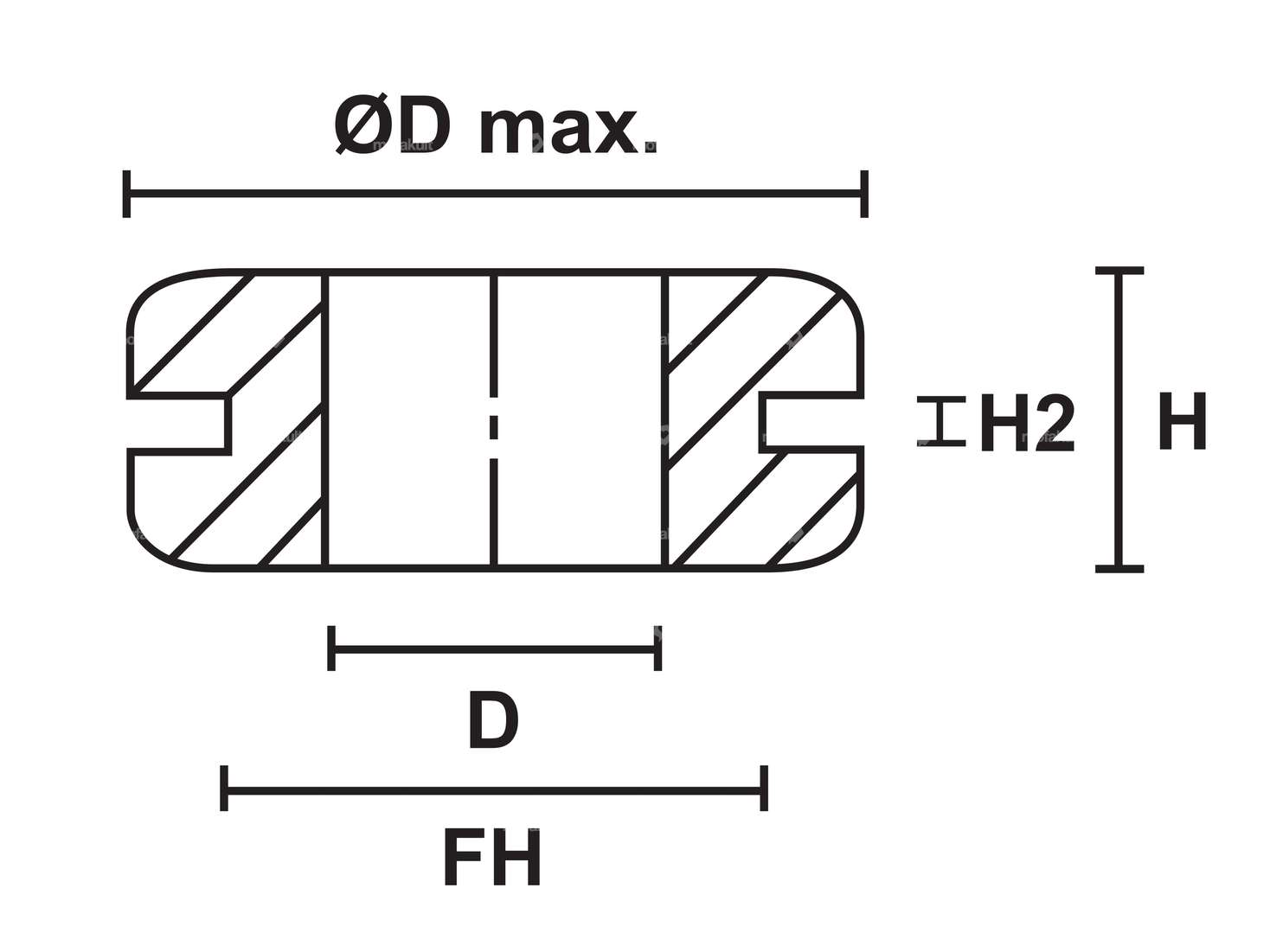

D: 8 mm
FH: 12 mm
Dmax: 19 mm
H2: 2 mm
H: 9.5 mm
This PVC plastic ring can also be used for other purposes, as it can also be mounted compressed.
Original Tomos spare part number: 219946
Details
Manufacturer | Tomos |
Material | Polyvinyl chloride (PVC-U_hard) |
Color | black |
Ø Cable bushing | 8 mm |
Ø outside | 19 mm |
Ø mounting hole | 12 mm |
Height | 9.5 mm |
Material thickness | 2 mm |
Tomos spare part no. | 219946 |
Suitable for the following models
Tomos |
