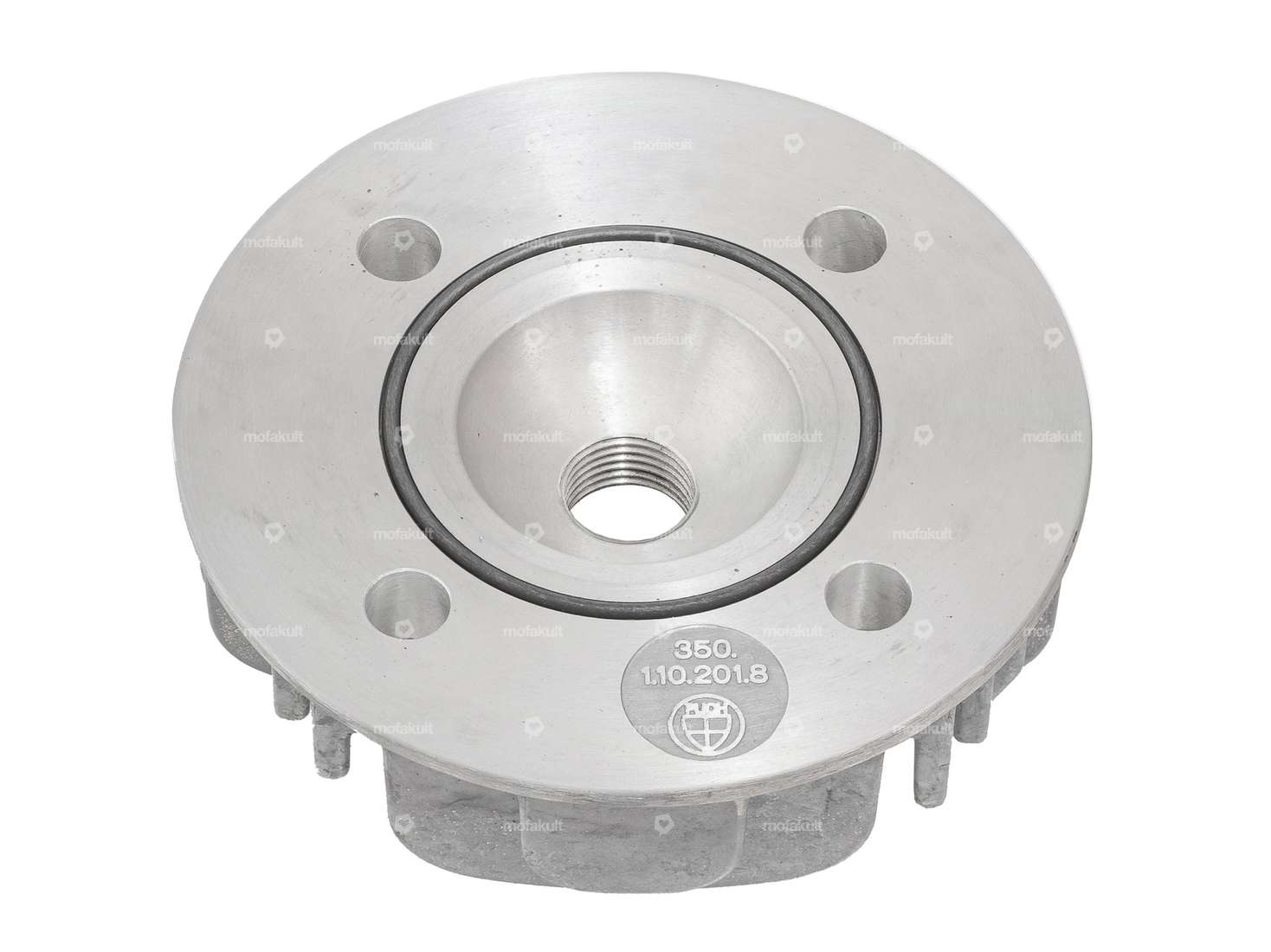

Tuning cylinder cover with optimized combustion chamber for blown cylinders of your Puch X30 Velux moped / moped with M7 cylinder stud bolts.
Please select the desired cylinder head with the corresponding diameter of 38, 40 or 41 mm in the selection field.

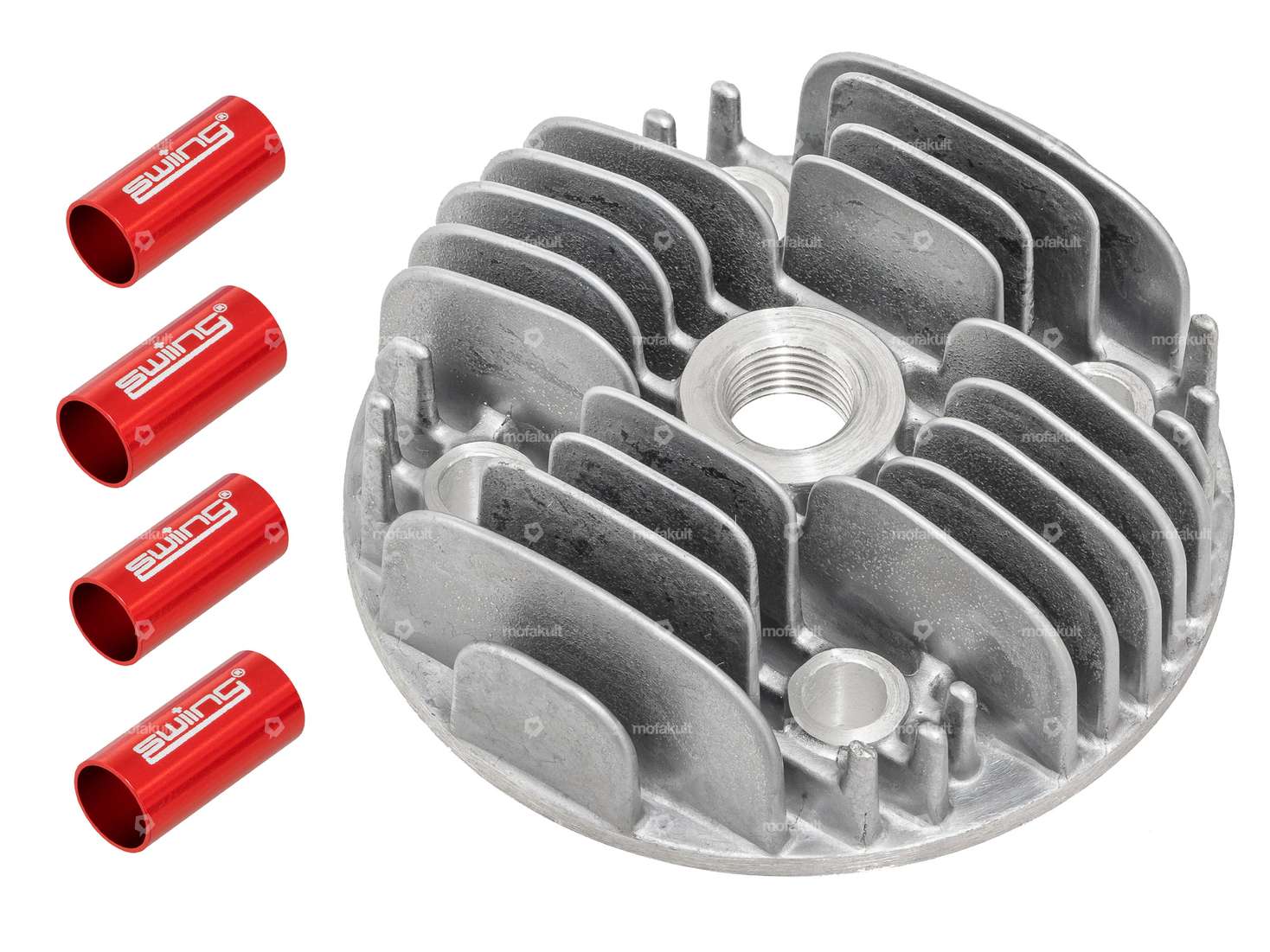

The cylinder head must be fitted together with the four centering sleeves included in the scope of delivery.
The centering bushes are used to ensure that the cylinder cover can be pushed onto the stud bolts in a perfectly centered position.

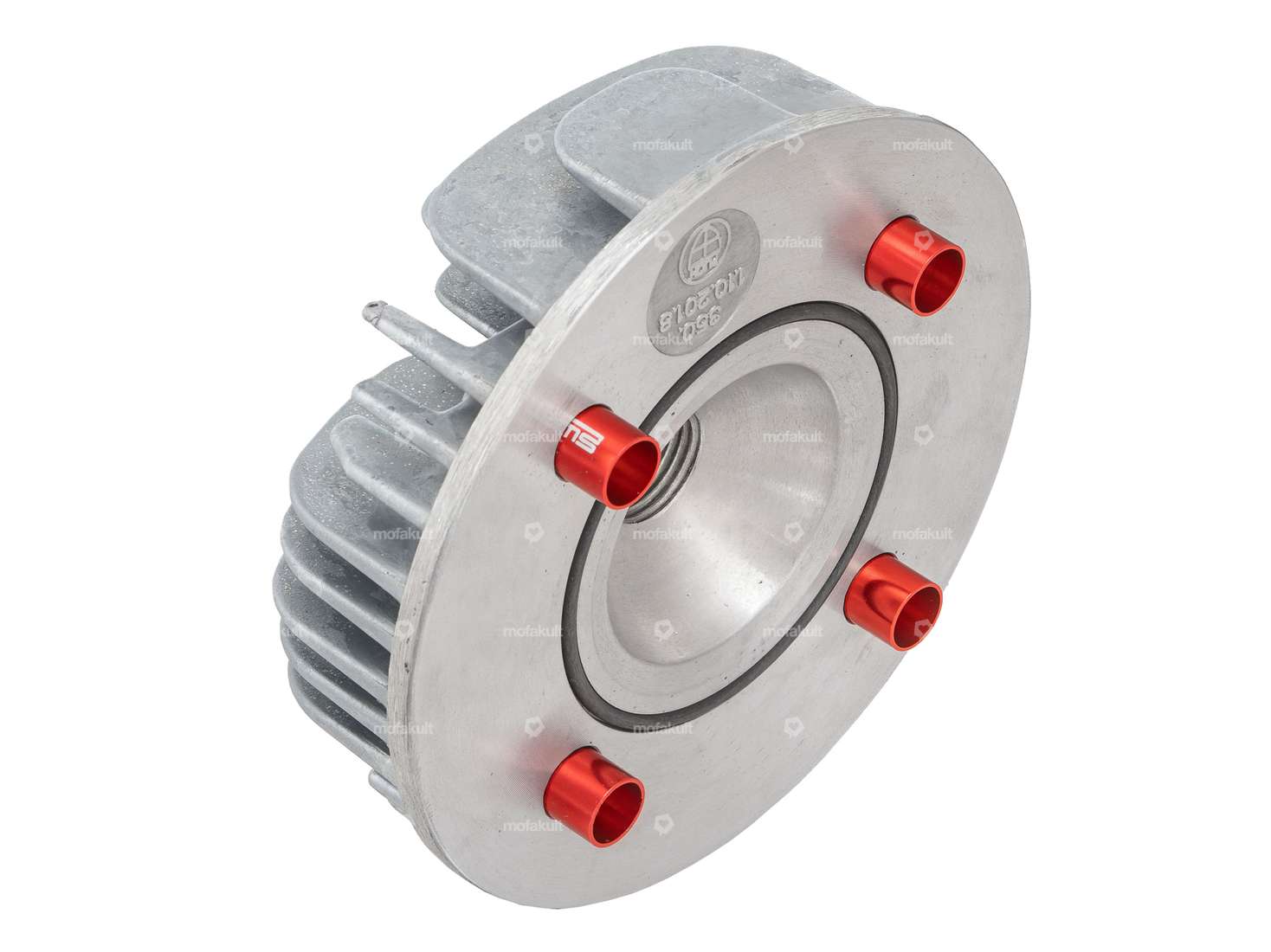

The bushes are pushed into the holes in the cylinder cover so that they protrude slightly above the sealing surface (see Figure 2 for an illustration).
We recommend gluing the guide bushes into the cylinder head with Loctite adhesive so that they do not move during assembly/disassembly.
The cylinder heads do not have a mount for fitting a decompressor.
Cylinder head dimensions (ØxH): 90 x 35 mm
Dimension centering bushes:
Ø inside: 7.1 mm
Ø outer: 8 mm
Length: 17 mm
Material: Aluminium, anodized
Note: The FPM Viton sealing ring is not included in the scope of delivery. Figure 2 serves to illustrate installation.
You can find the corresponding cylinders, stud bolts, Loctite and the matching sealing ring in the accessories section.
B quality: The cylinder head may contain small casting cavities in the combustion chamber. You can find the perfect counterpart in the accessories section.
The set includes the following fixed parts:
Details
| Area of application | Racing |
| Ø cylinder | 38 - 41 mm |
| Ø outside | 90 mm |
| Height | 35 mm |
| Number of fixing points | 4 pcs |
| Decompressor | No |
Suitable for the following models
| Puch | Z50 (X30 Velux) |
