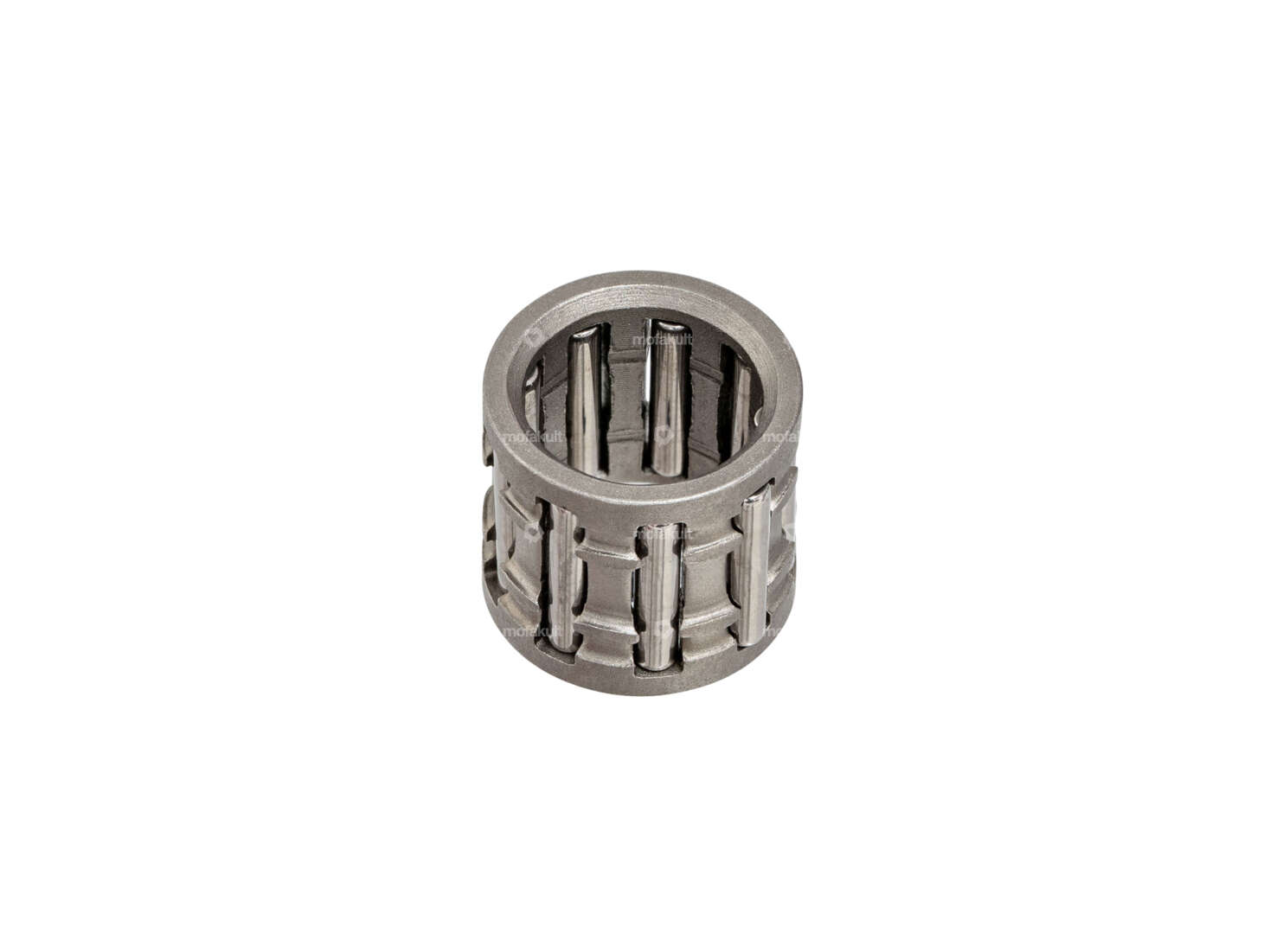

Piston pin bearing for various crankshafts without sliding bushes, with a 10 mm piston pin (axe 10) and a 14 mm connecting rod eye.
Ø inner: 10 mm
Ø outer: 14 mm
Width: 13 mm
Attention: For crankshafts with a pressed-in connecting rod eye, a needle roller and cage assembly cannot be used retroactively.

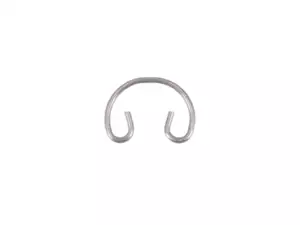

You can find more needle bearings or piston pin retainers in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
Manufacturer | Polini |
Bearing type | Needle sleeve |
Ø outside | 14 mm |
Ø inside | 10 mm |
Width | 13 mm |
Dimension needle bearing | 10/14 x 13 |
Suitable for the following models
Universal | |
ILO / JLO |
