For: Puch

18348

Operating instructions | Tigra Pionier with X30 motor (Velux)

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
33,70 EUR

Incl. VAT, plus shipping costs

in stock

Only 6 pieces left.

Operator's manual for the Tigra Pionier moped with Puch engine X30 Velux from Maschinenfabrik Gränichen AG.

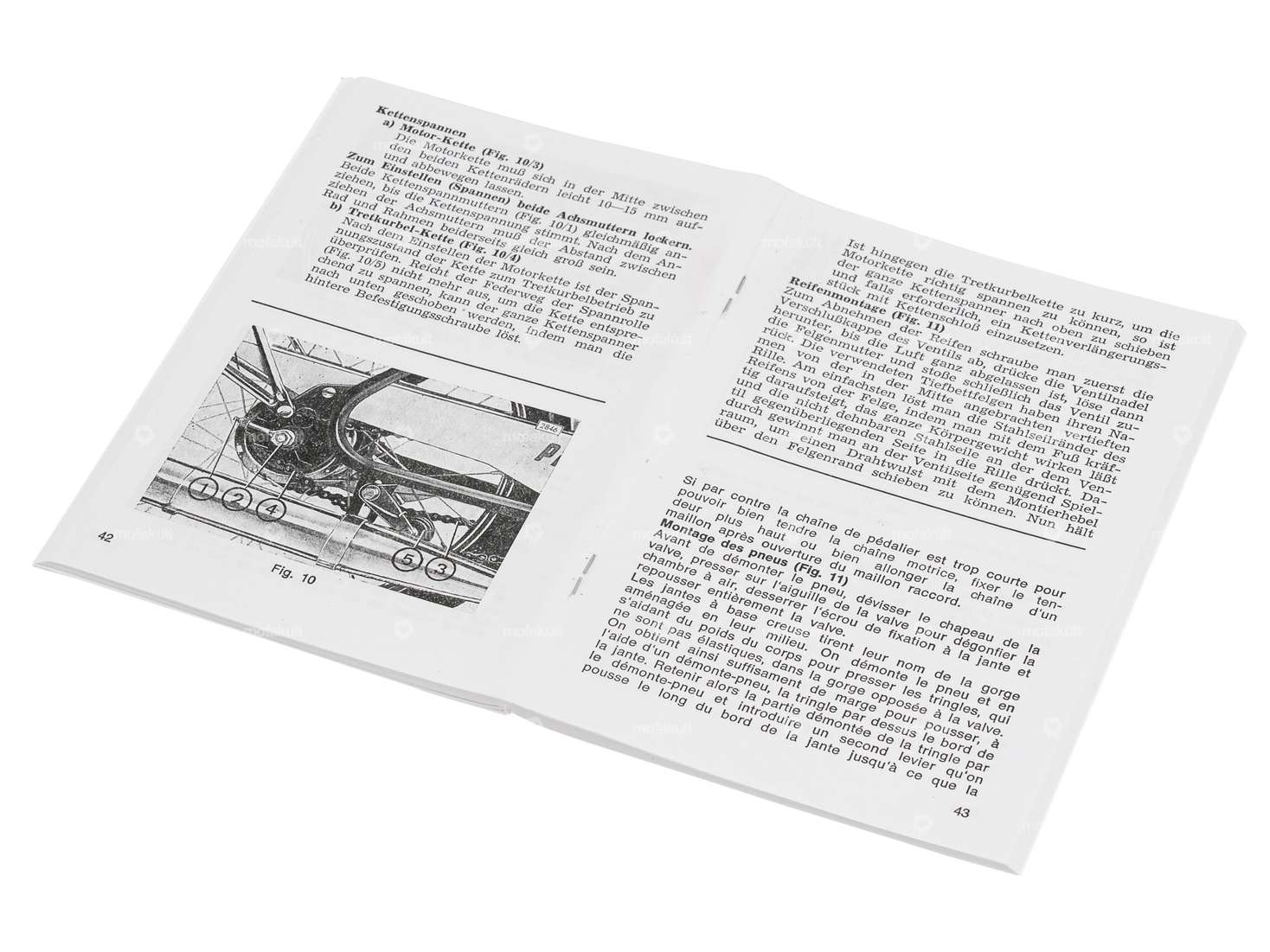

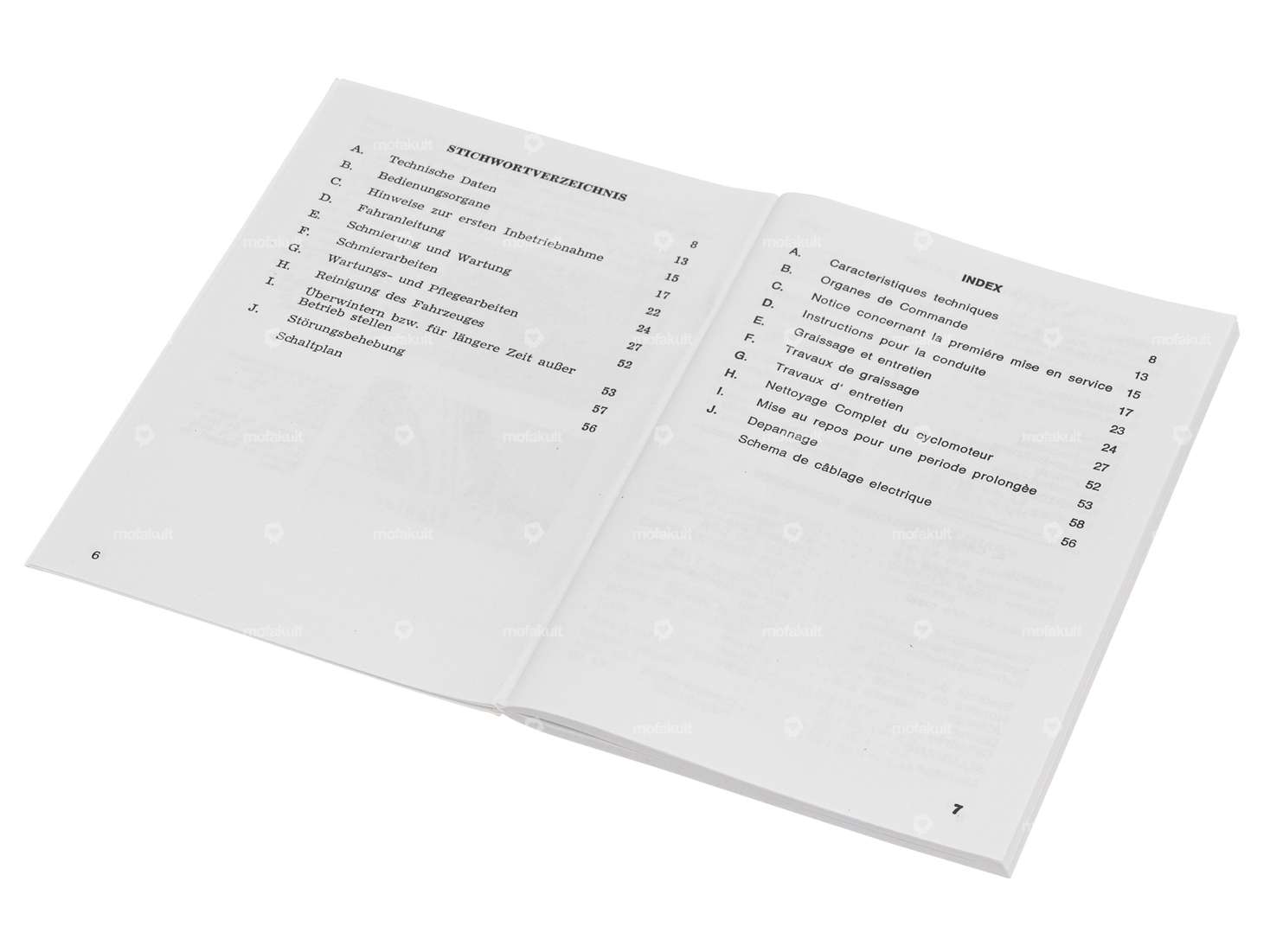

Very helpful, informative booklet. Among other things, technical data, repair/maintenance and adjustment work are explained.

Bilingual (German & French) A6 format with 80 pages.

Further literature can be found in the accessories section.

Details

MaterialPaper
DIN formatA6
Number of pages80 pcs

Suitable for the following models

Puch

Z50 (X30 Velux)
