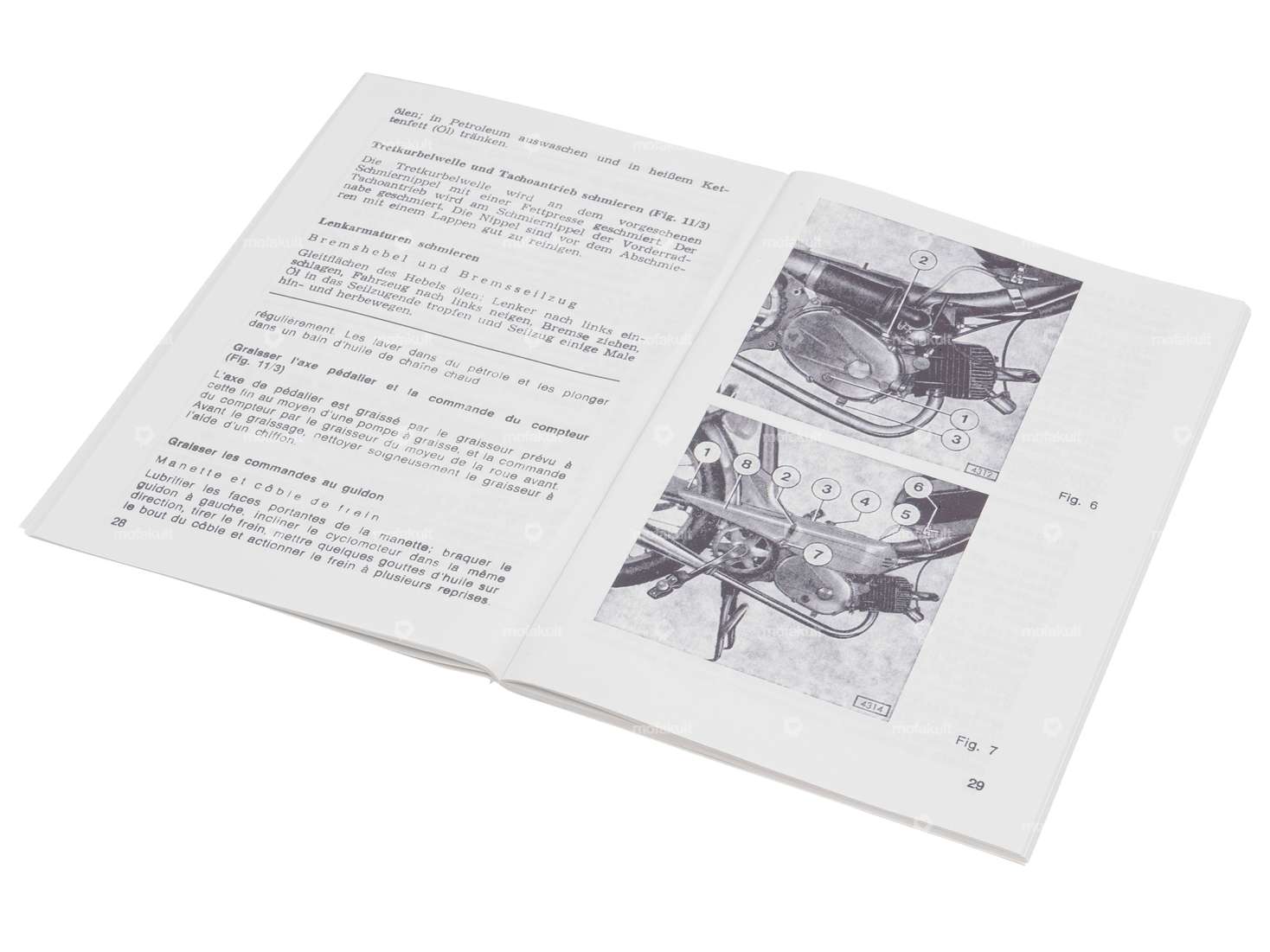

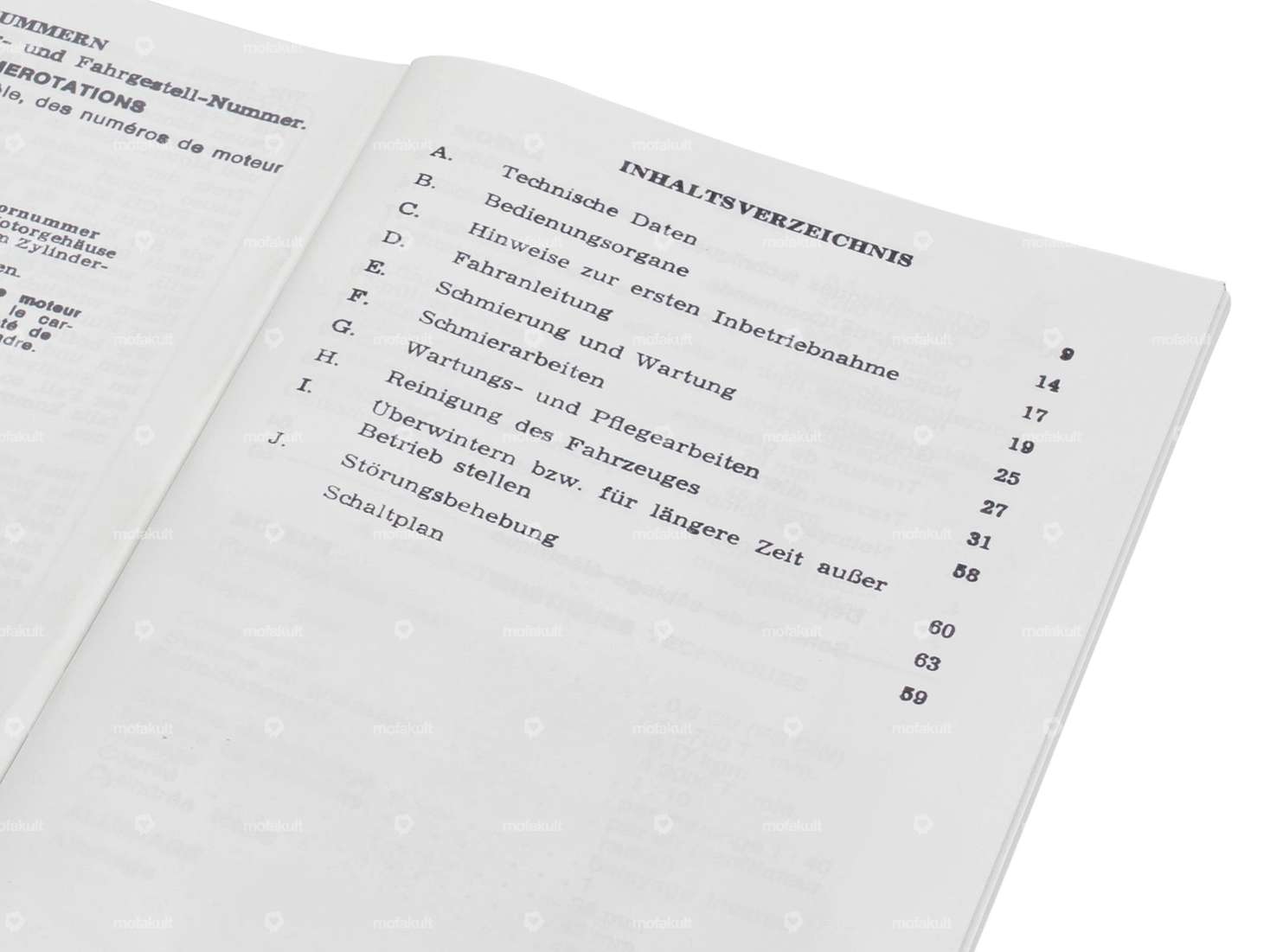

Operating instructions | Puch X30S Velux Sport version

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Mounting type: Plug connection · Number of fixing points: 2 pcs · Hole spacing: 63 mm · Total length: 74 mm · Height: 12.5 mm

Main stand black (budget) | Puch Maxi S, P1 / X30 NS, NL, NG

Total height: 220 mm · Material: Steel · Surface: varnished · Stand base - center mount (A): 207 mm · Color: black · Total width of stand base (B): 217 mm · Wide receptacle (C): 66 mm · Ø Receptacle (D): 18 mm · Spring nipple distance - center pivot axis (E): 75 mm · Wide upright foot (F): 20 mm · Wide upright foot (F): 50 mm

GPO control bearing set M26x1 mm | Puch

Ø inside: 26.8 mm · Ø outside: 41 mm · Manufacturer: GPO · Material: Steel · Bearing type: Bearing ring · Surface: galvanized (blue) · Color: silver · Ø mounting frame: 31 mm · Thread type: MF26x1 (fine pitch thread)

Magura cable holder

Ø outside: 8 mm · Ø Cable bushing: 4 mm · Manufacturer: Magura · Ø Bundle: 10 mm · Material: Brass · Area of application: Standard · Surface: nickel-plated · Color: silver · Ø Nipple hole: 6.2 mm · Total length: 14.5 mm

swiing nozzle set M3.5 (44 - 54) Bing SRE, SRA, SRC, SRF

Drive: Slot · Manufacturer: swiing · Material: Brass · Quantity: 6 pcs · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 54

swiing® revival plain bearing clutch basket | Puch E50

Ø inside: 15 mm · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Ø outside: 5 mm · Drive: Slot · Screw head: Lens head · Ø Cable bushing: 1.6 mm · Manufacturer: Magura · Thread length: 4 mm · Number of components: 2 pcs · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Total length: 6 mm

BING Float seal Bing 85

Manufacturer: BING · Material: Cork · Carburetor type: 85

GPO 85° carburetor pipe bend brass M6x0.75

Ø outside: 6 mm · Manufacturer: GPO · Width across flats nut: 8 mm · Material: Brass · Internal thread: MF6x0.75 (fine pitch thread) · Angle: 85 ° · Thread type: MF6x0.75 (fine pitch thread) · Total length: 45.5 mm · Total length: 53.5 mm · Height: 30 mm · Pony OEM number: A2066 · Sachs OEM number: 0261 132 000

Splash guard & edge protection front fender | Puch Maxi S / N

Material: Rubber · Color: black · Total length: 18 mm · Total length: 100 mm · Width: 100 mm
