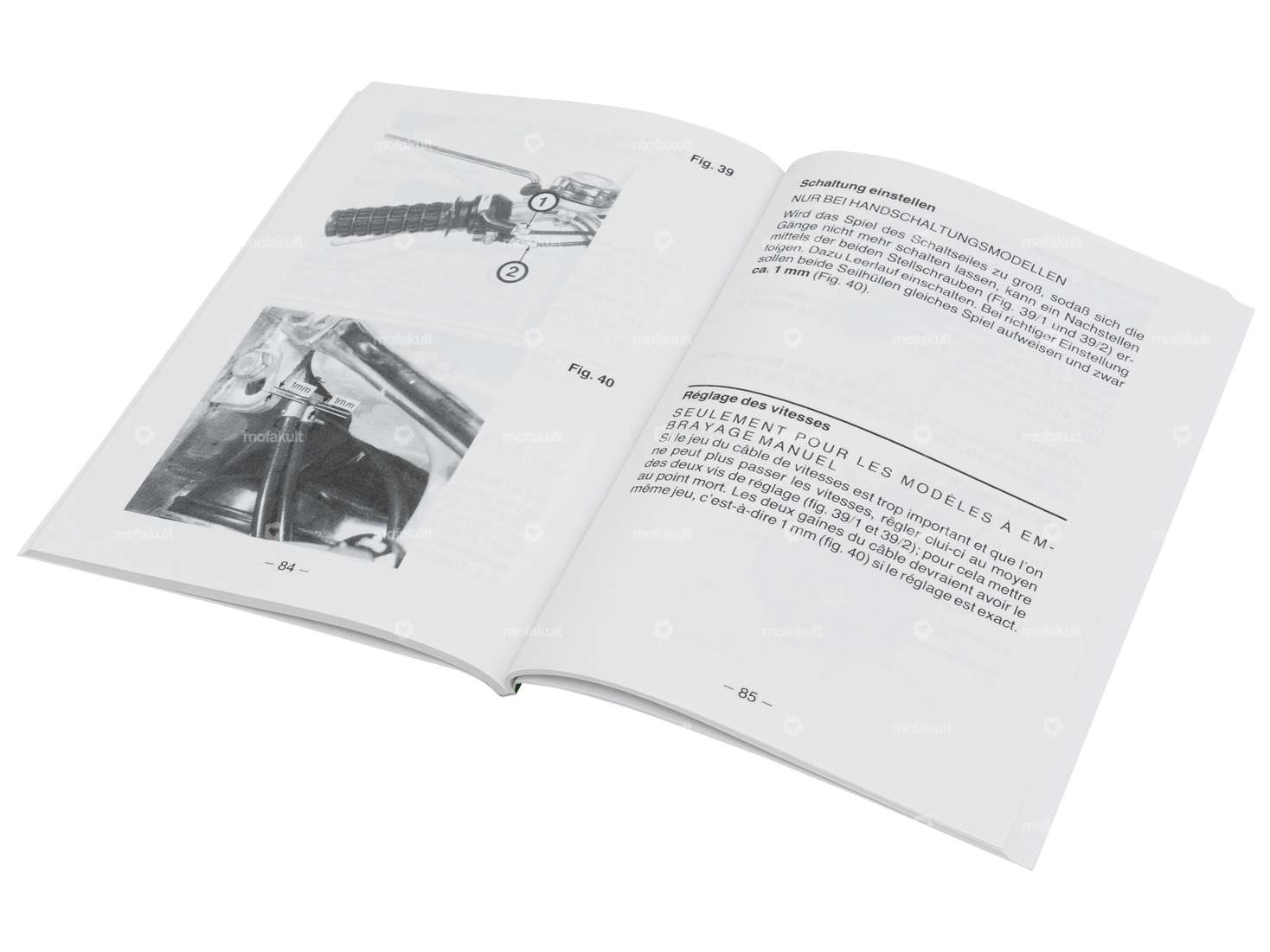

Operating instructions | Maxi / X30

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

GPO oil filler plug black | Puch Z50, ZA50

Manufacturer: GPO · Material: NBR · Surface: raw · Color: black · Ø outside: 16.4 mm · Ø mounting hole: 11 mm · Total length: 25 mm · Clamping diameter: 13 mm · Area of application: Standard · Puch spare part no.: 364.2.10.660.1

swiing® revival gearbox cover gasket (new model) | Puch Z50 engine

Thickness: 0.35 mm · Width: 120 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 170 mm · Number of fixing points: 7 pcs · Number of components: 1 pcs

swiing® revival centering screw M22x1 galvanized | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut · Thread type: MF22x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 27 mm · Puch spare part no.: 050.1.1233

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red · Area of application: High End · Area of application: Standard

GPO light switch with wiring harness base chrome version

Manufacturer: GPO · Material: Plastic · Housing material: Steel · Surface: chrome-plated · Color: Chrome · Substructure material: Steel · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Number of positions: 3 pcs · Number of cables: 5 pcs · Cable length: 970 mm · Cable bifurcation to motor: 970 mm · Cable bifurcation to lamp: 180 mm · Total length: 50 mm · Cable bifurcation to switch: 420 mm · Width: 30 mm · Height: 25 mm · Ø Handlebars: 22 mm

swiing® revival screw set engine Z50 Inox | Puch X30 Sport

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: stainless

Repair instructions | Puch Maxi, X30

Material: Paper · DIN format: A4 · Number of pages: 165 pcs

Motorex chain spray Off Road 500 ml

Manufacturer: Motorex · Oil type: fully synthetic · Area of application: Cross · Contents [ml]: 500 ml · Hazard warning: Extremely flammable aerosol · Hazard warning: May be fatal if swallowed and enters the respiratory tract · Hazard warning: Pressurized container: may burst when heated · Signal word: Danger · Hazard pictogram: GHS02 - Highly flammable

Wedge for kickstart lever | Puch E50, Z50

Material: Steel · Surface: blue galvanized · Ø outside: 9 mm · Total length: 48 mm · Puch spare part no.: 364.2.13.342.1
