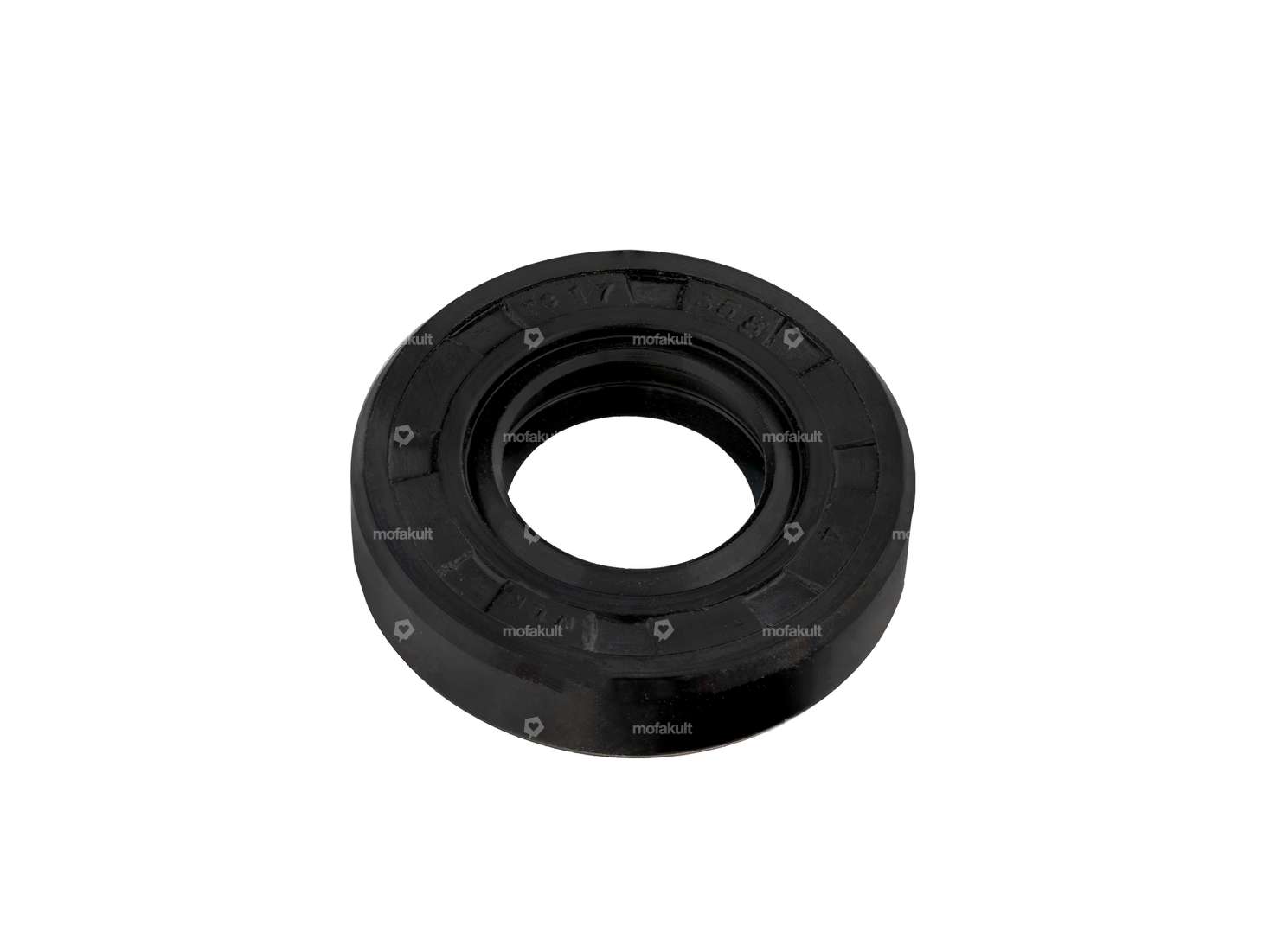

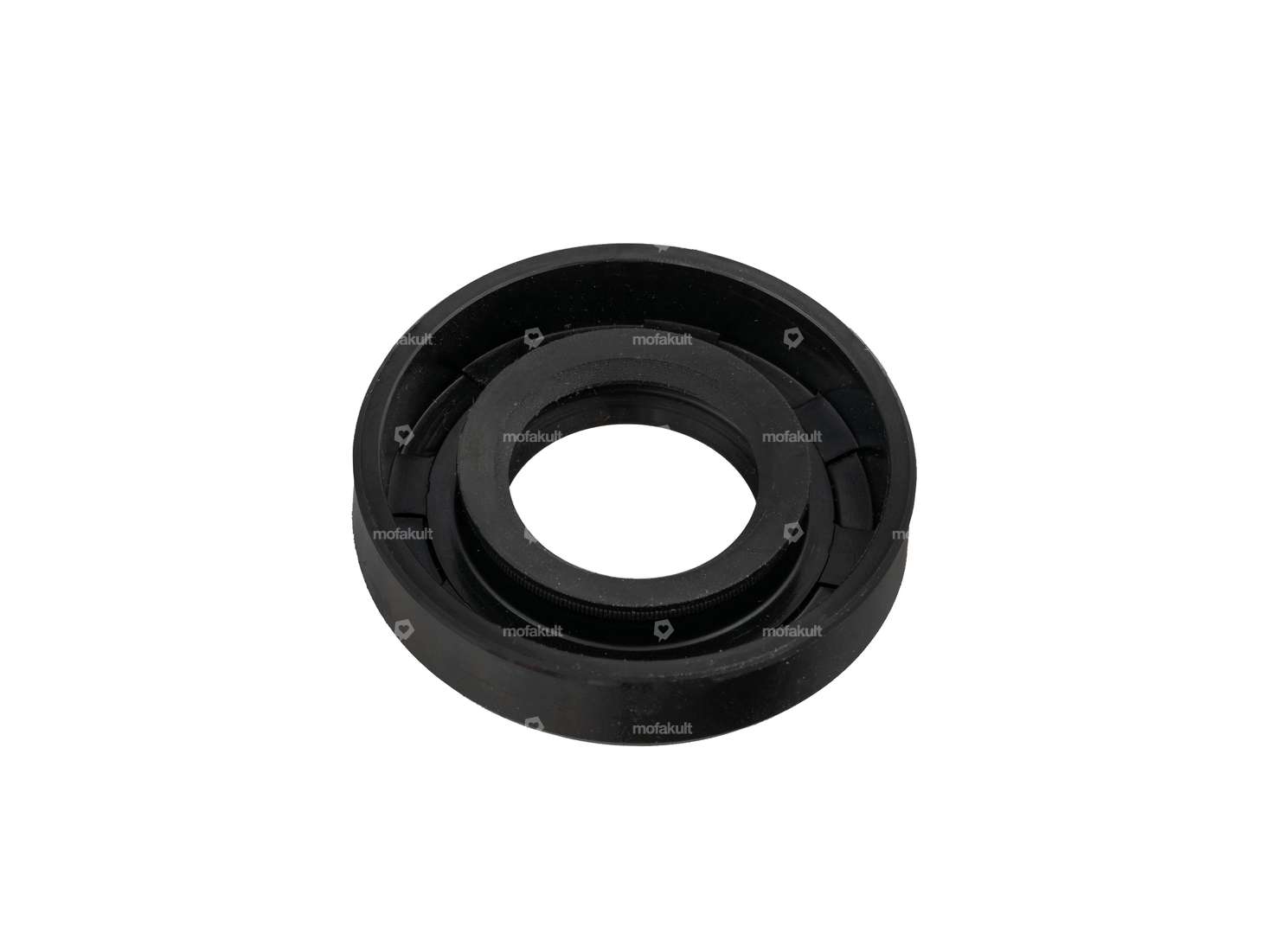

Shaft seal ring 17x35x8 mm for use on your moped / moped with Beta 521 & 512 engine.

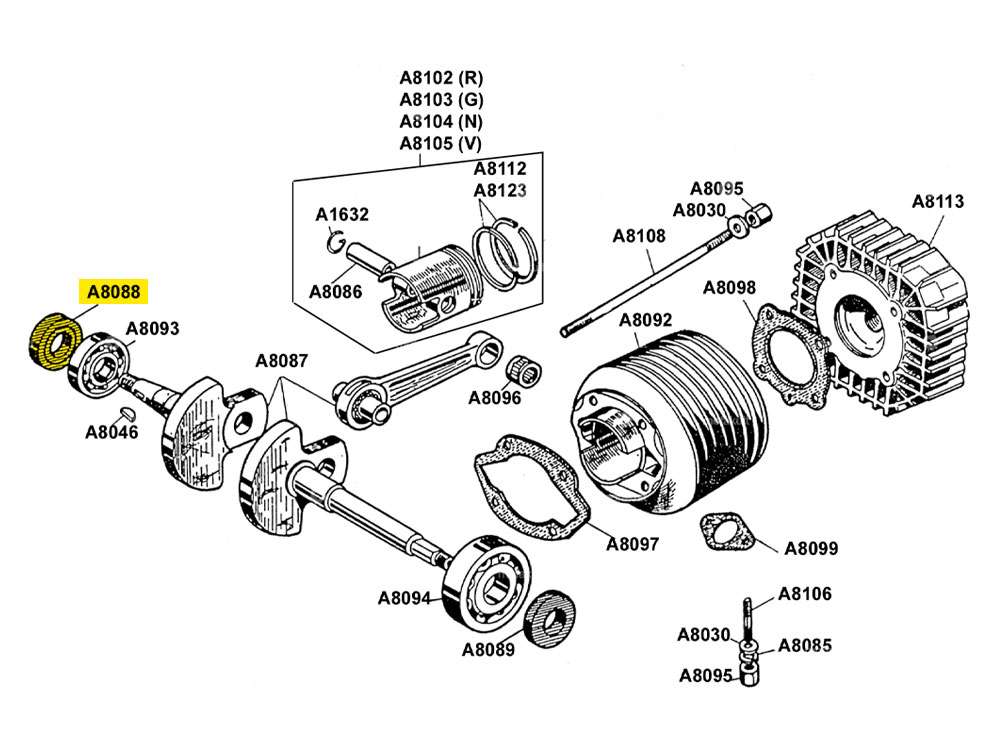

This radial shaft seal ring is mounted on the crankshaft on the end side.
Used on the following models:
- Cilo Cross 521 & 512
- Pony Cross 521
- Pony GTX 521.
Ø inner: 17 mm
Ø outer: 35 mm
Width: 8 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: AS - With rubberized outer casing, one sealing lip and one dust lip.
Original spare part number: A8088
Details
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | Pony |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 17 mm |
| Ø outside | 35 mm |
| Width | 8 mm |
| Place of use | Crankshaft |
| Temperature resistance (min.) | -30 - 100 °C |
Suitable for the following models
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (Motor) |
