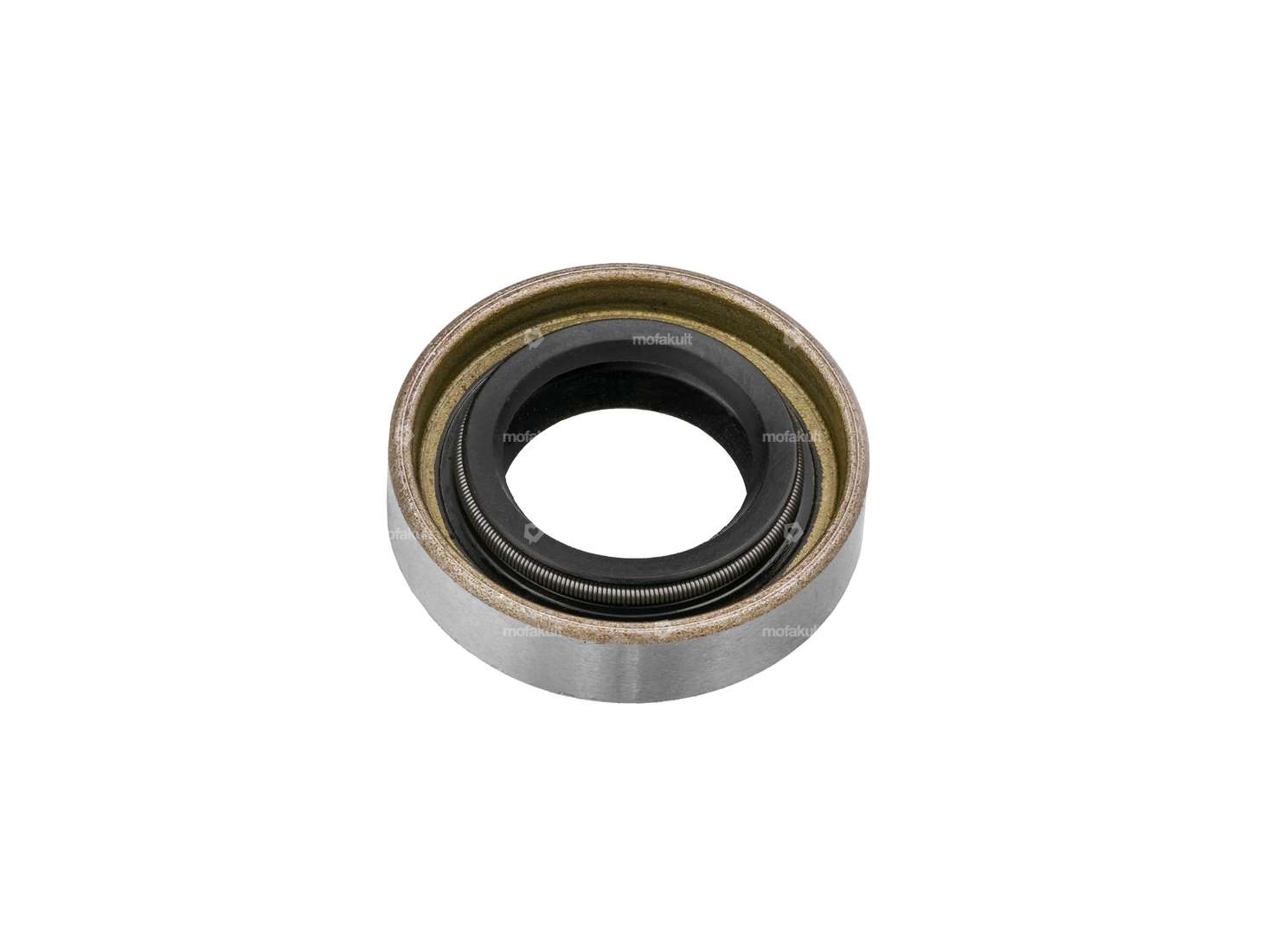

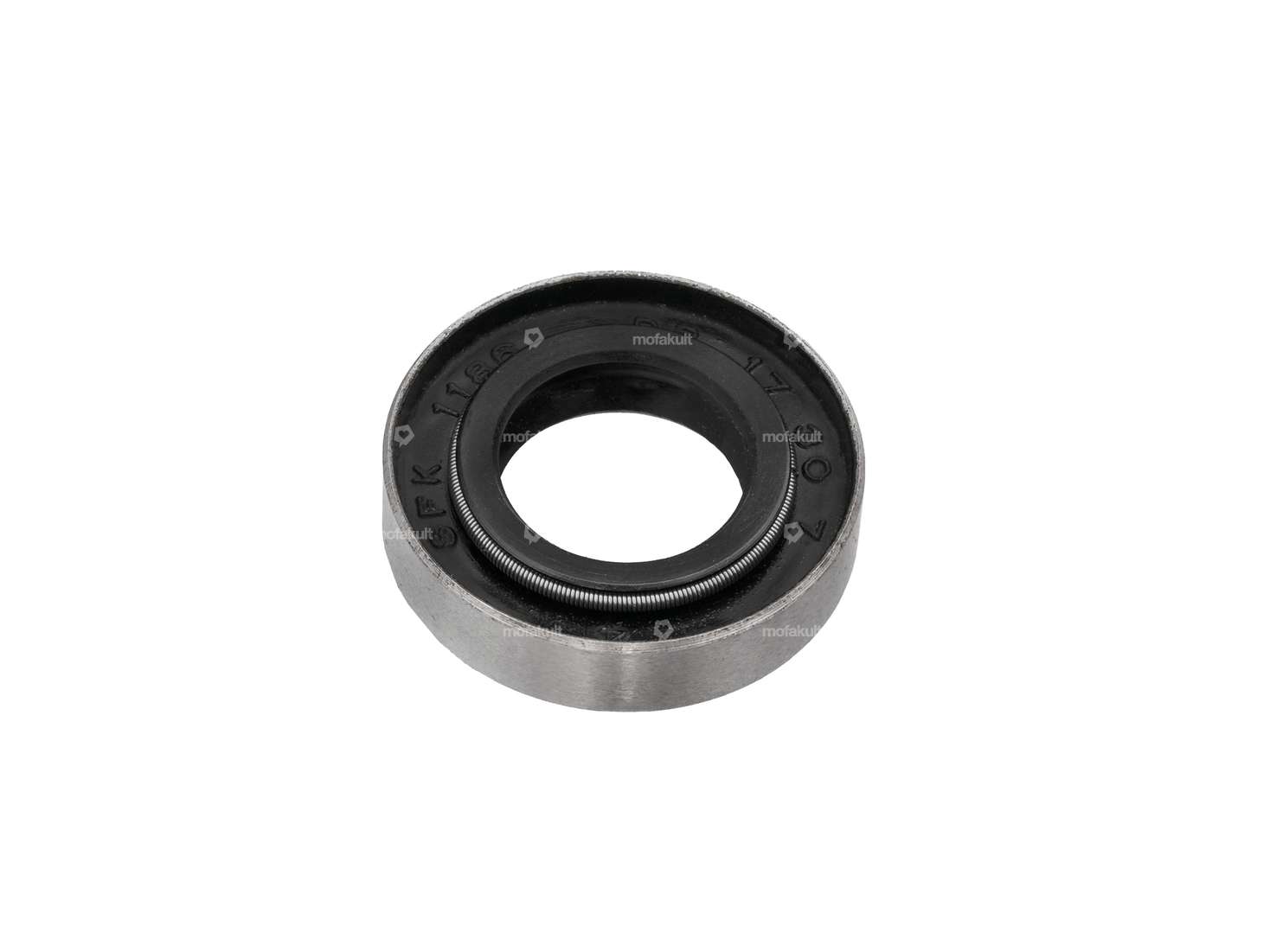

Oil seal NBR 17/30/7 B DUO crankshaft | Sachs 50/3, 50/4

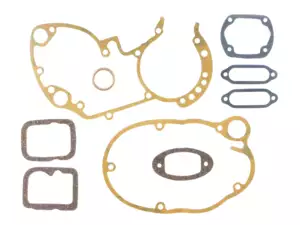

Gasket set diaphragm version | Sachs 3-speed 50/3 engine

Area of application: Standard · Hole spacing inlet: 67 mm · Ø outlet inside: 28 mm · Number of components: 9 pcs · Hole pattern [mm]: 51 x 40

GPO gasket set slot version | Sachs 50/3 3-speed engine

Manufacturer: GPO · Area of application: Standard · Hole spacing inlet: 31 mm · Ø outlet inside: 28 mm · Number of components: 8 pcs · Hole pattern [mm]: 51 x 40

Oil seal NBR 17/30/7 AS crankshaft | Cilo engines

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Manufacturer: Cilo · Material: NBR · Surface: rubberized · Width: 5 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C

Oil seal NBR 17/30/7 BS crankshaft | Sachs 50/3, 50/4

Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Ø inside: 30 mm · Ø outside: 17 mm · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Manufacturer: Elring · Area of application: Chemistry · Material: Silicone · Color: gray · Contents [ml]: 70 ml · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Temperature resistance (min.): -60 - 315 °C · Gap dimension (max.): 2 mm

Dirko Dichtmasse rot (Silikon) Hochtemperatur 70 ml dauerelastisc

Manufacturer: Elring · Area of application: Chemistry · Color: red · Contents [ml]: 70 ml · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm

NSK L17 shoulder ball bearing

Width: 10 mm · Bearing type: Shoulder bearing · Stock number: L17 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Ø inside: 17 mm · Ø outside: 40 mm · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank / oiled

swiing® revival cylinder base gasket 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Material: Oiled paper · Thickness: 0.5 mm · Place of use: Cylinder base · Hole pattern [mm]: 40.5 x 51

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Diameter: 4.9 mm · Total length: 23 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

Oil seal NBR 17/30/7 BS crankshaft | Sachs 50/3, 50/4

Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Ø inside: 30 mm · Ø outside: 17 mm · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C

Oil seal NBR 10/16/4.5 A Shift shaft | Sachs 50/3, 50/4

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 10 mm · Ø outside: 16 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 4.5 mm · Place of use: Shift shaft · Temperature resistance (min.): -30 - 100 °C

NSK L17 shoulder ball bearing 17/40/10 | Sachs 50/3, 50/4

Bearing type: Shoulder bearing · Stock number: L17 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 10 mm · Manufacturer: NSK

swiing® revival engine seal | Sachs 502, 50/2, 50/3, 50/4 (A1828)

Width: 170 mm · Total length: 250 mm · Manufacturer: swiing® revival parts · Ø inside: 86 mm · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 0.4 mm · Number of fixing points: 16 pcs · Pony spare part no.: A1828 · Sachs spare part no.: 0250 088 100

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Nominal diameter: 40 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm

Oil seal NBR 16/24/4 A

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Material: NBR · Surface: rubberized · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Width: 8 mm · Bearing type: Deep groove ball bearing · Stock number: E15 · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø outside: 35 mm · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Area of application: High End · Area of application: Standard · Material: Steel · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105
