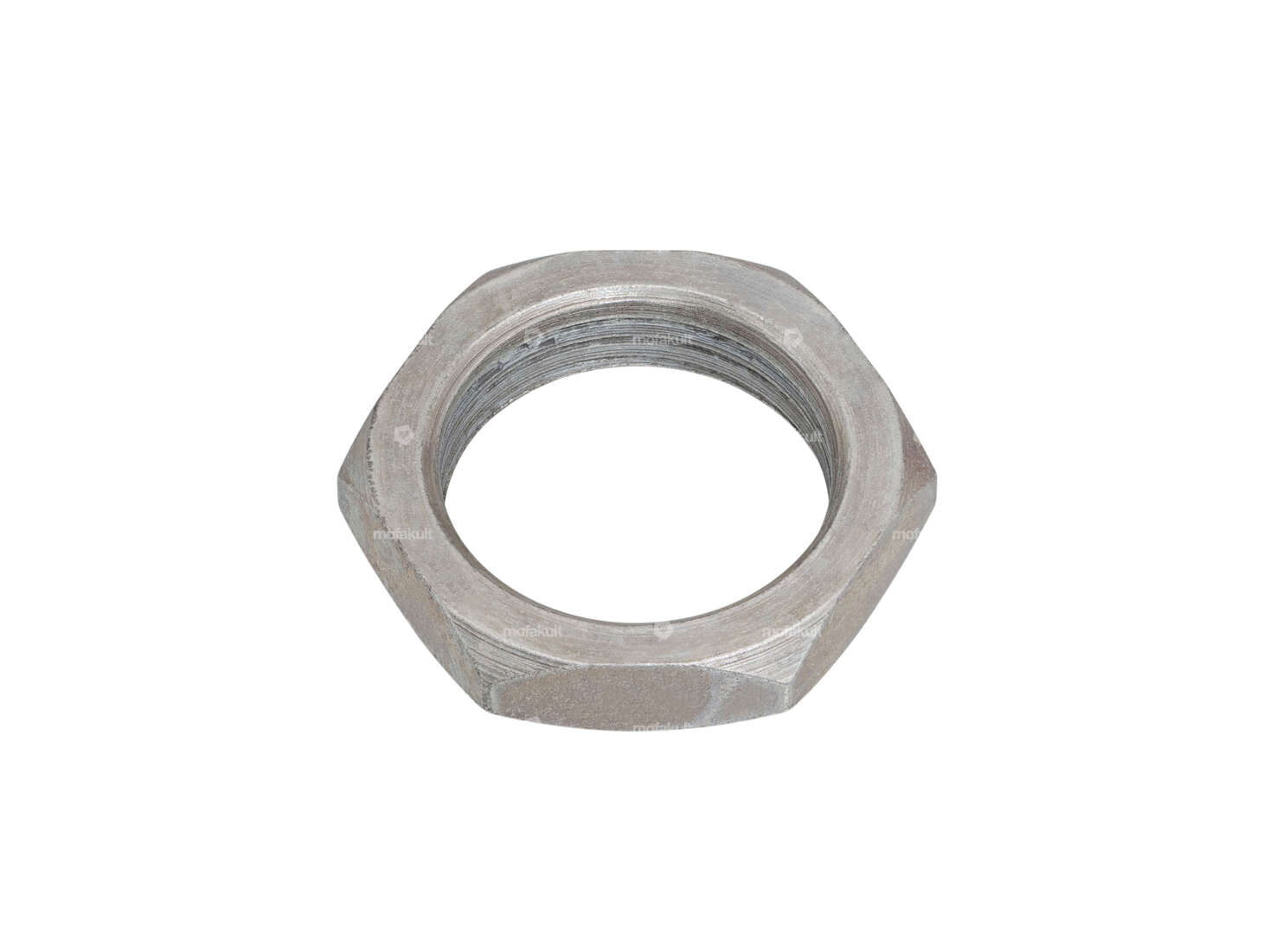

Nut for attaching the pinion to the old Cilo 502 mopeds.

Thread: M17 x 1.25 mm
Height: 4.8 mm
Wrench width: 22 mm

The set includes the following fixed parts:

Universal

Nut M17x1.25 x 5

16684

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF17x1.25 (fine pitch thread) · Height: 5.5 mm · Width across flats SW: 22 mm

Details

Drive	External hexagon
Width across flats SW	22 mm
Nut type	Hexagon nut
Thread type	MF17x1.25 (fine pitch thread)
Height	4.8 mm

Suitable for the following models

Cilo

502 / 502t

Accessories & related products

Inox

For: Cilo

17799

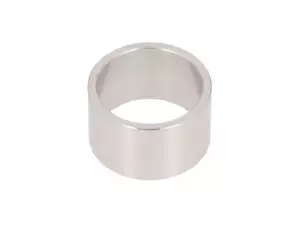

swiing® revival spacer ring pinion Inox | Cilo 502
