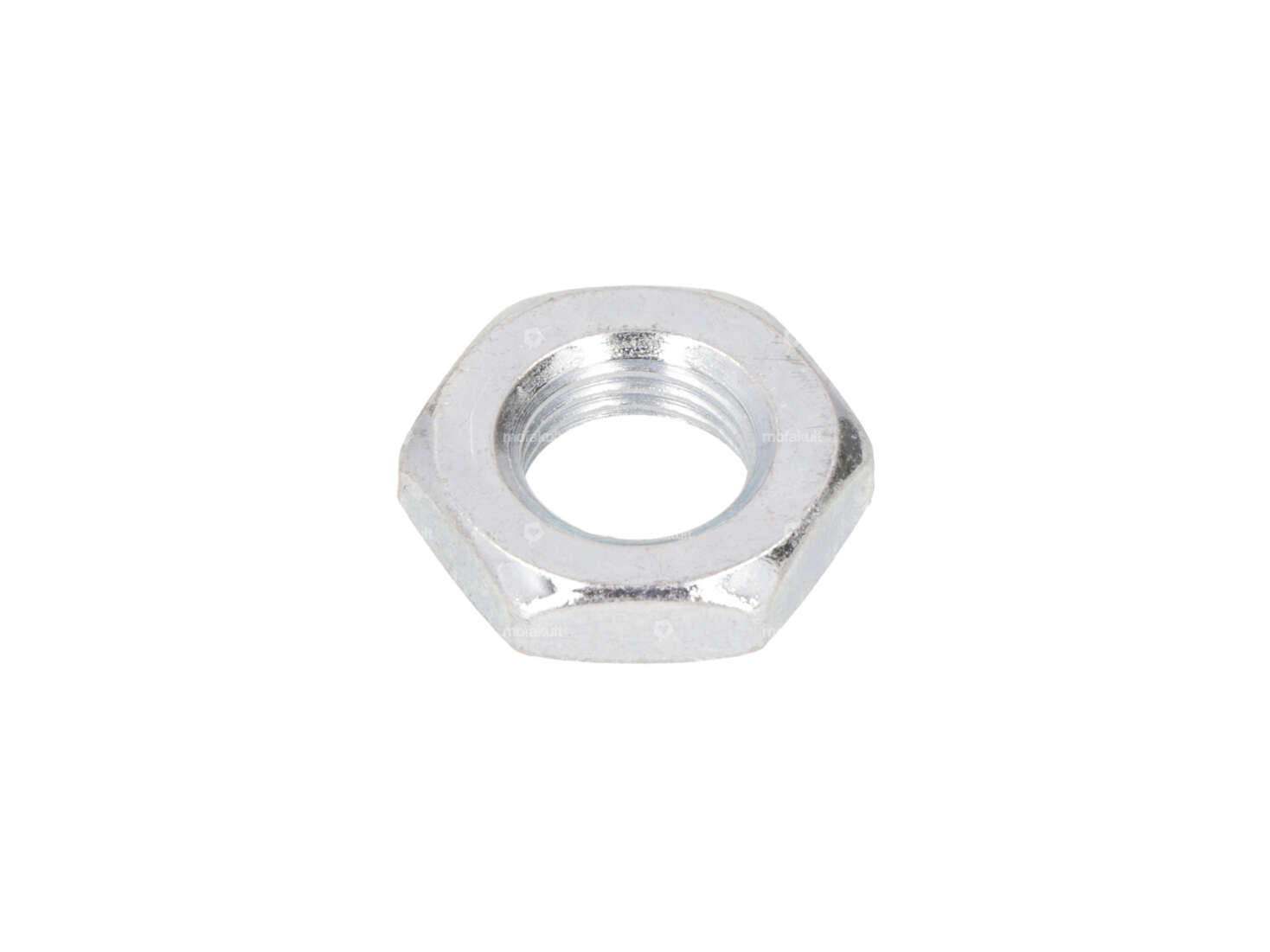

Nut M10x1 | Sachs 504, 535 (A1493)

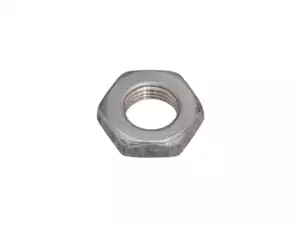

Nut M10x1 half-height Inox

Material: Chrome steel (stainless steel) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread)

Locking plate pinion M10

Ø inside: 12 mm · Material: Steel · Number of lobes: 1 pcs · Ø outside: 24.8 mm · Thickness: 1 mm · Thread size: M10

Washer M10 plastic transparent

Ø inside: 10.5 mm · Manufacturer: Made in Germany · Material: Polyamide (PA) · Nominal diameter (thread): 10 mm · Ø outside: 20 mm · Thickness: 2 mm · Thread size: M10

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony spare part no.: A1717 · Sachs spare part no.: A1717 · Sachs spare part no.: 0246 049 000

M10 locking plate 1 domed nose

Ø inside: 10.7 mm · Total length: 3.5 mm · Number of lobes: 1 pcs · Ø outside: 25.9 mm · Thread size: M10

Washer M10 plastic black

Ø inside: 10.5 mm · Manufacturer: Made in Germany · Material: Polyamide (PA) · Nominal diameter (thread): 10 mm · Ø outside: 20 mm · Thickness: 2 mm · Thread size: M10

66HEROES pointed nut "Spike" M10 chrome

Manufacturer: 66HEROES · Material: Chrome steel (stainless steel) · Nut type: Pointed nut · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Drive: External hexagon

swiing® revival wheel nut M10.5x1 x 10 SW17 coaster brake Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Area of application: Standard · Surface: blank · Nut type: Hexagon nut 1D · Thread type: MF10.5x1 (fine pitch thread) · Drive: External hexagon · Height: 10 mm · Width across flats SW: 17 mm

Meteor piston 38 mm #B | Sachs 503 AB/AC

Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: B · Weight: 75 g · Pony spare part no.: A5685B · Sachs spare part no.: 0286 382 306

Squeeze ring 25/33/4 copper

Material: Copper · Material: Graphite / Graphite · Thickness: 4 mm · Ø outside: 32.8 mm · Ø inside: 25.6 mm

swiing® revival rubber grommet ignition cable | Sachs 503 2AL/2BL/AAL, 535 (A4521)

Manufacturer: swiing® revival parts · Waistband height: 3 mm · Material: Rubber · Area of application: Standard · Color: black · Surface: raw · Ø Cable bushing: 5.2 mm · Ø Bundle: 10.5 mm · Ø mounting hole: 8.5 mm · Ø outside: 10.5 mm · Pony spare part no.: A4520 · Pony spare part no.: A4521 · Sachs spare part no.: 0960 135 000 · Sachs spare part no.: 0960 136 000

swiing 15 mm carburetor tuning camouflaged | Sachs 503

Nominal diameter: 15 mm · Width: 50 mm · Height: 95 mm · Manufacturer: swiing · Material: Aluminum · Carburetor type: SRE · Ø fuel hose connection: 6 mm · Ø Internal connection: 20 mm · Area of application: Tuning · Ø Inside entrance: 15 mm · Mounting type: Plug connection clamped · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Total length: 66 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5 · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m

swiing® revival thrust washer 19/38/2.5 gear wheel 1st gear | Sachs 503 AB, ABL (A1198)

Ø inside: 19.1 mm · Tolerance: DIN 988 (-0.03 mm) · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: hardened & ground · Ø outside: 38 mm · Thickness: 2.5 mm · Pony spare part no.: A1198 · Sachs spare part no.: 0244 201 100

Nut M10x1 low

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 0.5D · Drive: External hexagon · Height: 5 mm · Width across flats SW: 17 mm · Thread type: MF10x1 (fine pitch thread) · Pony spare part no.: A1493 · Pony spare part no.: A1513 · Sachs spare part no.: 0242 000 001 · Sachs spare part no.: 0242 102 001

Ripp-Lock washer M10 10.2/22/1.6 galvanized

Ø inside: 10.2 mm · Material: Steel · Surface: blue galvanized · Nominal diameter (thread): 10 mm · Ø outside: 22 mm · Thickness: 1.6 mm · Thread size: M10 · Alternative version of the Pony Spare part no.: A1640 · Alternative version of the Pony Spare part no.: A4517 · Alternative version of Sachs spare part no.: 0245 022 000 · Alternative version of Sachs spare part no.: 0946 002 000

GPO piston 43 mm | Sachs 50/2, 50/3, 50/4

Nominal diameter: 43 mm · Manufacturer: GPO · Ø outside piston (A): 42.94 mm · Compression height (C): 27.7 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Ø piston pin (B): 12 mm
