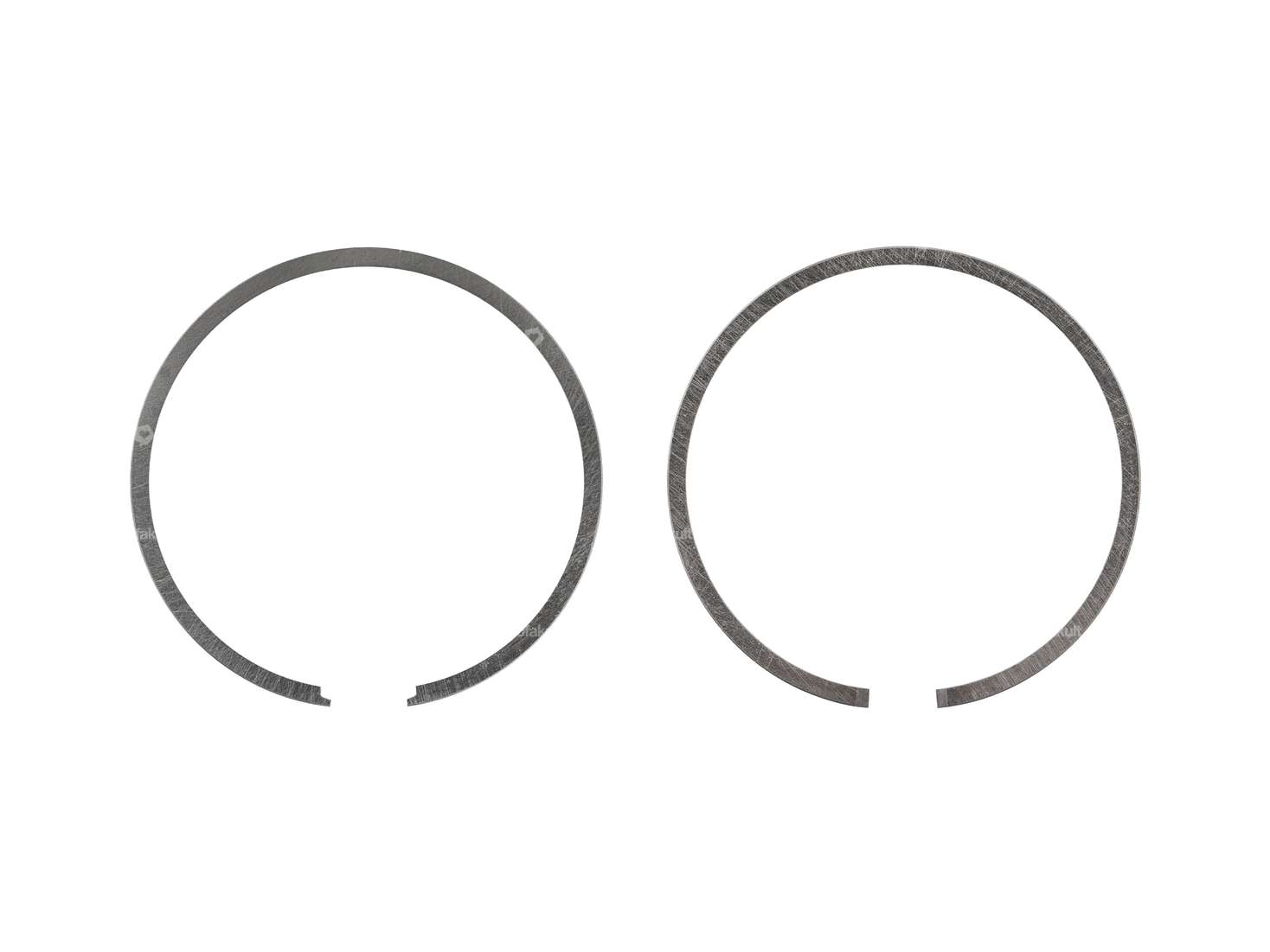

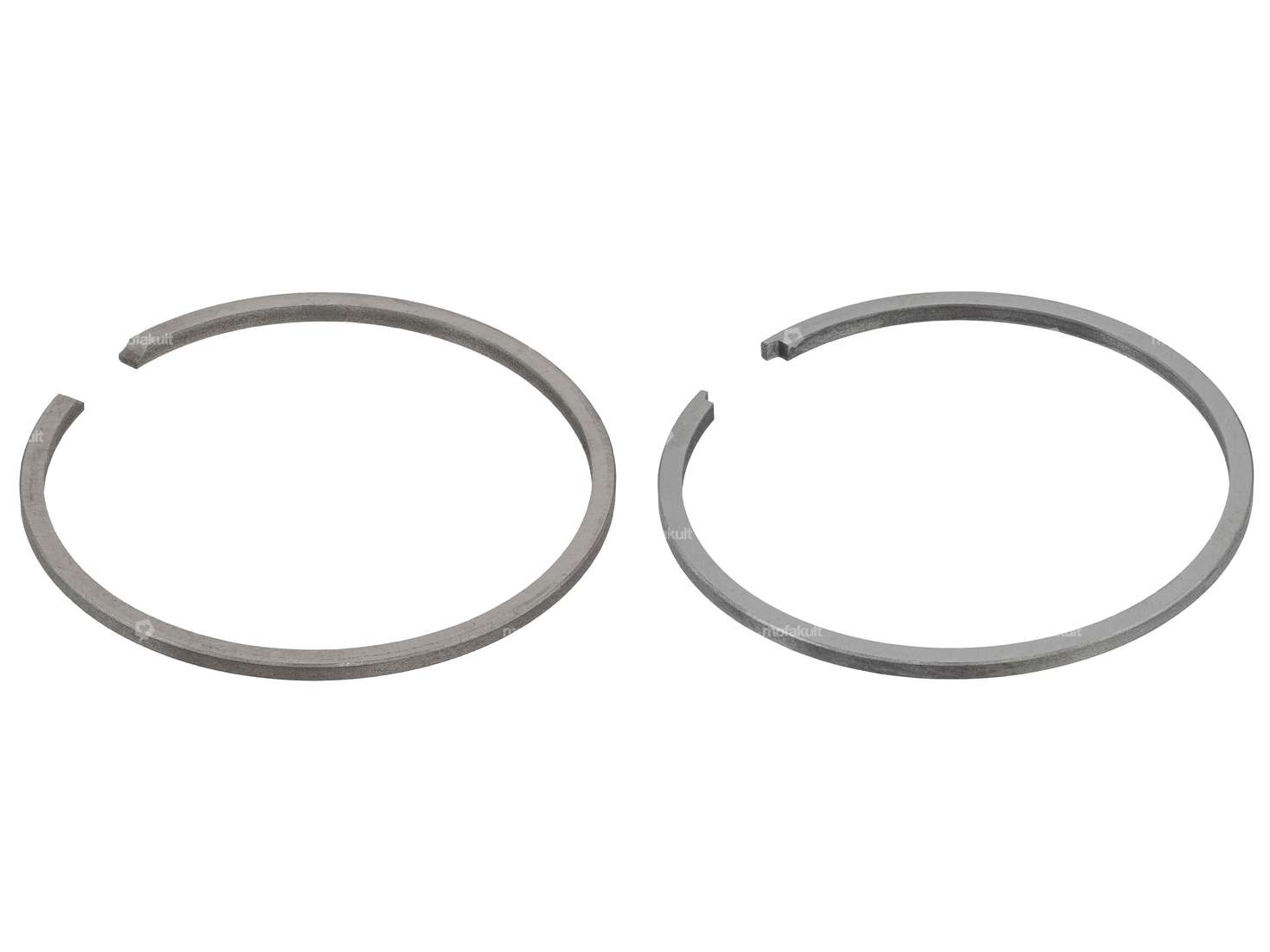

A set of compression rings consisting of a rectangular ring and an L-piston ring, suitable for Puch X30 Velux & NG-2 AH engines with Meteor pistons.

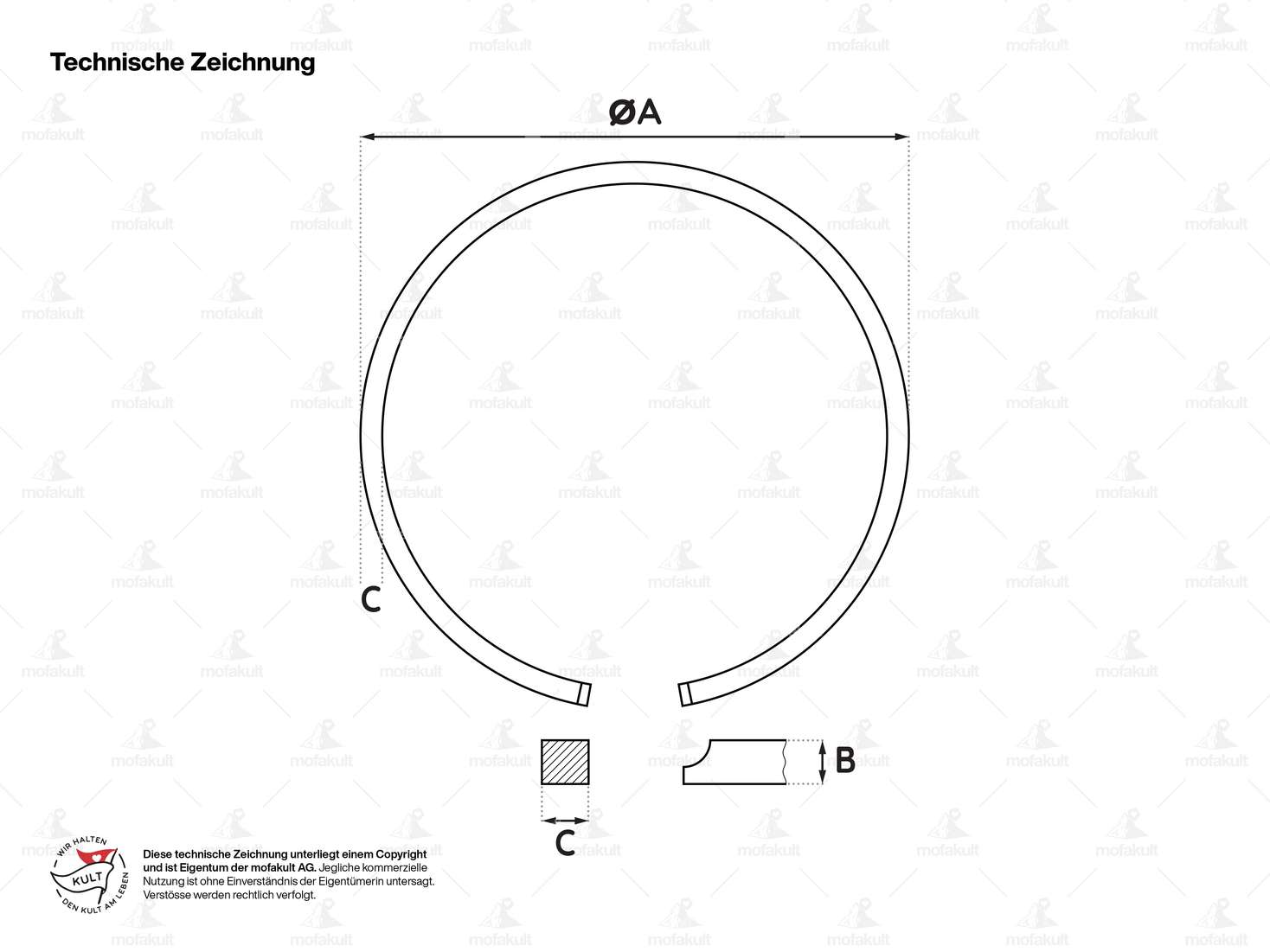

Dimension L-ring:
Ø outside (ØA): 42.50 mm
Height (B): 2.0 mm
Thickness (C): 1.85 mm
Piston ring shape: L-ring
Piston ring joint: Internal locking (IS)

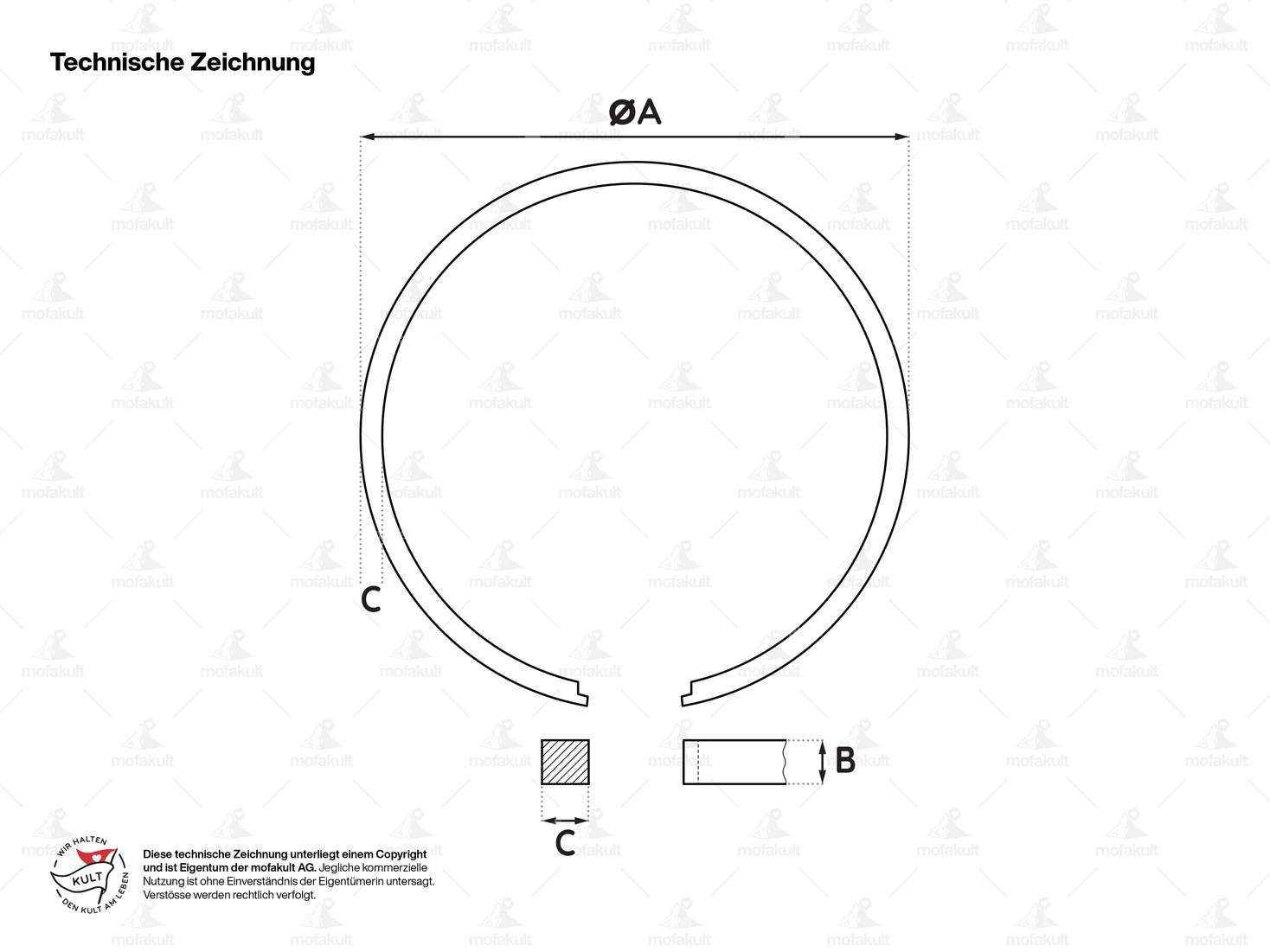

Size rectangular ring:
Ø outer (ØA): 42.50 mm
Height (B): 1.5 mm
Thickness (C): 1.75 mm
Piston ring shape: Rectangular ring
Piston ring butt: Flank lock (FS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
The set includes the following fixed parts:
Manufacturer: Meteor · Nominal diameter: 42.5 mm · Thick piston ring: 1.75 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS)
Manufacturer: Meteor · Nominal diameter: 42.5 mm · Thick piston ring: 1.85 mm · Height: 2 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS)
Details
| Manufacturer | Meteor |
| Thick piston ring | 1.85 mm, 1.75 mm |
| Nominal diameter | 42.5 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Height | 2 mm, 1.5 mm |
Suitable for the following models
| Puch | ZA50 (Gebläsegekühlt) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
