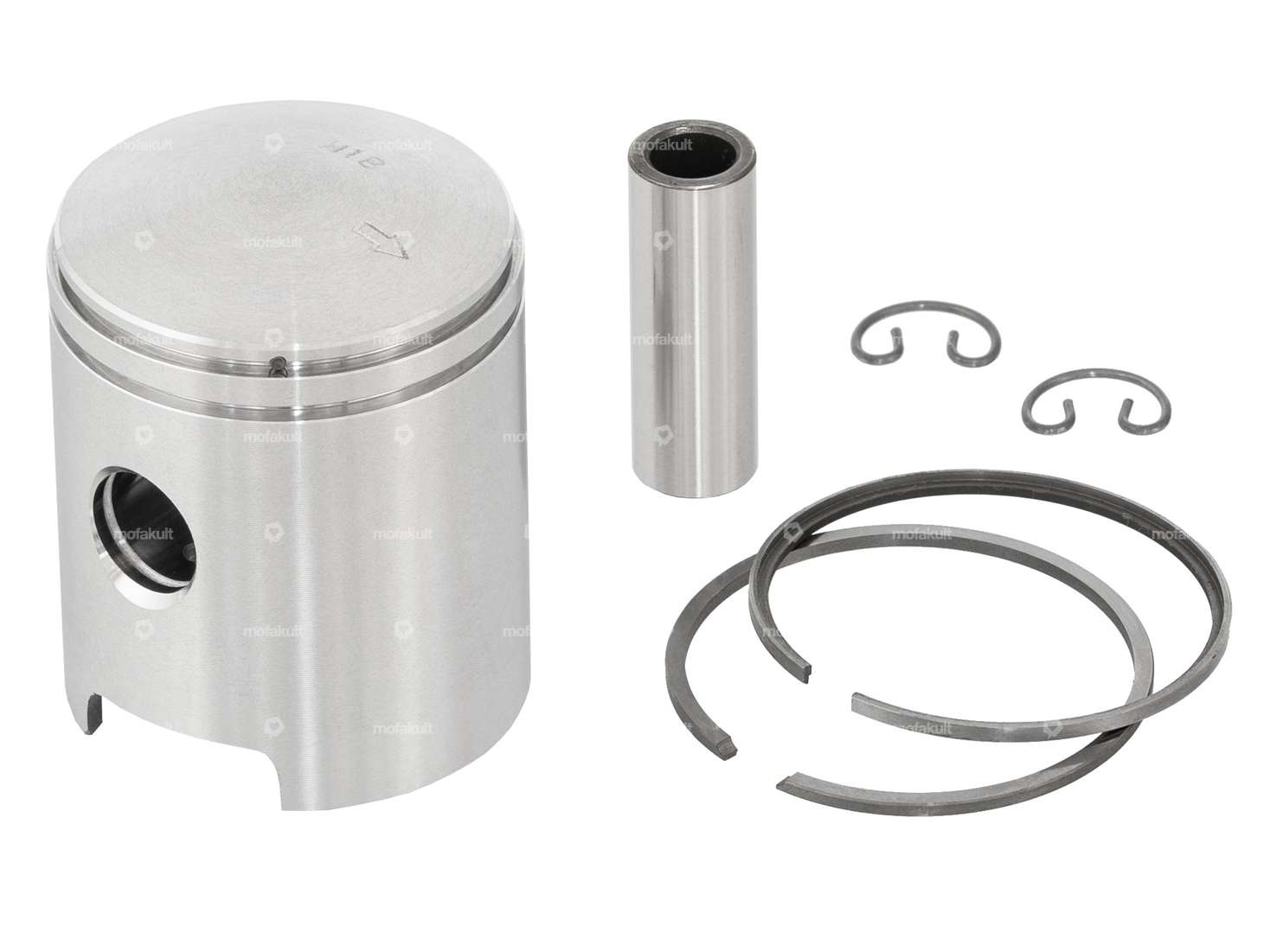

42 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for blown cylinders of Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Manufacturer | Meteor |
| Ø outside piston (A) | 41.95 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 41 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Ø piston pin (B) | 10 mm |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston weight | 96 g |
Suitable for the following models
| Puch | ZA50 (Gebläsegekühlt) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Accessories & related products

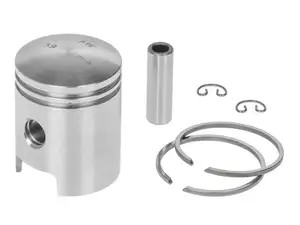

Meteor piston 40 mm (10 mm KoBo) | Puch X30 Velux, NG-2-AH
Manufacturer: Meteor · Ø outside piston (A): 39.94 mm · Compression height (C): 22.6 mm · Curvature (D): 3.5 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 40 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 10 mm · Piston ring height: 2 mm · Piston weight: 90 g
67,90 EUR
Meteor piston 39 mm (10 mm KoBo) | Puch X30 Velux, NG-2-AH
Manufacturer: Meteor · Ø outside piston (A): 38.94 mm · Compression height (C): 22.6 mm · Curvature (D): 3.6 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 39 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 10 mm · Piston ring height: 2 mm · Piston weight: 82 g
67,90 EUR
Meteor piston 38.5 mm (10 mm KoBo) oversize | Puch X30 Velux, NG-2-AH
Manufacturer: Meteor · Ø outside piston (A): 38.4 mm · Compression height (C): 22.6 mm · Curvature (D): 3.5 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 10 mm · Piston ring height: 2 mm · Piston weight: 78 g
67,90 EUR

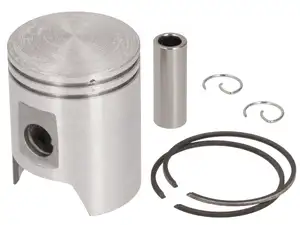

Piston 43.7 mm Hero oversize | Puch
Ø outside piston (A): 43.7 mm · Compression height (C): 27.5 mm · Curvature (D): 2.7 mm · Total piston height (E): 57.2 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston weight: 97 g
70,20 EUR

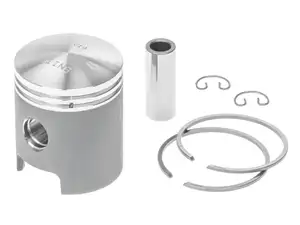

swiing piston 41 mm (10 mm KoBo) Racing | Puch X30 Velux fan-cooled
