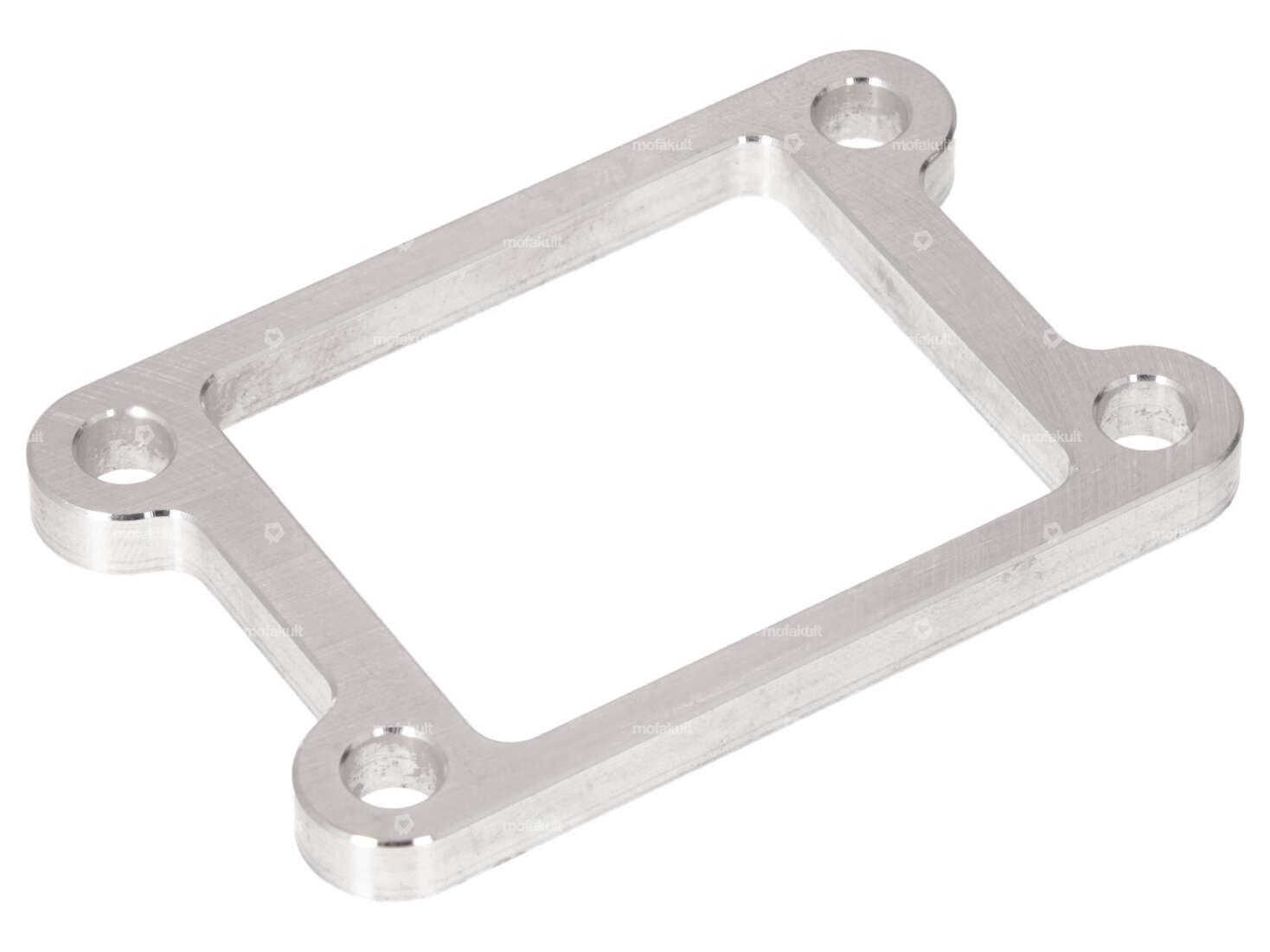

Aluminum adapter plate for optimum mounting of the reed system from the Gilardoni Gilardoni italkit cylinder on your Puch moped / moped with ZA50 engine.
Thickness of the plates: 6.15 mm
Total length: 72.8 mm
Internal length: 46.7 mm
Total width: 47.8 mm
Internal width: 39.3 mm
Hole spacing: 59 x 34.5 mm
Gaskets and screws are not included in the scope of delivery.
An alternative with a height of 12 mm and other great products can be found in the accessories section.
Details
| Material | Aluminum |
| Area of application | Tuning |
| Surface | blank |
| Total length | 72.8 mm |
| Width | 47.8 mm |
| Thickness | 6.15 mm |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 59 x 34.5 |
| Ø mounting hole | 5.4 mm |
Suitable for the following models
| Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) |
