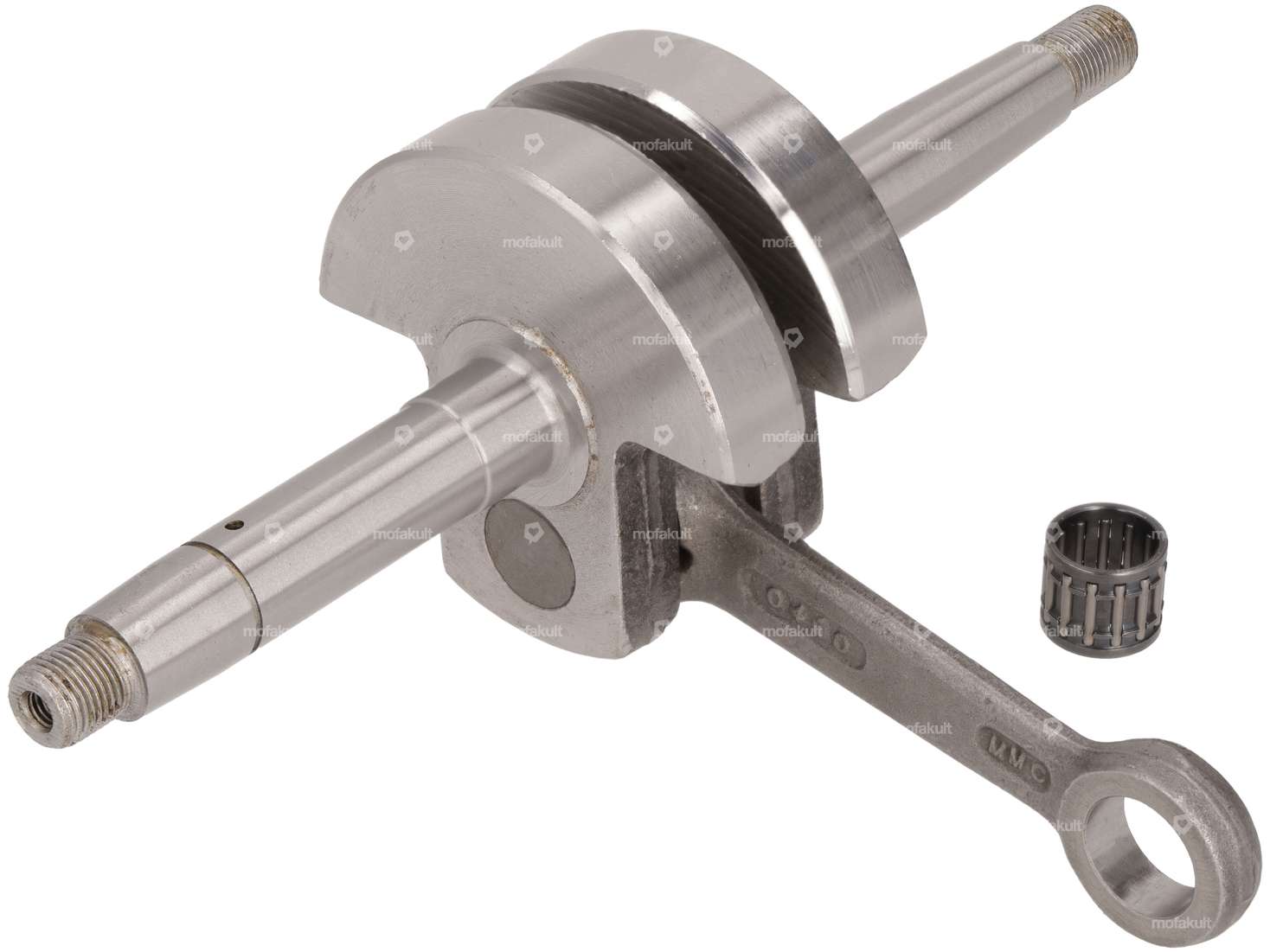

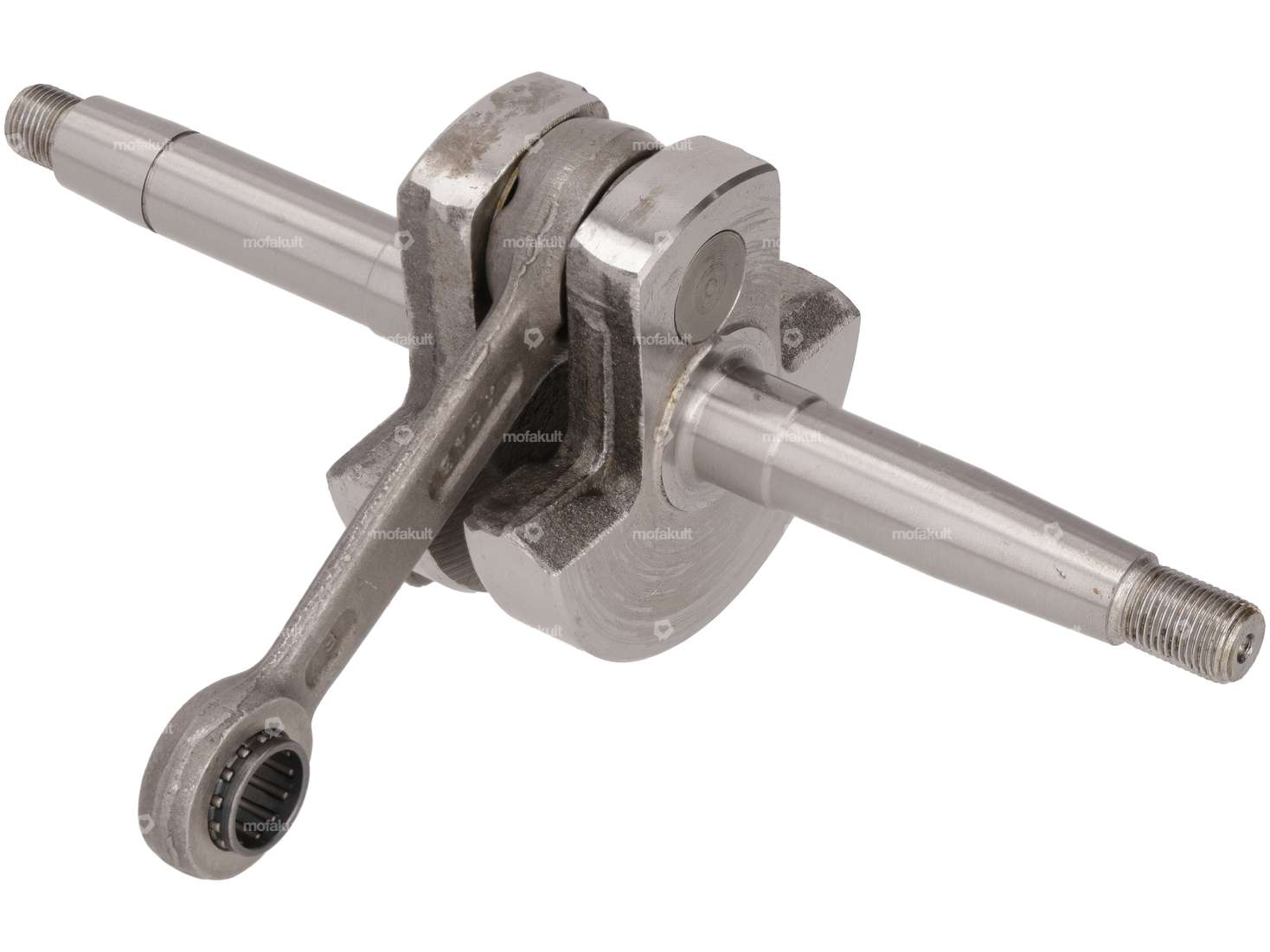

Crankshaft for MBK / Motobécane Mobylette Magnum mopeds / mopeds.
The needle bearing is included in the scope of delivery.
Quality product from the Italian manufacturer Mazzucchelli.
Details
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Area of application | Standard |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 80 mm |
| Weight | 916 g |
| Total length crankpin ignition side | 80 mm |
| Ø crank webs | 69 mm |
| Ø Connecting rod eye | 16 mm, 15 mm |
| Ø piston pin (B) | 13 mm |
| Ø Bearing seat (clutch side) | 16 mm |
| Thread type | MF11x1 (fine pitch thread) |
| Ø Bearing seat (ignition side) | 16 mm |
| Thread length | 10 mm, 14 mm |
| Dimension needle bearing | 13 / 16 x 13.5 mm (axe 13) |
| Wide crank webs | 38 mm |
| Length 1st paragraph | 13.5 mm |
| Length 2nd paragraph | 37.5 mm |
| Length 3rd paragraph | 16 mm |
| Ø 1st step (on the coupling side) | 16 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 14.5 mm |
Suitable for the following models
| Motobecane |
