Complete Malossi MHR high-end torque converter unit including Vario for Piaggio mopeds / mopeds.
Selected high-quality materials make this torque converter and clutch set an extremely durable and hard-wearing drivetrain, which is mainly used in the high-end tuning sector.

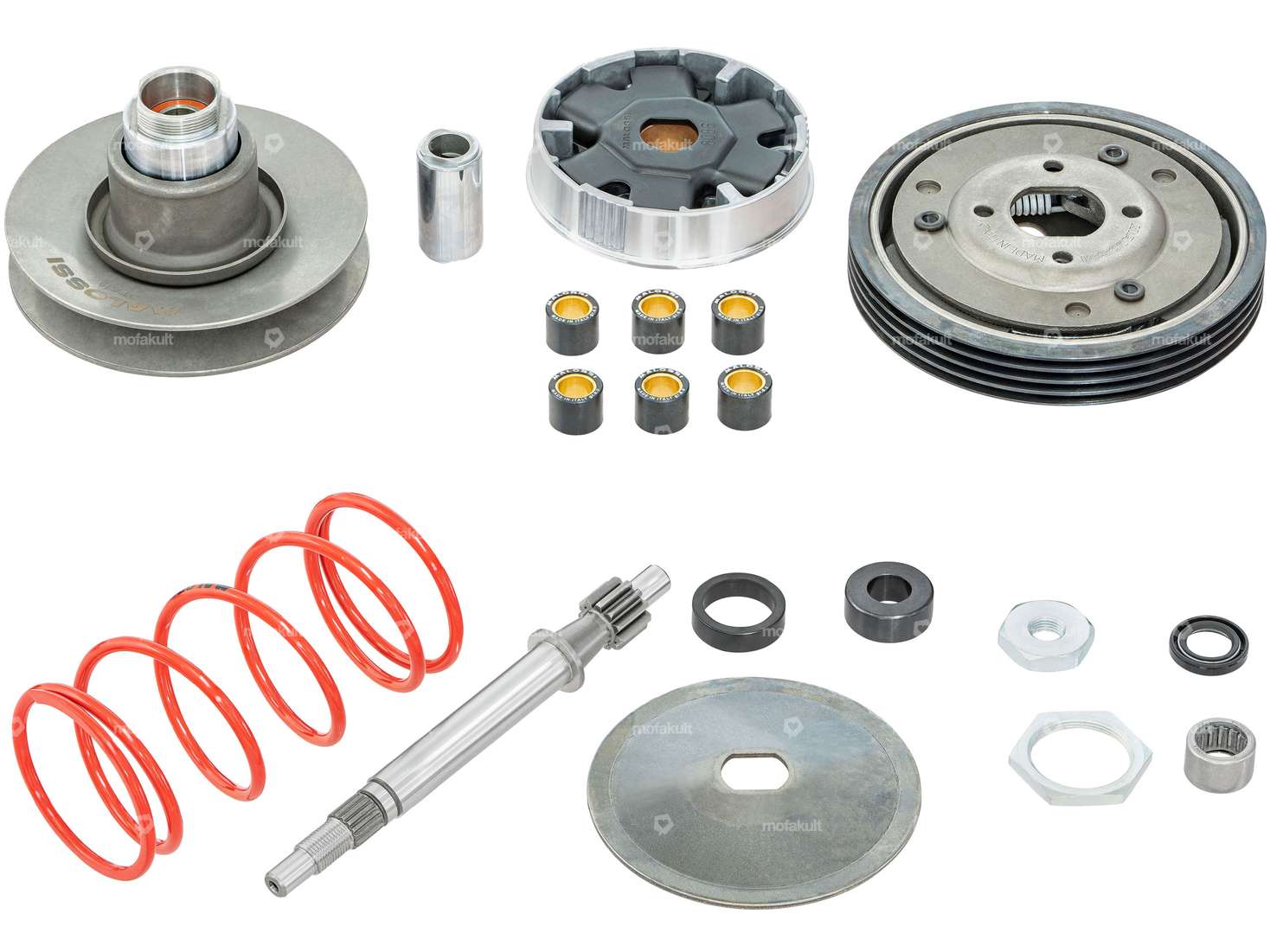

The following parts are included in the scope of delivery:
- Mainshaft for the gearbox with splines on the clutch mount and 11 teeth (incl. nut, bearing and oil seal). nut, bearing and oil seal)

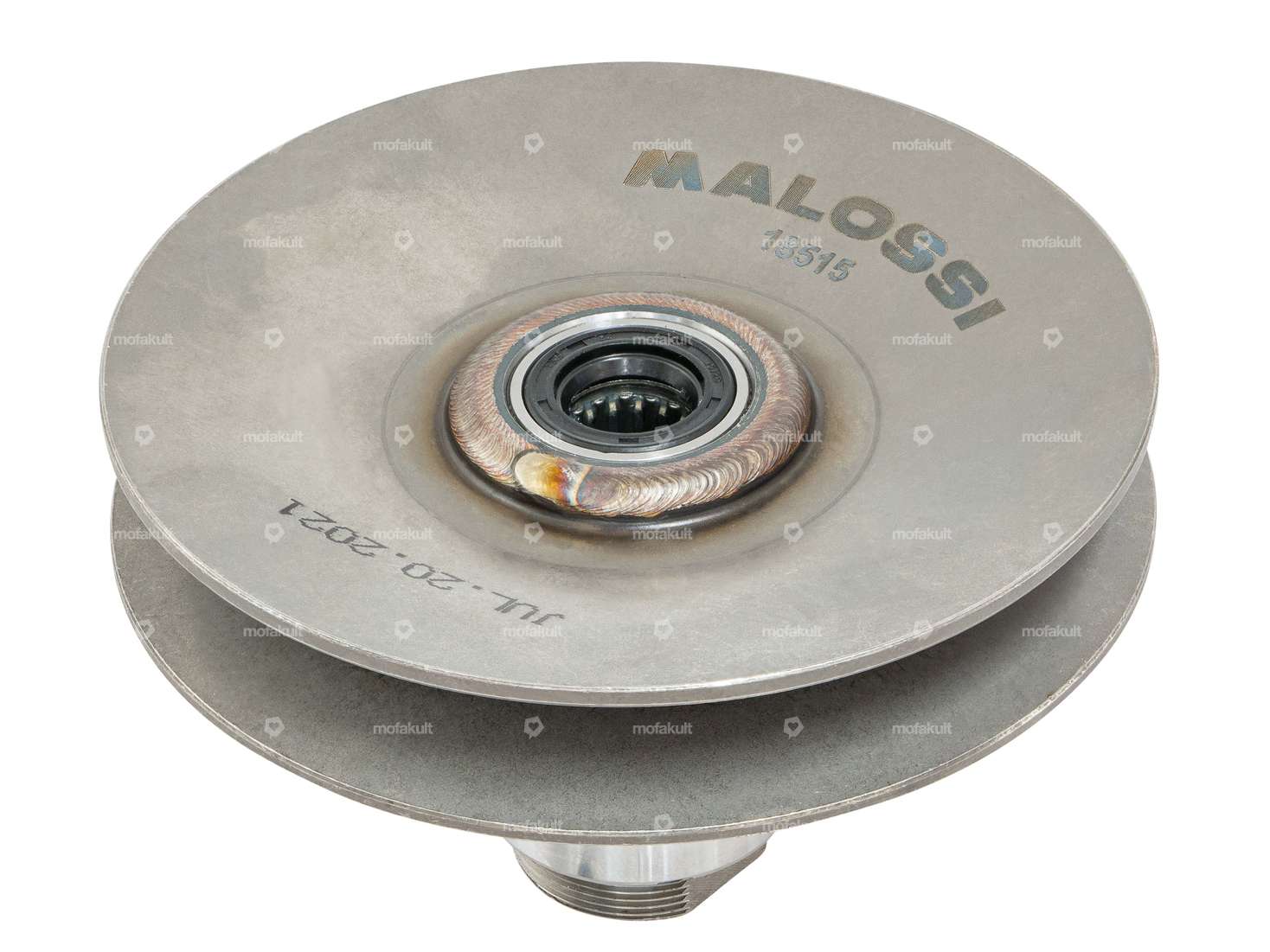

- Torque driver pulley system with 2 different pitches

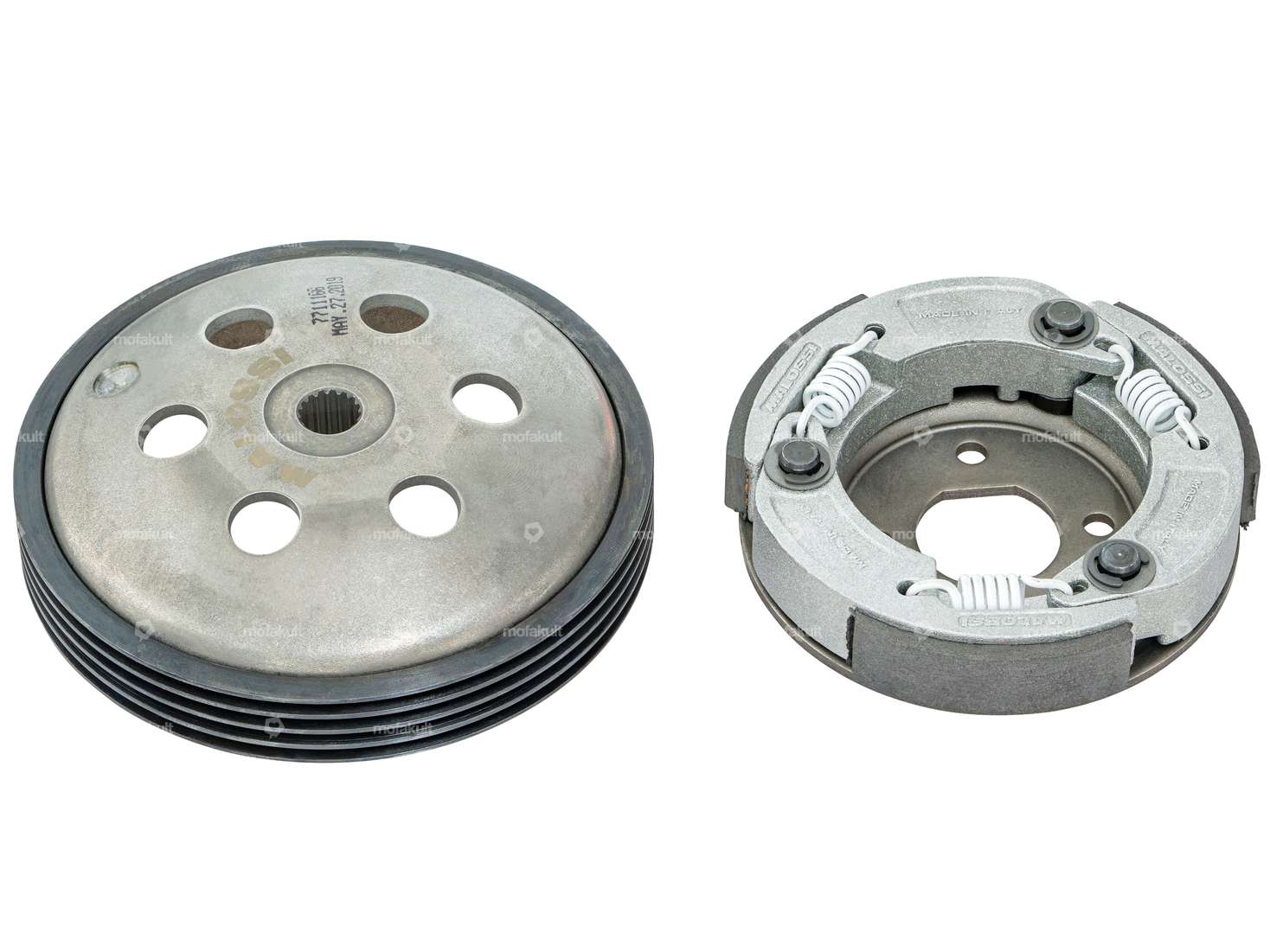

- Fly clutch with Ø 107 mm and double-D mount
- Wing clutch bell with Ø 107 mm and extra cooling ribs
- Red counter-pressure spring: with silicon alloyed steel, 45 kg

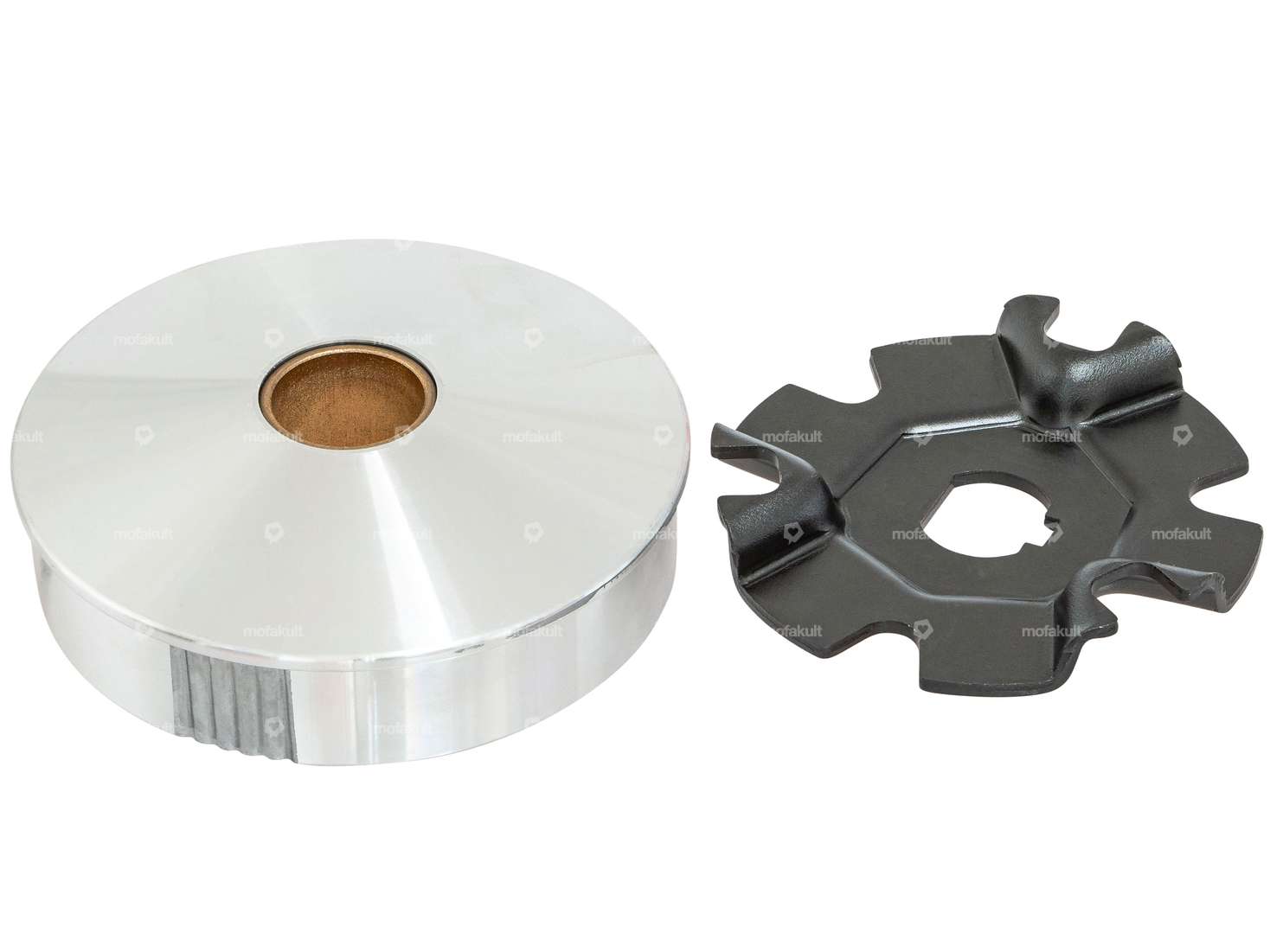

- Malossi Multivar Variomat with 6 g weights
The input shaft for the gearbox fits the following (straight-toothed) gear ratios:
- Malossi 8.93 / 1
- Piaggio 12.27 / 1
- Piaggio 12.50 / 1
- Malossi HTQ 12.82 / 1
- Piaggio 16.02 / 1
Note: For Ciao models, the pulleys must be turned off or the frame must be removed. In addition, as with installation on a Grillo or Bravo, a shorter belt from the scooter range must be used.
There is no longer a starter clutch. The engine must therefore be started with a pull-wire starter, side shifters can no longer be fitted.
A detailed installation manual with pictures is included.
The clutch is not compatible with standard parts of the common torque converter units.
The two matching Malossi gearboxes as well as a matching timing belt can be found in the accessories section along with other parts.
Quality product from the Italian manufacturer Malossi.
Details
| Manufacturer | Malossi |
| Gearbox type | Vario |
| Number of weights | 6 pcs |
| Weight Standard weights | 6 g |
| Ø Weights | 13 mm |
| Length Weights | 16 mm |
| Ø External variator | 102 mm |
Suitable for the following models
| Piaggio | Si |
