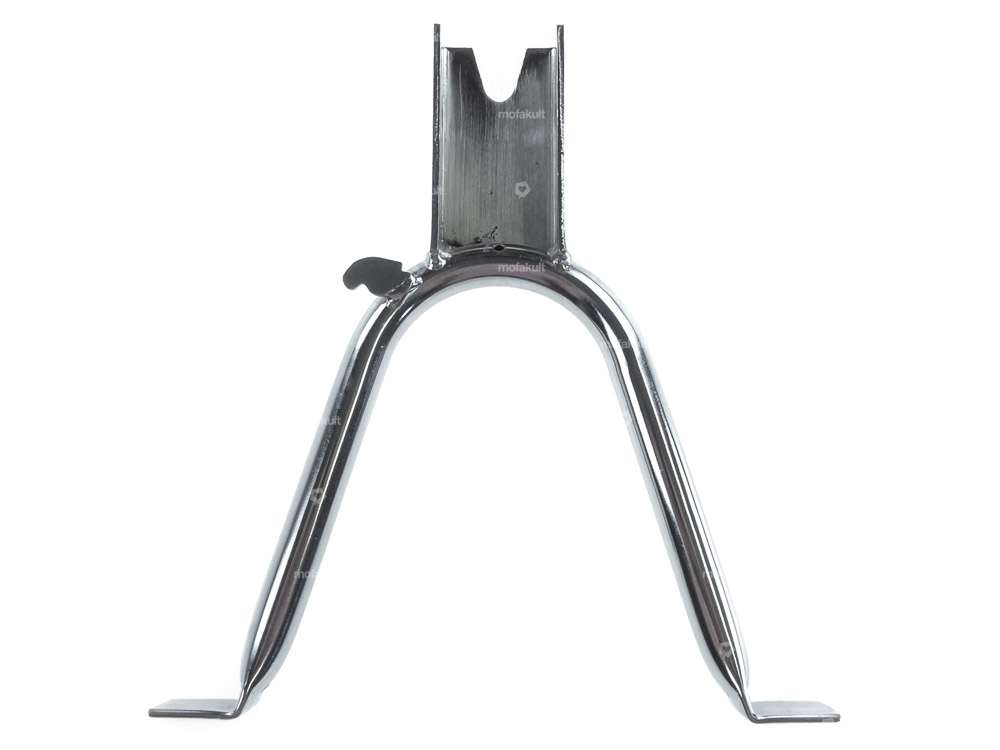

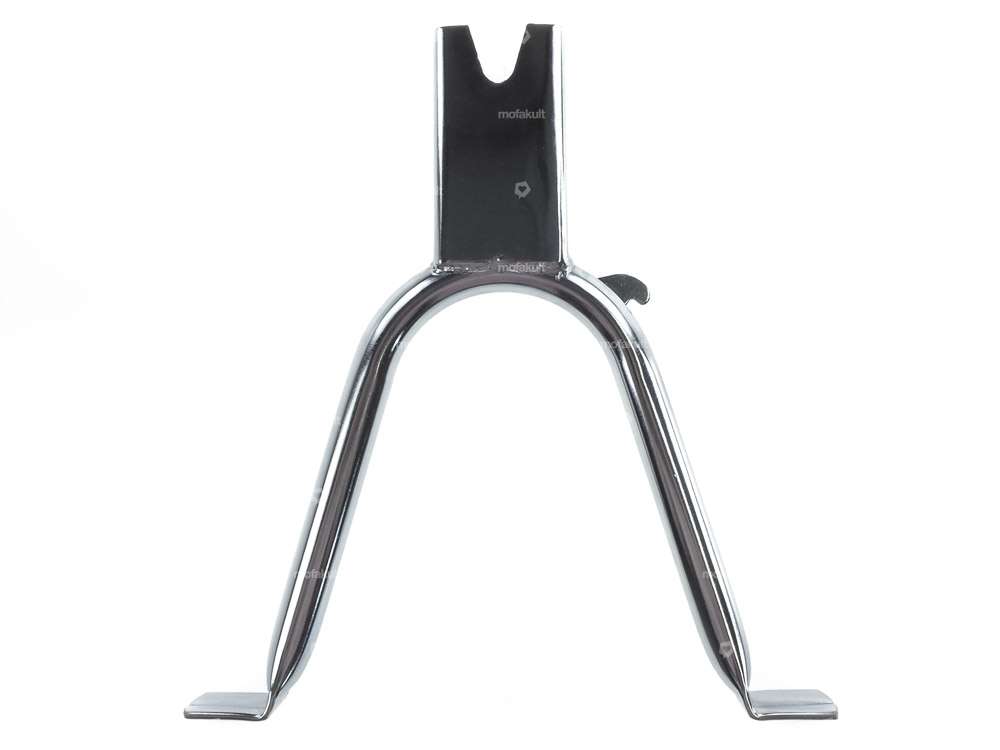

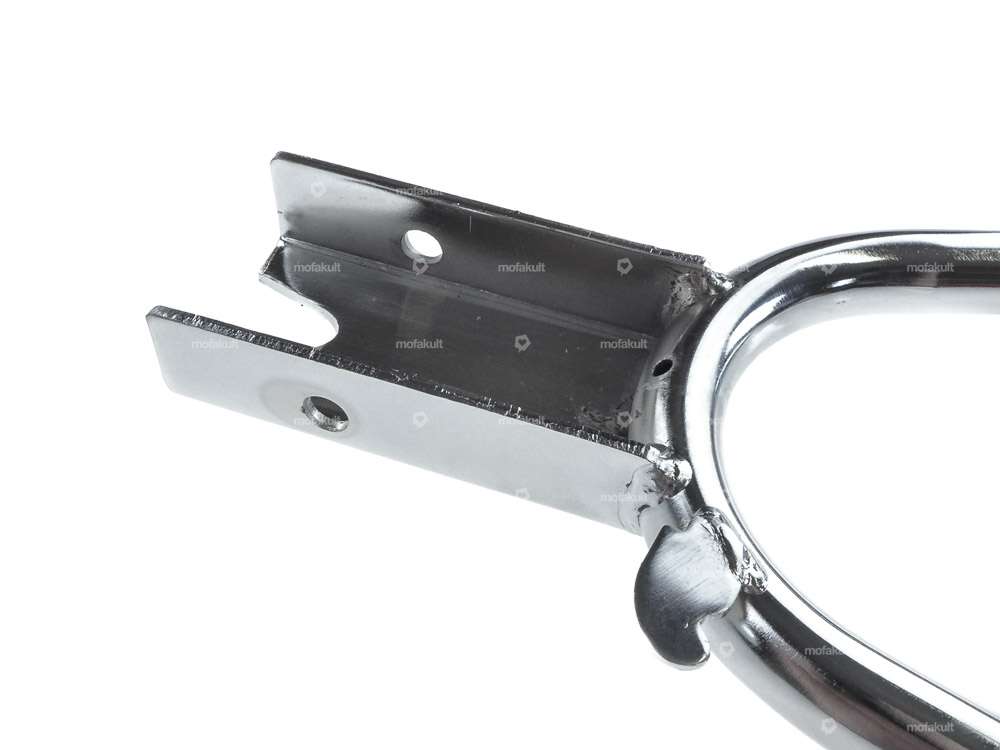

Center support suitable for Tomos A3/A35.
The support is supplied without bolt and spring.

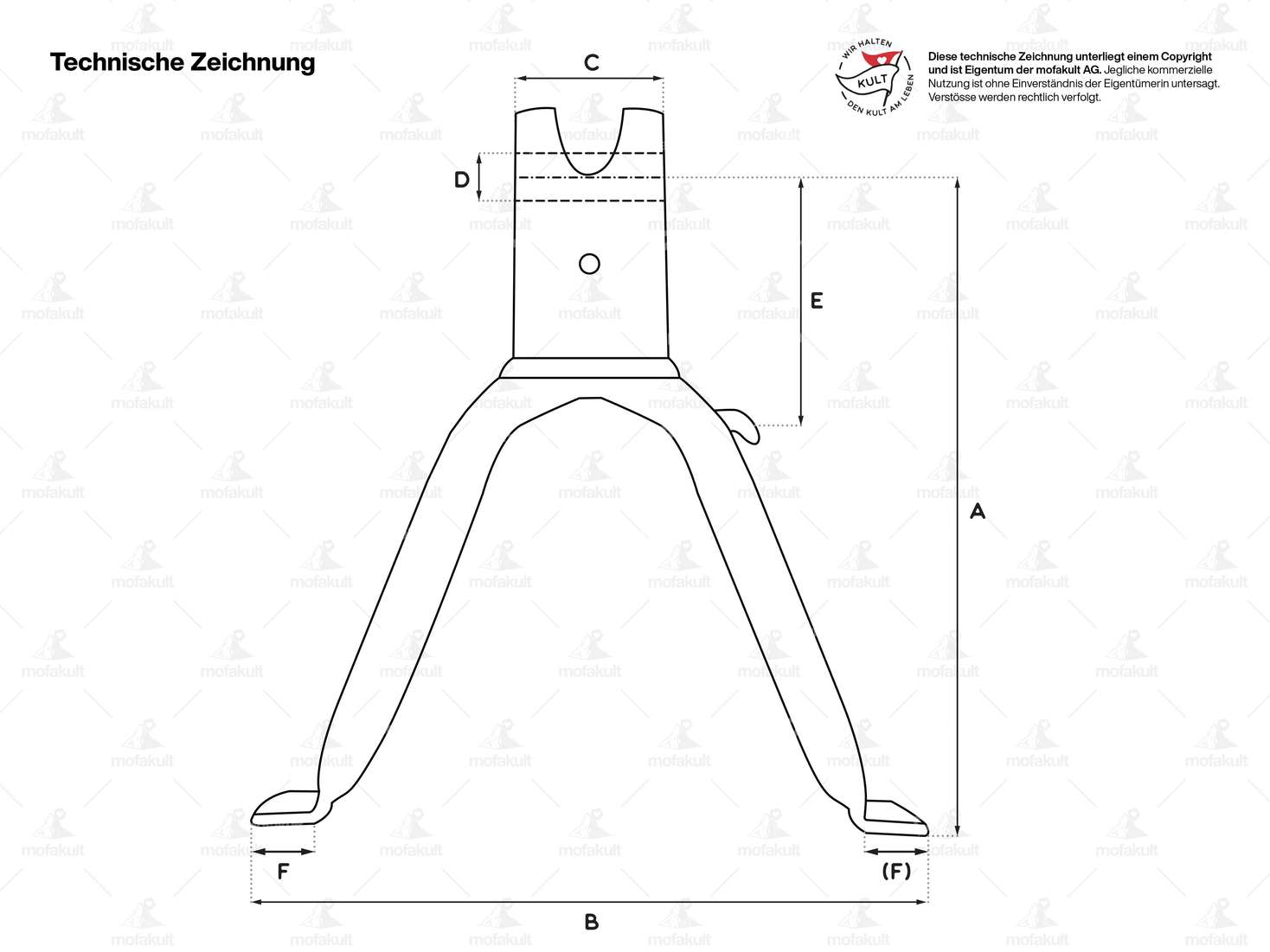

Total height: 27 cm
Height center mounting hole - bottom: 23.5 cm
Outer dimension of mounting: 52 mm
Hole diameter for bolt: 8.9 mm
Center of mounting hole - above the end: 33 mm
Details
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Wide receptacle (C) | 52 mm |
| Ø Receptacle (D) | 8.9 mm |
| Total height | 270 mm |
Suitable for the following models
| Tomos |
