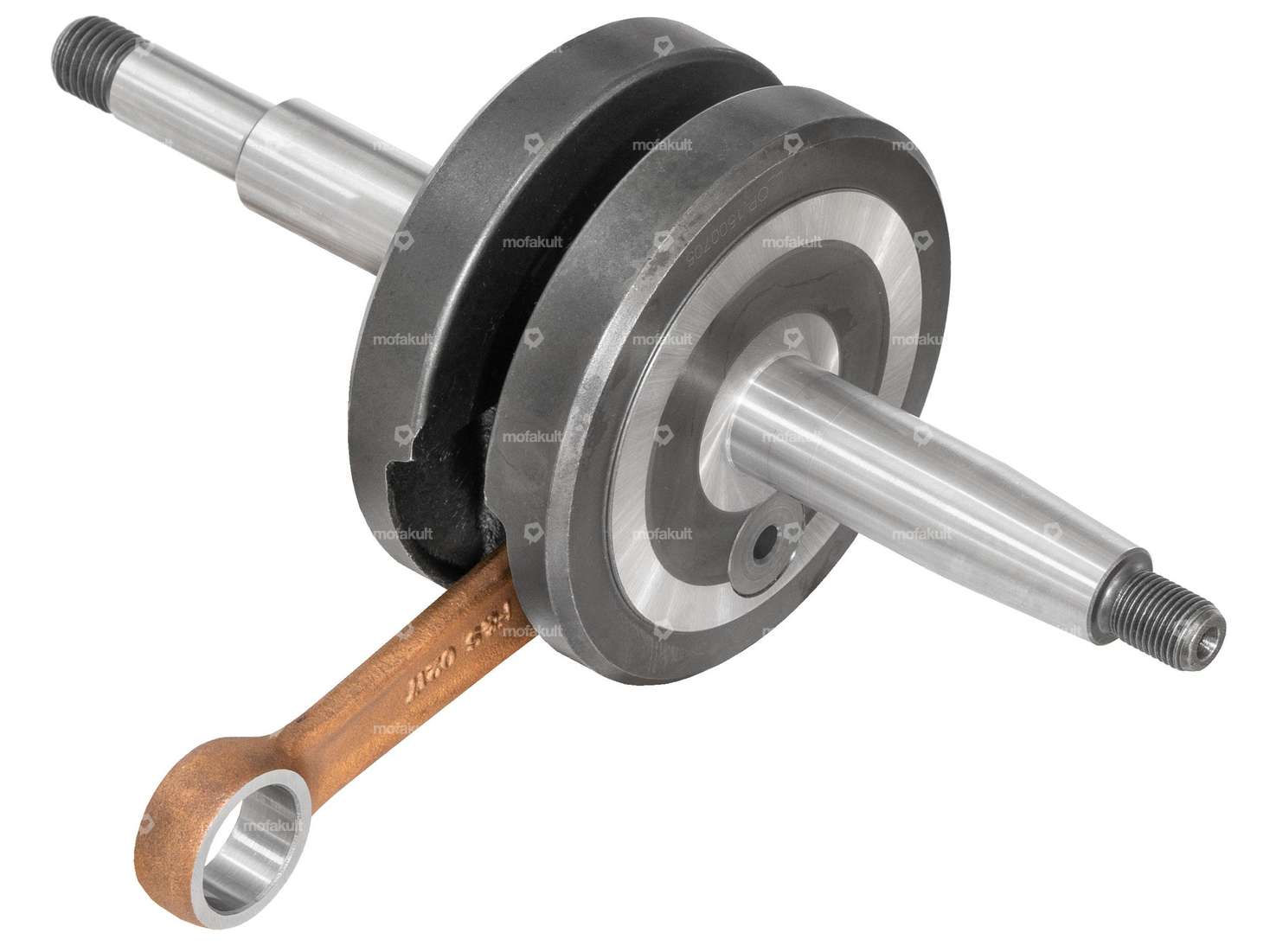

Full-flange crankshaft suitable for Sachs mopeds, mopeds and small motorcycles with five-speed and six-speed engines such as Sachs 506.

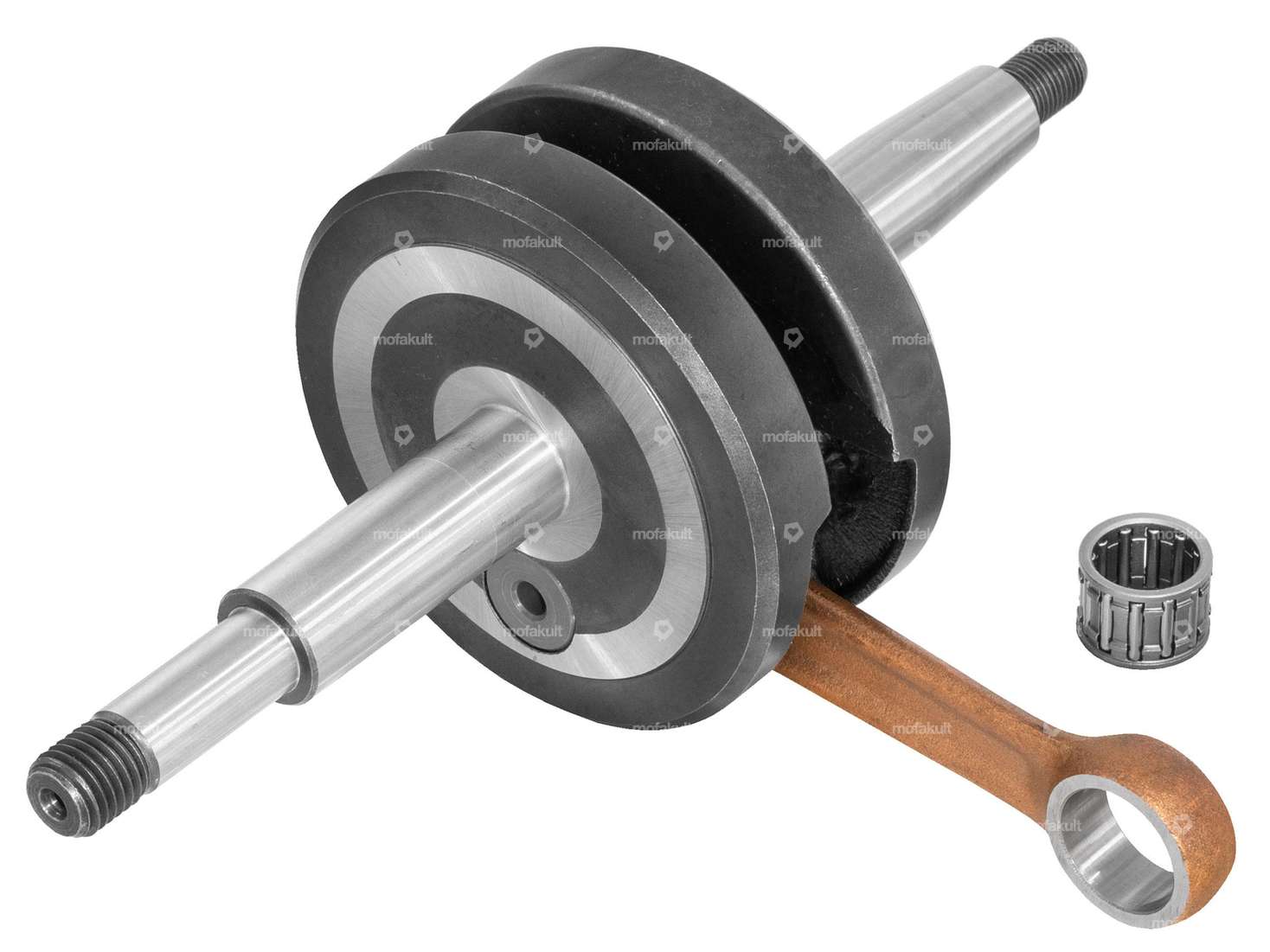

The shaft for the 5-speed and 6-speed engines is supplied with a needle sleeve and requires a 14 mm piston pin.
Dimension:
- Stroke: 44 mm
- Total length of the cheek pin on the end face: 73 mm
- Ø cheek pin on the end: 17 mm
- Total length of cheek pin on the clutch side: 86 mm
- Ø 1. Heel (coupling-side cheek pin): 17 mm
- Ø 2nd shoulder (clutch-side cheek pin: 12 mm
- Thread on clutch side: M10x1 mm
- Thread on clutch side: M12x1.5 mm
- for 14 mm connecting rod bolt
Branded product from Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Manufacturer | Jasil |
| Cheek type | Full cheeks |
| Area of application | Standard |
| Ø piston pin (B) | 14 mm |
| Total length of crankpin on clutch side | 86 mm |
| Total length crankpin ignition side | 73 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread type | MF10x1 (fine pitch thread), MF12x1.5 (fine pitch thread) |
| Number of gears | 5 pcs, 6 pcs |
Suitable for the following models
| Sachs | 50/5 |
