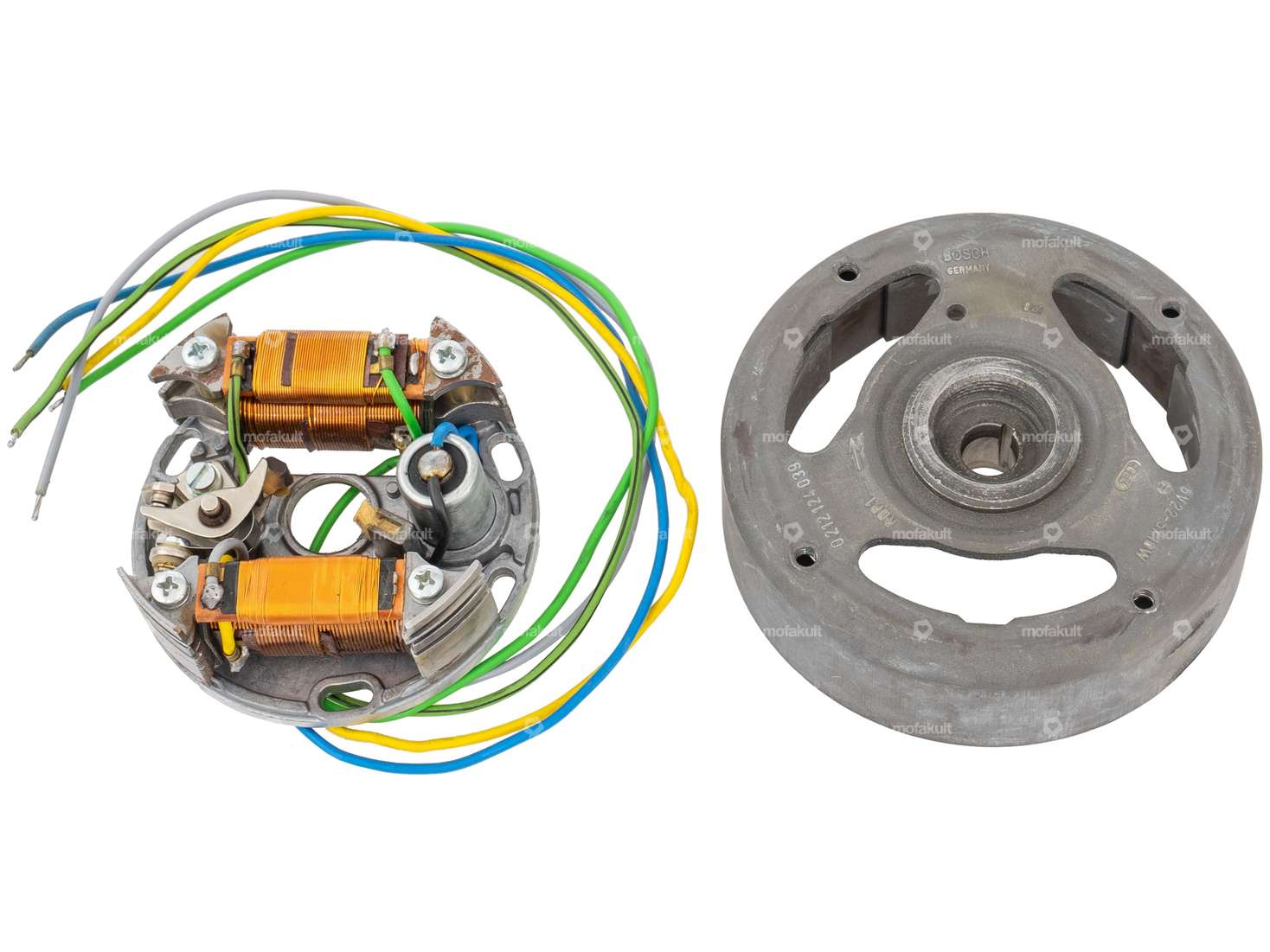

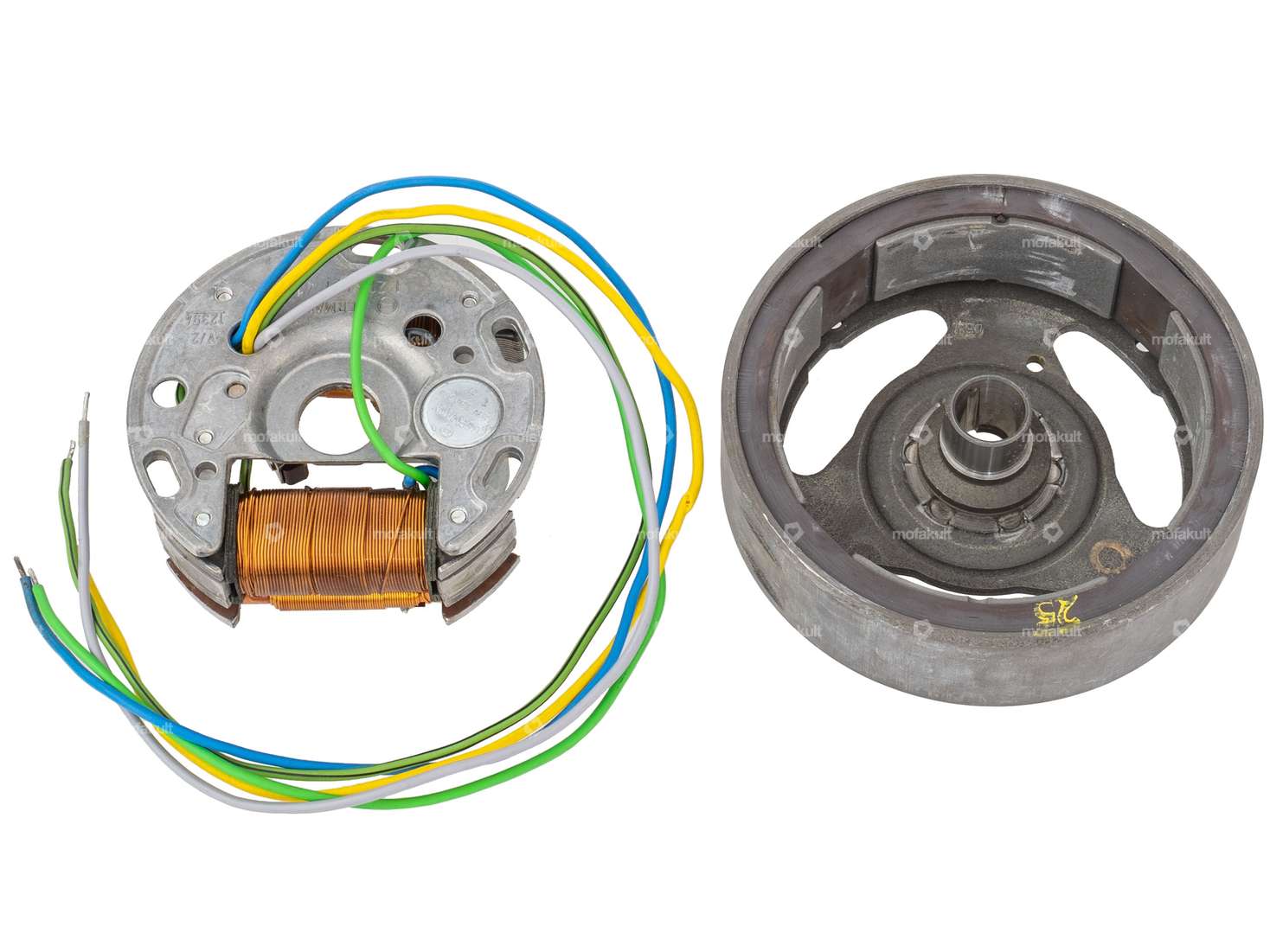

Original right-hand Bosch ignition, which is installed on Puch Maxi S / N mopeds with single-automatic E50 engine, among others.
An external ignition coil as used on some old Puch Maxi mopeds is required for this breaker ignition.
The ignition is equipped with brake light and other power consumers.
Connection diagram:
Blue cable: external ignition coil (excitation current)
Yellow cable: light 6 Volt 22 Watt
Grey cable: additional consumer 6 Volt 5 Watt (e.g. brake light)
Green / black cable: ground
Green cable: Additional consumer 6 volt 10 watt (e.g. horn)
You can find the matching external ignition coil and other add-on parts in the accessories section.
The following number is stamped on the pole wheel: 0 212 124 039
NOS – new from old stock.
Details
Manufacturer | Puch |
Material | Aluminum |
Tension | 6 V |
Performance | 5 W, 10 W, 22 W |
Direction of rotation | right |
Ø mounting plate | 90 mm |
Ø Internal flywheel | 90 mm |
Mounting type | Screws |
Number of fixing points | 4 pcs |
Area of application | Standard, Original, Security, Custom |
Suitable for the following models
Puch |
Accessories & related products
GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521
Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Number of components: 1 pcs · Total length: 55 mm · Total length: 75 mm · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Strength class: 8.8 · Area of application: (Dis)assembly tool
11,20 EUR
GPO blade gauge set 0.05 - 1.00 mm 13 pcs.
Measuring range [mm]: 0.05 - 1 mm · Manufacturer: GPO · Material: Metal · Surface: blank / oiled · Number of components: 13 pcs · Width: 13 mm · Total length: 105 mm · Thickness: 0.05 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 0.6 mm · Thickness: 0.7 mm · Thickness: 0.8 mm · Thickness: 0.9 mm · Thickness: 1 mm · Area of application: Measuring tool
13,40 EUR
Nut M10x1 SW14 Flywheel
Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Thread type: MF10x1 (fine pitch thread) · Drive: External hexagon · Width across flats SW: 14 mm · Ø outside: 18.8 mm · Height: 8.9 mm · Area of application: Standard · Pony spare part no.: A4513 · Sachs spare part no.: 0942 072 102
2,70 EUR
DUCATI ignition E50 clockwise external ignition coil NOS | Puch Maxi S, N
Manufacturer: DUCATI · Area of application: Original · Area of application: Standard · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Internal flywheel: 90 mm · Tension: 6 V · Number of fixing points: 4 pcs · Mounting type: Screws
375,20 EUR
