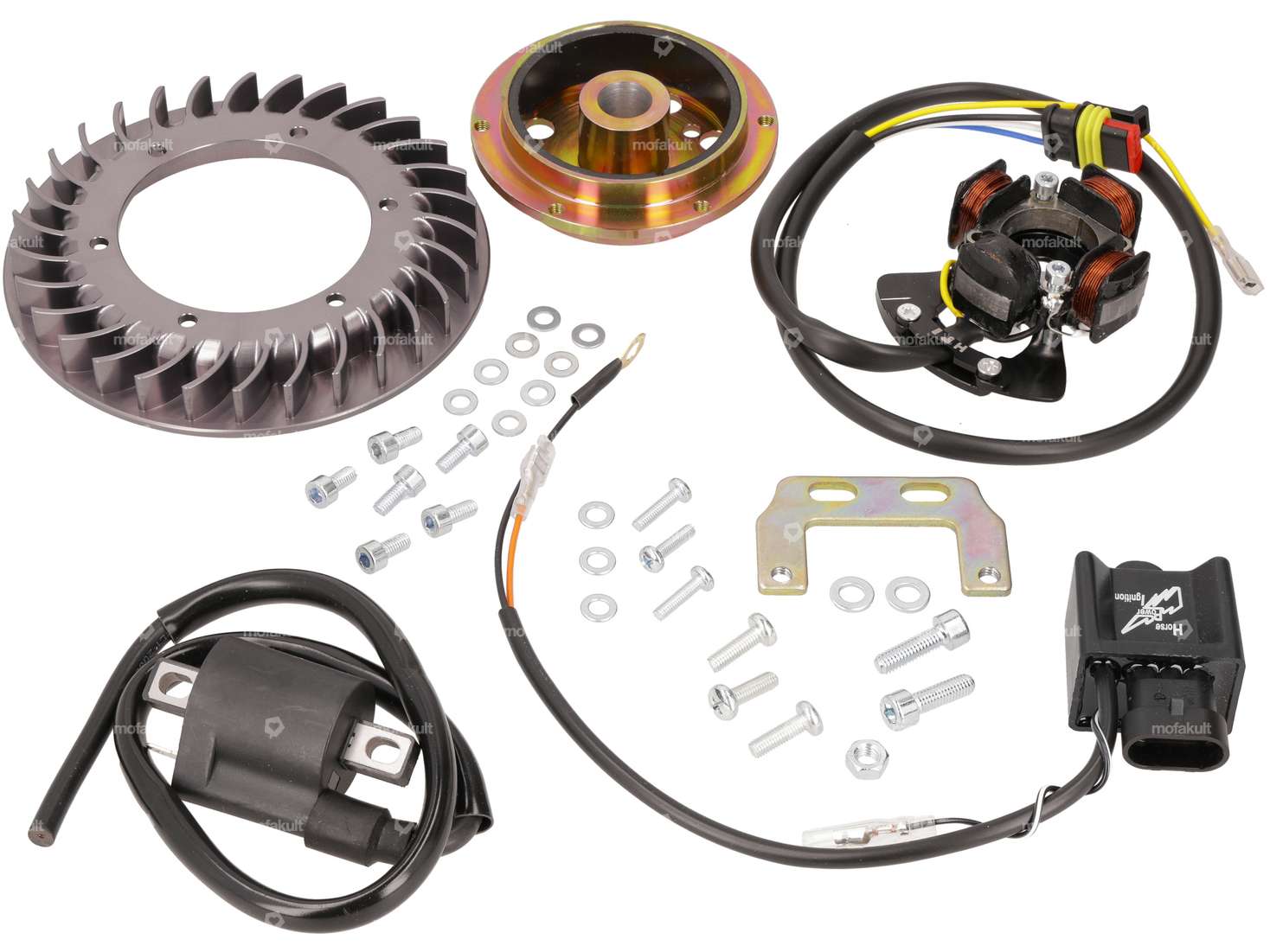

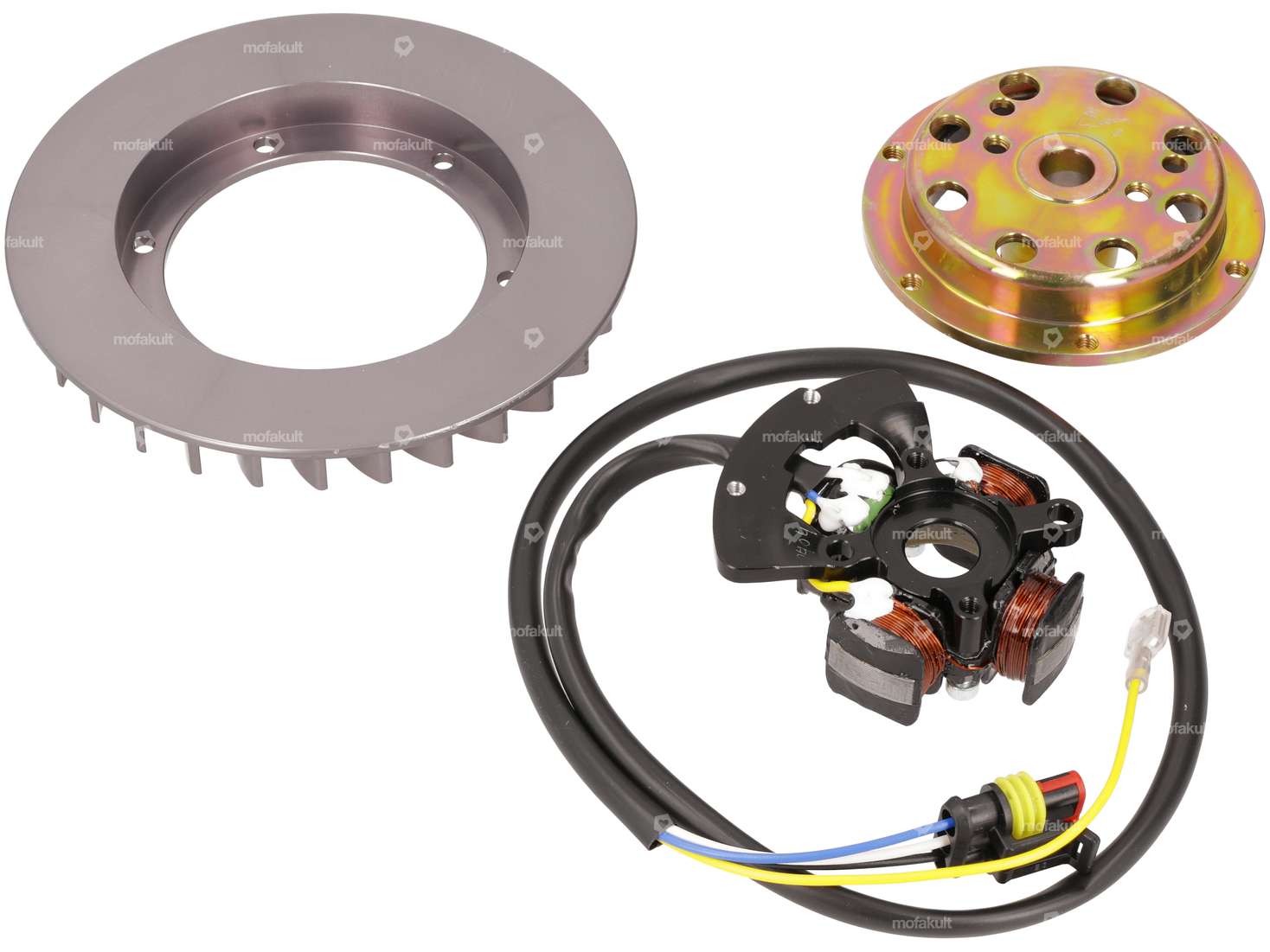

Complete 12V HPI ignition with built-in 60W light coil, for housings with electronic ignition, suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
Advantages of the HPI ignition:
- always a constant, strong spark
- better acceleration due to small and light rotor (364 g)
- Lightweight aluminum flywheel (200 g)
- better throttle response
- no more false ignitions
- adjust once and never again
- Little to no wear and tear
- less sensitivity to temperature
The ignition can optionally be supplemented with the programmable HPI CDI box for two ignition curves and the HPI switch. This allows you to switch between two pre-installed ignition curves.
Details
| Manufacturer | HPI |
| Area of application | Tuning, Racing |
| Light coil voltage | 12 V |
| Performance | 60 W |
| Direction of rotation | right |
| Ø Flywheel outside | 140 mm |
| Ø Internal flywheel | 61.5 mm |
| Ø cable | 7 mm |
| Mounting type | Screws |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
