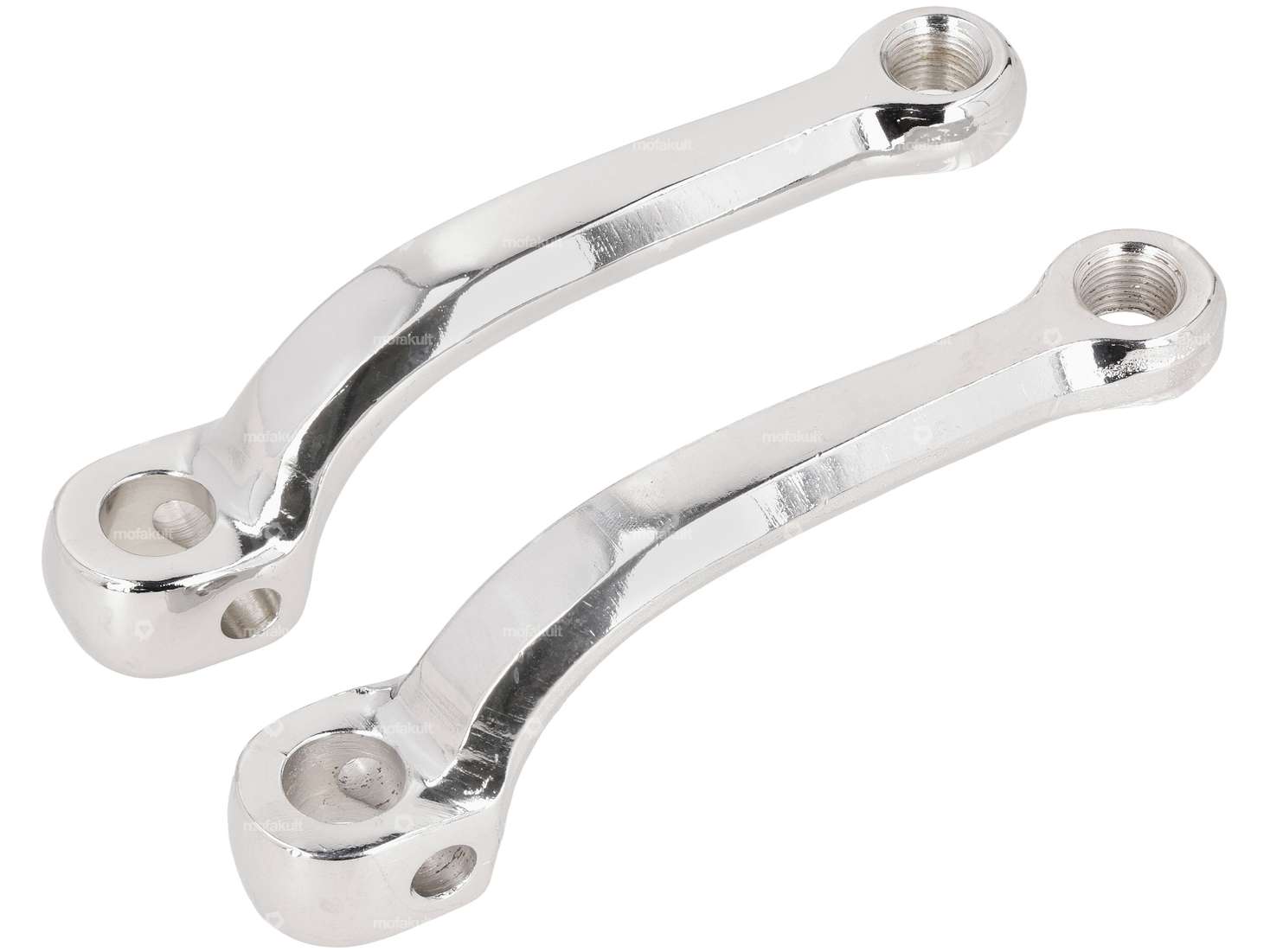

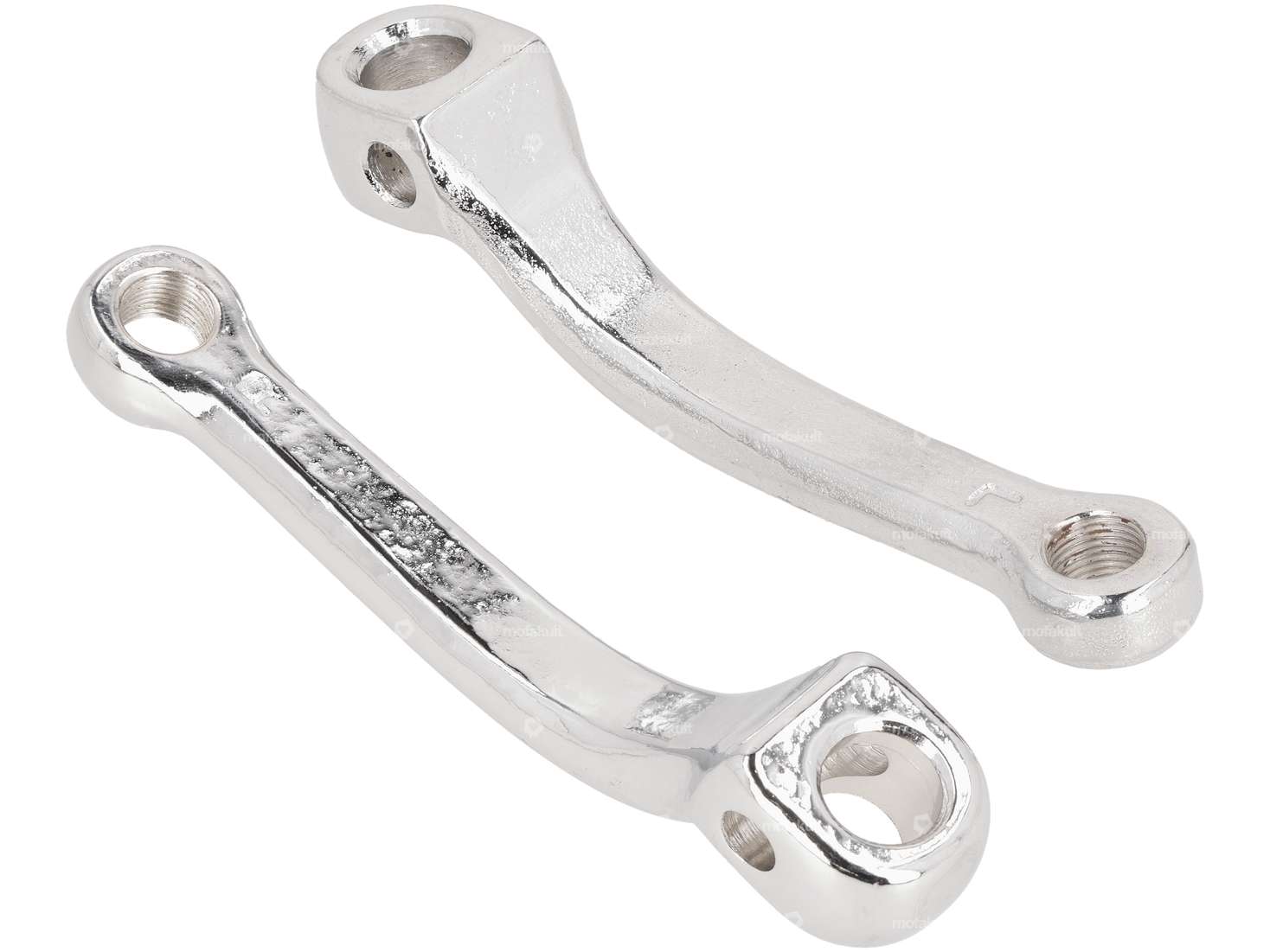

Pair of chrome-plated pedal arms. The outside (visible surface) is high-gloss chrome-plated, the rest is matt chrome-plated.

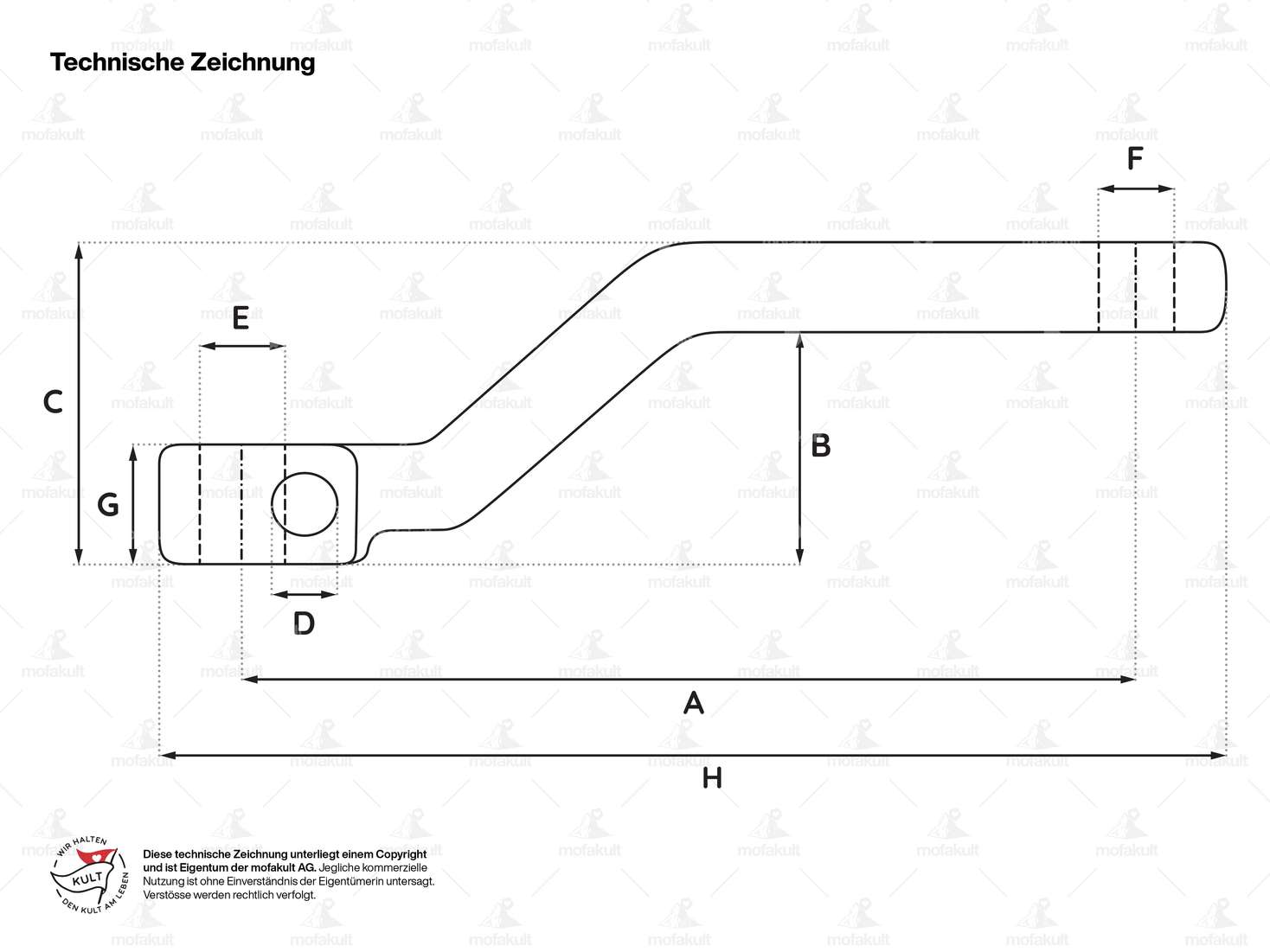

Crank length X (center axle - center thread): 123 mm
Total length Y: 153 mm
Crank length Z: 40 mm
Ø for axle mounting: 16 mm
A 9.5 mm crank key must be used for mounting.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
The set includes the following fixed parts:
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 153 mm · Crank length (center-center): 123 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 40 mm · Thread type: FG14.3 (9/16" 20G)
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 153 mm · Crank length (center-center): 123 mm · Ø Pedal wedge: 9.5 mm · Cranking (offset): 40 mm · Thread type: FG14.3 (9/16" 20G)
Details
| Manufacturer | GPO |
| Material | Steel |
| Surface | chrome-plated |
| Thread type | FG14.3 (9/16" 20G) |
| Color | Chrome |
| Crank length (center-center) | 123 mm |
| Cranking (offset) | 40 mm |
| Ø Pedal wedge | 9.5 mm |
| Total length | 153 mm |
| Ø Pedal axle | 16 mm |
