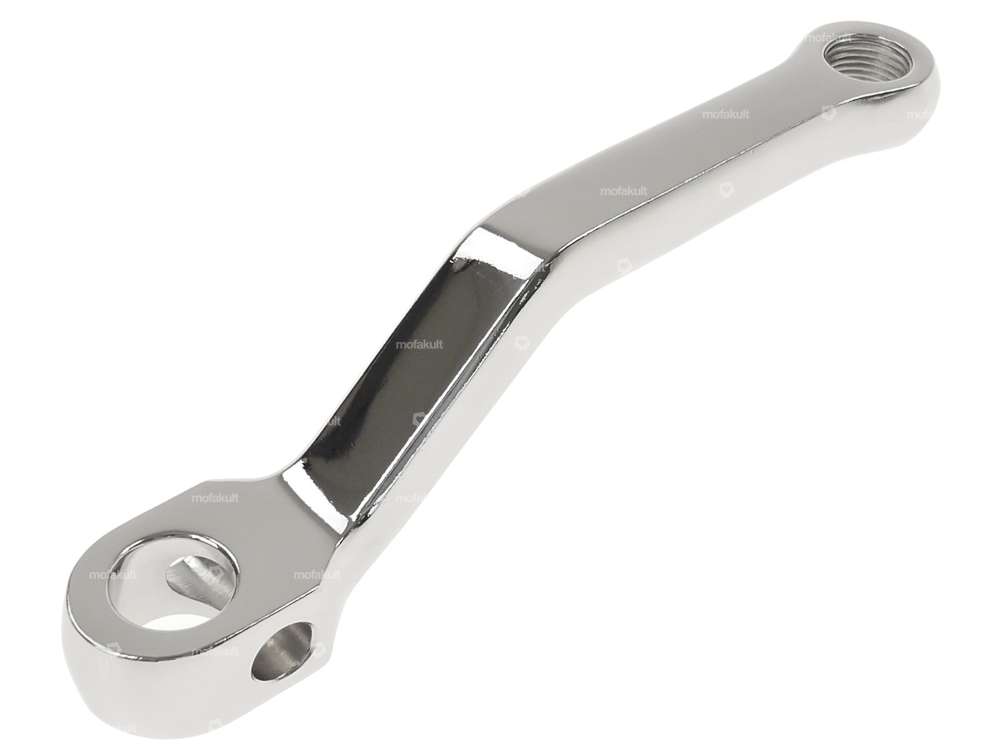

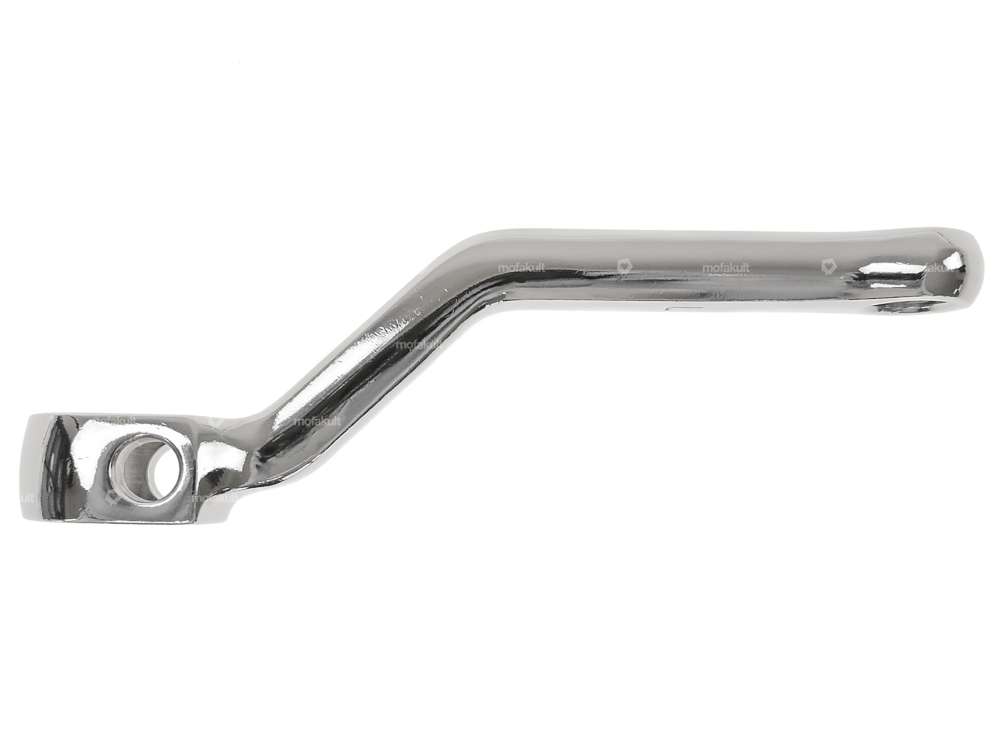

Very nice chrome-plated pedal arm for the right side.

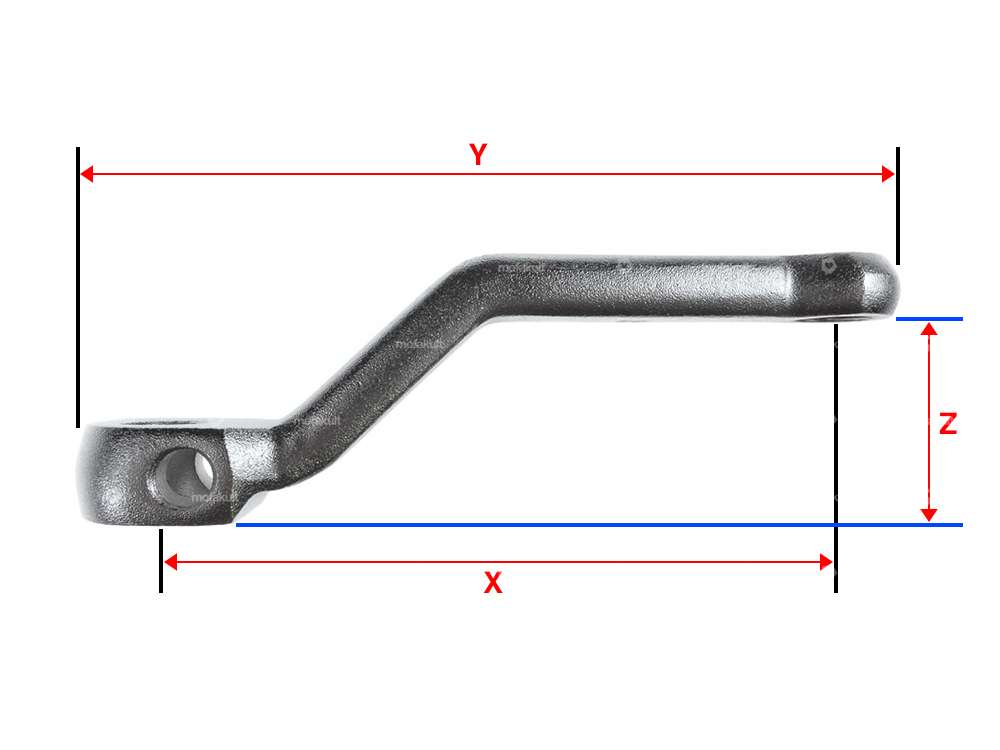

Crank length X (center axle - center thread): 132 mm
Total length Y: 157 mm
Crank length Z: 39 mm
Good quality.
A 9.5 mm crank key must be used to attach this pedal arm.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Surface | chrome-plated |
| Color | Chrome |
| Crank length (center-center) | 132 mm |
| Ø Pedal wedge | 9.5 mm |
| Total length | 157 mm |
| Cranking (offset) | 39 mm |
