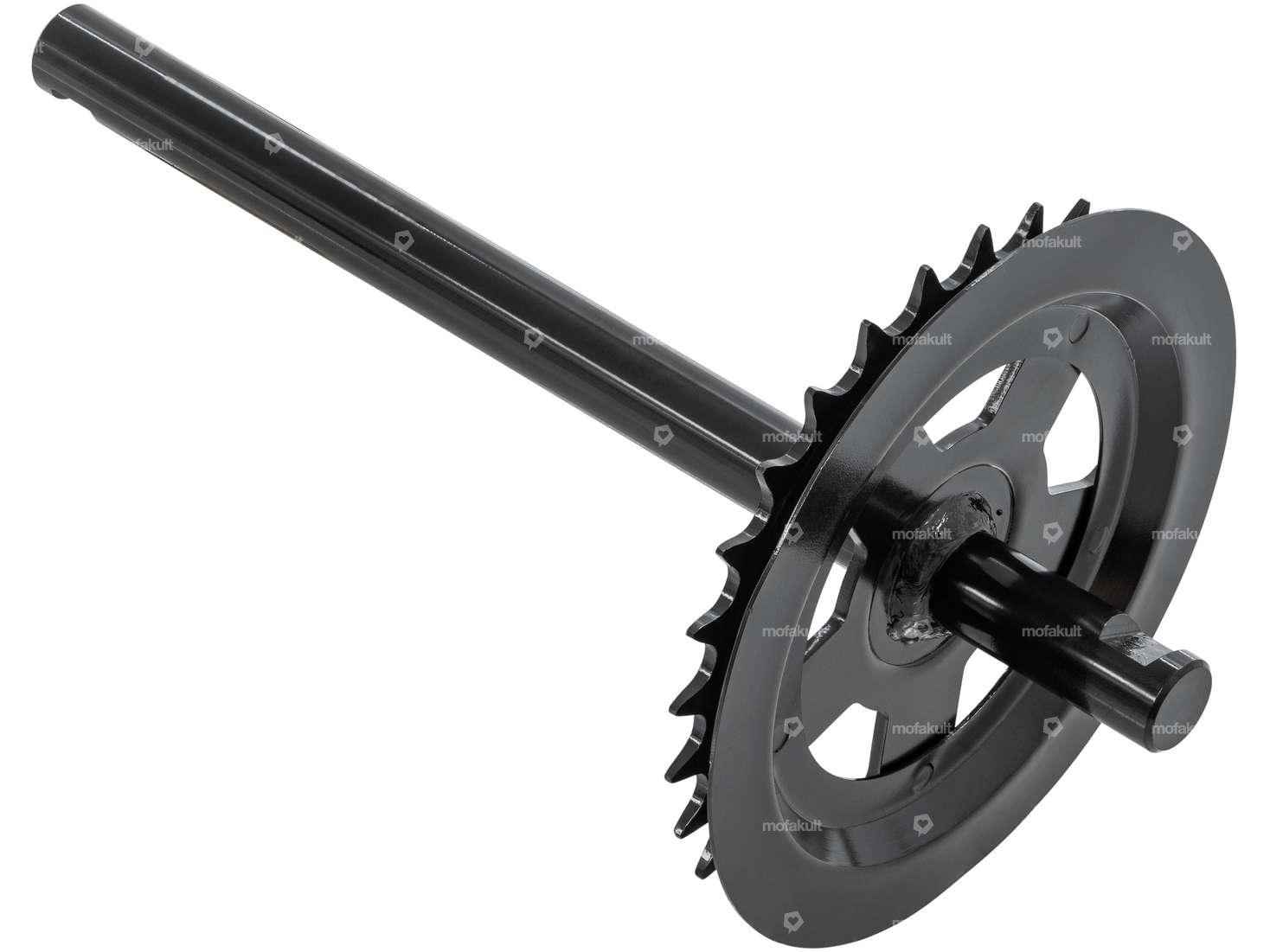

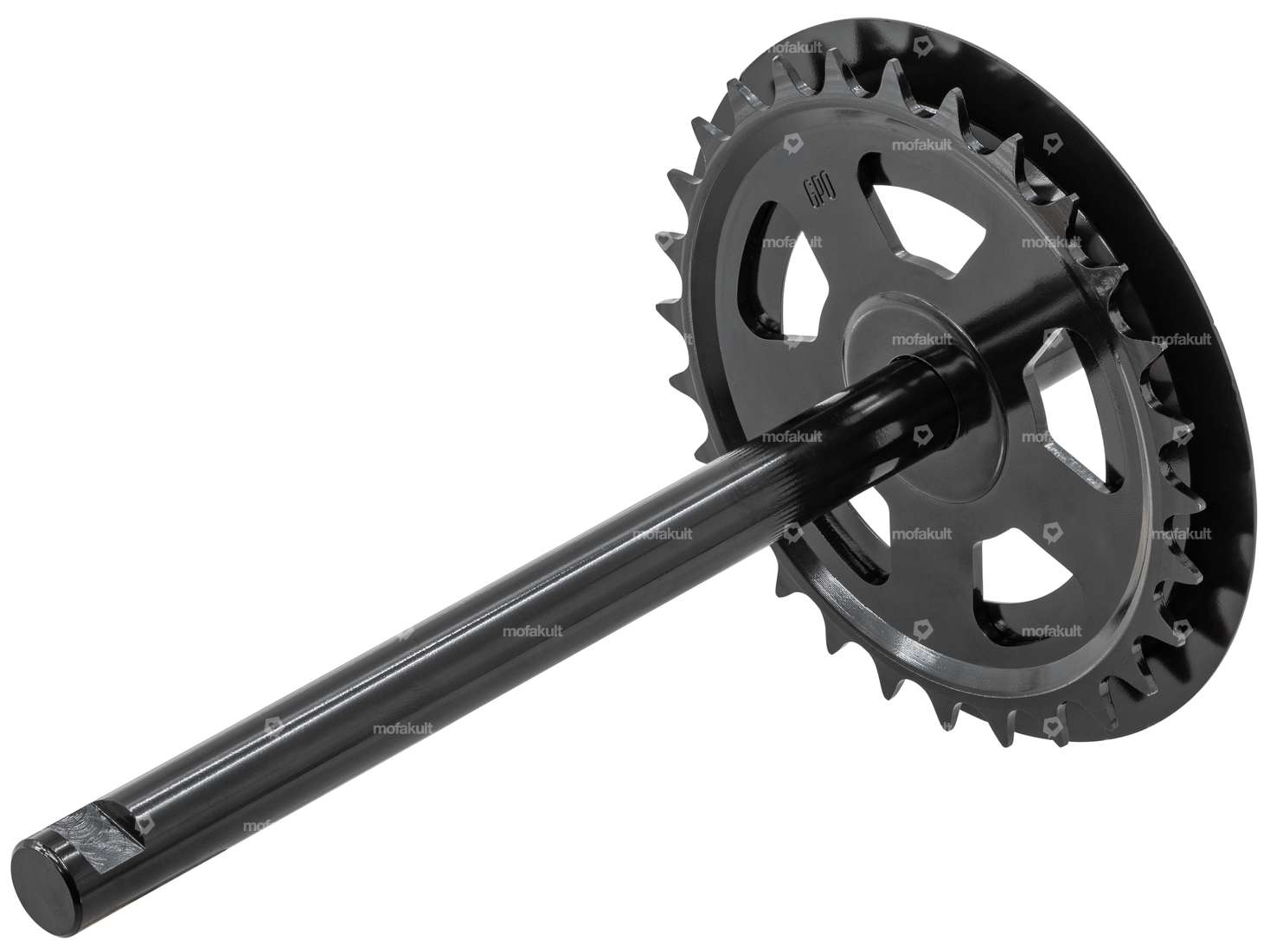

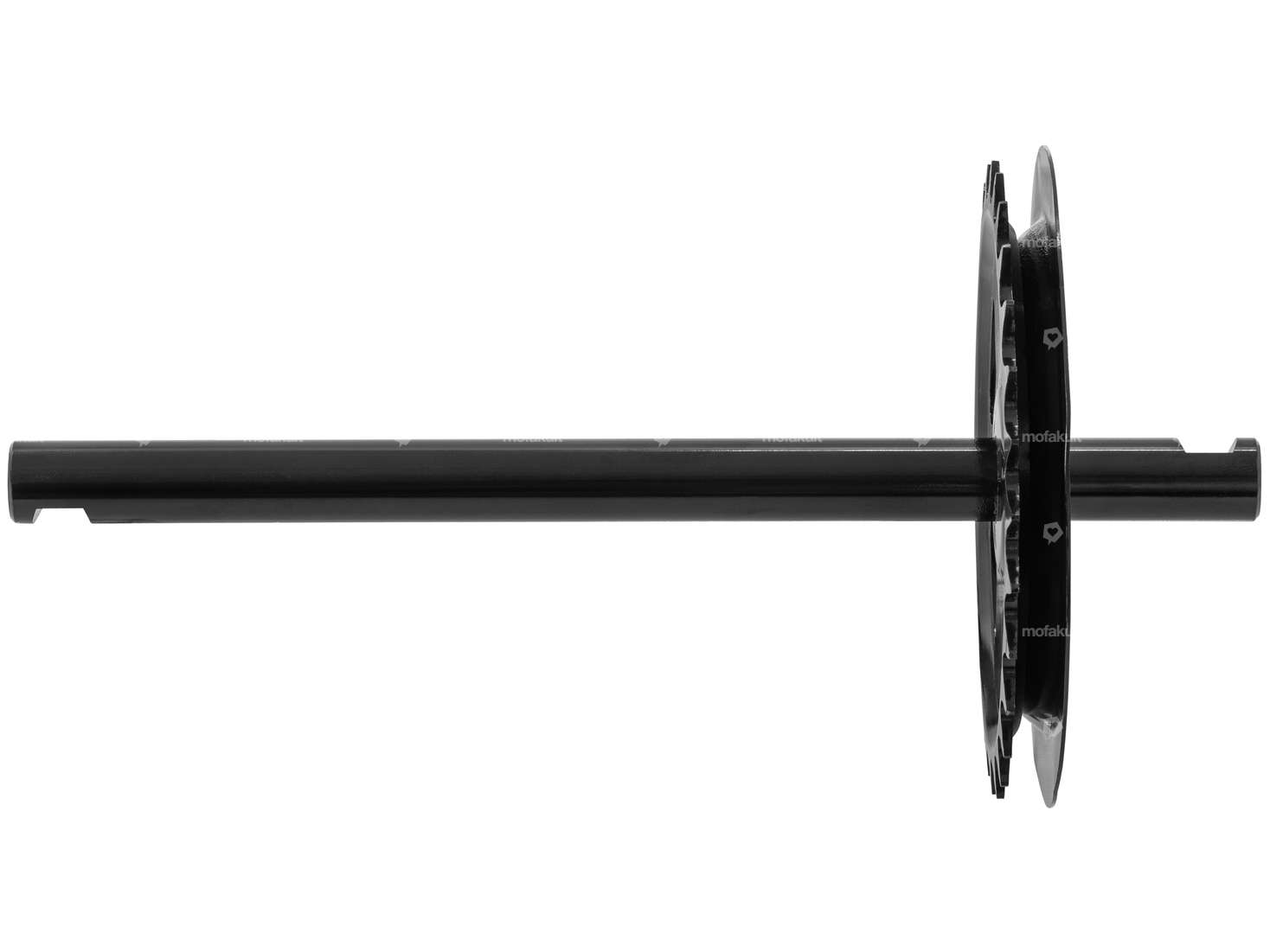

Black painted bottom bracket axle with keyway suitable for Piaggio Ciao mopeds/mopeds.
The pedal axle is firmly welded to the sprocket. The pedal arms are mounted by means of a wedge.
The concentricity of the sprocket is almost perfect and thus ensures that the chain does not jump out or jam.
Total length: 234 mm
Ø sprocket: 120 mm
Ø chain guard: 125 mm
Ø axle: 16 mm
Number of teeth: 28 pieces
Chain pitch: 1/2" x 1/8"
long heel: 186 mm
short heel: 46 mm
Matching attachments such as a pedal chain or bottom bracket bushings can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Piaggio spare part number: 813424
Details
| Surface | varnished |
| Chain pitch | 1/2" x 1/8" |
| Manufacturer | GPO |
| Ø outside | 125 mm |
| Material | Steel |
| Number of teeth | 28 pcs |
| Wavelength from wreath | 186 mm, 46 mm |
| Color | black |
| Ø Outer sprocket | 120 mm |
| Ø Pedal arm holder | 16 mm |
| Total length | 234 mm |
| Crank (wreath) | 3 mm |
| Piaggio spare part no. | 813424 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
