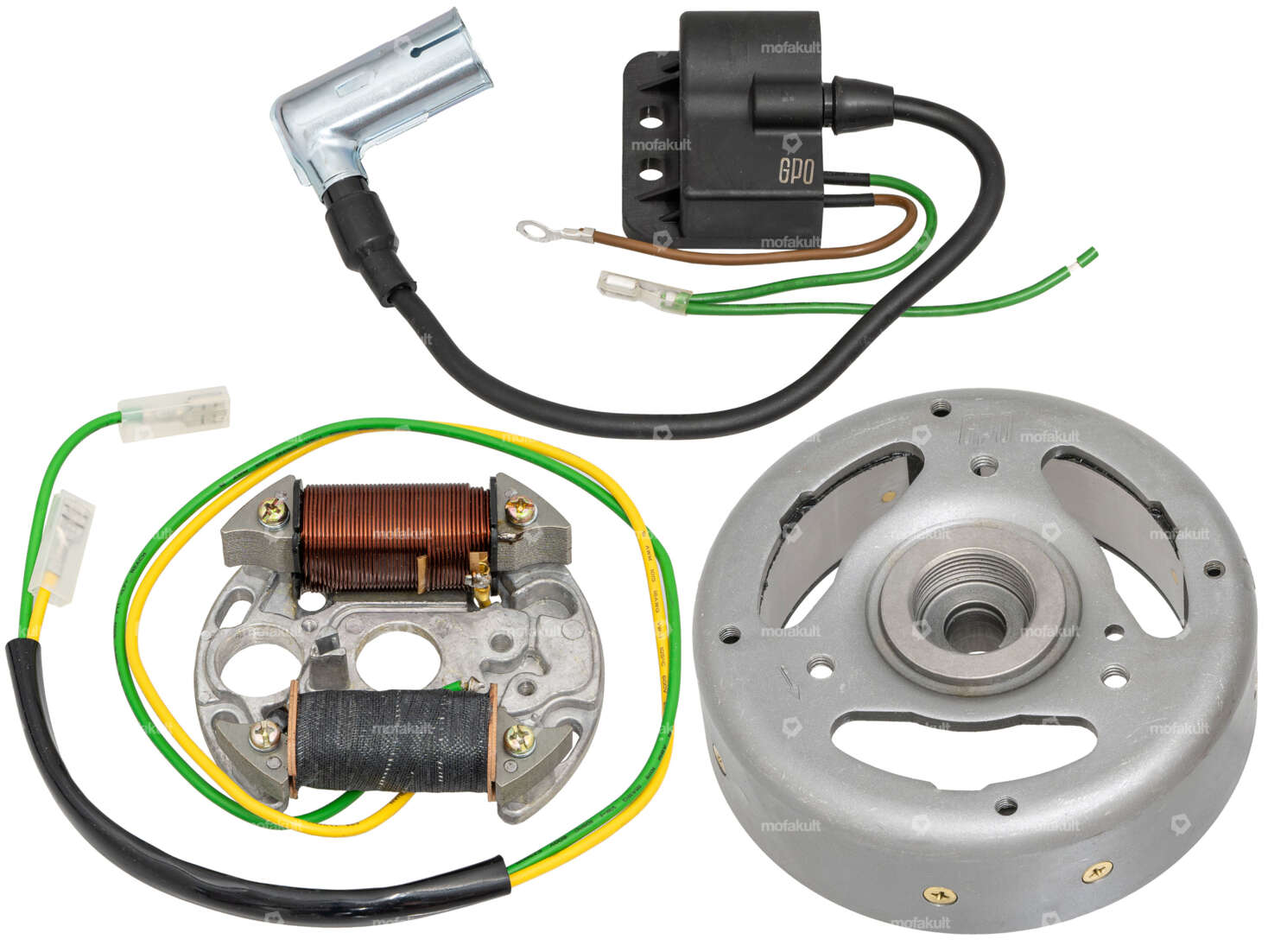

Complete electronic ignition with 12 volt light coil for engines which are left-handed and have an original Bosch or Ducati ignition system installed, e.g. Sachs, Puch, Zündapp etc. Mopeds and small motorcycles.
The ignition has no interrupter and no capacitor, making it almost wear-free. The laborious adjustment of the breaker is therefore no longer necessary.
Direction of rotation: Counterclockwise
Operating voltage of the light system: 12 volts
Power of the light system: 17 watts
We recommend installing a voltage regulator. You can find this and other add-on parts in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
The set includes the following fixed parts:
Manufacturer: GPO · Material: Steel · Tension: 6 V, 12 V · Direction of rotation: left · Cone ratio: 1:5 · Ø Internal flywheel: 90.9 mm · Ø Flywheel outside: 116.5 mm · Thread type: MF26x1.5 (fine pitch thread) · Weight: 900 g
Manufacturer: GPO · Material: Plastic · Color: black · Total length: 64 mm · Width: 54 mm · Height: 35 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.3 mm · Hole spacing: 18 mm · Area of application: Standard, Custom
Manufacturer: GPO · Material: Aluminum, Copper, Plastic, Steel · Color: gray · Tension: 6 V, 12 V · Number of cables: 2 pcs · Cable length: 580 mm · Ø inside: 18.5 mm · Ø Internal flywheel: 90 mm · Ø outside: 90 mm · Number of fixing points: 4 pcs · Ø bolt circle: 80 mm · Area of application: Standard, Performance
Details
| Manufacturer | GPO |
| Mounting type | Screws |
| Material | Aluminum |
| Tension | 12 V |
| Performance | 17 W |
| Direction of rotation | left |
| Ø mounting plate | 90 mm |
| Ø Internal flywheel | 90 mm |
| Number of fixing points | 4 pcs |
| Area of application | Standard, Original |
Suitable for the following models
| Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 535 |
| Zündapp Belmondo |
