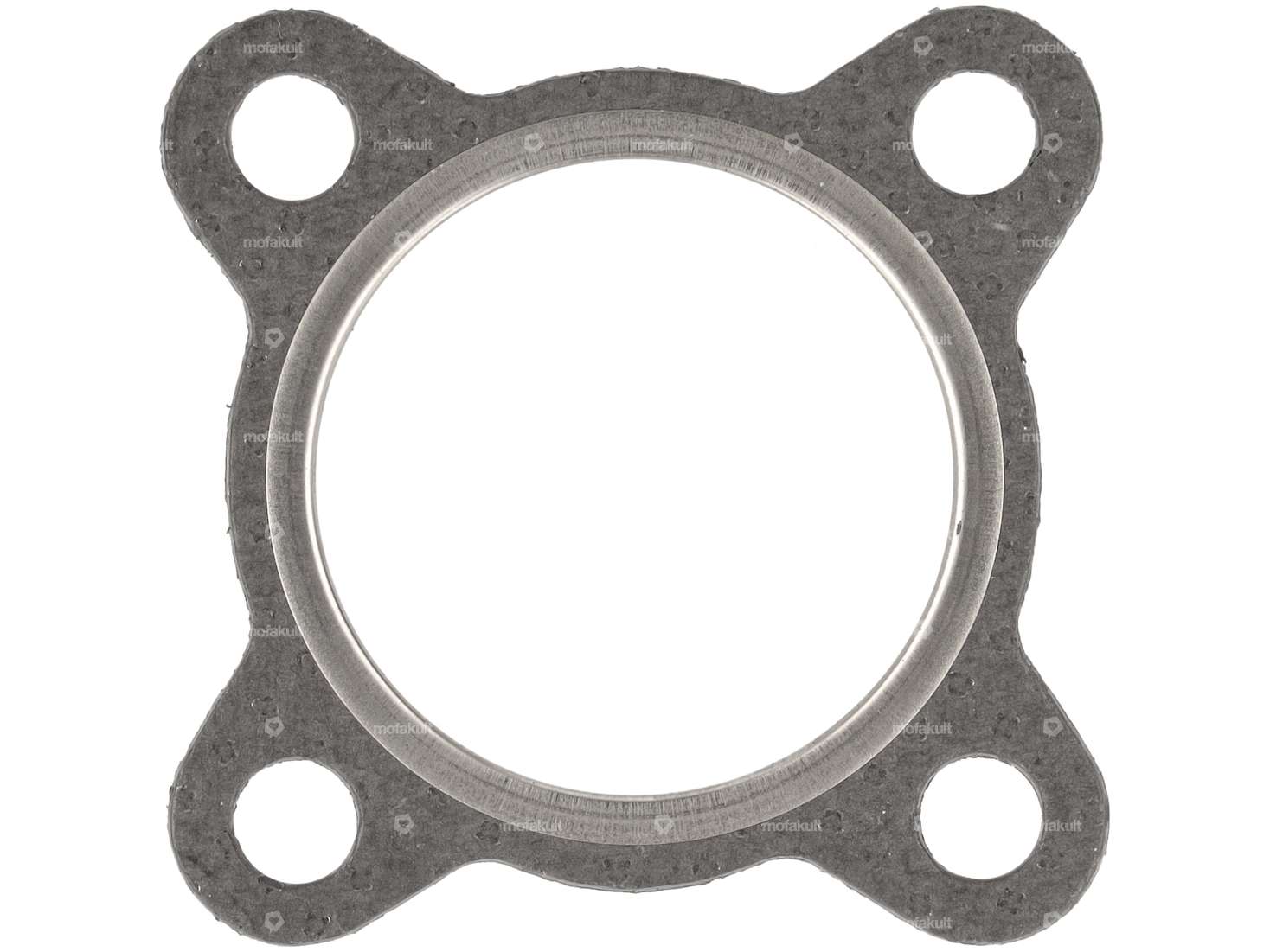

Head gasket for cylinder covers with 38 - 41 mm combustion chamber diameter and 44 x 44 mm stud bolt spacing for Puch Maxi S / N, Puch Supermaxi LG1 / LG2, Puch X30 Sport NS / NL, Puch X30 NG-2AH, Puch X30 N-2AH, Puch X30 Velux, Tomos Classic / Sprint / Quadro, etc.. Mopeds / mopeds.
The cylinder cover gasket is made of special, heat-resistant material and has a 1.3 mm thick aluminium ring for stabilization.
Ø inner: 41.3 mm
Ø stud bolt length: 7.9 mm
Hole pattern: 44 x 44 mm
Material thickness: 1.2 mm
Details
Place of use | Cylinder head |
Reinforced | Yes |
Nominal diameter | 38 mm |
Ø cylinder | 38 - 41 mm |
Thickness | 1.2 mm |
Ø outlet inside | 41.3 mm |
Ø screw holder | 7.9 mm |
Hole pattern [mm] | 44 x 44 |
Suitable for the following models
Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Tomos |
