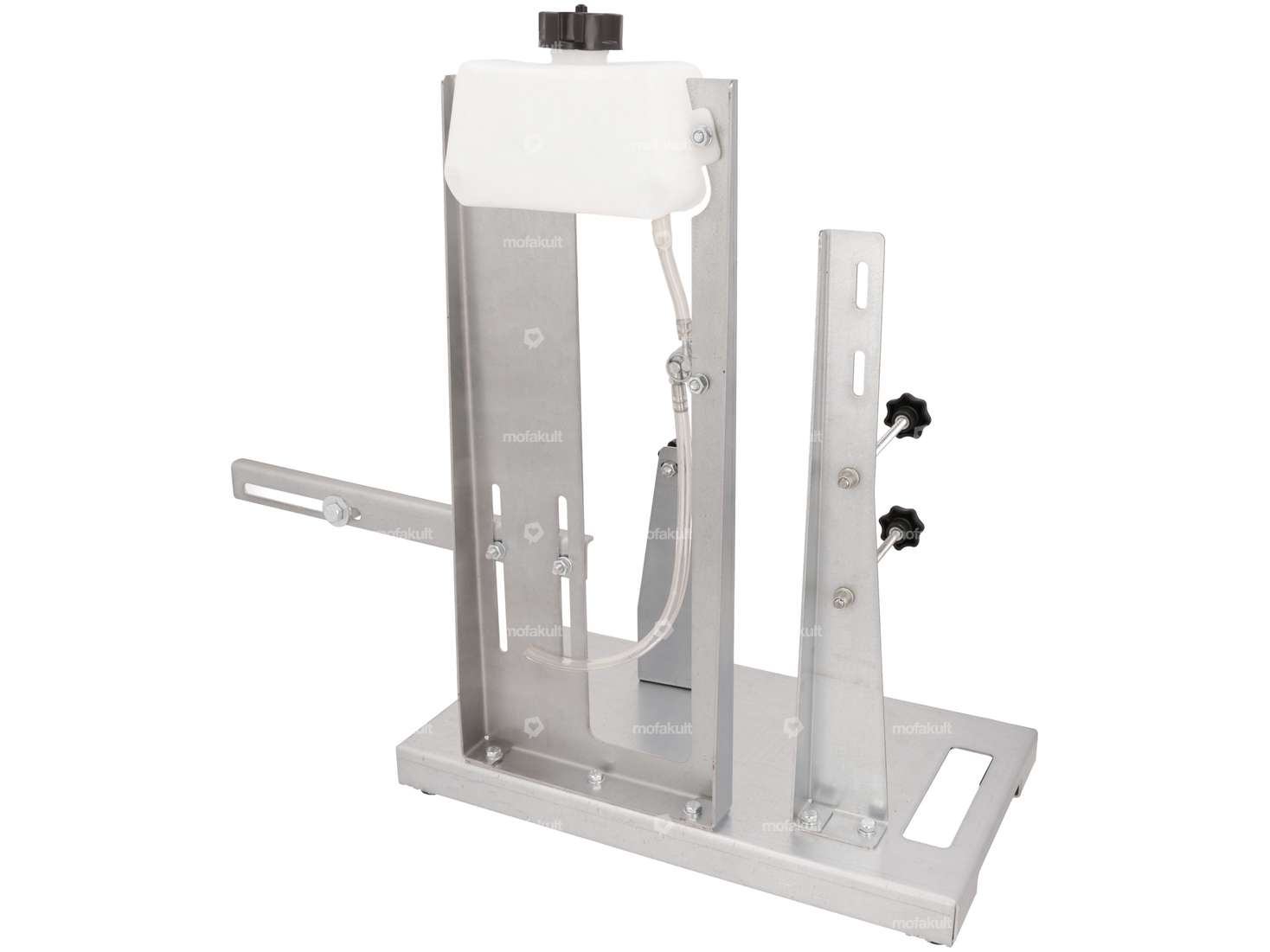

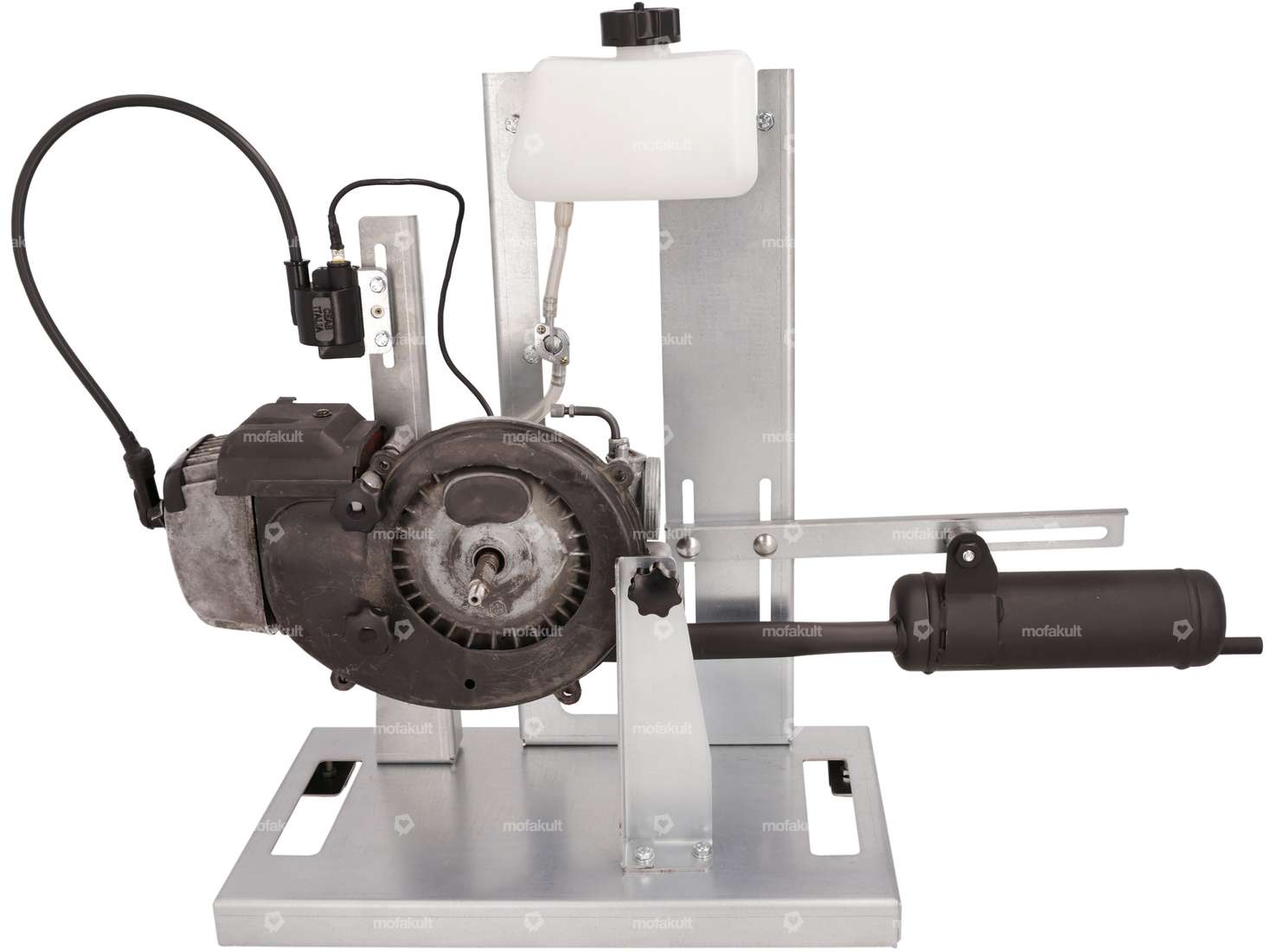

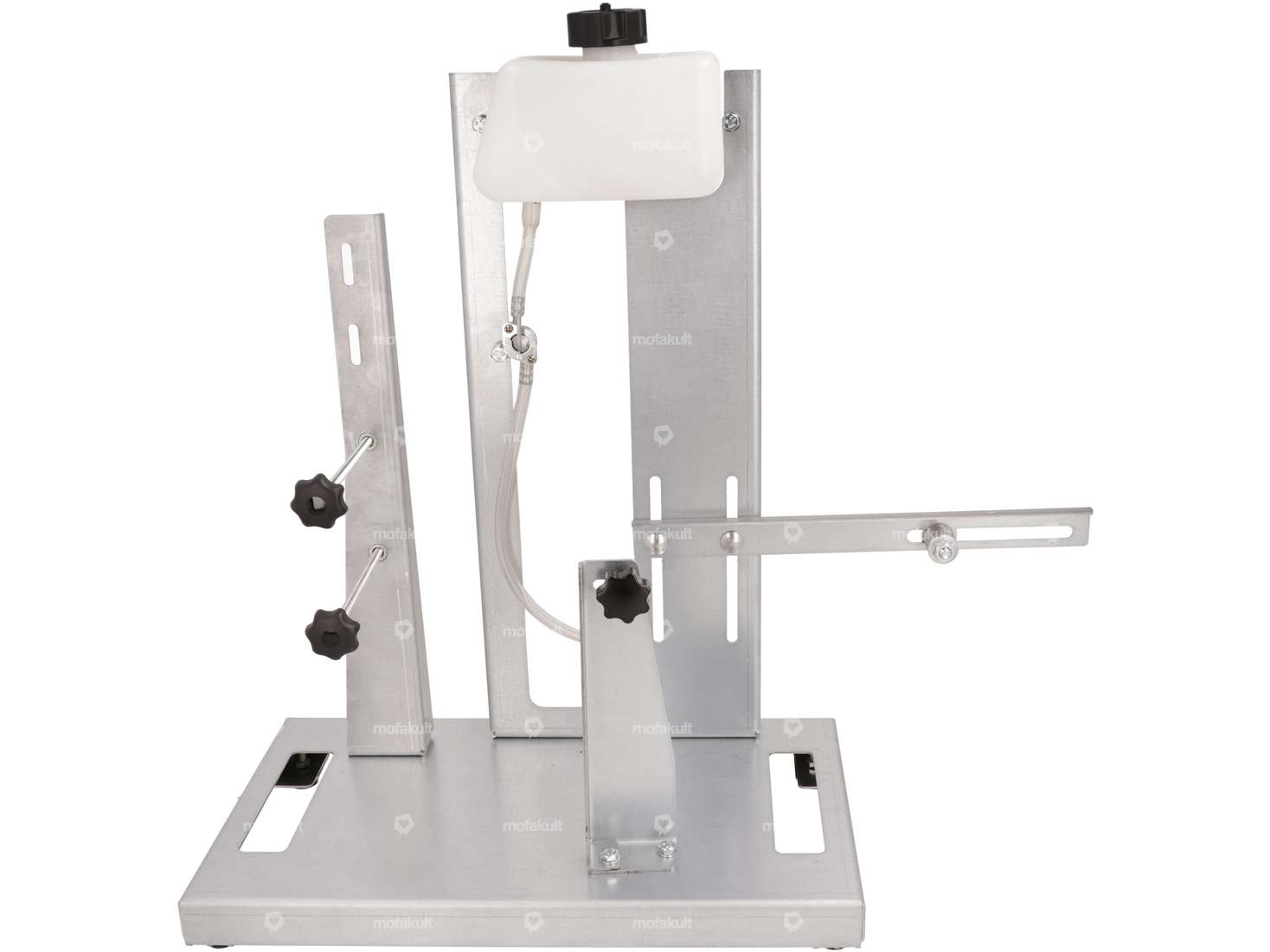

Primpression and adjustment stand for the engines of your Piaggio Ciao, Si, Bravo or Boxer mopeds / mopeds.
Made from 2 mm thick sheet steel, the engine support has been designed to allow quick and easy fixing of the engine. Tuning work on the carburetor or a functional check of the ignition are made considerably easier by the engine mount. In addition, all commercially available exhausts can be fitted, for example to measure the sound level.
The base plate is fitted with silent blocks to ensure safe and low-vibration operation. Fuel is supplied through a 250 ml tank, which is equipped with a fuel tap.
Dimensions assembled: 55 x 22 x 55 cm (L x W x H)
Base plate dimensions: 40 x 22 cm
Tank capacity: 2.5 dl
The engine mount is supplied with all the necessary screws.
You can find other essential tools such as an engine stand for assembly in the accessories section.
A quality product made in Germany.
Details
| Manufacturer | Made in Germany |
| Material | Steel, Plastic |
| Surface | galvanized (blue) |
| Material thickness | 2 mm |
| Total length | 550 mm |
| Width | 220 mm |
| Height | 550 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
