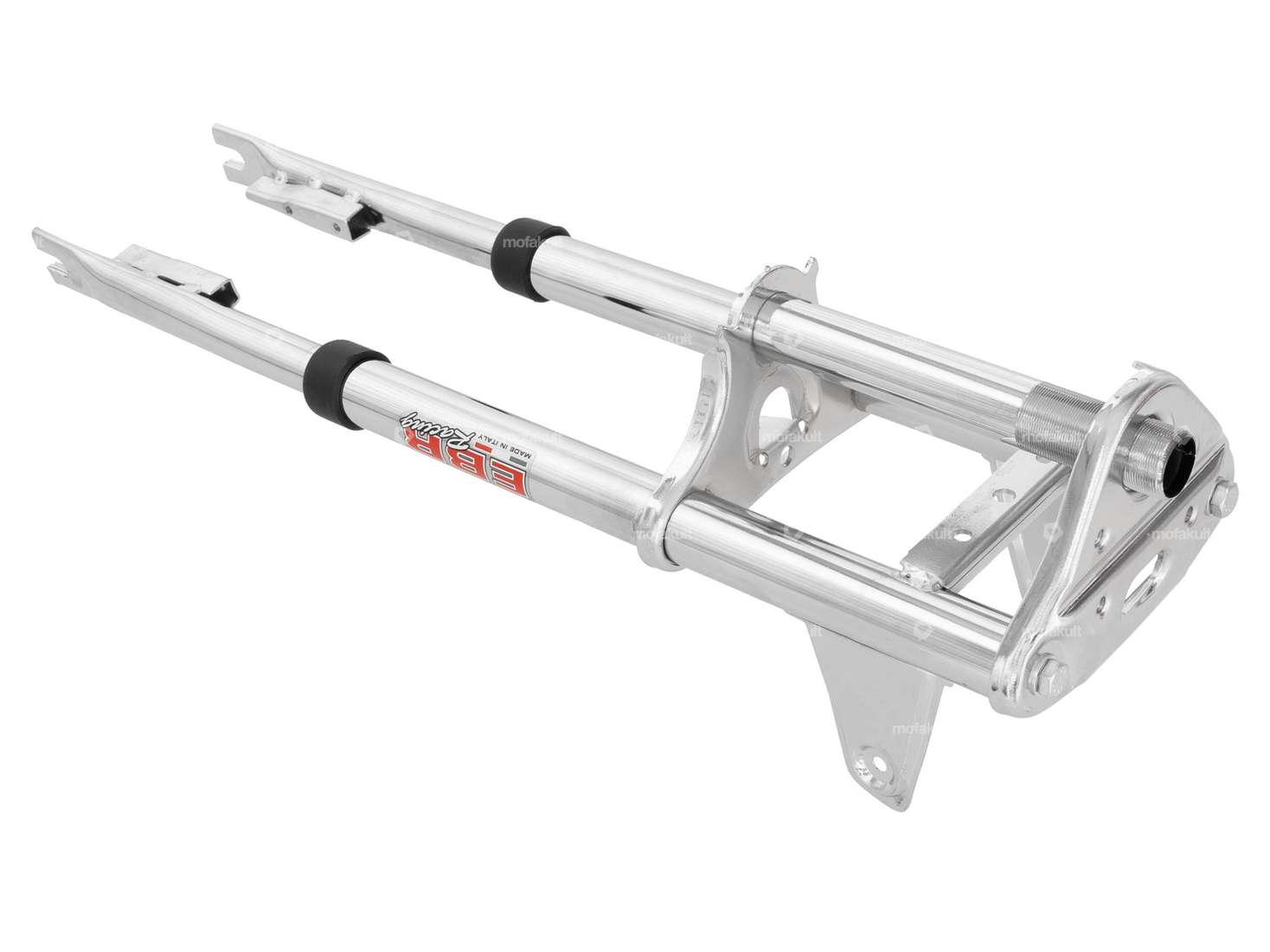

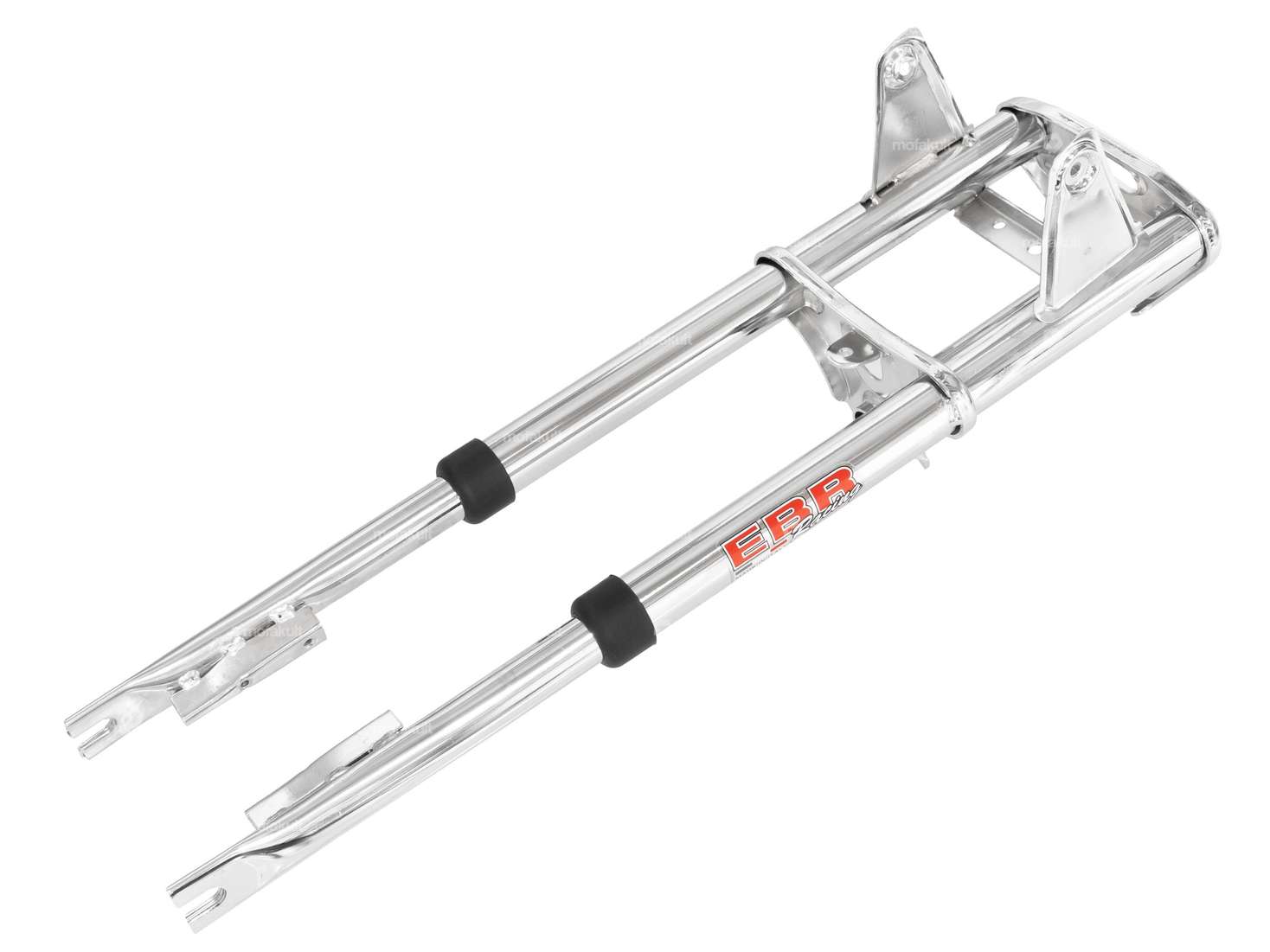

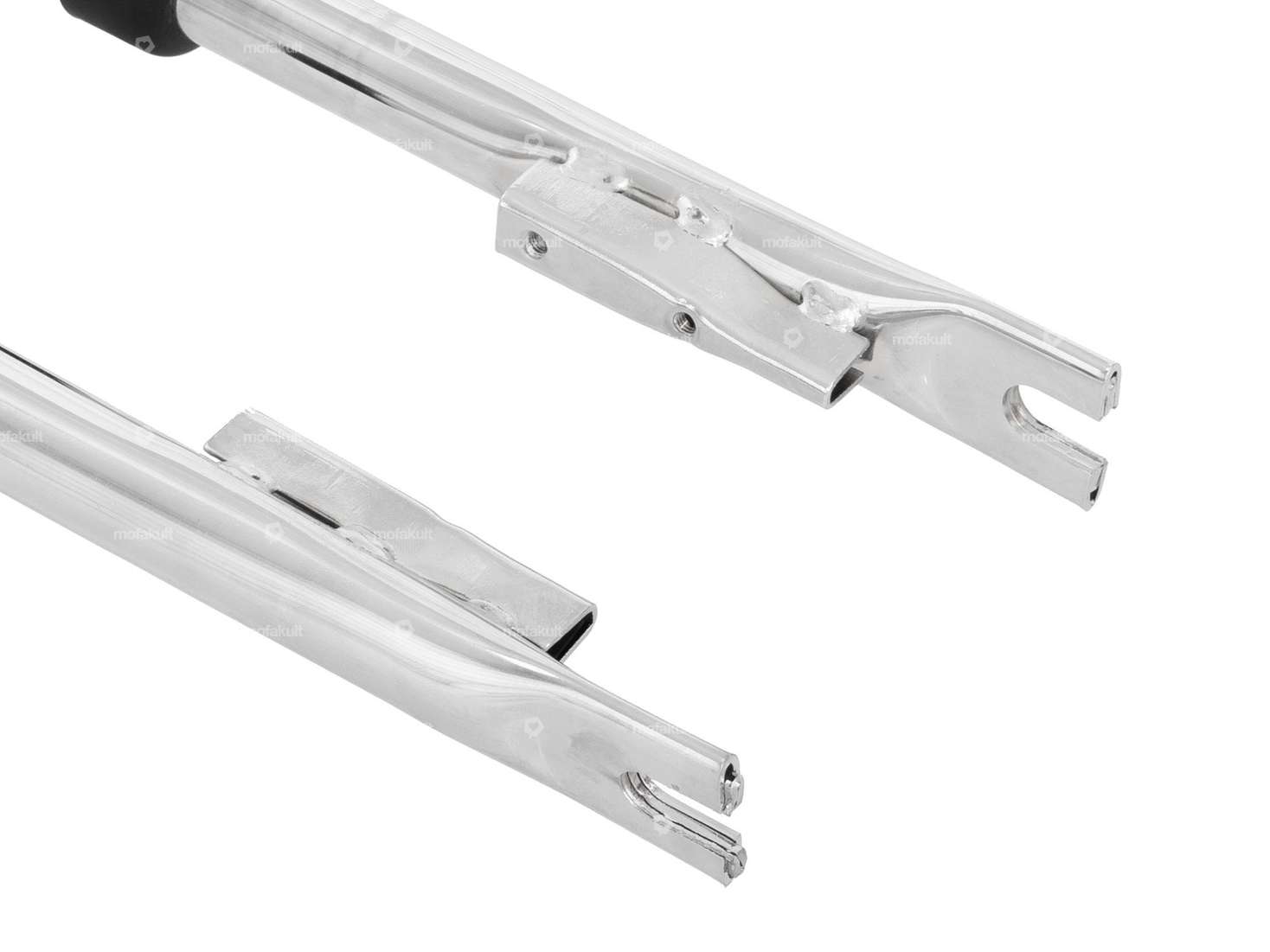

Chromed EBR standard fork for various Puch mopeds / mopeds.
Looks like the original Puch fork, but without fork lock mount.

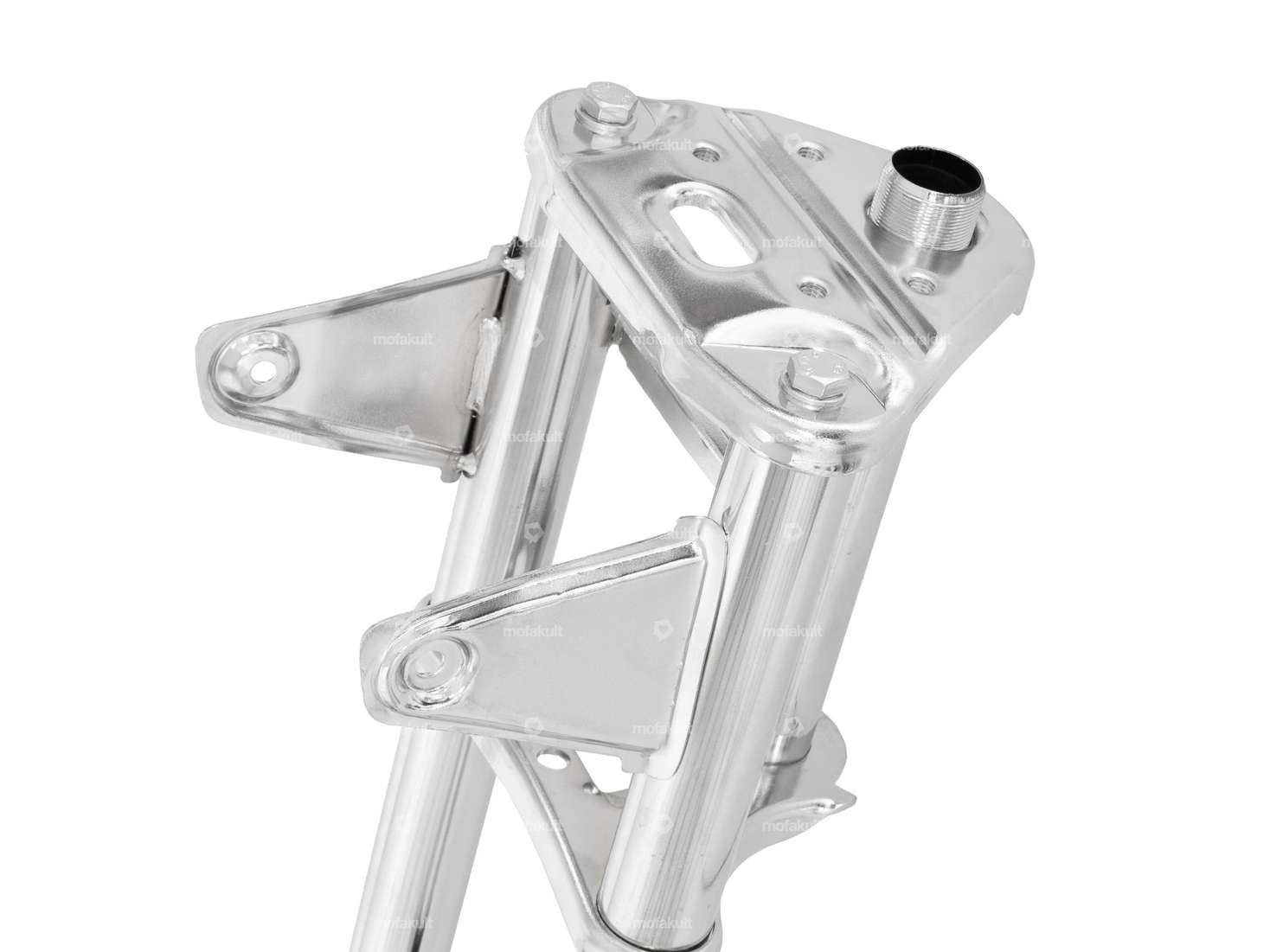

The handlebar mounting is provided on the fork plate.
Internal diameter head tube (for stem mounting): 22 mm
Head tube length: 18 cm
Total length: 57 cm
You can find a matching snap ring, headset set and clamps in the accessories section.
Branded product from the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Steel |
Surface | chrome-plated |
Color | Chrome |
Adjustable | No |
Spar end distance (center-center) | 140 mm |
Ø outer head tube | 26 mm |
Ø spars | 23 mm |
Ø head tube inside | 22 mm |
Thread length | 57 mm |
Head tube length | 180 mm |
Total length | 570 mm |
Fork bridge - center wheel axle | 383 mm |
Distance brake cam to wheel axle center-center | 40 mm |
Thread type | MF26x1 (fine pitch thread) |
Suitable for the following models
Puch |
