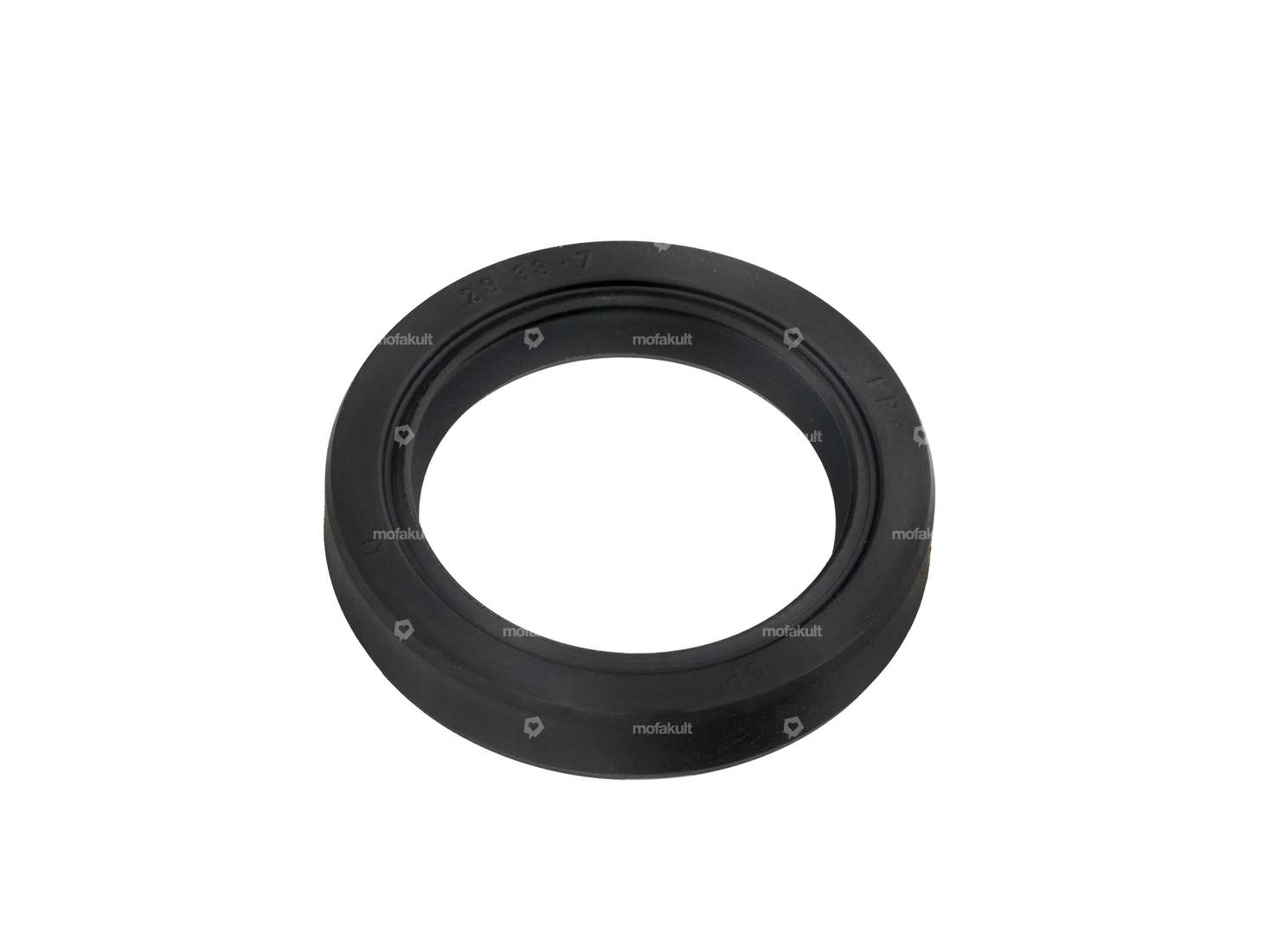

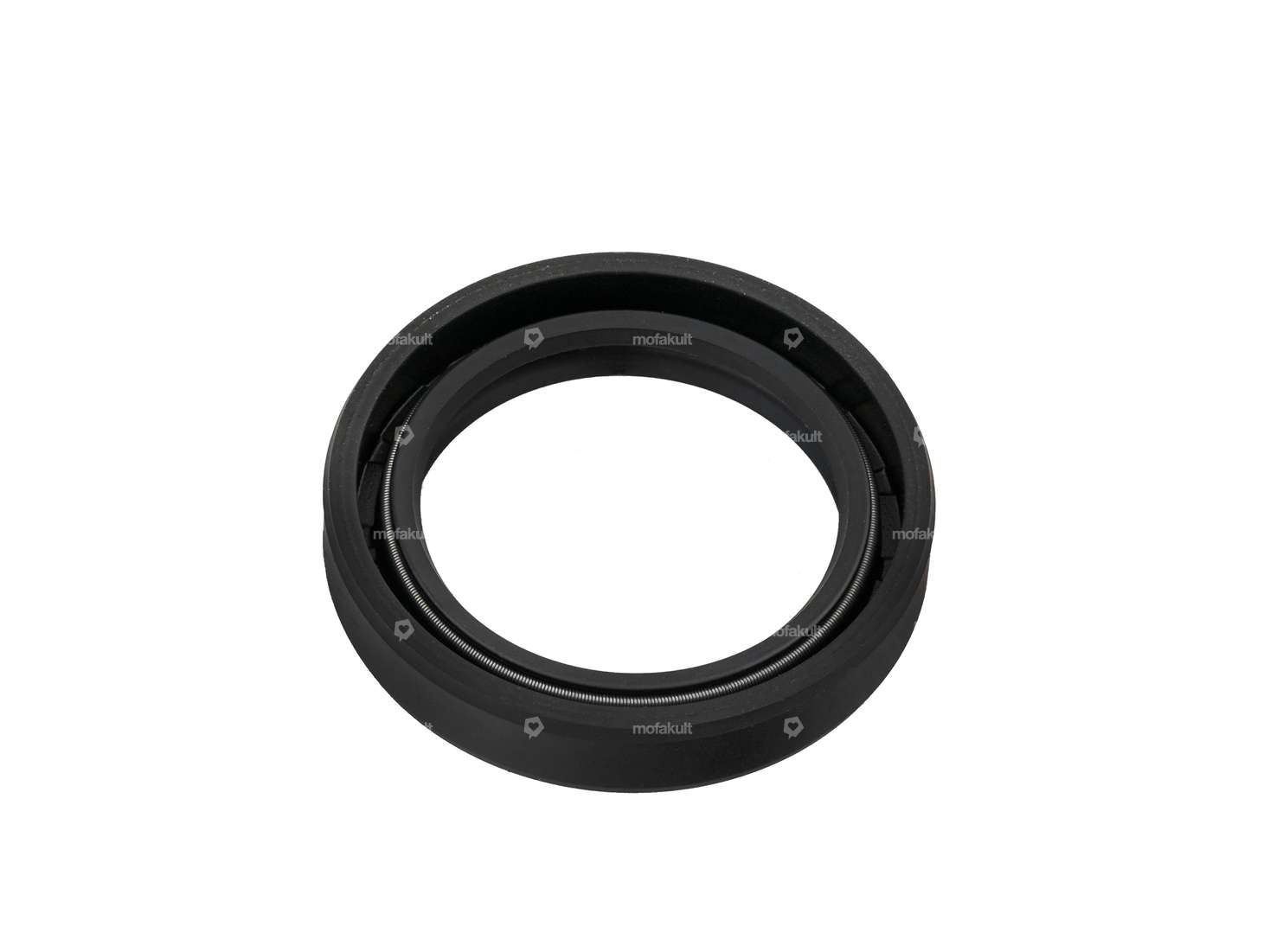

Shaft seal ring 28x38x7 mm for use on the hydraulic EBR fork for your moped & moped.
This radial shaft seal (also known under the famous brand name Simmerring®) is mounted on the fork legs of all hydraulic EBR forks, also suitable for Alpa forks.
If your fork loses oil, this shaft seal should be replaced.
Ø inner: 28 mm
Ø outer: 38 mm
Width: 7 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: AS - With rubberized outer jacket, a sealing lip and a dust lip.
Branded product from the Italian manufacturer EBR.
Details
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | EWC |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 28 mm |
| Ø outside | 38 mm |
| Width | 7 mm |
| Temperature resistance (min.) | -30 - 100 °C |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs |
