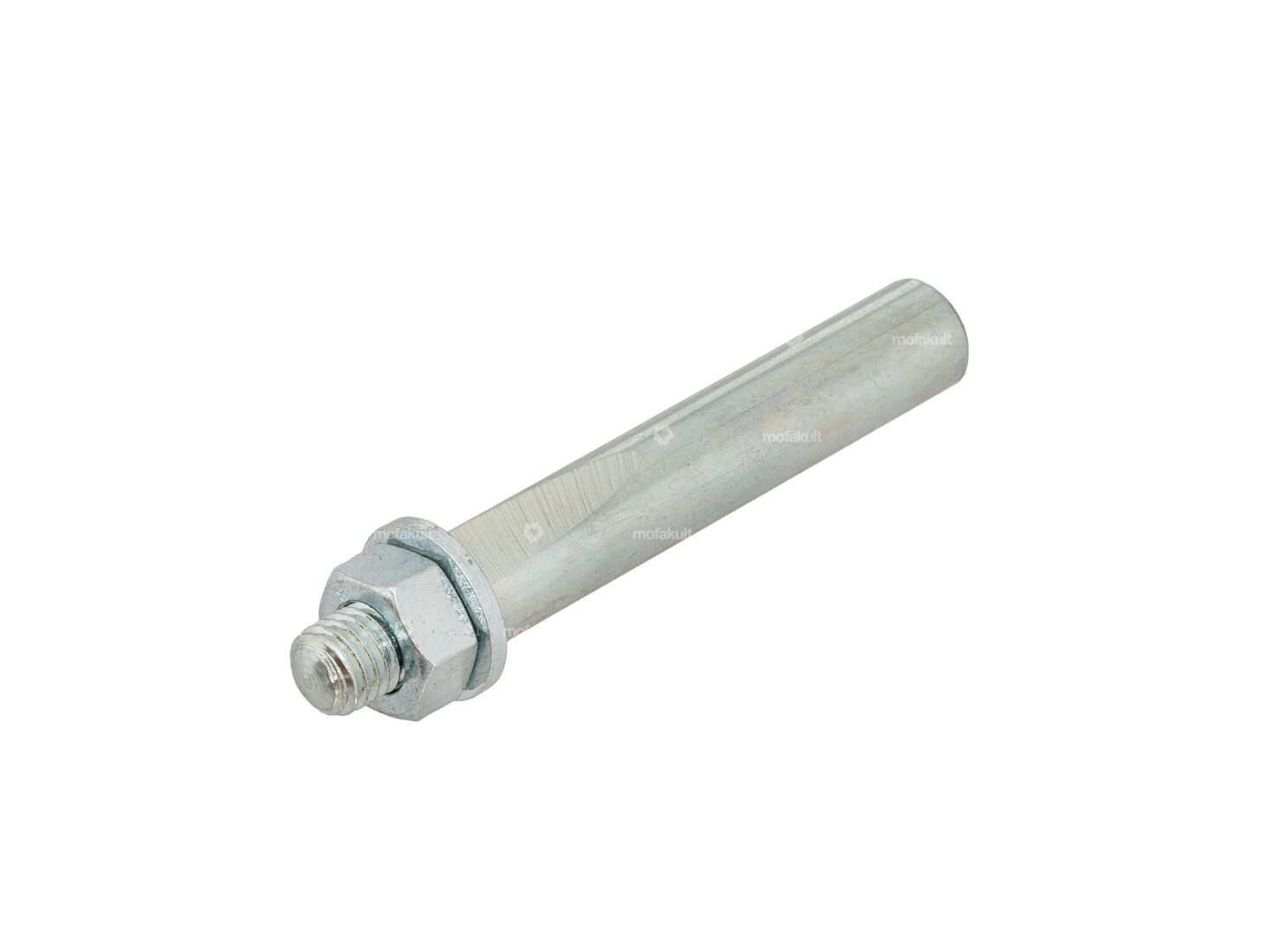

Drive wedge kickstarter | Puch DS50, VZ50M, VZ50V

Engine gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Crankshaft full cheek Puch MV, VS, MS, DS | Monza | X50 (3 & 4 speed)

Area of application: Tuning · Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs

40 mm cylinder kit aluminum | Puch Monza, X50

Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 60 ccm · Nominal diameter: 40 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm

Silentblock 10/22/33 mm

Material: Rubber · Material: Steel · Total length: 33 mm · Ø inside: 10 mm · Ø outside: 22 mm

Silentblock engine mount | Puch MS50, VS50, MV50

Material: Rubber · Material: Steel · Total length: 17 mm · Ø inside: 8 mm · Ø outside: 20 mm

Silentblock swingarm bearing | Puch VZ50, MC50, X50, Monza

Material: Rubber · Material: Steel · Total length: 36 mm · Ø inside: 12 mm · Ø outside: 25 mm

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Spring design: Torsion spring · Material: Spring steel · Surface: galvanized (blue)

Rear light glossy chrome - red

Material: Plastic · Color: Chrome · Color: red · Bulb holder: BA9s · Ø Receptacle: 3.5 mm · Mounting type: Nuts & bolts · Test mark: none · Battery operated: No · Number of fixing points: 1 pcs · Width: 65 mm · Height: 45 mm · Depth: 55 mm

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Area of application: Tuning · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Place of use: Outlet · Hole spacing outlet: 42.5 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

swiing® revival plain bearing clutch basket | Puch Z50

Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Total height: 16.2 mm

swiing® revival thrust washer 15/26/1 clutch | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1 mm · Ø inside: 15 mm · Ø outside: 26 mm

swiing® revival thrust washer 15/22/1.7 clutch | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: hardened & ground · Thickness: 1.7 mm · Ø inside: 15 mm · Ø outside: 22 mm · Puch spare part no.: 050.1213

swiing® revival pinion pulley | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 17 mm · Thickness: 3 mm · Ø inside: 13.9 mm · Ø inside: 17.1 mm · Ø outside: 24.3 mm · Puch spare part no.: 050.1.1319

Oil seal NBR 16/28/7 BS Kickstarter | Puch Z50

Simmering type: BS - With sheet metal outer casing / one sealing lip / one dust lip. · Manufacturer: Puch · Material: NBR · Width: 7 mm · Ø inside: 16 mm · Ø outside: 28 mm · Temperature resistance (min.): -30 - 100 °C

Bushing for kickstarter wedge | Puch Z50 engine

Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 10 mm · Ø inside: 10 mm · Total length: 7.5 mm · Ø outside: 12 mm · Puch spare part no.: 364.1.13.337.1

Spring & ball for kickstart lever | Puch Z50

Spring design: Pressure spring · Puch spare part no.: 250.1344 · Puch spare part no.: 0022755
