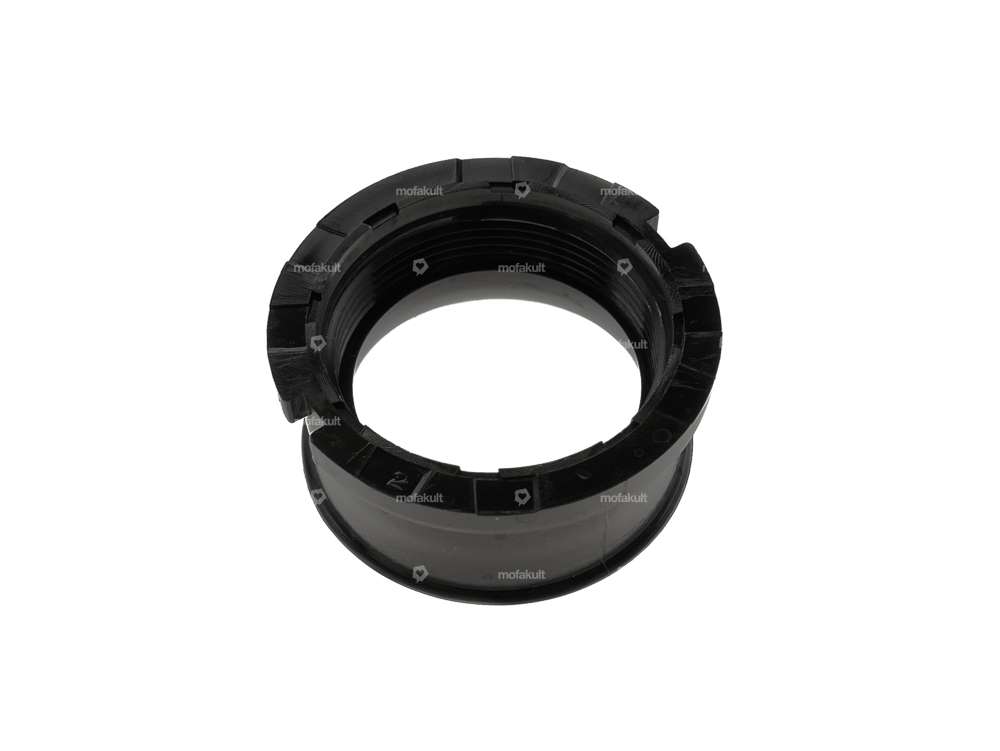

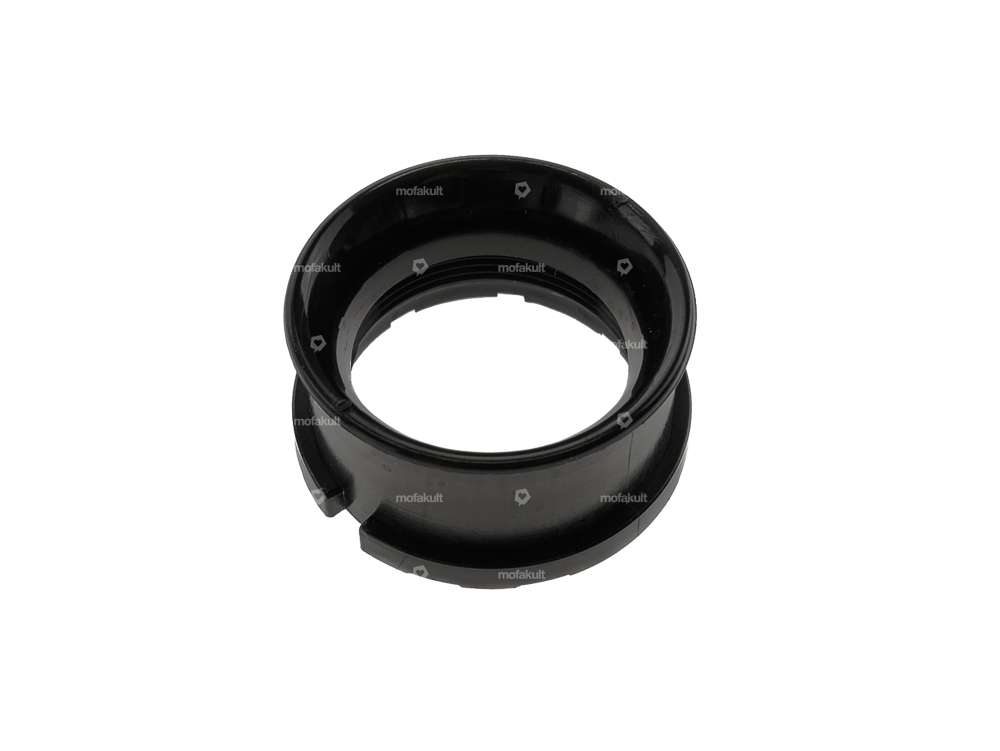

Dell'Orto flange Ø 38 mm PHBG 15 - 21 mm

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Ø inside: 26.8 mm · Ø mounting frame: 31 mm · Ø outside: 41 mm · Color: silver

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Valve type: TR4 Auto valve · Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Tire height [%]: 100 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 " · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5

Dell'Orto gasket set carburetor PHBG

Manufacturer: Dell'Orto · Carburetor type: PHBG

swiing nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Manufacturer: swiing · Total length: 8 mm · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA (type 3) · Carburetor type: SHA (type 4) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92

swiing® revival screws set sprocket mounting Inox | Puch Maxi

Thread type: M6x1 (standard thread) · Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of components: 24 pcs · Drive: External hexagon · Thread length: 22 mm · Screw head: Hexagon · Width across flats SW: 10 mm · Shank: No · Color: gray

Oil seal FPM 17/40/7 A VITON | Puch E50

Width: 7 mm · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Puch · Ø inside: 17 mm · Ø outside: 40 mm · Material: FPM - Rubber · Surface: rubberized · Temperature resistance (min.): -30 - 200 °C

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Ø inside: 106 mm · Ø outside: 116 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Number of components: 1 pcs · Alternative version of the Puch spare part no.: 349.1.10.349.1

GPO cylinder stud bolt set special M6x106 mm galvanized | Puch

Diameter: 7 mm · Total length: 106 mm · Width across flats SW: 10 mm · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Thread type: M6x1 (standard thread) · Drive: External hexagon · Thread length: 15 mm · Thread length: 19 mm · Strength class: 10 · Strength class: 10.9 · Alternative version of the Puch spare part no.: 360.1.10.034.1

MBR piston 46.93 mm Gilardoni italkit | Puch

Nominal diameter: 47 mm · Manufacturer: MBR · Manufacturer: Wössner · Surface: molybdenum-coated · Ø outside piston (A): 46.93 mm · Ø piston pin (B): 12 mm · Compression height (C): 22 mm · Curvature (D): 2.65 mm · Total piston height (E): 48.15 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm

Carburetor Dell'Orto 21 mm PHBG AS (replica) hand choke

Nominal diameter: 21 mm · Manufacturer: Quenching · Material: Aluminum · Camouflaged: No · Material: Plastic · Area of application: Tuning · Color: black · Carburetor type: PHBG · Mounting type: Plug connection clamped · Width: 60 mm · Height: 132 mm · Total length: 71 mm · Nozzle thread: M5 · Ø without reducing sleeve: 26 mm · Nozzle size: 90 · Ø Inside entrance: 24 mm · Ø Output inside: 24 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Choke nozzle size: 53 · Size of secondary nozzle: 55
