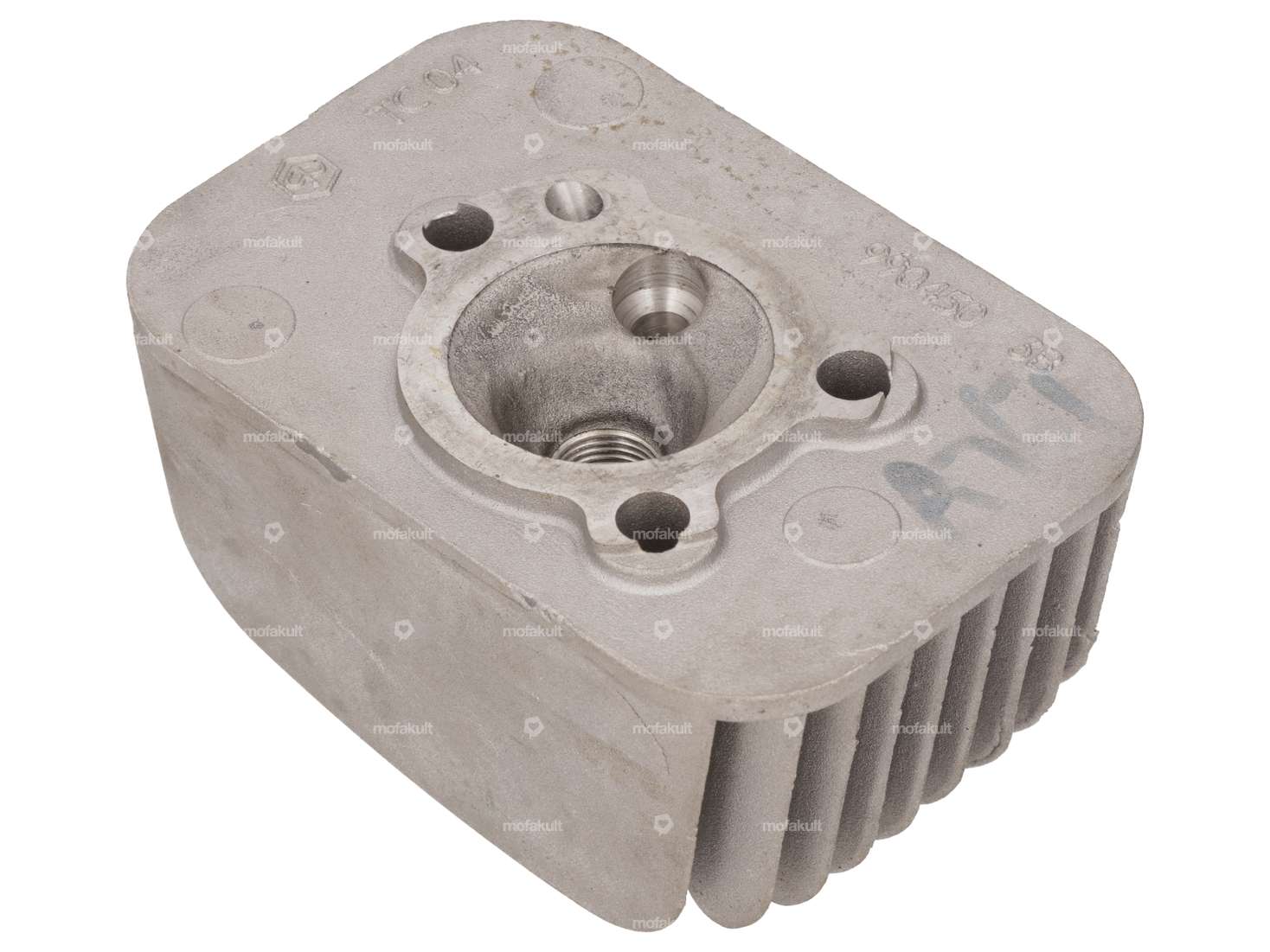

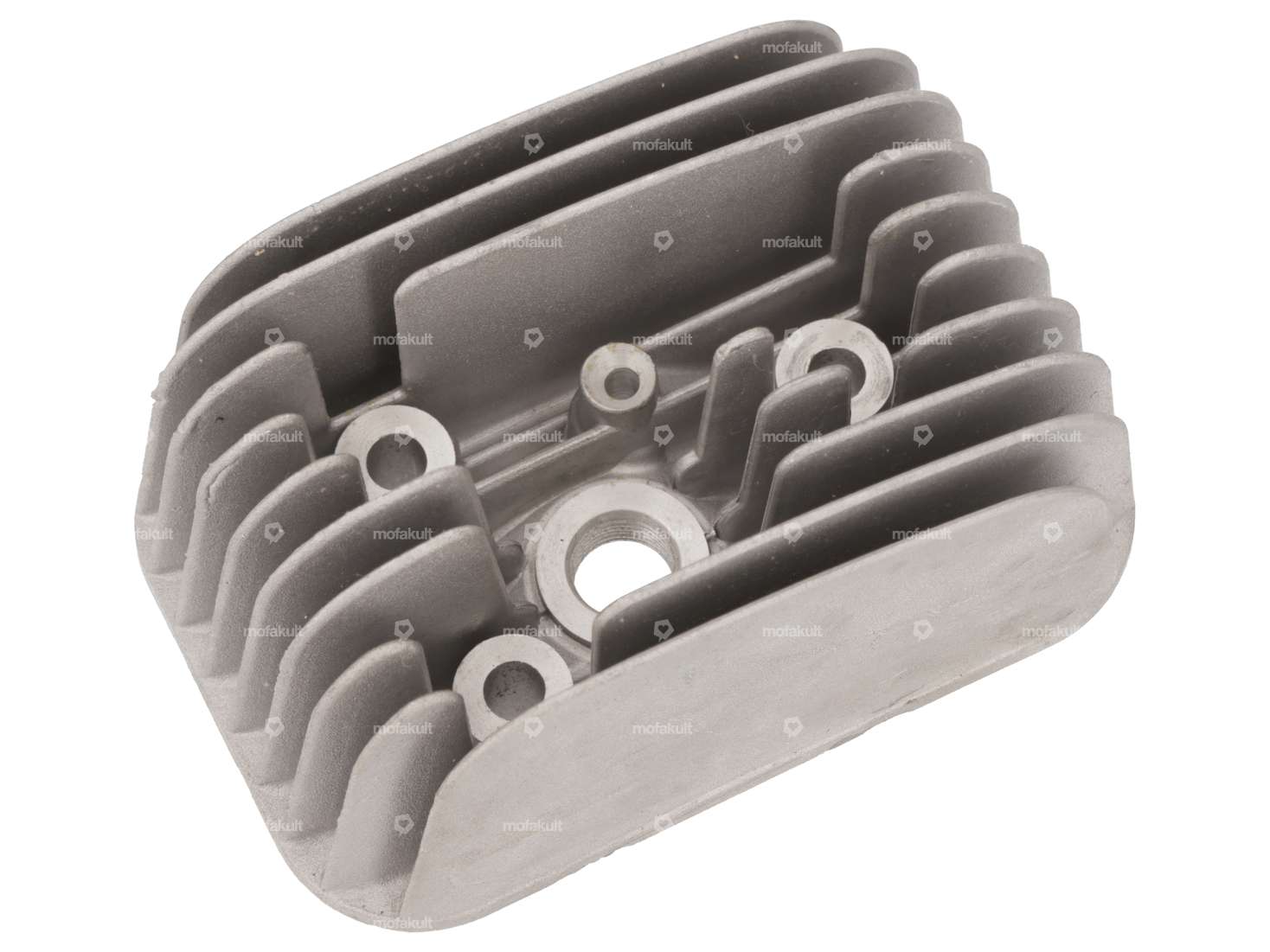

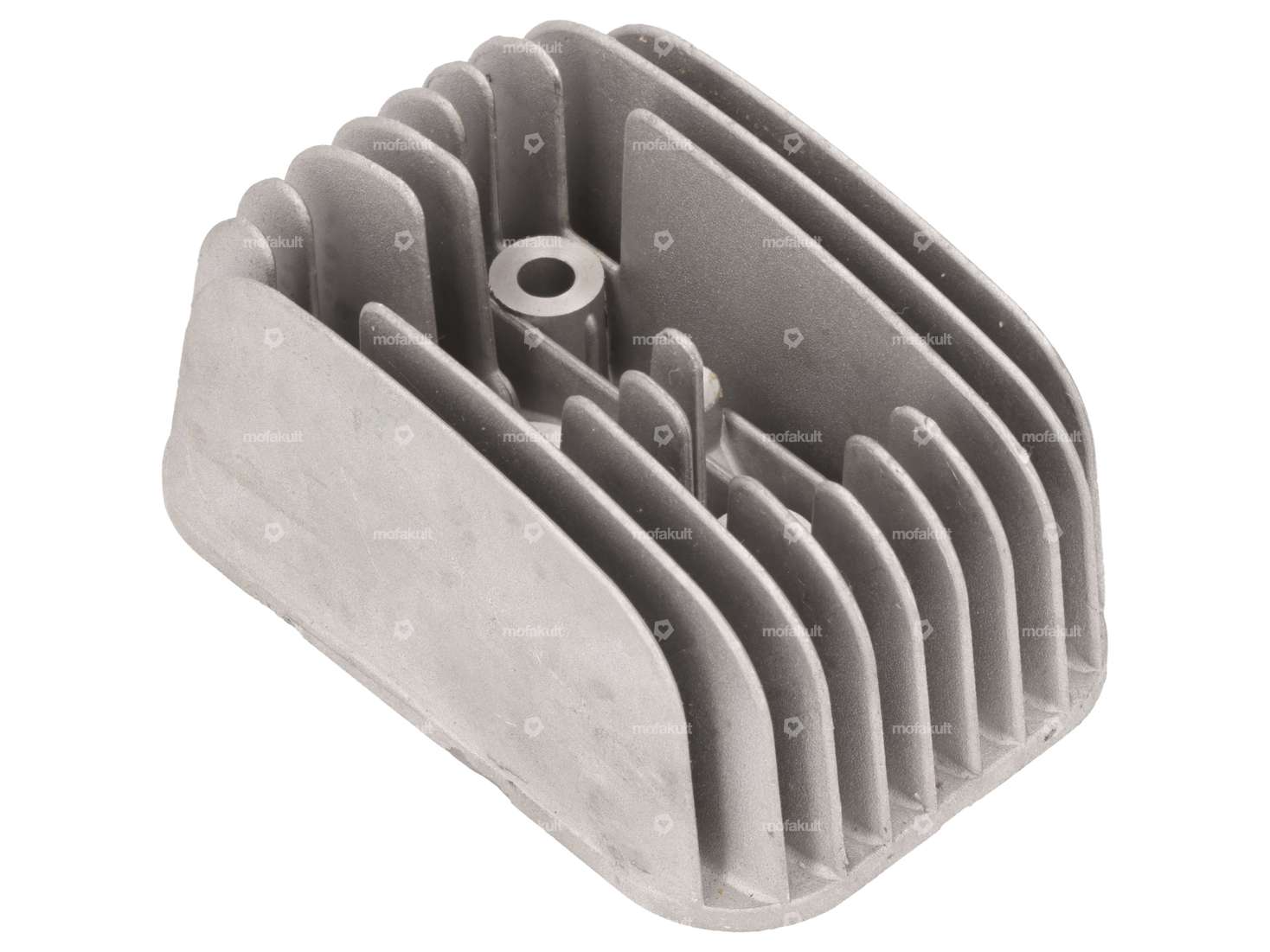

Original cylinder cover with 38 mm combustion chamber diameter from old stock to fit your Piaggio Ciao moped / moped.
From the factory, this type was installed on the P and PX models.
The cylinder head has a mount for the decompressor.
ID: 990450 TC 04
Dimension (L x W x H): 120 x 79 x 60 mm
Note: The head is not suitable for engines that have a recessed piston (catalytic converter models).
You will find the deco valve together with the grinding paste in the accessories.
Original Piaggio spare part. NOS – New from old stock.
Original Piaggio spare part number: 159998
Alternative to the original Piaggio spare part number: 113237
Details
| Manufacturer | Piaggio |
| Material | Aluminum |
| Width | 79 mm |
| Height | 60 mm |
| Total length | 120 mm |
| Ø cylinder | 38 mm |
| Number of fixing points | 3 pcs |
| Candle thread | short |
| Area of application | Original |
| Piaggio OEM number | 159998 |
| Alternative version of the Piaggio OEM number | 113237 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao |
