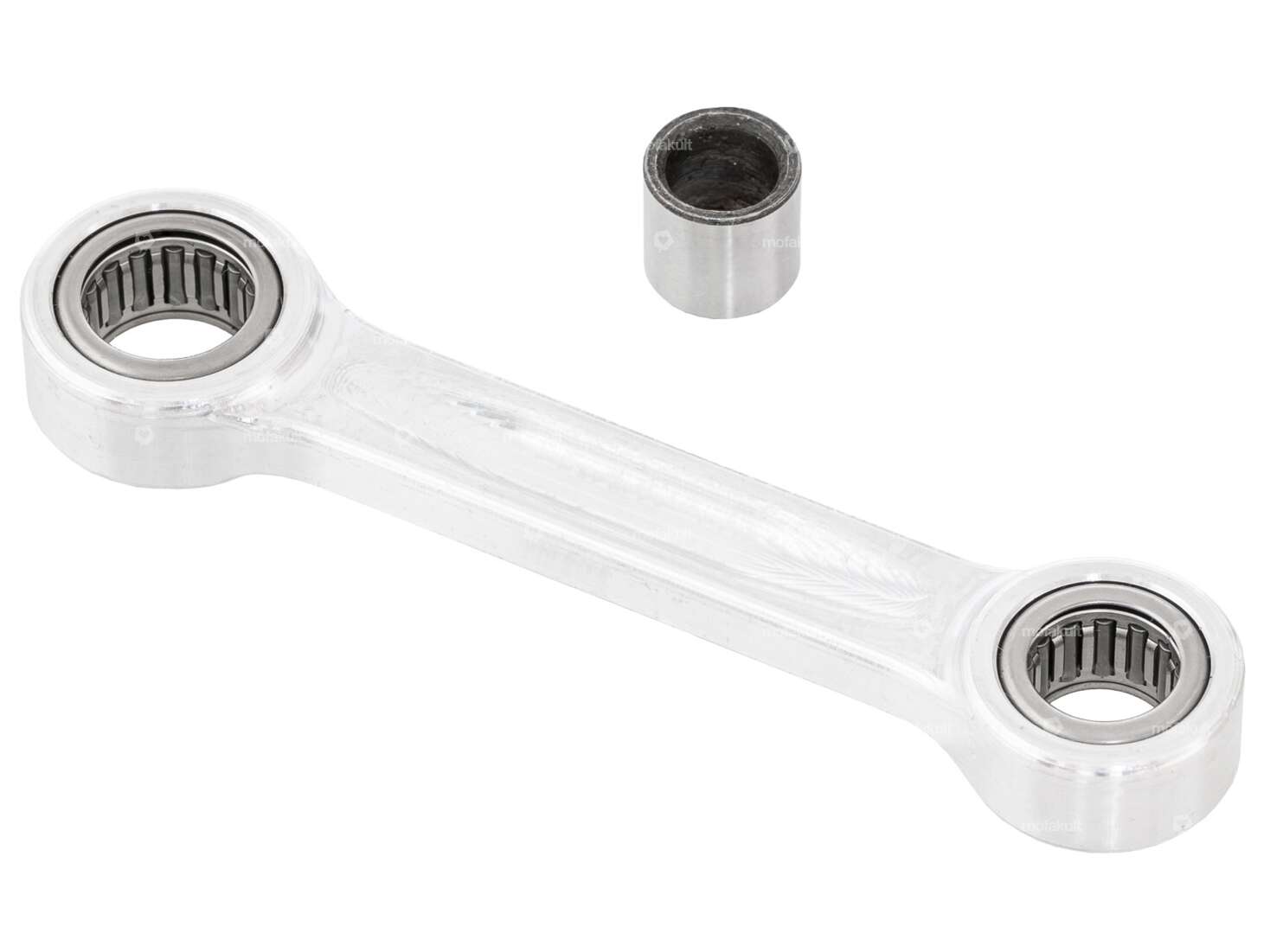

Complete CNC-machined connecting rod made of aluminum suitable for crankshafts of various Solex engines.
The two needle sleeves, which serve as connecting rod bearings, are firmly pressed in.
- Dimension connecting rod bolt 1: Ø14 x 13.4 mm
- Connecting rod length (center - center): 90 mm
- Total connecting rod length: 115 mm
- Thickness: 10 mm
- Outer diameter of lower connecting rod eye: 25.9 mm
- Outer diameter of upper connecting rod eye: 24 mm
- Ø inner lower bearing: 14 mm
- Ø inner upper bearing: 12 mm
A quality product made in the Netherlands.
Details
| Total length | 115 mm |
| Manufacturer | Made in Netherlands |
| Material | Aluminum |
| Area of application | Standard, Tuning |
| Surface | polished |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Ø Connecting rod bolt | 14 mm |
| Ø lower connecting rod eye outside | 25.9 mm |
| Ø upper connecting rod eye outside | 24 mm |
| Ø lower bearing inside | 14 mm |
| Ø inside upper bearing | 12 mm |
| Thickness | 10 mm |
| Connecting rod pin length | 13.4 mm |
Suitable for the following models
| Solex |
