43.5 mm piston with two standard rectangular piston rings with internal circlips (IS) for the MetraKit cylinder on your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

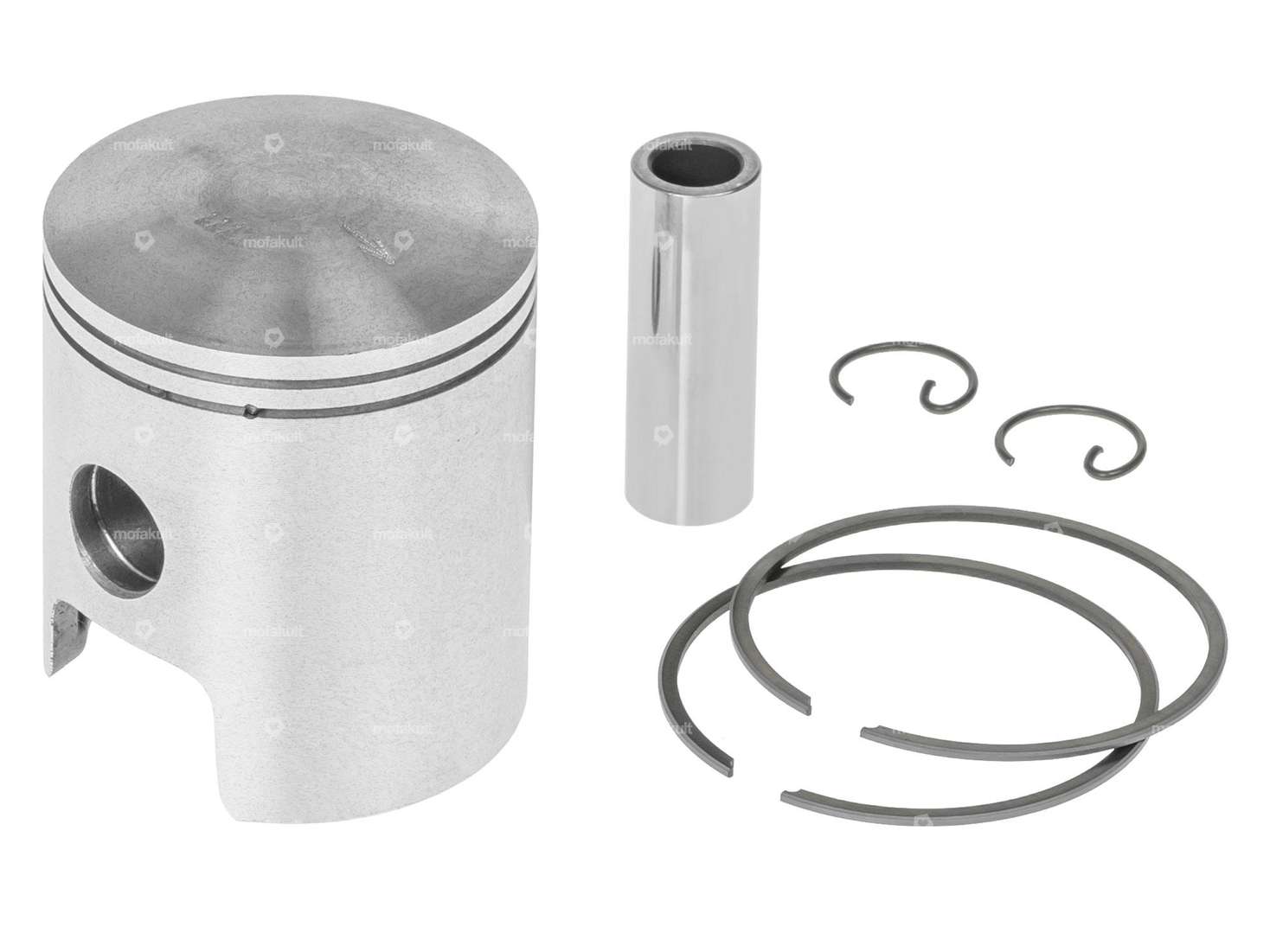

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston rings, piston pin retainers etc. in the accessories section.
Quality product from the Spanish manufacturer Barikit.
Details
Manufacturer | Barikite |
Thick piston ring | 0.97 mm |
Ø outside piston (A) | 43.44 mm |
Compression height (C) | 22.5 mm |
Curvature (D) | 2 mm |
Total piston height (E) | 51.4 mm |
Number of piston rings (F) | 2 pcs |
Nominal diameter | 43.5 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Internal fuse (IS) |
Ø piston pin (B) | 12 mm |
Suitable for the following models
Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
