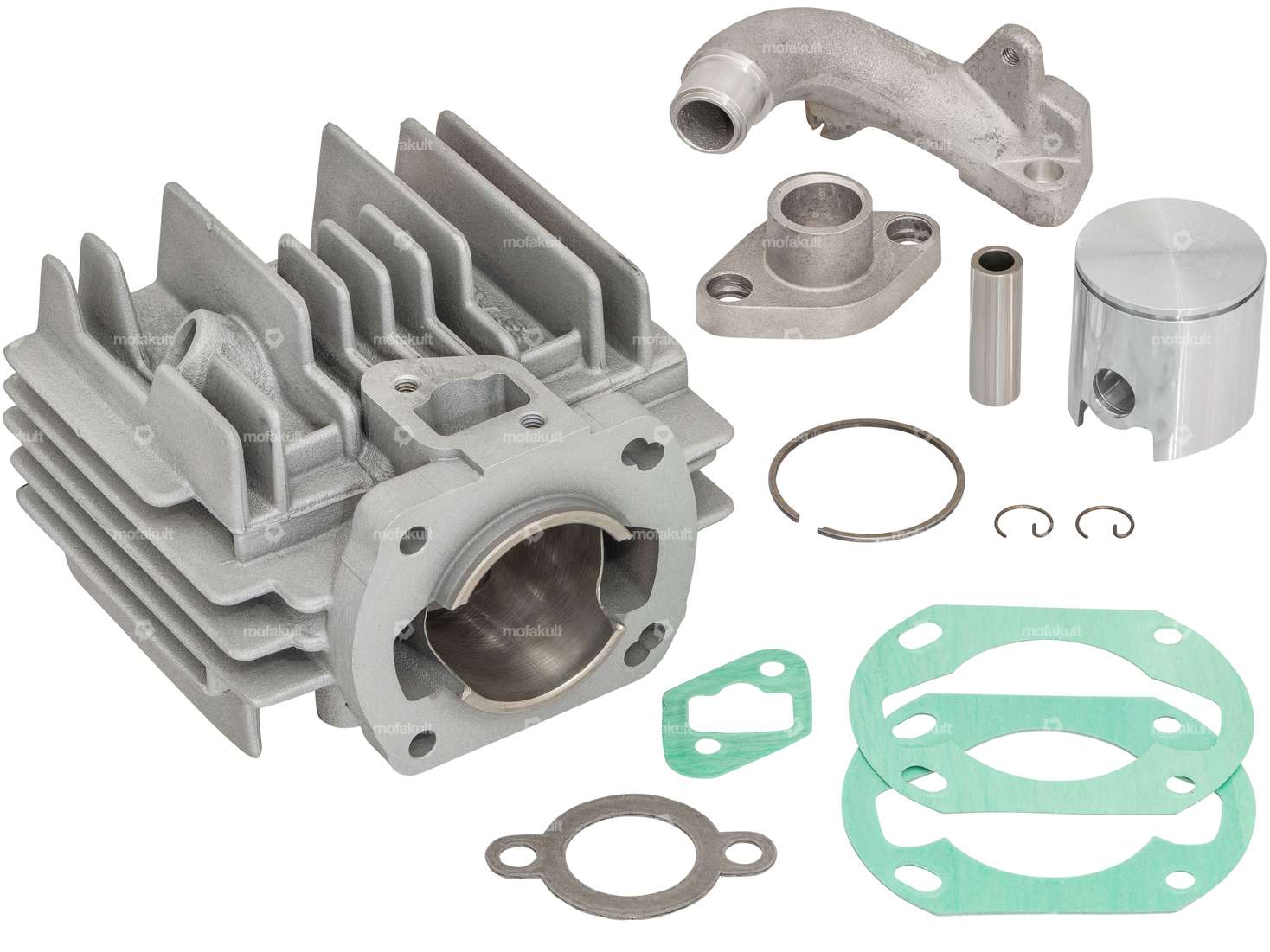

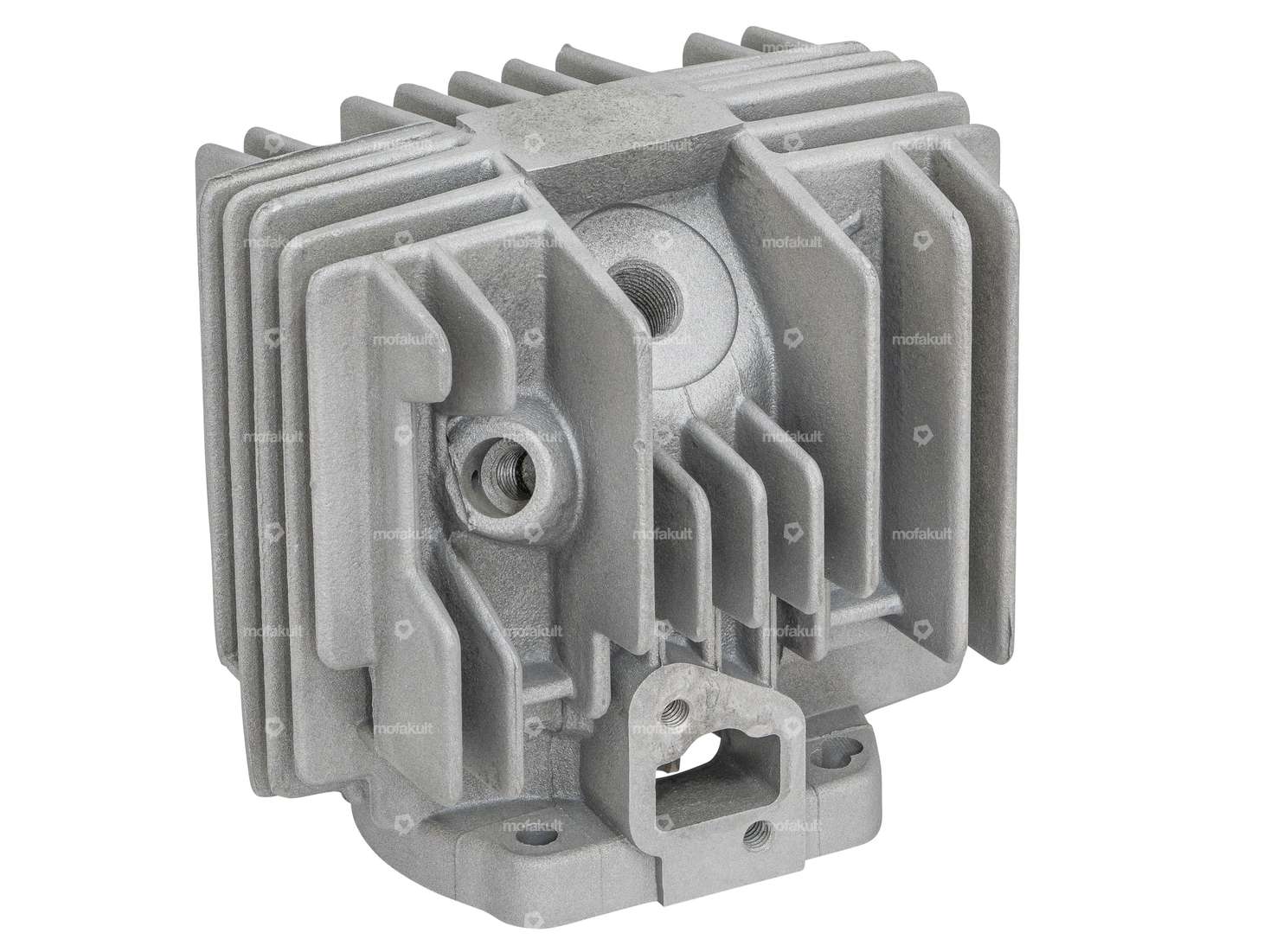

Racing cylinder of the Athena brand for Sachs 504 (with adaptations), 505 & 508 engines, which were installed on Hercules mopeds / mopeds, among others.

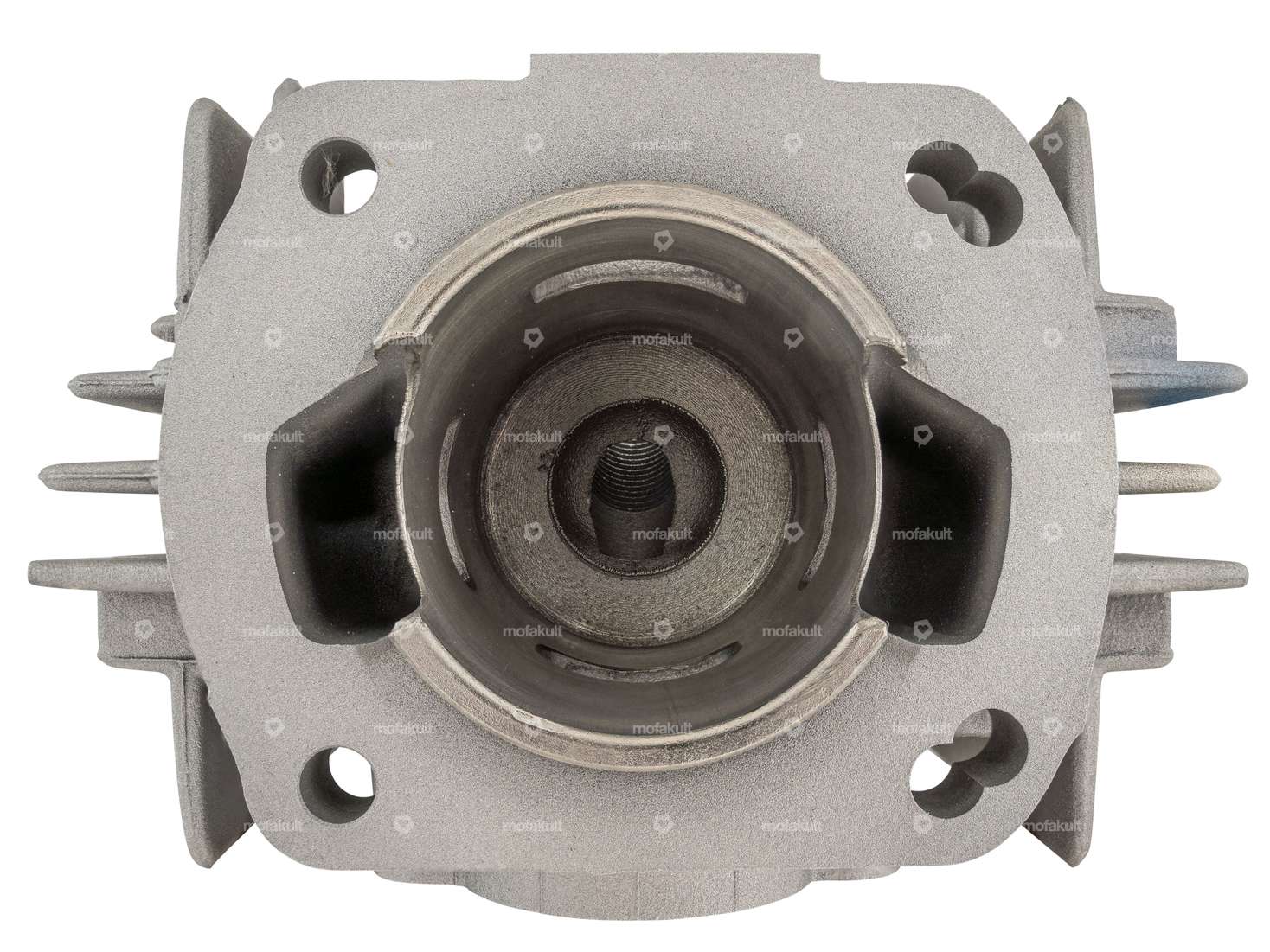

Thanks to the large intake, overflow and exhaust, this tuning cylinder provides a significant increase in performance.

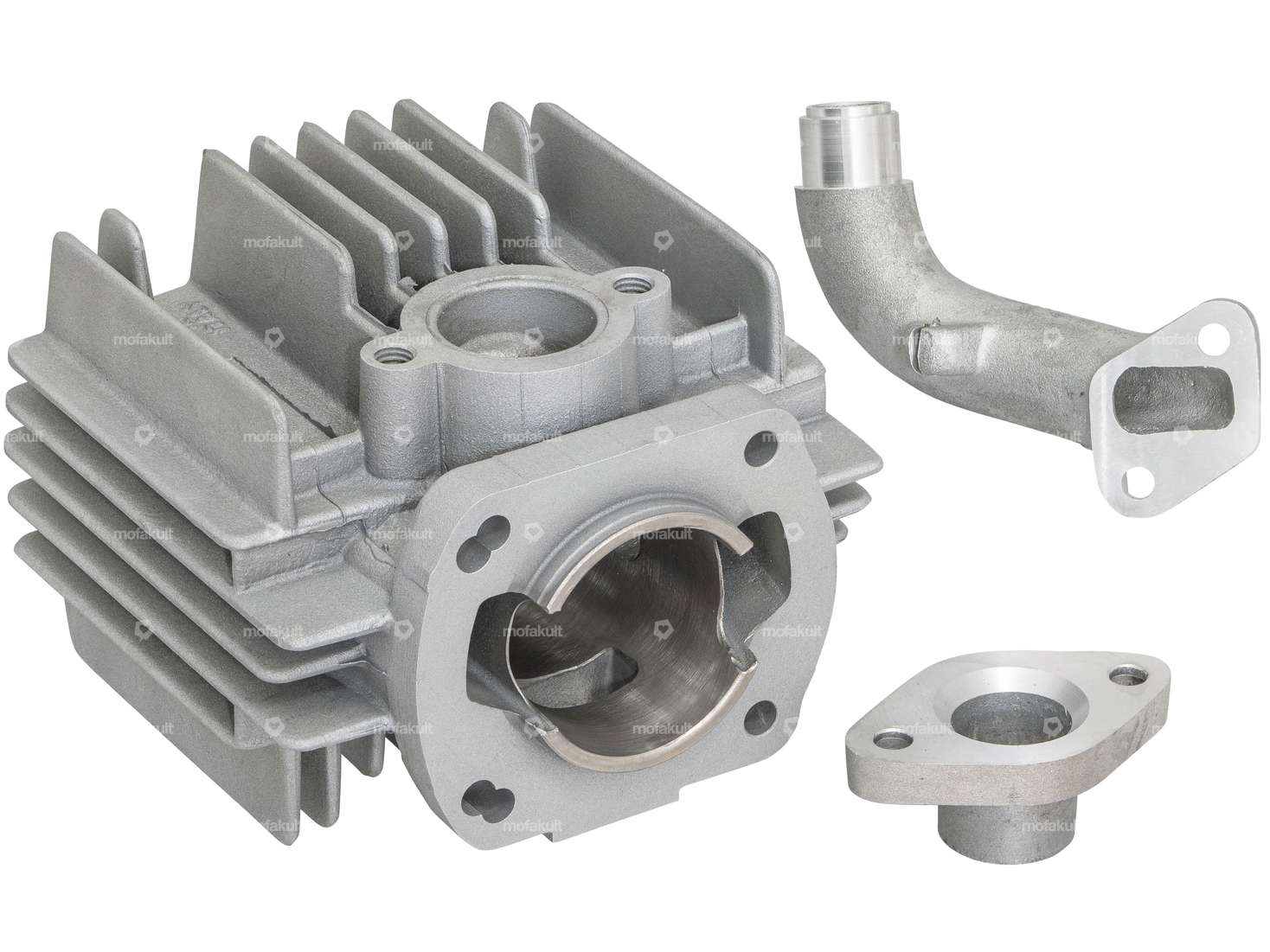

The intake manifold and exhaust flange are included in the scope of delivery.
Plugs with a long thread must be used.
Technical data cylinder:
- Ø inside intake manifold: 15 mm
- Connection diameter intake manifold: 20 mm
- Ø inside exhaust flange: 20 mm
- Ø connection exhaust flange: 25.7 mm
- Distance stud bolt exhaust flange: 50 mm
- Ø thread exhaust flange: M8
- Ø cylinder neck: 51.6 mm
- stroke: 44 mm
- bore: 45.0 mm
- Thread for decompressor: M10 x 1.5 mm
Attention: For Swiss 504 engines (42 mm stroke), the following modifications must be made to the cylinder:

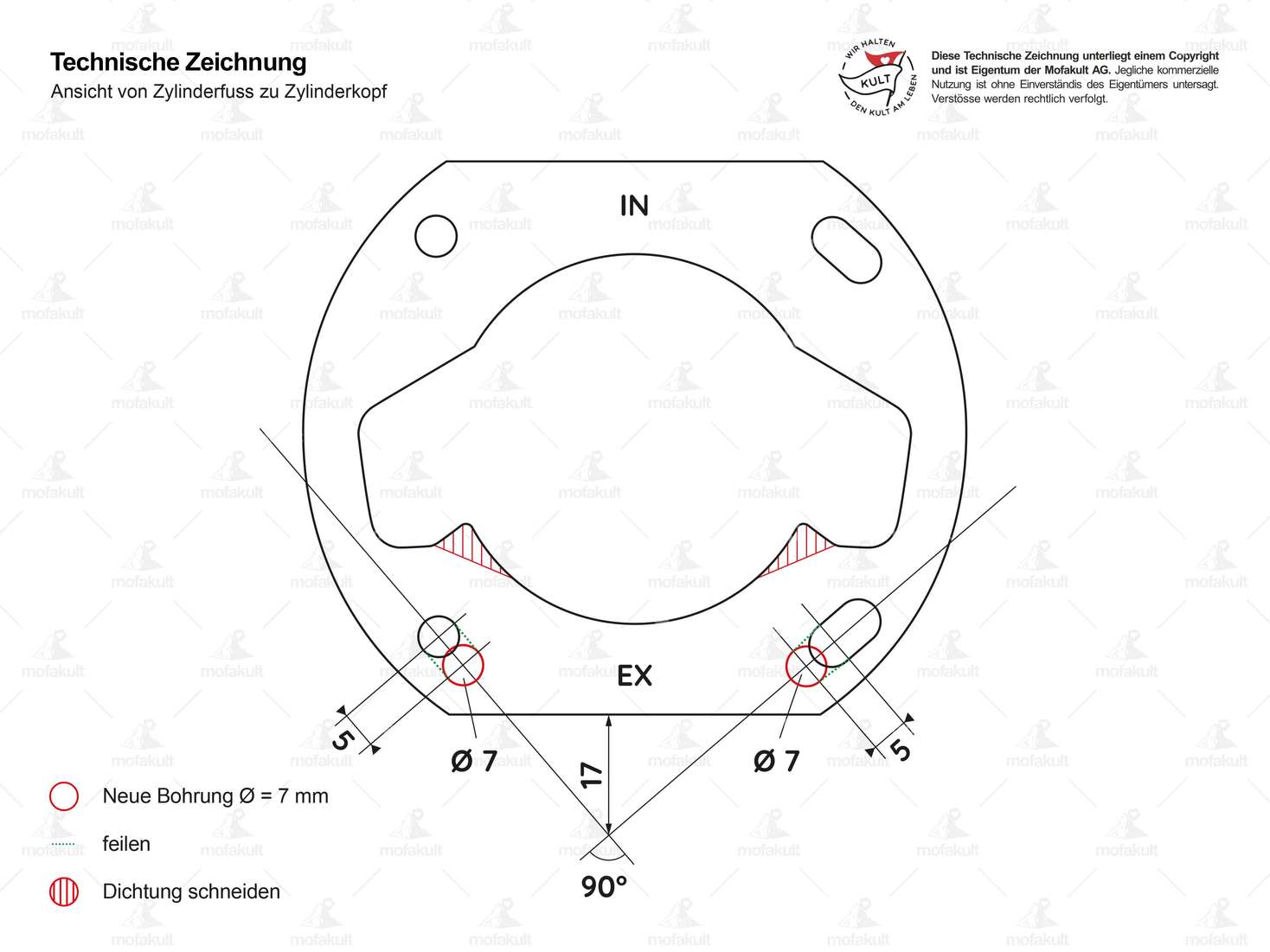

- Adjust cylinder base and gasket as shown in Figure 5.
- The cylinder base must be turned off so that the compression is adjusted again due to the shorter stroke, we recommend setting a crushing edge of 0.8 - 1.0 mm.
- In the model with an external clutch lever, the intake must be extended, otherwise the carburettor may come into contact with the clutch lever.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Material | Aluminum |
| Surface | sandblasted |
| Area of application | Tuning |
| Crankshaft stroke | 44 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 45 mm |
| Ø cylinder neck | 51.7 mm |
| Ø Outlet outside | 25.9 mm |
| Camouflaged | No |
| Ø Inlet inside | 14.3 mm |
| Inlet window | 23.4 x 12.6 |
| Hole pattern [mm] | 56 (61) x 56 |
| Ø outlet inside | 19.5 mm |
| Thread inlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole spacing outlet | 50 mm |
| Decompressor | M10x1.5 |
| Outlet type | straight, clamped |
| Thread outlet | M8x1.25 (standard thread) |
| Hole spacing inlet | 31.5 mm |
Suitable for the following models
| Sachs | 505 (mit Tretwelle) - 1A (AT), 2 A (HG), 2B (HG) 508 - 1 A |
| Hercules | Prima - 2, 3, 4, 5, Optima |
Accessories & related products
NGK B8ES spark plug long thread
Width across flats SW: 21 mm · Manufacturer: NGK · Candle designation: B8ES · Candle thread type: long · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Thread type: MF14x1.25 (fine pitch thread)
7,60 EUR
Athena piston 45 mm #A | Sachs 504 / 505
Manufacturer: Athena · Ø outside piston (A): 44.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 28.2 mm · Total piston height (E): 45.2 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 98 g
81,90 EUR
NGK BR8EIX spark plug long thread interference-suppressed Iridium
Width across flats SW: 21 mm · Manufacturer: NGK · Candle designation: BR8EIX · Candle thread type: long · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: Yes · Electrode material: Iridium · Thread type: MF14x1.25 (fine pitch thread)
31,50 EUR
swiing ingenious exhaust adapter 24 mm Athena cylinder| Sachs 504, 505, 508
Ø inside: 20 mm · Ø outside: 24 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Hole spacing: 50 mm · Ø mounting hole: 8.3 mm · Total length: 67 mm · Width: 43 mm · Height: 25.5 mm
29,20 EUR
