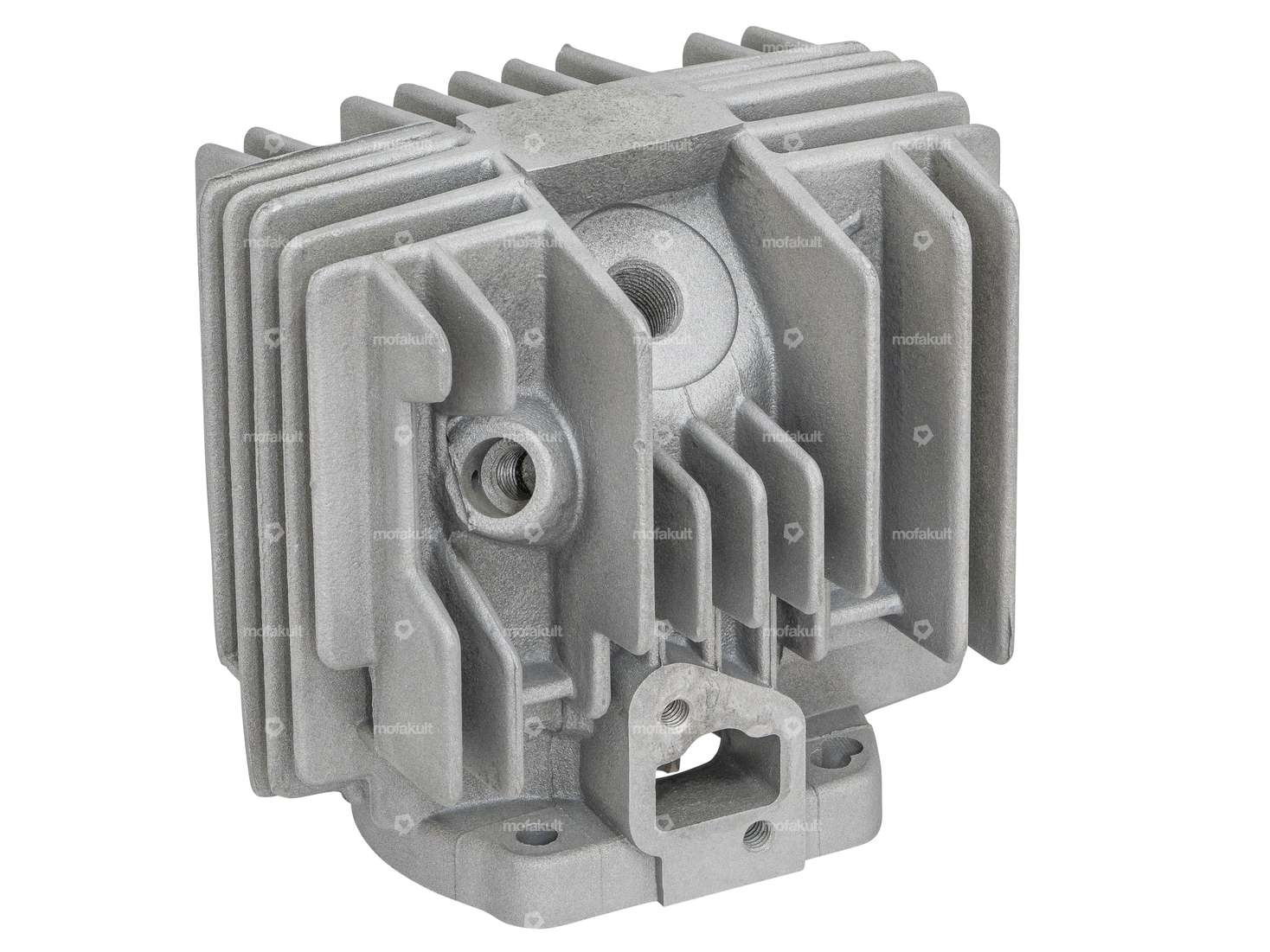

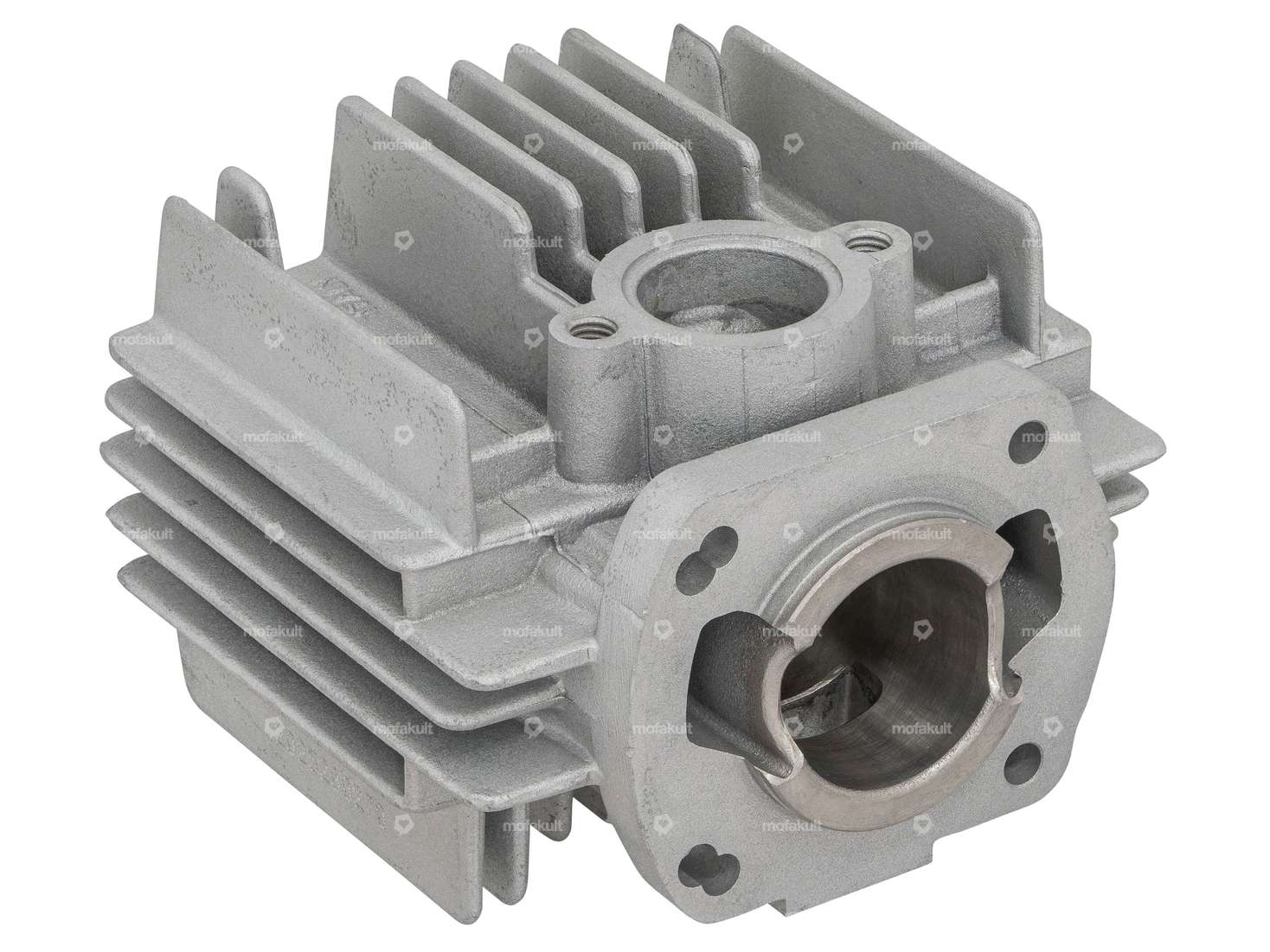

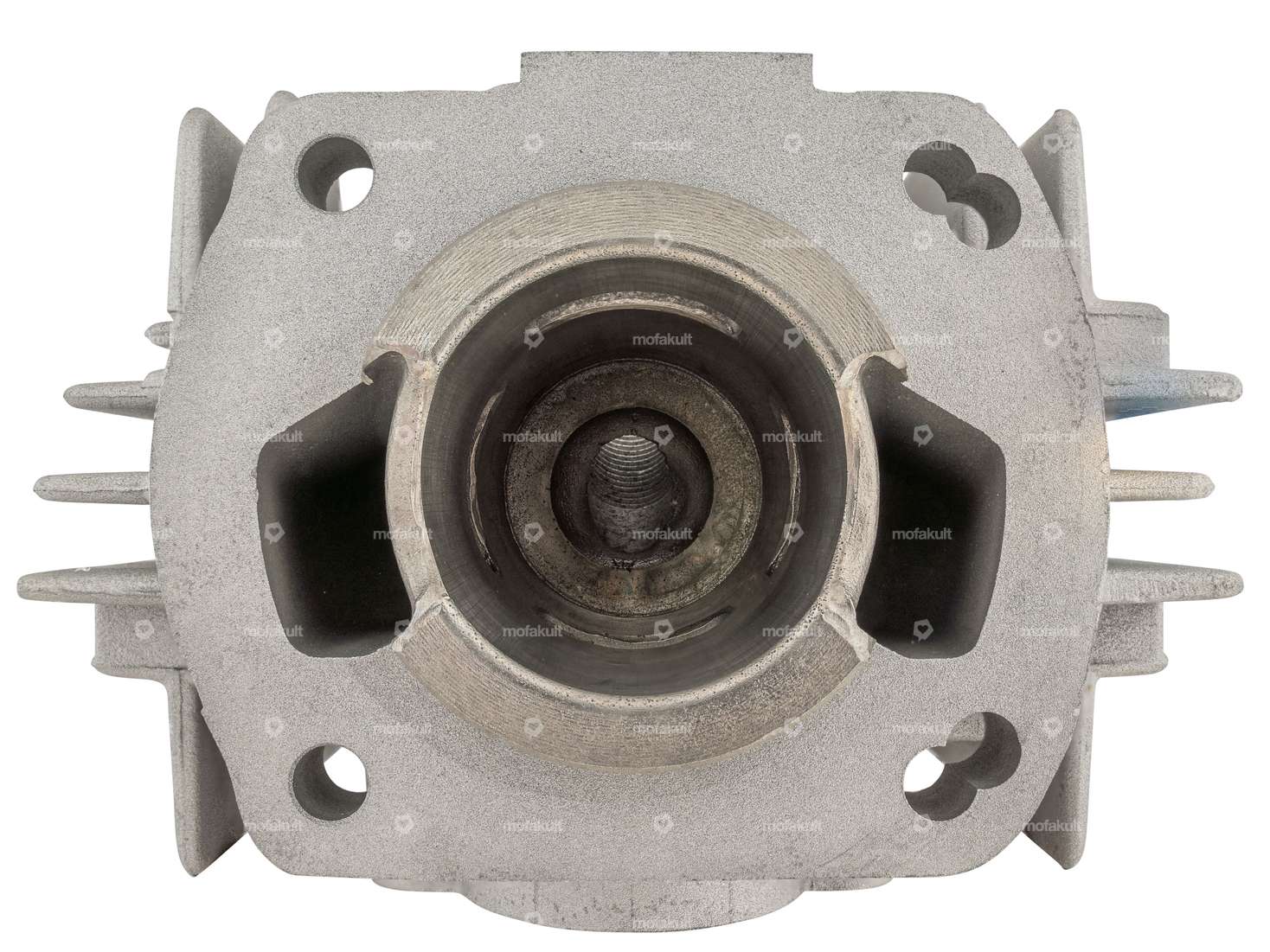

Racing cylinder of the Athena brand for Sachs 504 (with adaptations), 505 & 508 engines, which were installed on Hercules Prima M, 2, 3, 45 and Optima mopeds / mopeds, among others.
Thanks to the large intake, overflow and exhaust, this tuning cylinder provides a significant increase in performance.
The intake manifold and exhaust flange are not included in the scope of delivery.
Technical data cylinder:
- Distance between stud bolts and exhaust flange: 50 mm
- Ø thread exhaust flange: M8
- Ø Cylinder neck: 51.6 mm
- Stroke: 44 mm
- Bore: 38.0 mm
- Thread for decompressor: M10 x 1.5 mm
Notes:
Plugs with a long thread must be used.
The following modifications must be made to the cylinder on Swiss 504 engines (42 mm stroke):

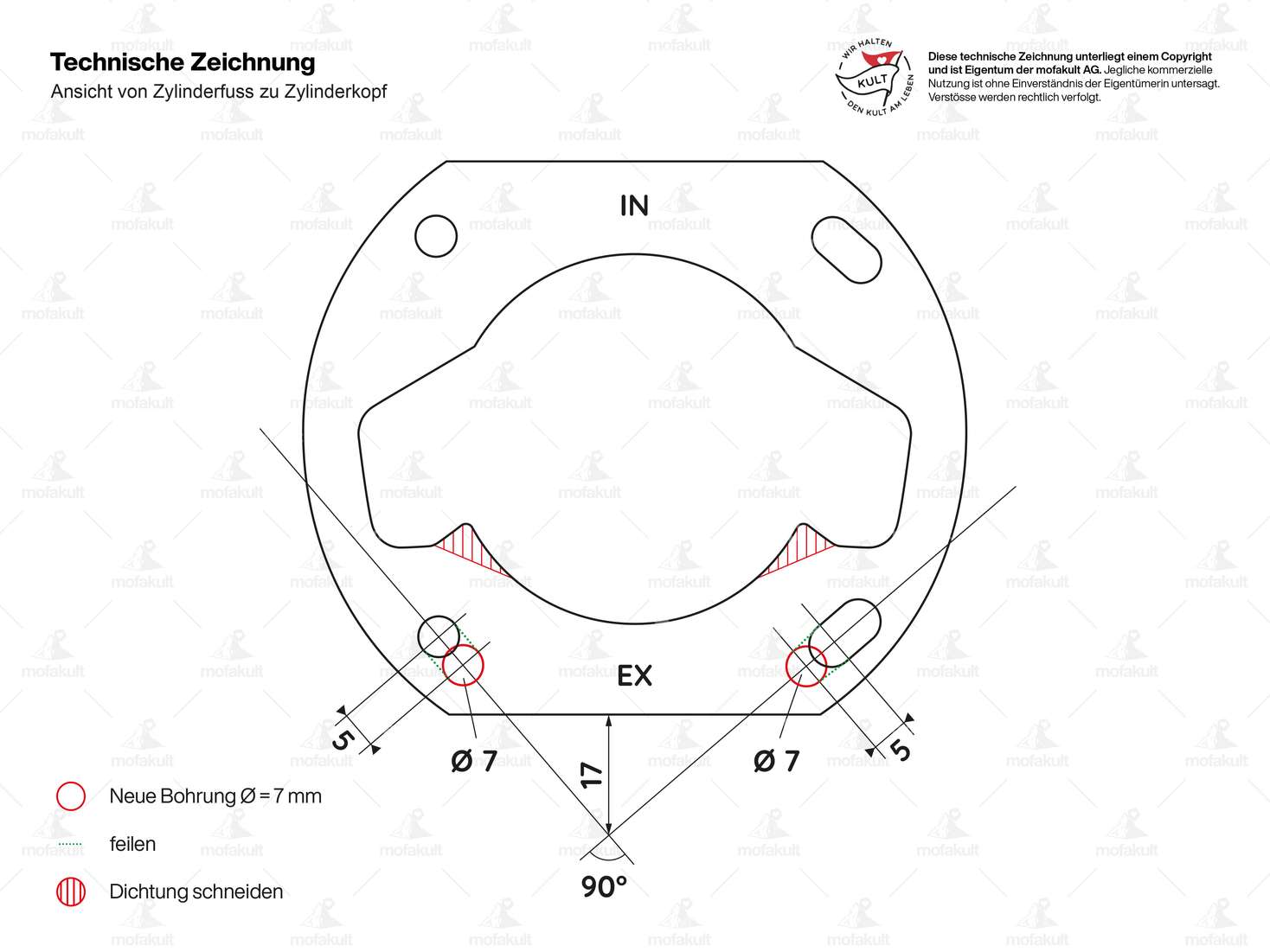

- Adjust the cylinder base and gasket as shown in Figure 5 .
- The cylinder base must be turned off so that the compression is adjusted again due to the shorter stroke, we recommend setting a crushing edge of 0.8 - 1.0 mm.
- On models with an external clutch lever, the intake must be extended, otherwise the carburetor may come into contact with the clutch lever.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 44 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 38 mm |
| Ø cylinder neck | 51.7 mm |
| Camouflaged | No |
| Ø outlet inside | 28.3 mm |
| Hole spacing inlet | 32 mm |
| Inlet window | 23.6 x 12.8 / 16.5 |
| Thread inlet | M6x1 (standard thread) |
| Area of application | Tuning |
| Decompressor | M10x1.5 |
| Hole pattern [mm] | 56/61 x 56 |
| Outlet type | straight |
| Hole spacing outlet | 50 mm |
| Thread outlet | M8x1.25 (standard thread) |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Sachs | 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A |
| Hercules | Prima - 2, 3, 4, 5, Optima |
Accessories & related products
Athena piston 38 mm #A | Sachs 504, 505
Manufacturer: Athena · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 29.25 mm · Curvature (D): 1.85 mm · Total piston height (E): 52.14 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 79 g
82,40 EUR
NGK B7ES spark plug long thread
Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Area of application: Performance · Area of application: Racing · Area of application: Tuning
7,65 EUR
Meteor piston ring 38 x 1.5 (IS) | Sachs 503 AB, AC
Manufacturer: Meteor · Nominal diameter: 38 mm · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm · Area of application: Original · Pony OEM number: A1101 · Sachs OEM no.: 0215 100 100
11,70 EUR

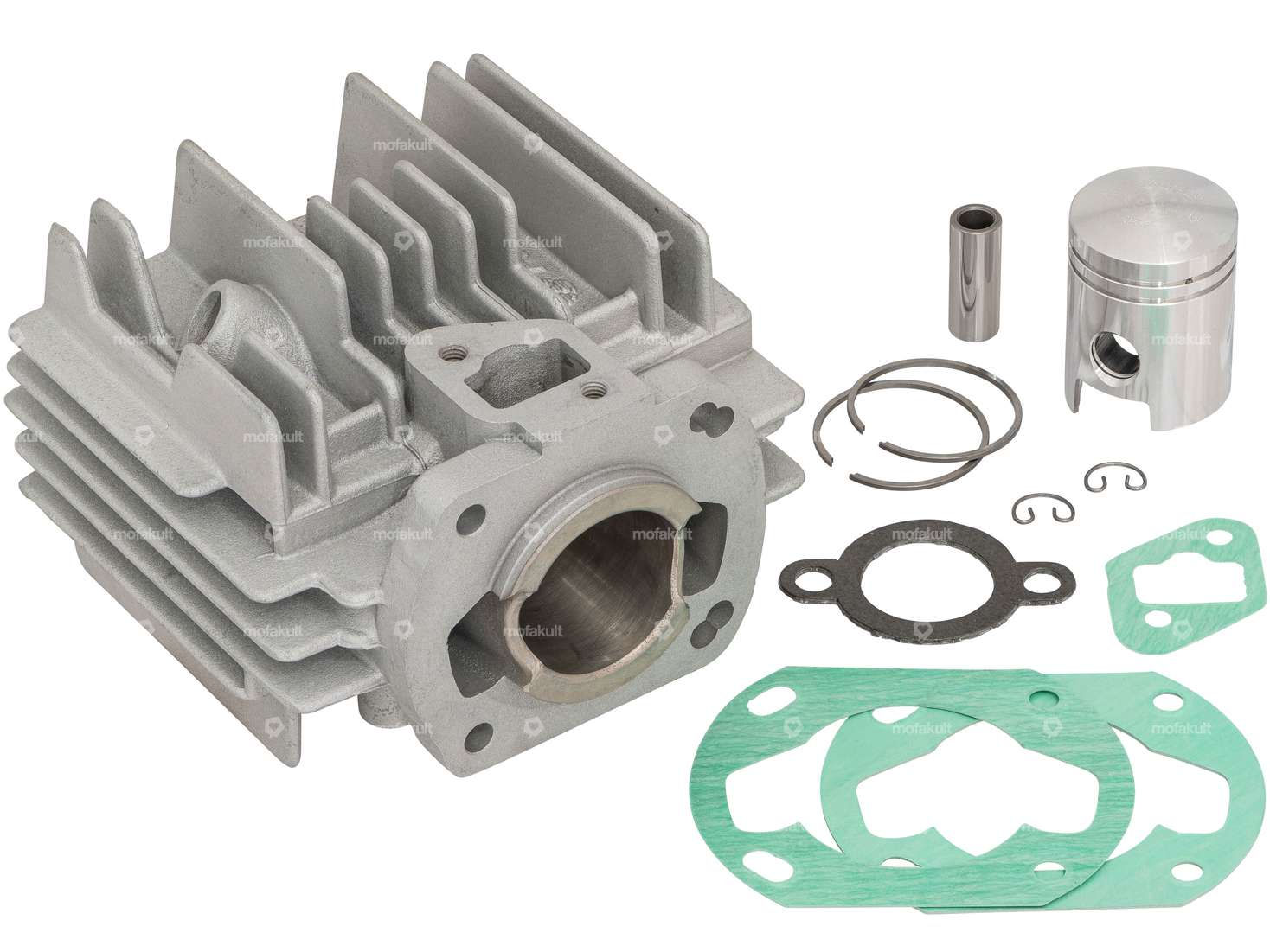

Athena 38 mm cylinder kit (incl. mounting parts) | Sachs (504), 505, 508
Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28 mm · Inlet window: 23.4 x 13 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
341,80 EUR
Not in stock
NGK BR7EIX Spark plug long thread interference-suppressed Iridium
Manufacturer: NGK · Candle designation: BR7EIX · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Electrode material: Iridium · Suppressed: Yes · Area of application: High End · Area of application: MX · Area of application: Racing · Area of application: Tuning
31,70 EUR
Not in stock

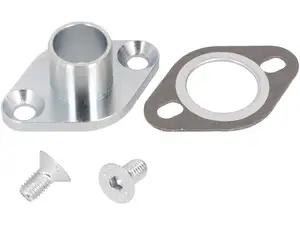

swiing ingenious exhaust adapter 24 mm Athena cylinder| Sachs 504, 505, 508
