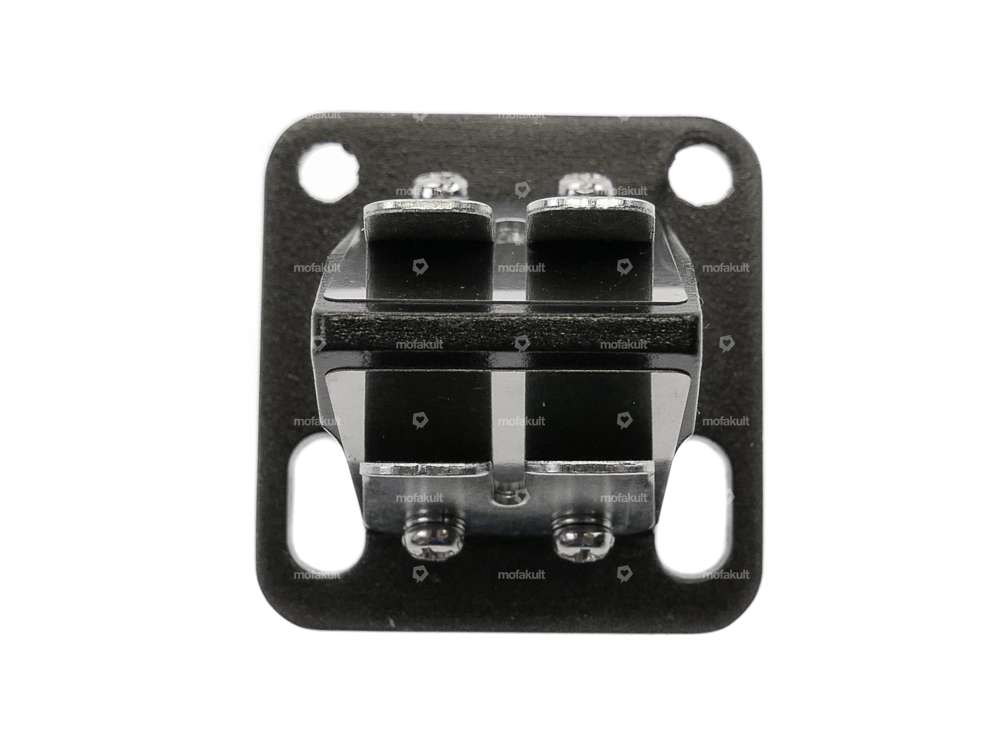

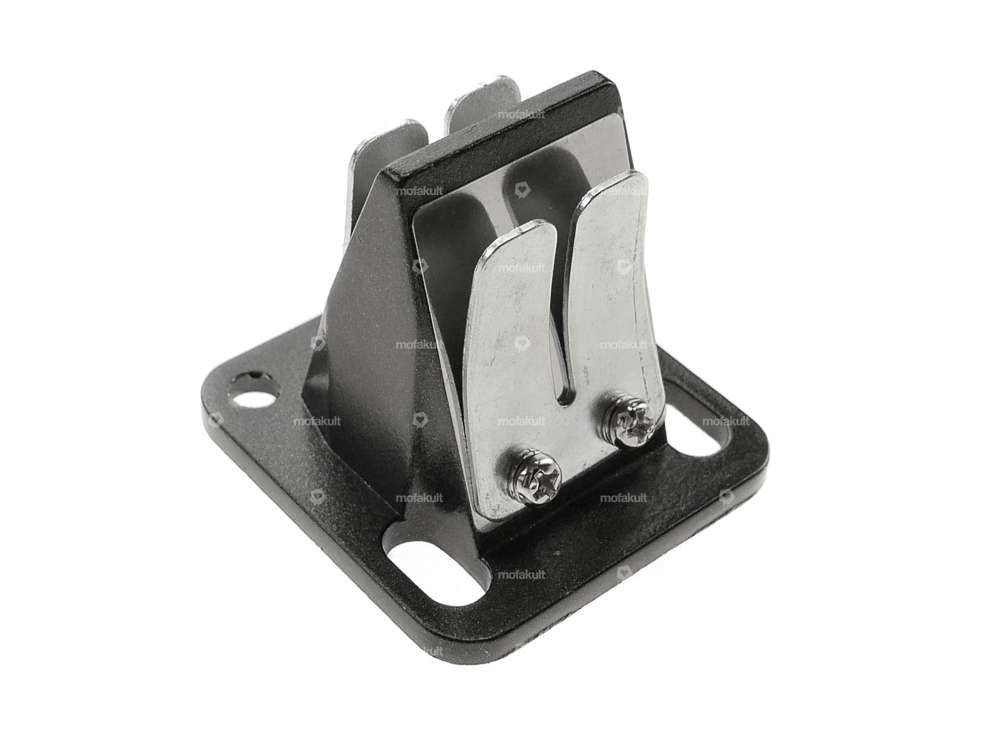

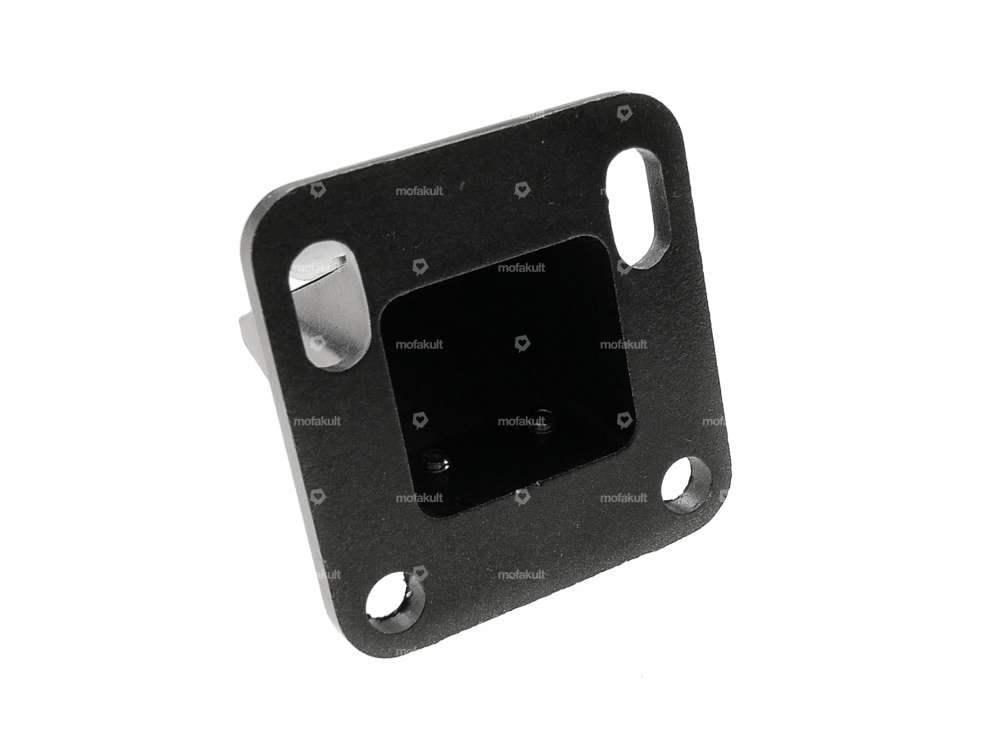

Membrane system from the Athena brand for cylinders with membrane system, both for Puch and Sachs mopeds.
The matching cylinders are listed below in the accessories.
The diaphragm plates are made of steel.
Quality product from the Italian manufacturer Athena.
Details
| Manufacturer | Athena |
| Area of application | Tuning |
| Number of flaps | 2 pcs |
| Membrane material | Spring steel |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
