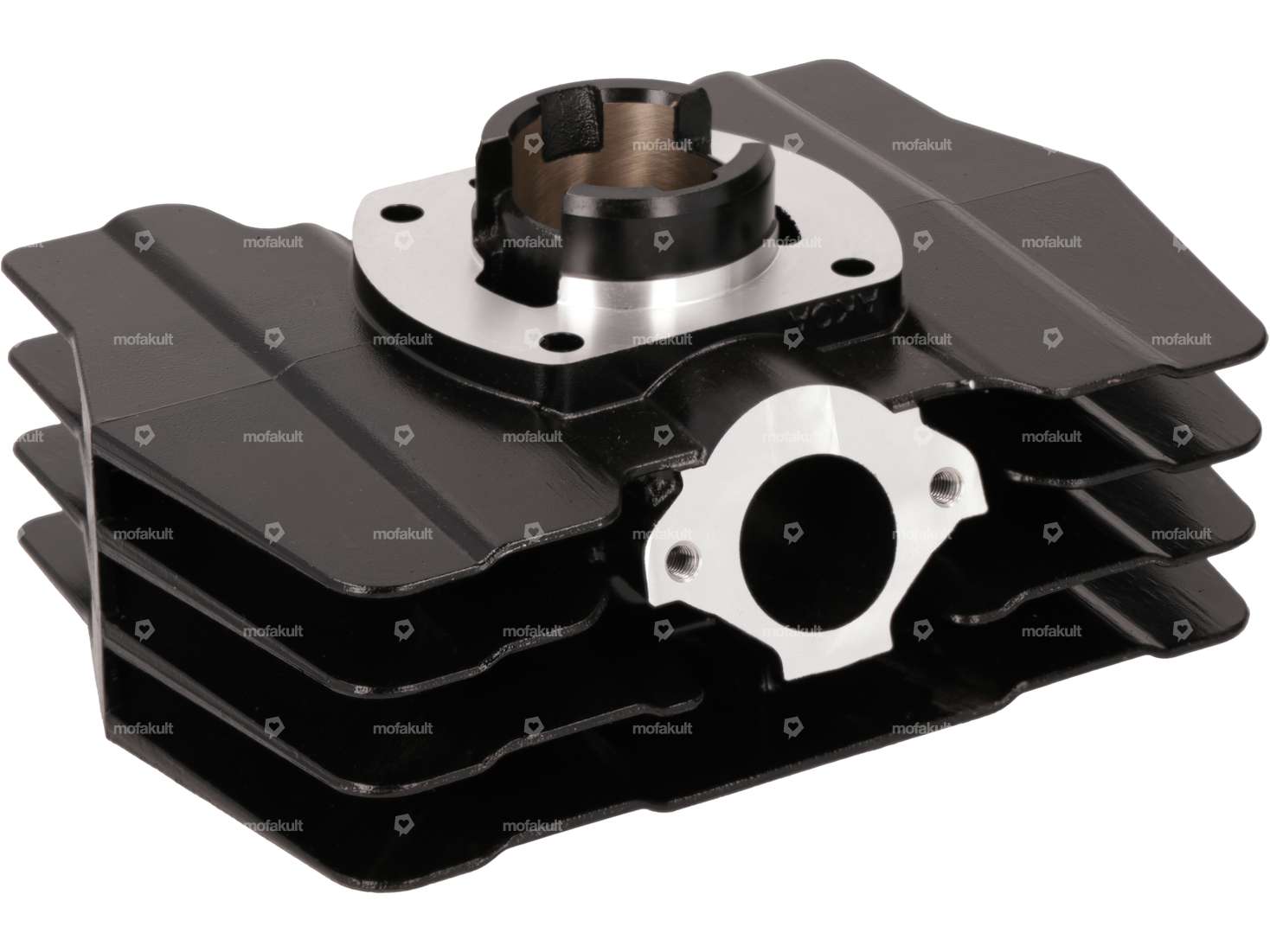

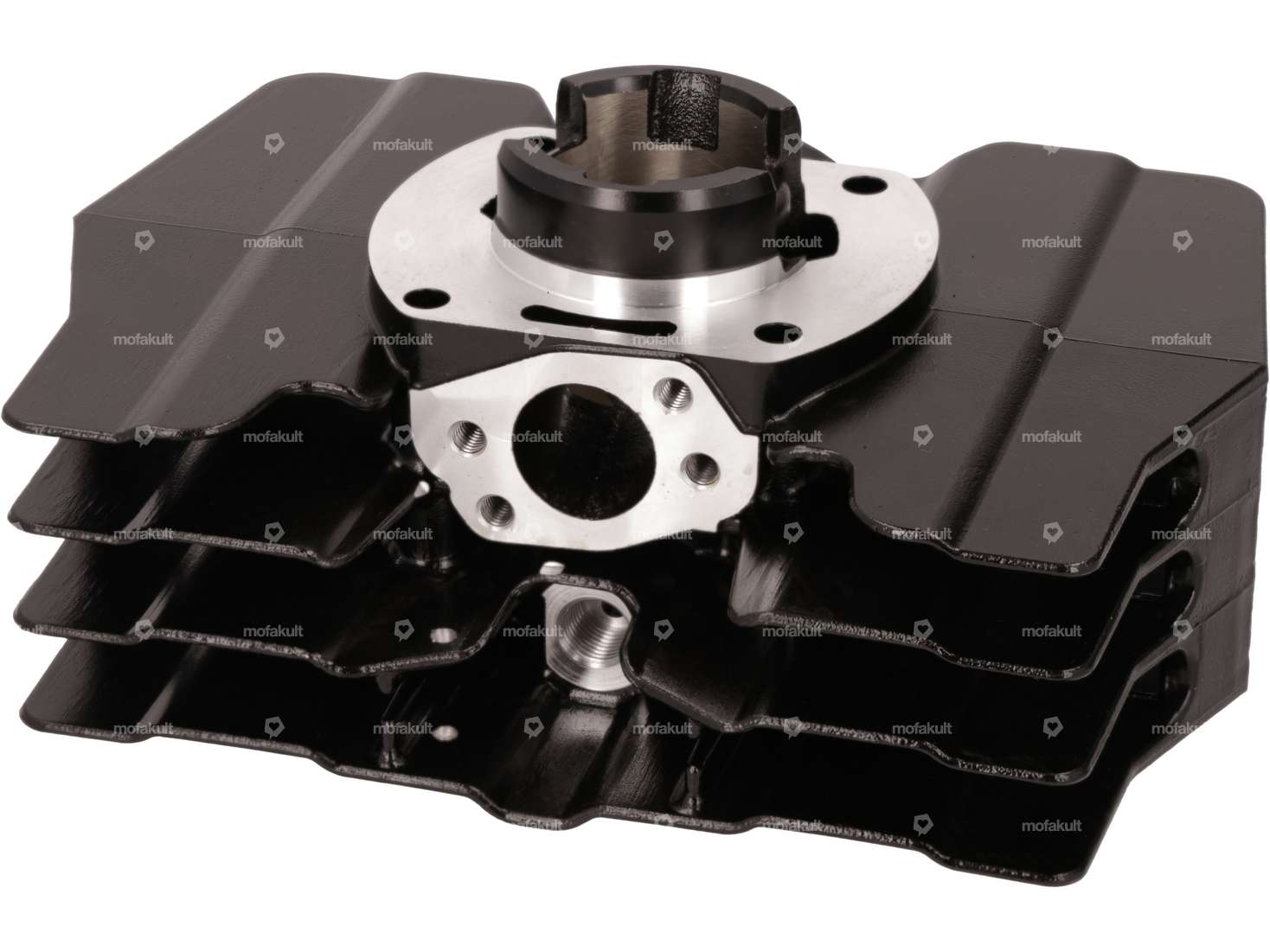

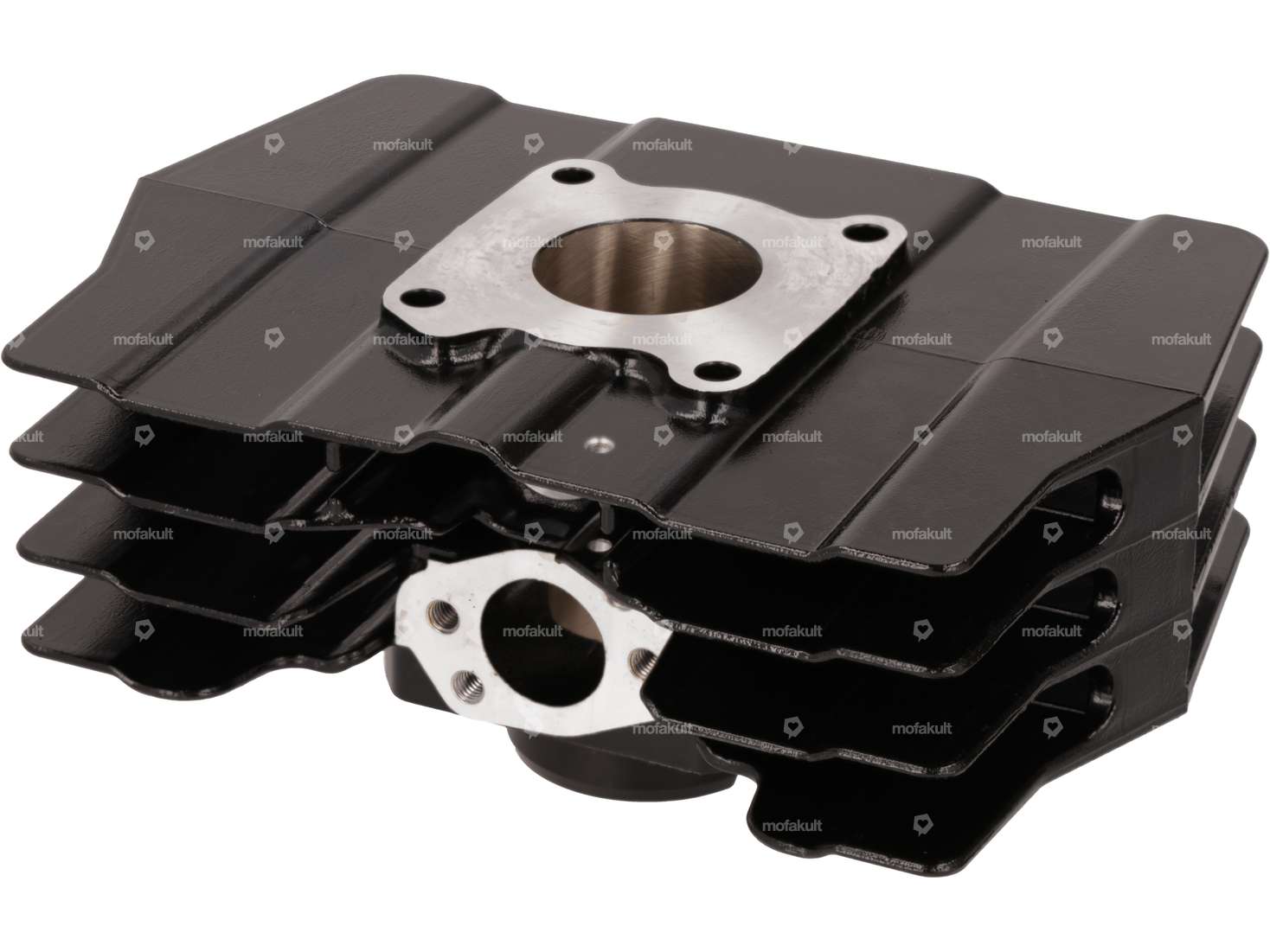

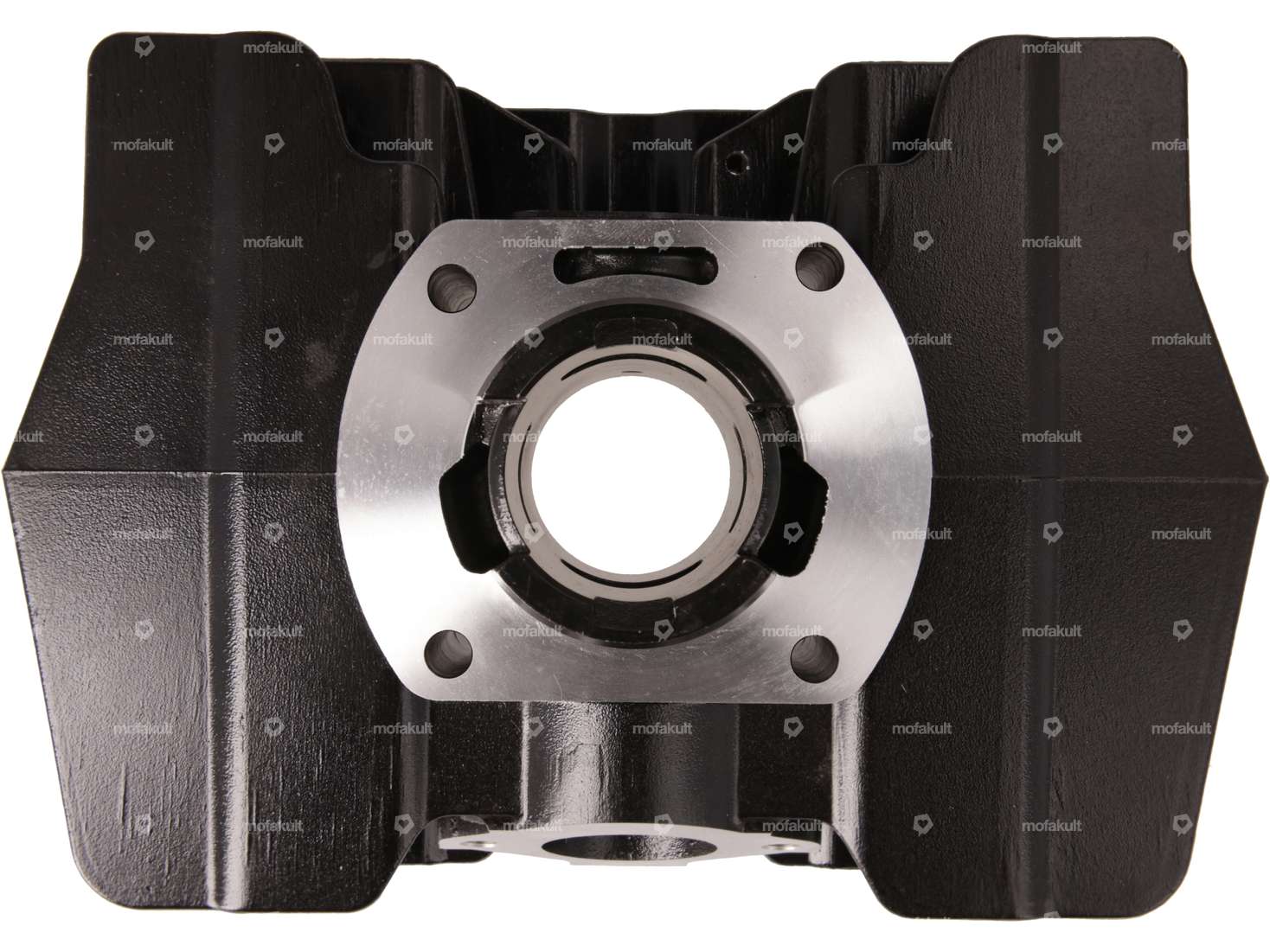

38 mm tuning cylinder with 50 cc displacement and narrow exhaust for your Pony moped / moped with Sachs 503 AB, AC or ADV engine.
The wide-bore racing kit has been heavily reworked compared to the original cylinder. The overflow ducts, the intake and exhaust have been enlarged. There is hardly any visible difference from the outside. In terms of performance, the racing cylinder is designed for the upper engine speeds. Due to the long exhaust timing, a high back pressure is required to exploit the power.

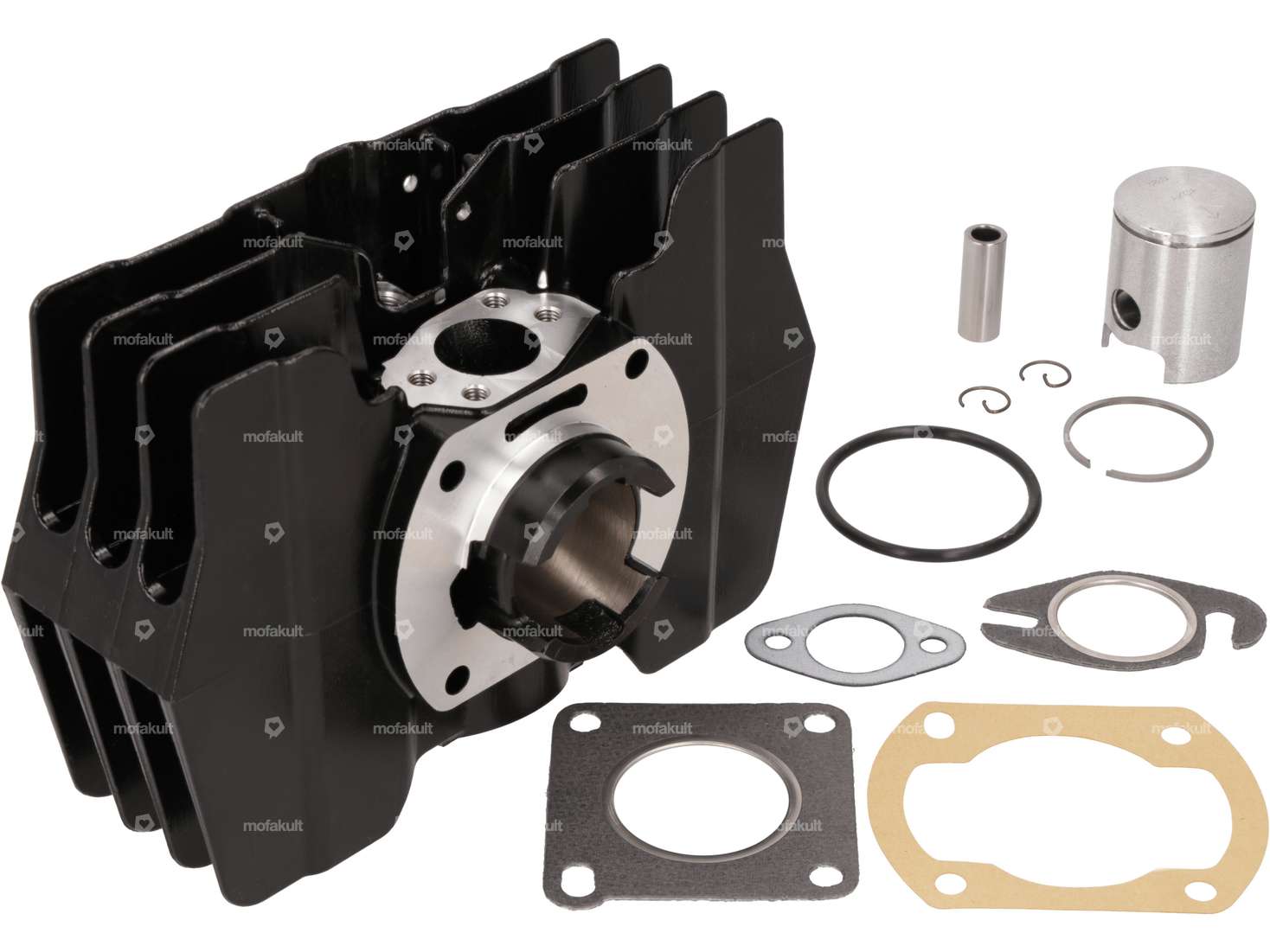

In addition to the piston, piston ring, clips and bolts, the scope of delivery also includes the required gaskets for the base, intake and exhaust. In addition, an O-ring and a reinforced graphite gasket for the cylinder cover are included, which can be used as required. It is still possible to use the original cylinder head.
Cylinder material: Cast aluminum
Piston material: Cast aluminum
Bore: 38 mm
Capacity: 49.90 cm³
Ø Cylinder neck: 52 / 50.5 mm
Exhaust inside: 19.5 x 11 mm
Ø Exhaust inside: 29 mm
Exhaust thread: M6 x 1
Hole spacing exhaust: 50.5 mm
Hole spacing inlet: 36 mm
Inlet thread: M6 x 1
Ø inlet inside: 23.5 mm
Hole pattern: 56 x 56 mm
Ø stud bolt hole: 6.9 mm
Piston pin: 12 mm
Decompressor hole: yes, MF12x1.25 mm
Note: The inlet of the cylinder has a double hole pattern, so that sockets for both the AB / AC and the ADV engine can be fitted.
The narrow outlet is designed for AB / AC exhausts. A flame tube from the AB / AC engine must therefore also be fitted to the ADV engine.
Matching attachments for the cylinder set can be found in the accessories section.
Alternative to the original Pony spare part number: A2868
Branded product from the manufacturer AKOA.
Details
| Nominal diameter | 38 mm |
| Manufacturer | AKOA |
| Material | Aluminum |
| Surface | varnished, nikasil-coated |
| Displacement | 50 ccm |
| Crankshaft stroke | 44 mm |
| Ø cylinder neck | 52 mm, 50.5 mm |
| Ø outlet inside | 29 mm |
| Ø Inlet inside | 23.5 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 36 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | slanted |
| Hole spacing outlet | 50.5 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 56 x 56 |
| Decompressor | MF12x1.25 |
| Area of application | Performance |
| Alternative version of the Pony Spare part no. | A2868 |
Suitable for the following models
| Sachs | 503 - AB, AC, ADV |
Accessories & related products
swiing® revival gasket set | Sachs 503 AB, AC wide wall
Manufacturer: swiing® revival parts · Area of application: Standard · Material: Aluminum · Material: Copper · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 24 mm · Number of components: 21 pcs · Hole pattern [mm]: 56 x 56 · Hole spacing outlet: 38.5 mm
50,60 EUR
swiing® revival gasket set | Sachs 503 ADV wide wall Cat.
Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Ø outlet inside: 23.3 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 56 x 56 · Decompressor: No · Number of components: 15 pcs
50,60 EUR
AKOA wide wall 38 mm cylinder kit original | Sachs 503 AB, AC, ADV (A2868)
Nominal diameter: 38 mm · Manufacturer: AKOA · Material: Aluminum · Surface: nikasil-coated · Surface: varnished · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Hole spacing inlet: 36 mm · Ø cylinder neck: 50.5 mm · Ø cylinder neck: 52 mm · Ø outlet inside: 11 mm · Ø outlet inside: 19.5 mm · Ø Outlet outside: 23 mm · Area of application: Standard · Inlet window: 18x7 mm · Hole spacing outlet: 50.5 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Decompressor: MF12x1.25 · Pony spare part no.: A2868
338,00 EUR
AKOA intake manifold 15 mm SRE | Sachs 503 AB, ADV (A5669, A2180)
Manufacturer: AKOA · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 36 mm · Alternative version of the Pony Spare part no.: A2180 · Alternative version of the Pony Spare part no.: A5669
56,20 EUR
AKOA intake manifold 20 mm PHBG / CP | Sachs 503 AB, ADV (A5669, A2180)
Ø inside: 20 mm · Manufacturer: AKOA · Material: Aluminum · Ø External connection: 24 mm · Hole spacing inlet: 36 mm · Mounting type: Screws · Alternative version of the Pony Spare part no.: A2180 · Alternative version of the Pony Spare part no.: A5669
56,20 EUR
AKOA wide wall 45 mm cylinder kit | Sachs 503 AB, AC, ADV
Manufacturer: AKOA · Material: Aluminum · Surface: nikasil-coated · Surface: varnished · Area of application: Tuning · Displacement: 70 ccm · Crankshaft stroke: 44 mm · Nominal diameter: 45 mm · Ø cylinder neck: 50.5 mm · Ø cylinder neck: 52 mm · Ø Inlet inside: 23.5 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 29 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 50.5 mm · Outlet type: slanted · Hole spacing inlet: 36 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 56 x 56 · Decompressor: MF12x1.25 · Alternative version of the Pony Spare part no.: A2868
338,00 EUR
AKOA decompressor M12x1.25 wide wall | Sachs 503 AB, AC, ADV (A2942)
Manufacturer: AKOA · Area of application: Standard · Material: Steel · Surface: blue galvanized · Total length: 66 mm · Thread length: 8 mm · Width across flats SW: 15 mm · Thread type: MF12x1.25 (fine pitch thread) · Pony spare part no.: A2942
90,10 EUR
swiing® ingenious gasket outlet Ø 23 mm graphite | Sachs 503 AB, AC
Ø inside: 23 mm · Manufacturer: swiing® ingenious parts · Material: Graphite / Graphite · Material: Steel · Color: gray · Place of use: Outlet · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 48.5 - 51.5 mm
10,00 EUR
