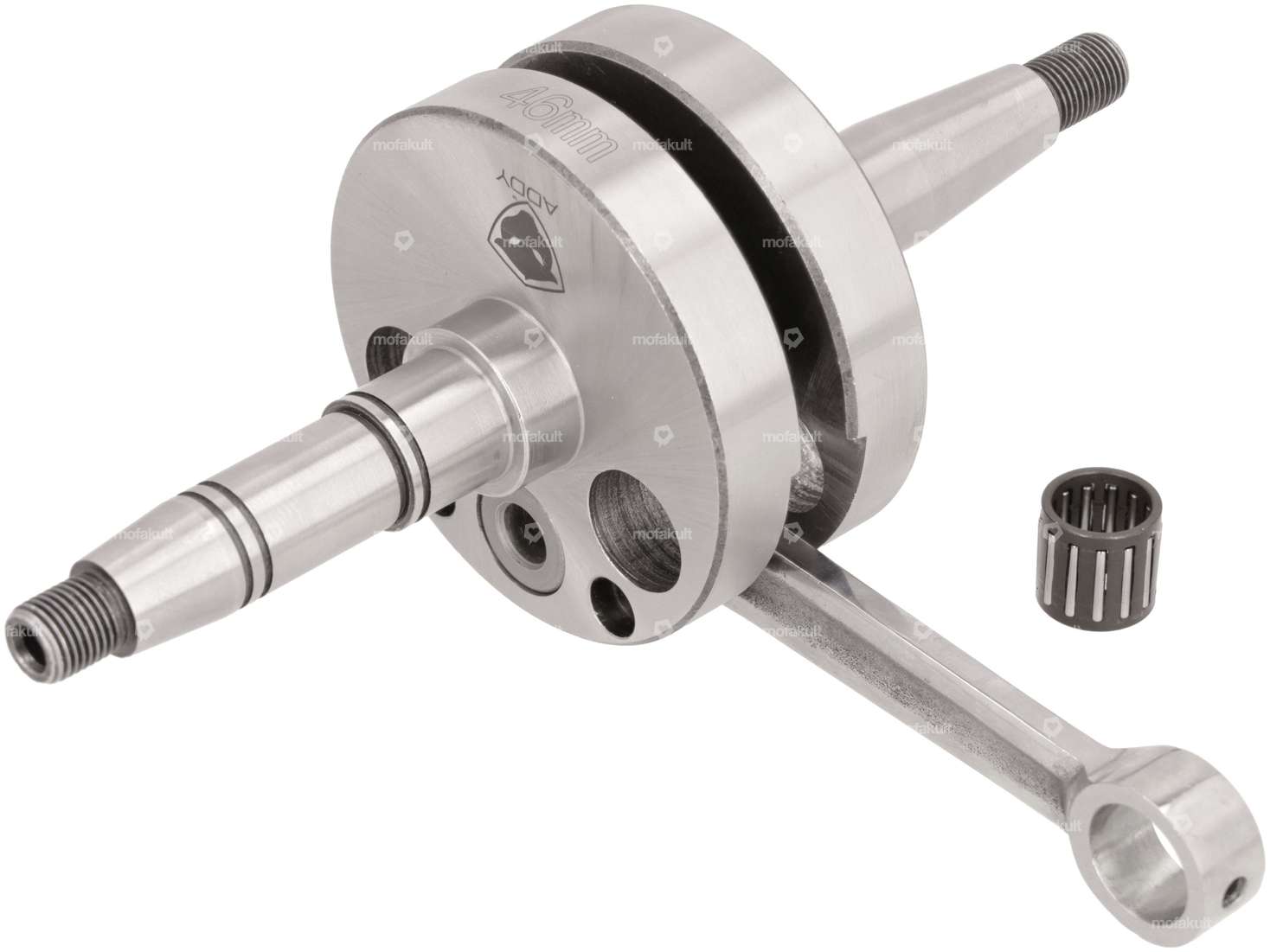

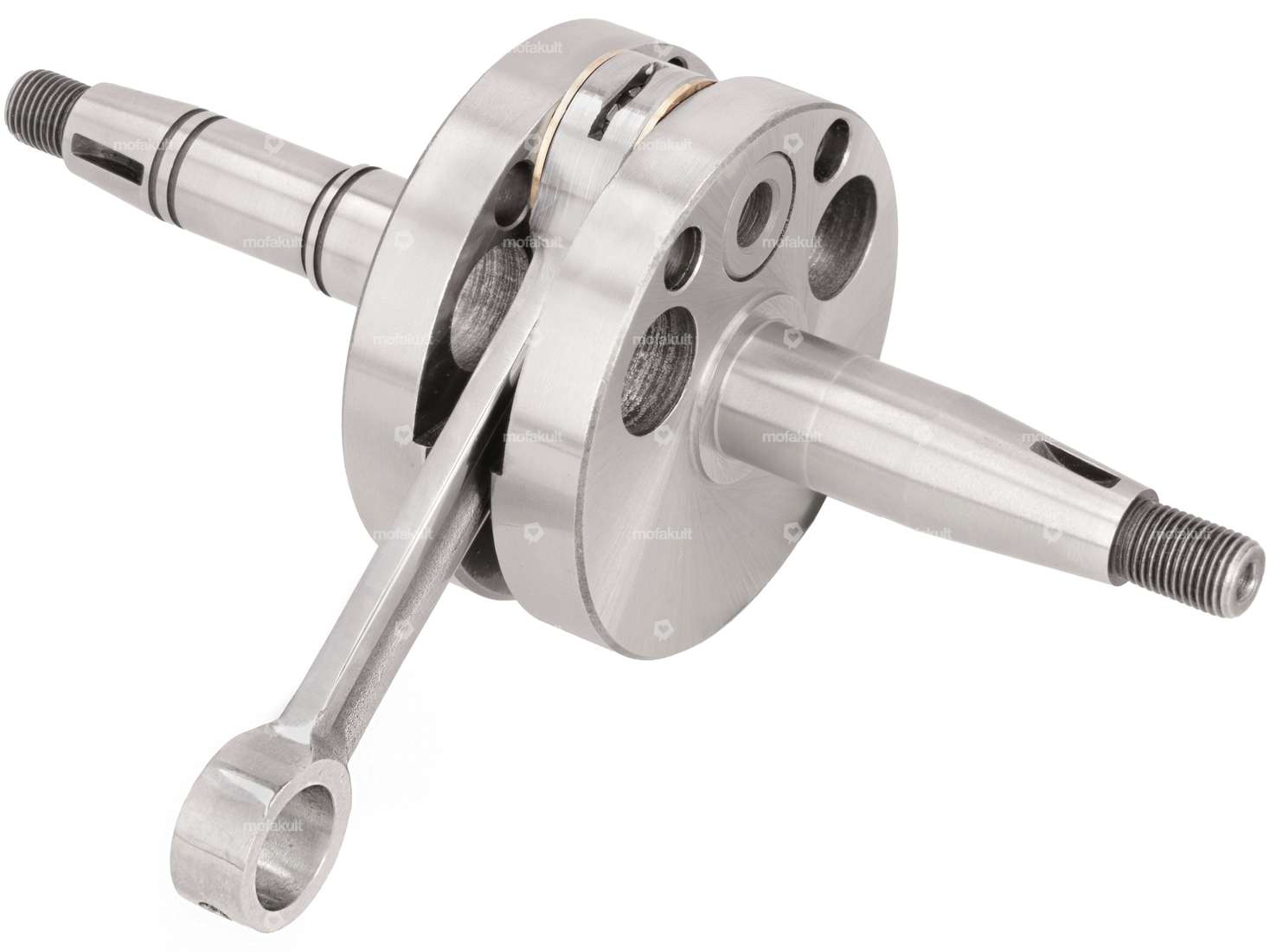

ADDY crankshaft full cheeks 46 mm stroke | Puch E50

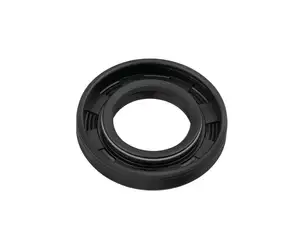

Oil seal NBR 22/40/7 AS crankshaft | E50

Temperature resistance (min.): -30 - 100 °C · Width: 7 mm · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 22 mm · Ø outside: 40 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Place of use: Crankshaft

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548

swiing® revival crankshaft standard (version 2.0) | Puch Sport X30 NS, NL / Maxi S2

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 7 mm · Thread length: 13 mm · Total length of crankpin on clutch side: 57 mm · Weight: 892 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 2 pcs

swiing® ingenious crankshaft High End with mounted bearings (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: High End · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Weight: 968 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

swiing® ingenious crankshaft oil seal assembly aid (old model) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: Special tool

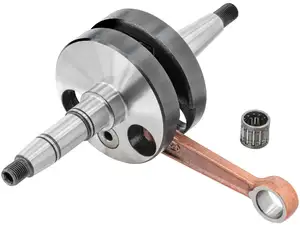

DMP Crankshaft Standard | Puch E50

Manufacturer: DMP · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 14.5 mm · Total length of crankpin on clutch side: 74 mm · Weight: 873 g · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.6 mm · Number of gears: 1 pcs

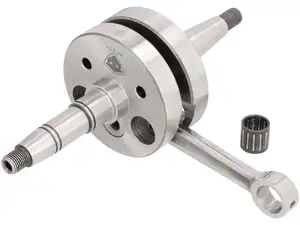

ADDY crankshaft full cheeks 33.5 mm stroke | Puch E50

Manufacturer: ADDY · Area of application: Tuning · Cheek type: Full cheeks · Material: Steel · Crankshaft stroke: 33.5 mm · Connecting rod length center-center: 90 mm · Thread length: 10.5 mm · Thread length: 14.5 mm · Total length of crankpin on clutch side: 66.6 mm · Weight: 921 g · Total length crankpin ignition side: 73.7 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Thread type: MF10x1 (fine pitch thread) · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.6 (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 15.1 mm · Length 3rd paragraph: 25.5 mm · Ø 1st step (on the coupling side): 21.9 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 14.9 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 3.94 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock · Ø bore: 4 mm

GPO sprocket 14 teeth (wide) | Puch

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: Hardened · Number of teeth: 14 pcs · Recording type: Interlocking · Total thickness: 4.6 mm

NGK CR6 Racing ignition cable & plug High End red

Manufacturer: NGK · Material: Rubber · Color: red · Cable available: Yes · Suppressed: Yes · Resistance: 5000 Ω · Ø cable: 7 mm · Cable length: 500 mm

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 17 mm · Stock number: 6203 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø outside: 40 mm

16 mm circlip

Nominal diameter: 16 mm · Fuse type: Outside · Material: Spring steel · Place of use: Universal

Elring Curil T2 sealing compound 70 ml green (polyurethane) non-hardening

Manufacturer: Elring · Area of application: Chemistry · Contents [ml]: 70 ml · Color: green · Temperature resistance (min.): -55 - 250 °C · Gap dimension (max.): 0.2 mm

swiing® ingenious drive pinion cable starter PVL | Puch E50

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blue galvanized · Ignition system: PVL · Number of fixing points: 2 pcs

Oil seal NBR 17/40/7 AS | Puch E50

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 17 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Width: 7 mm · Ø outside: 40 mm · Temperature resistance (min.): -30 - 100 °C

Brass nut M6 3D

Material: Brass · Area of application: Standard · Surface: blank · Thread type: M6x1 (standard thread) · Nut type: Neck nut · Drive: External hexagon · Height: 25 mm · Ø outside: 9 mm · Width across flats SW: 10 mm · Shank length: 20 mm · Thread depth: 25 mm

swiing® ingenious degree disk moped | Bosch, Ducati, EVO, HPI, MVT, PVL, Selettra

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Measuring tool · Surface: anodized · Thickness: 1 mm
